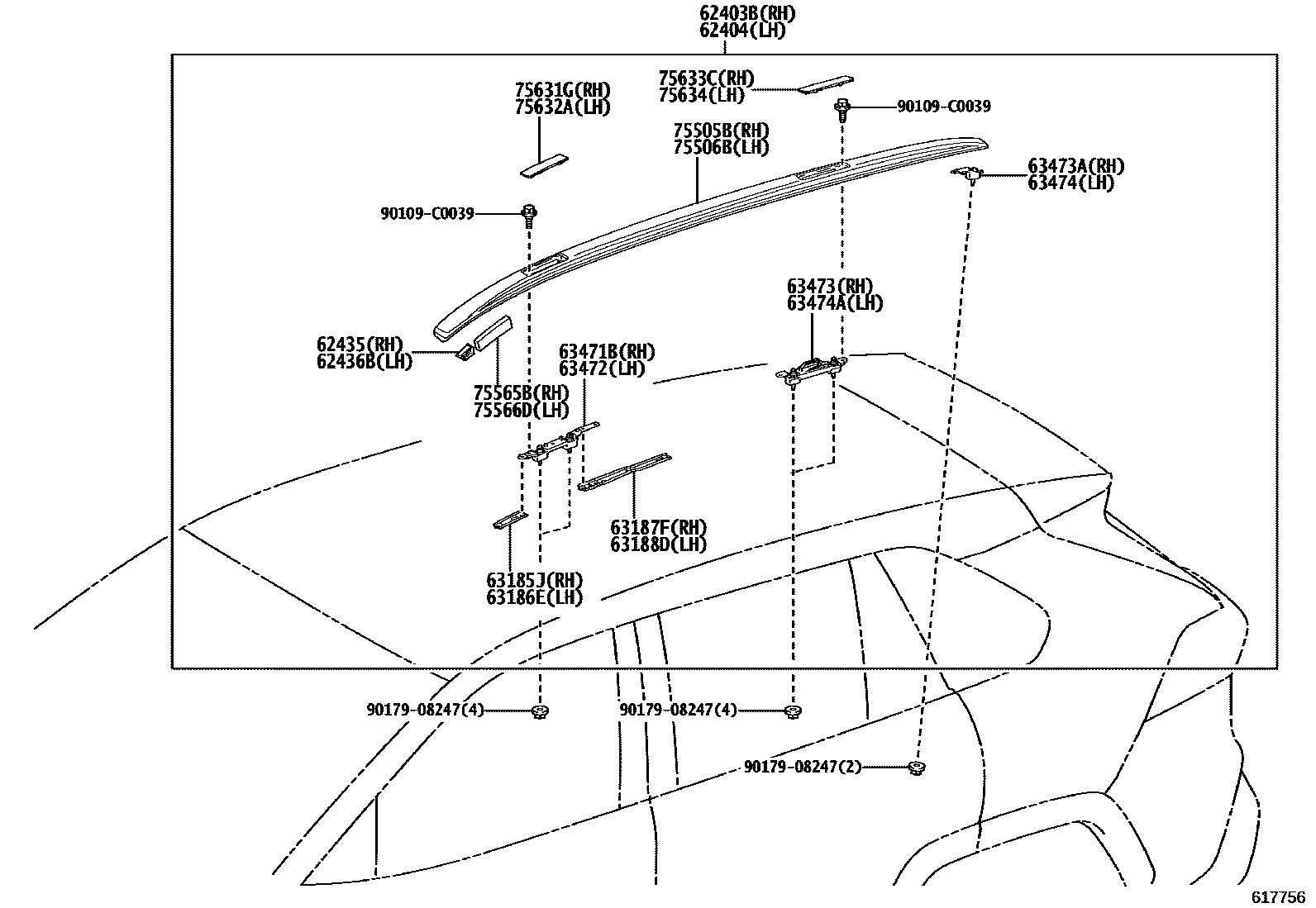

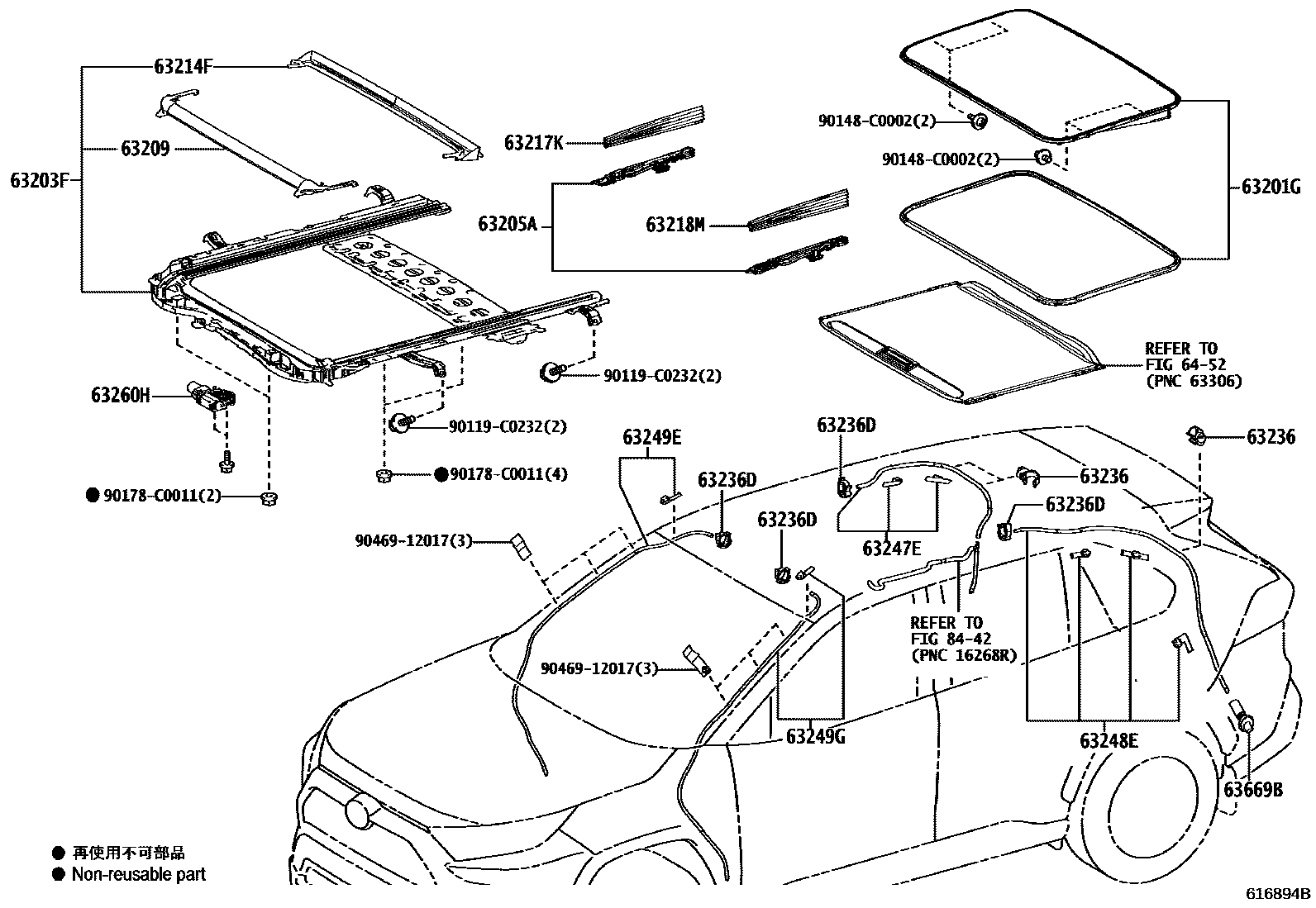

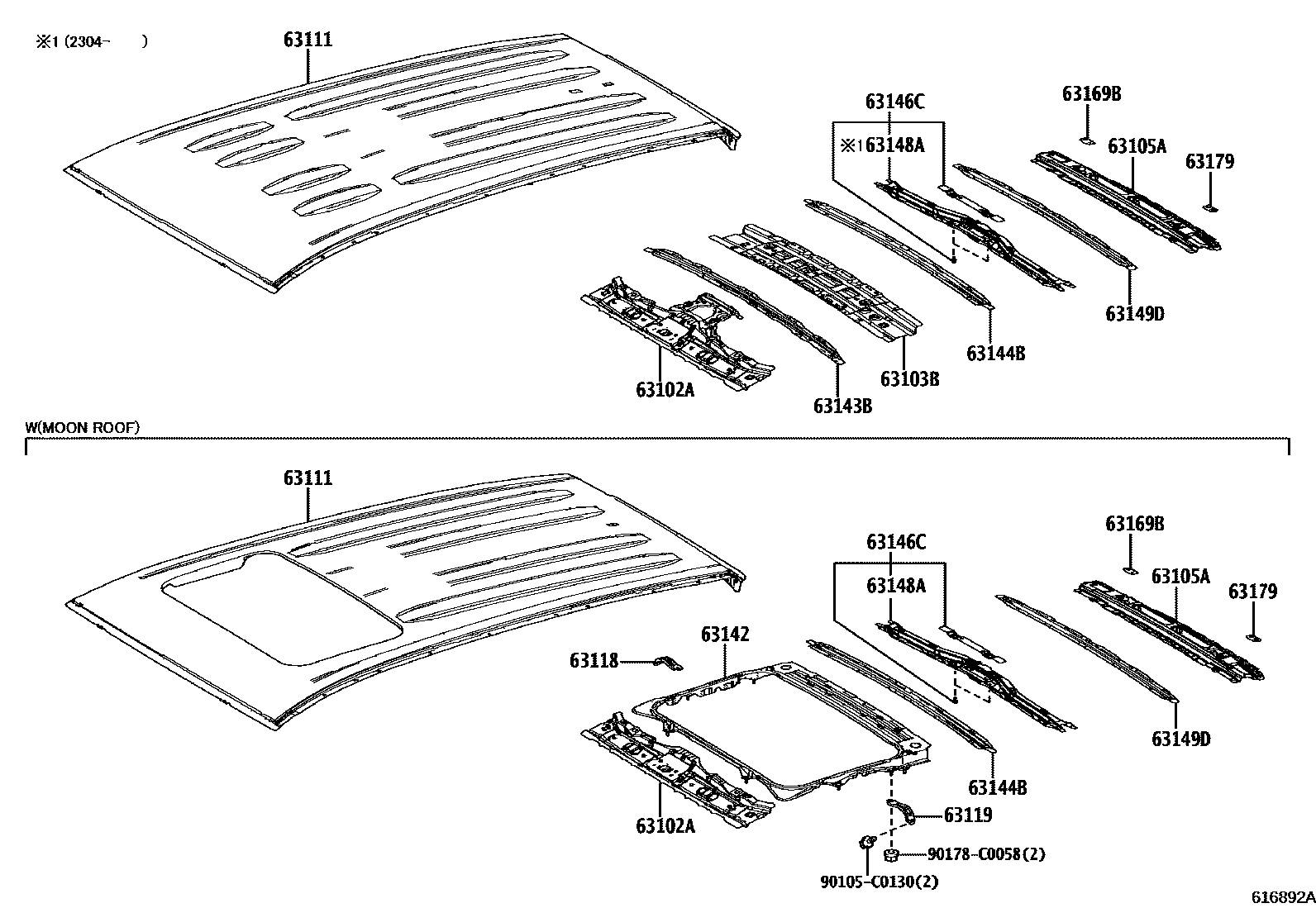

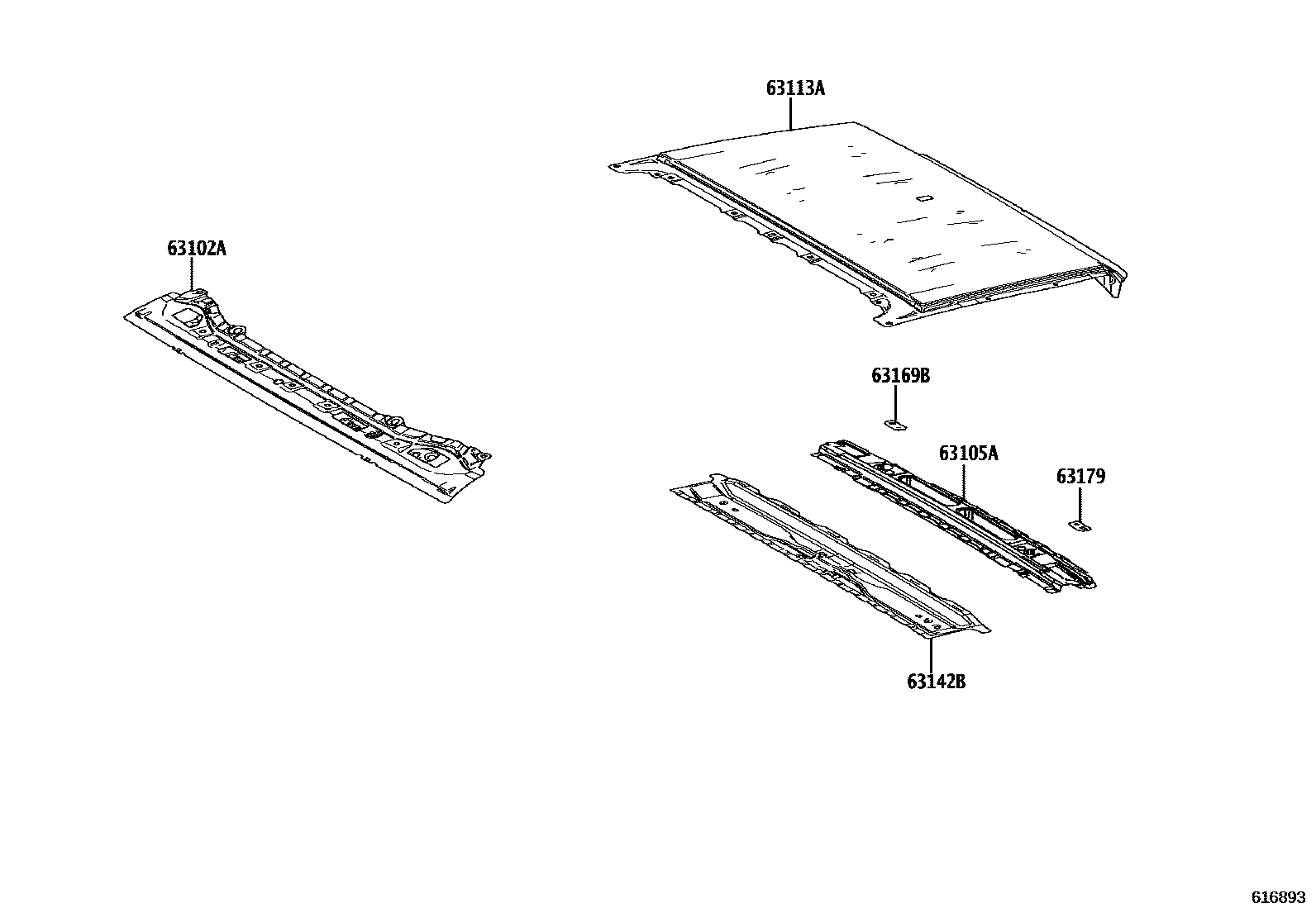

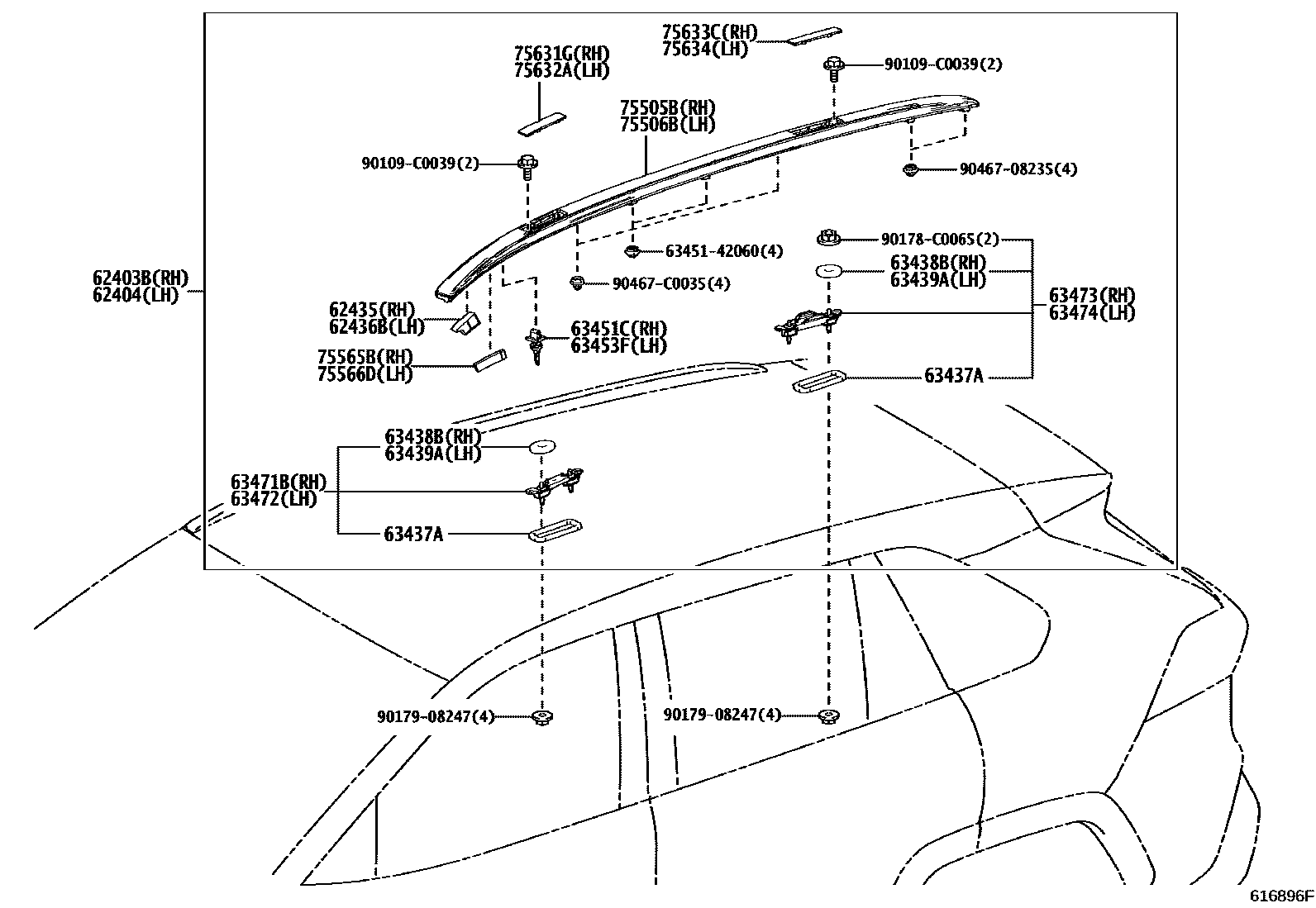

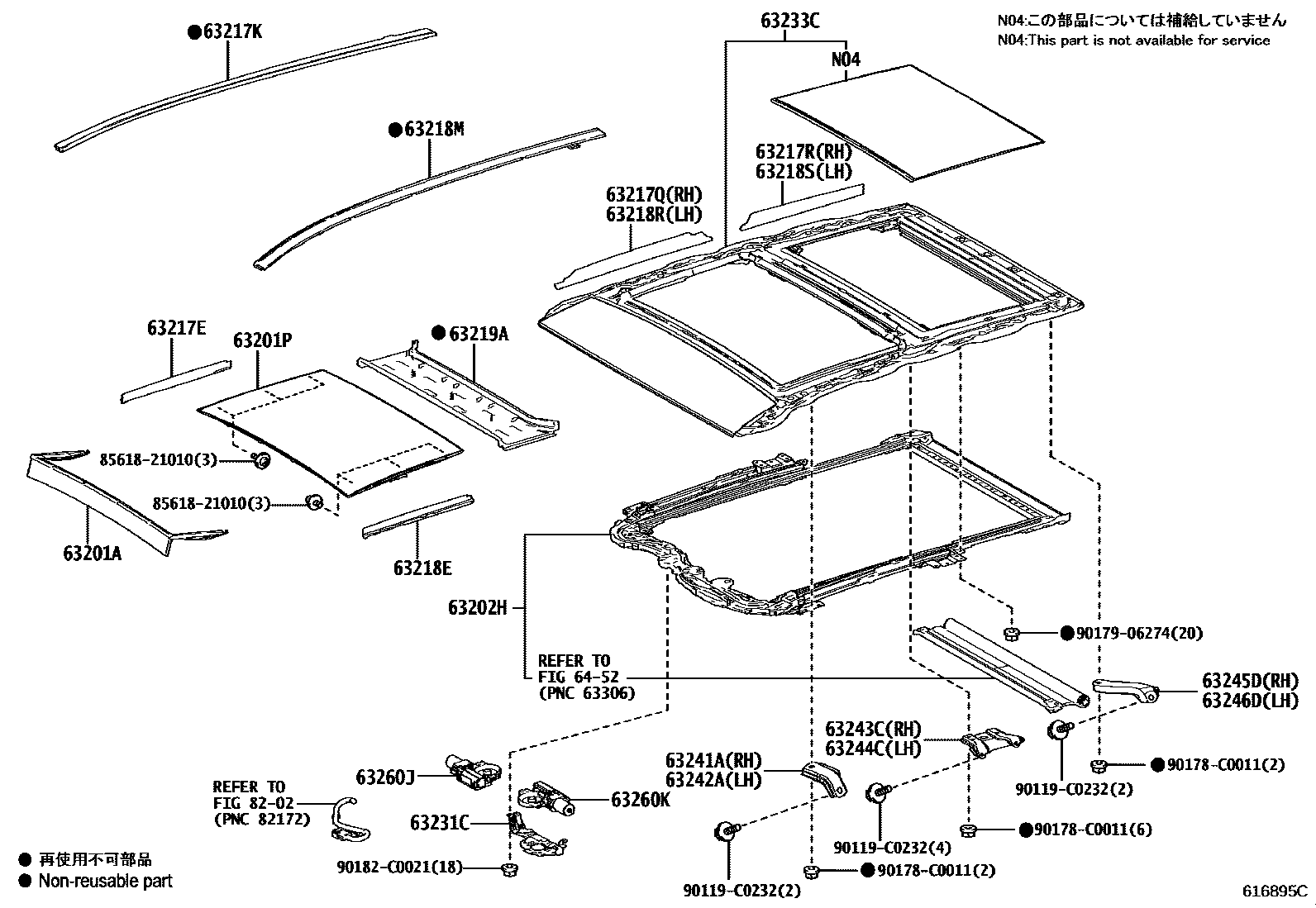

Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 6 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435 | Roof right side rail decorative pad | 62435-0R030 · 62435-0R040 |
| 62436B | Roof left side rail decorative pad | 62436-0R030 · 62436-0R040 |
| 63102A | Windshield roof sub-assembly | 63102-0R140 · 63102-0R909 · 63102-0R910 |
| 63103B | Center roof panel reinforcement sub-assembly | 63103-0R040 |
| 63105A | Back door opening frame sub-assembly | 63105-0R060 |
| 63111 | roof panel | 63111-0R180 · 63111-0R230 |
| 63113A | No. 3 roof panel | 63113-0R020 · 63113-0R021 |
| 63118 | Right roof panel bracket | 63118-0R060 |
| 63119 | Left roof panel bracket | 63118-0R060 |
| 63142 | No. 2 roof panel reinforcement | 63142-0R070 |
| 63142B | Rear roof panel reinforcement | 63142-0R080 · 63142-0R081 |
| 63143B | No. 3 roof panel reinforcement | 63143-0R090 |
| 63144B | No. 4 roof panel reinforcement | 63144-0R070 |
| 63146C | No. 6 roof panel reinforcement sub-assembly | 63108-0R020 |
| 63148A | No. 7 roof panel reinforcement | 63148-0R060 |
| 63149D | No. 8 roof panel reinforcement | 63149-0R070 |
| 63169B | Right roof panel reinforcement panel | 63169-0R040 |
| 63179 | Left roof panel reinforcement panel | 63179-0R040 |
| 63185J | SUPPORT, GARNITURE DE TOIT, MD | 63185-0R040 |
| 63186E | SUPPORT, GARNITURE DE TOIT, MG | 63185-0R040 |
| 63187F | SUPPORT, GARNITURE DE TOIT, ARRIERE MD | 63187-0R040 |
| 63188D | SUPPORT, GARNITURE TOIT, ARRIERE MG | 63187-0R040 |
| 63201A | Sliding sunroof or removable roof panel sub-assembly | 63201-0R100 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0R090 |
| 63201P | Sliding sunroof glass sub-assembly | 63201-0R110 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-0R110 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02110 |
| 63209 | Roof deflector sub-assembly | 63209-0R060 |
| 63214F | Roof rear drain channel | 63214-02160 |
| 63217E | Right front sliding sunroof trim | 63217-0R070 |
| 63217K | Right sliding sunroof trim | 63217-07020 · 63217-0R100 |
| 63217Q | Right sliding sunroof trim | 63217-0R080 |
| 63217R | Right sliding sunroof trim | 63217-0R090 |
| 63218E | Left front sliding sunroof trim | 63218-0R070 |
| 63218M | Sliding sunroof trim, left | 63217-07020 · 63218-0R100 |
| 63218R | Sliding sunroof trim, left | 63218-0R080 |
| 63218S | Sliding sunroof trim, left | 63218-0R090 |
| 63219A | Rear sliding sunroof trim | 63219-0R020 |
| 63231C | Interior light bracket | 63231-0R100 |
| 63233C | Sliding skylight shelf | 63233-0R072 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-0R010 |
| 63236D | Sliding skylight drain hose clamp | 63236-33030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-0R070 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-0R070 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-0R050 · 63243-0R051 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-0R050 · 63244-0R051 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-0R070 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-0R040 |
| 63247E | Right rear sliding sunroof drain hose | 63247-0R080 |
| 63248E | Left rear sliding sunroof drain hose | 63248-0R050 |
| 63249E | Sliding skylight drain hose | 63249-0R090 |
| 63249G | Sliding skylight drain hose | 63249-0R100 |
| 63260H | Sliding sunroof driving gear assembly | 63260-0R061 |
| 63260J | Sliding sunroof driving gear assembly | 63260-0R071 |
| 63260K | Sliding sunroof driving gear assembly | 63260-0R080 |
| 63437A | Roof rack No. 2 seal | 63437-0R030 |
| 63438B | Roof right storage rack No. 3 seal | 63438-0R070 · 63438-20010 |
| 63439A | Roof left storage rack No. 3 seal | 63438-0R070 · 63438-20010 |
| 63451C | Right front roof rack fixing | 63451-0R030 |
| 63453F | Left front roof rack fixing | 63451-0R030 |
| 63471B | Right front roof rack support | 63471-0R080 · 63471-0R160 |
| 63472 | Left front roof rack support | 63472-0R080 · 63472-0R160 |
| 63473 | Right rear roof rack support | 63473-0R100 · 63473-0R190 |
| 63473A | Right rear roof rack No. 2 support leg | 63473-0R200 |
| 63474 | Left rear roof rack support leg | 63473-0R200 · 63474-0R070 |
| 63474A | Left rear roof rack No. 2 support leg | 63474-0R160 |
| 63669B | Sliding skylight drain seal | 90480-26026 |
| 75565B | Right front roof side trim protector | 75565-0R010 · 75565-0R030 |
| 75566D | Left front roof side trim protector | 75565-0R010 · 75565-0R030 |
