Toyota RAV4 后地板和后地板梁 — Figure 5852

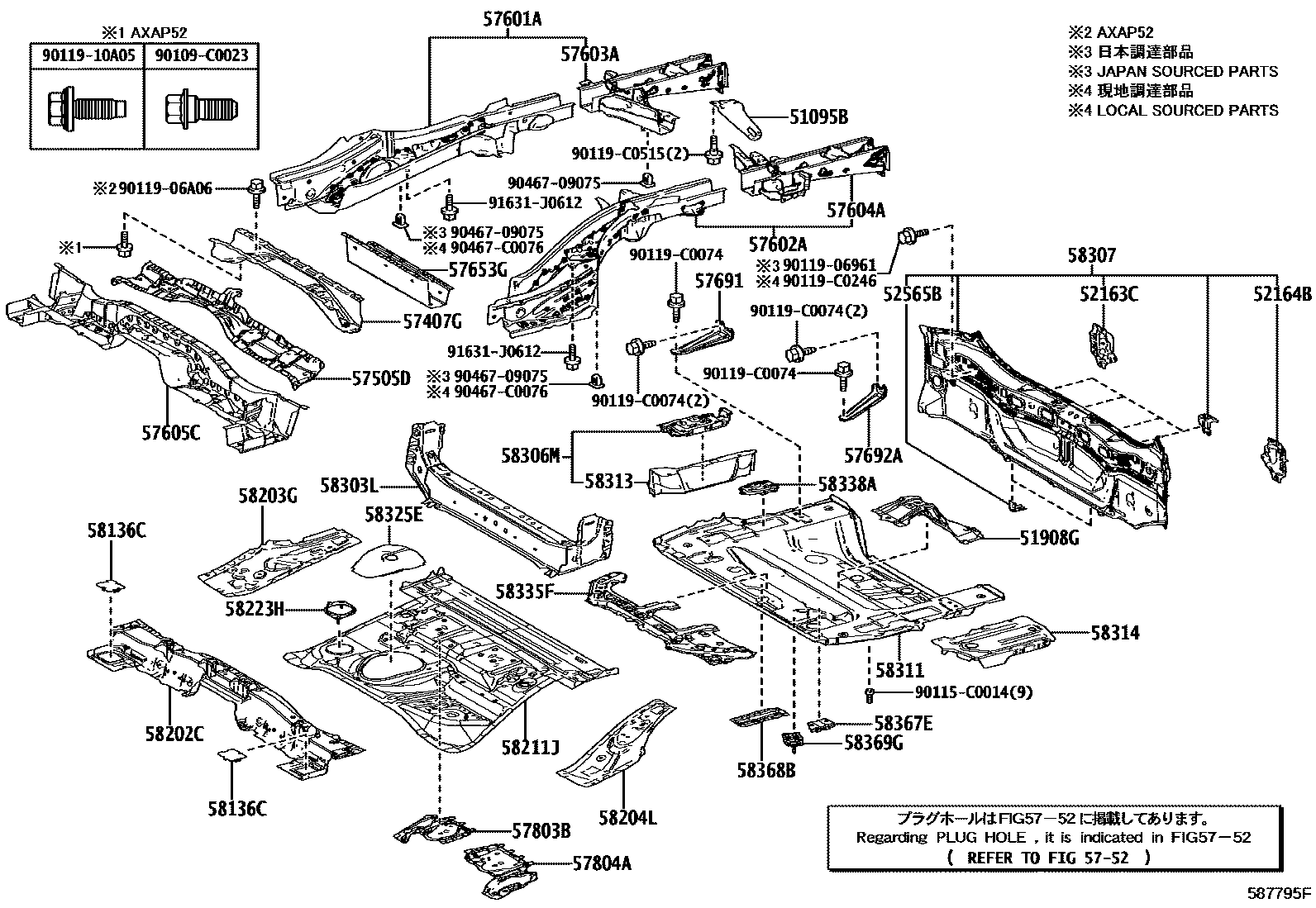

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51095B | Right rear transport hook sub-assembly | 51095-0R020 |
| 51908G | Spare tire rack bracket sub-assembly | 51908-0R030 |
| 52163C | Reinforcement panel on the right side of the rear bumper | 52163-0R050 |
| 52164B | Rear bumper left reinforcement plate | 52164-0R050 |
| 52565B | Rear bumper lower fixing bracket | 52565-0R050 |
| 57407G | Center floor beam sub-assembly | 57407-0R021 |
| 57505D | Front underfloor reinforcement sub-assembly | 57505-0R070 |
| 57601A | Rear floor right longitudinal beam sub-assembly | 57601-0R100 |
| 57602A | Rear floor left longitudinal beam sub-assembly | 57602-0R100 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0R060 · 57603-0R061 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-0R060 · 57604-0R061 |
| 57605C | Rear floor cross member sub-assembly | 57605-0R100 |
| 57653G | No. 2 rear floor cross member | 57653-0R080 |
| 57691 | Rear floor No. 2 cross member right inner bracket | 57691-0R020 |
| 57692A | Rear floor No. 2 cross member left inner bracket | 57692-0R020 |
| 57803B | Right No. 2 seat belt anchor reinforcement sub-assembly | 57803-0R070 |
| 57804A | Left No. 2 seat belt anchor reinforcement sub-assembly | 57804-0R060 |
| 58136C | Rear floor hole cover | 58136-0R030 |
| 58202C | Center floor front floor sub-assembly | 58202-0R110 |
| 58203G | Center floor right reinforcement sub-assembly | 58203-0R010 |
| 58204L | Center floor left reinforcement sub-assembly | 58204-0R020 |
| 58211J | central floor base | 58211-0R100 |
| 58223H | Floor right reinforcement | 58223-0R040 |
| 58303L | Rear floor partition sub-assembly | 58303-0R041 · 58303-0R042 |
| 58306M | Rear floor side panel sub-assembly | 58306-0R020 |
| 58307 | Body lower back panel sub-assembly | 58307-0R090 · 58307-0R091 · 58307-0R120 |
| 58311 | rear floor pan | 58311-42150 · 58311-78040 · 58311-78060 |
| 58313 | Rear floor right panel | 58313-0R060 |
| 58314 | rear floor left panel | 58314-0R040 |
| 58325E | Rear floor access hole cover | 58325-0R080 |
| 58335F | Front floor right panel | 58335-0R011 |
| 58338A | Rear floor floor reinforcement No. 2 | 58338-0R040 |
| 58367E | No. 1 fuel pipe bracket | 58367-F4020 |
| 58368B | No. 2 fuel pipe bracket | 58368-0R040 |
| 58369G | No. 3 fuel pipe bracket | 58369-07020 |
