Toyota RAV4 hole plug — Figure 5752

Toyota RAV4 EPC diagram 5752, hole plug, with 4 images and 0 PNC and OE references.

Toyota RAV4 hole plug EPC diagram — 572100D
hole plug — 572100D (202104 – 999999)

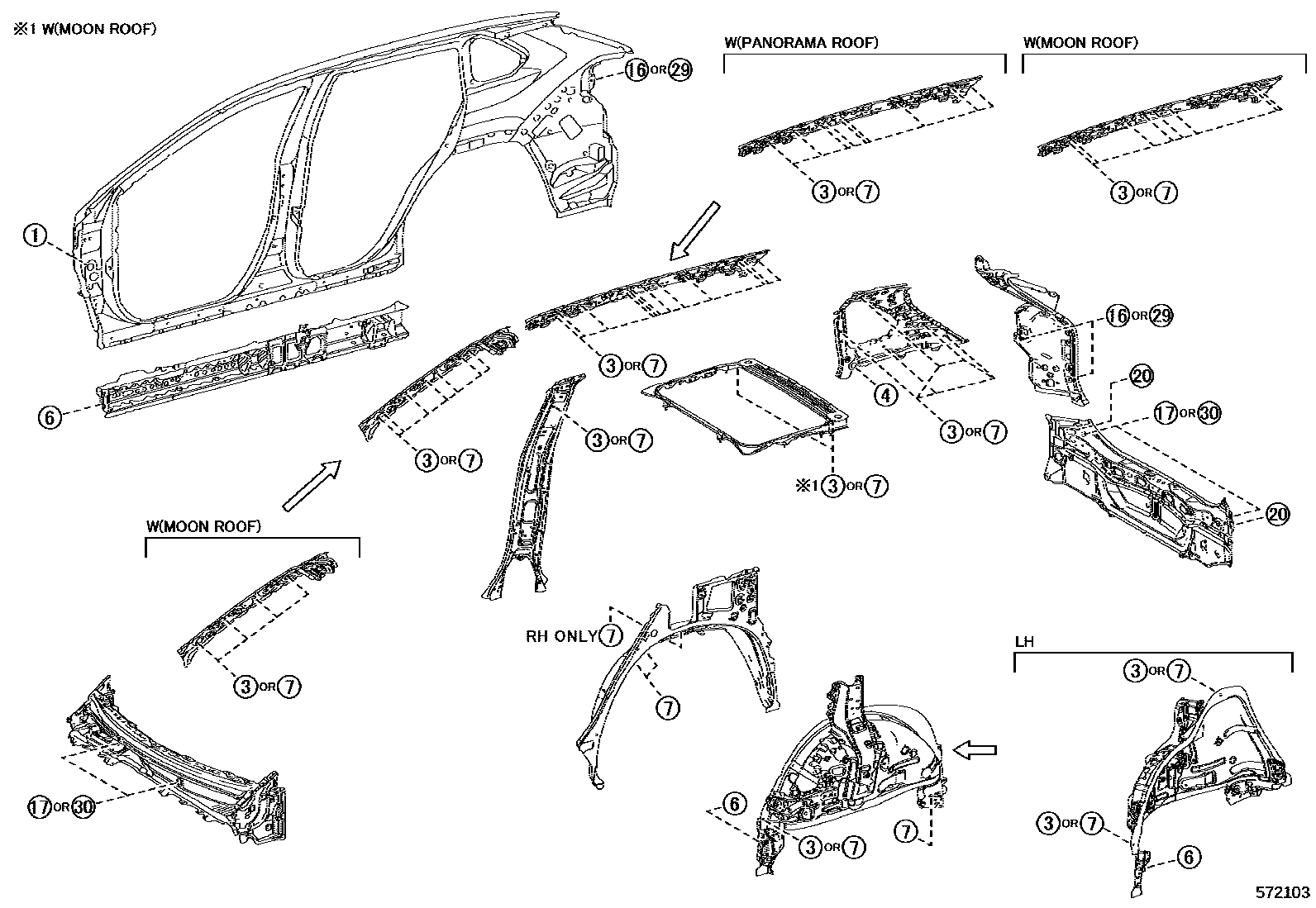

Toyota RAV4 hole plug EPC diagram — 572103
hole plug — 572103 (202104 – 999999)

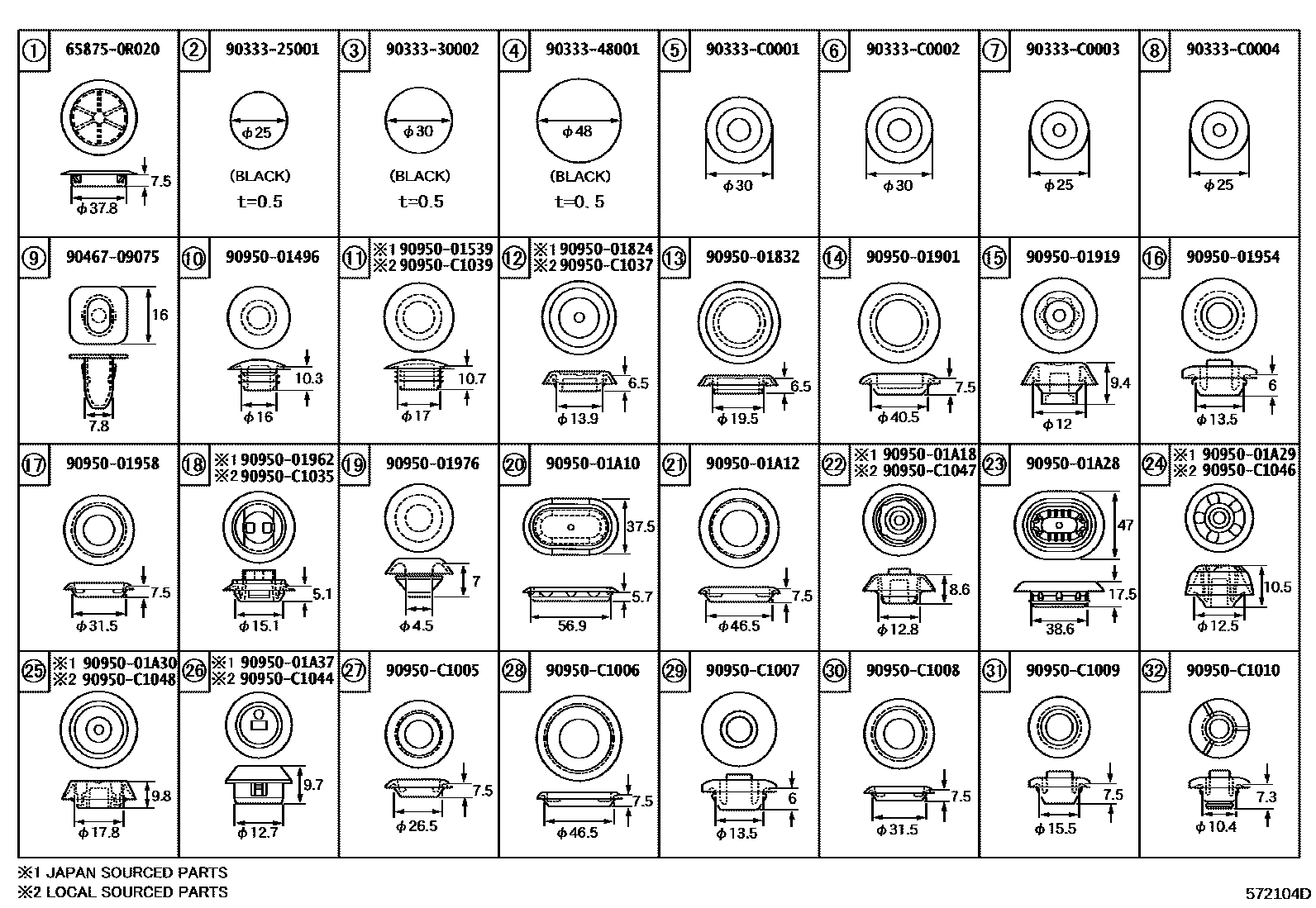

Toyota RAV4 hole plug EPC diagram — 572104D
hole plug — 572104D (202104 – 999999)

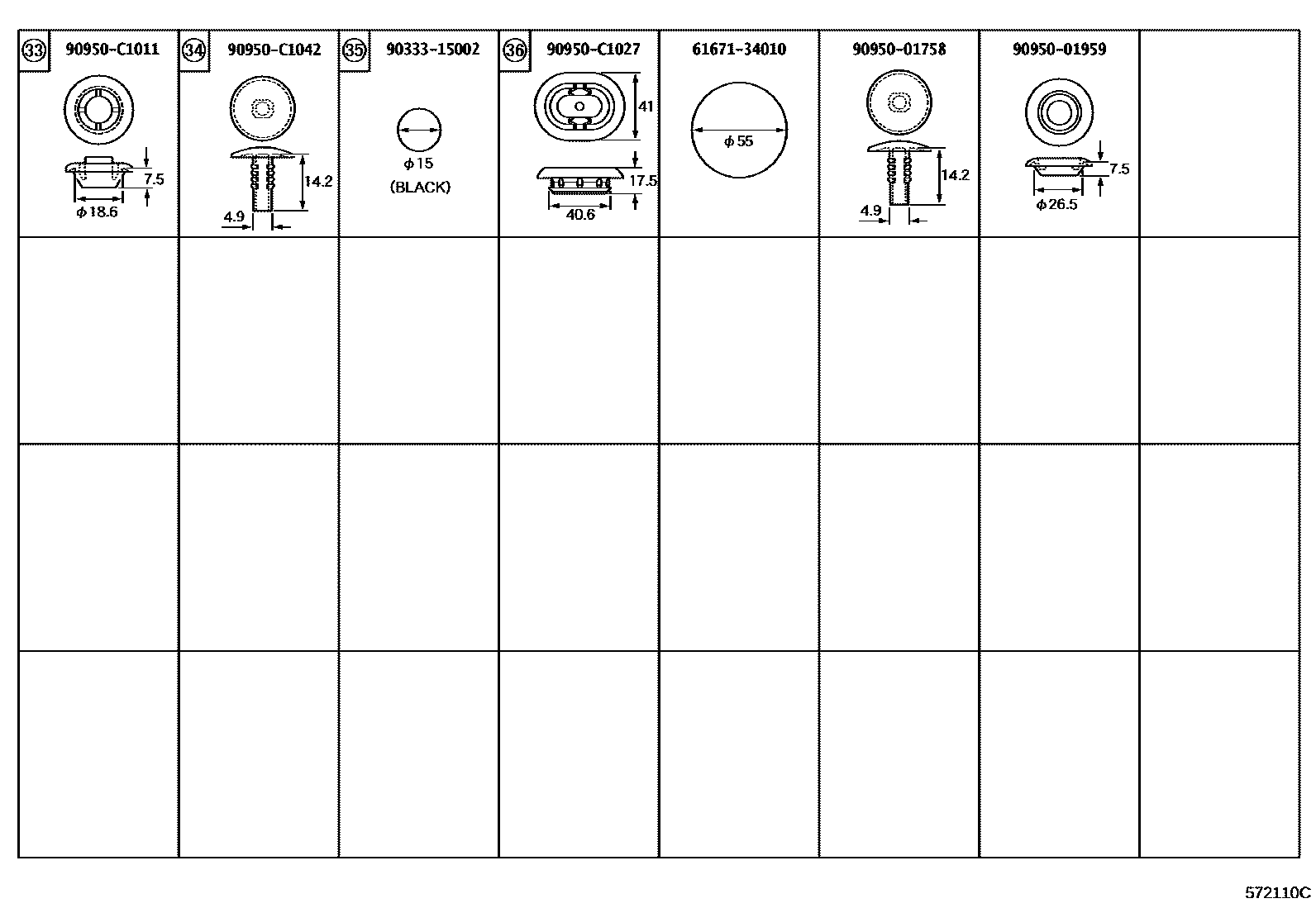

Toyota RAV4 hole plug EPC diagram — 572110C
hole plug — 572110C (202104 – 999999)
