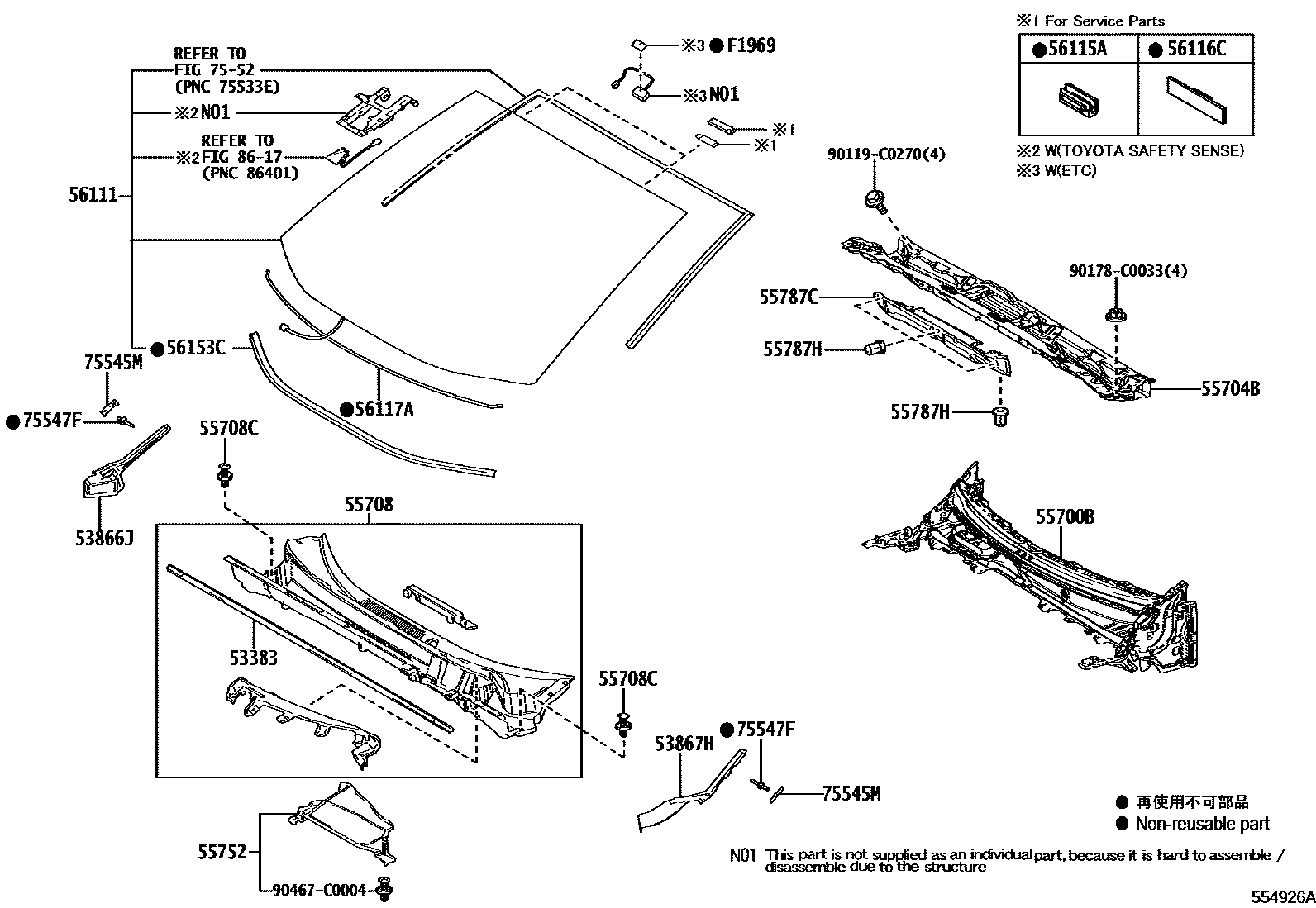

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0R060 |
| 53866J | Right front fender to cowl side seal | 53866-0R070 · 53866-0R071 |
| 53867H | Left front fender to cowl side seal | 53867-0R070 · 53867-0R071 |
| 55700B | Front apron assembly | 55700-0R060 |
| 55704B | Front ventilation device panel sub-assembly | 55704-0R040 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-0R070 |
| 55708C | Ventilation grille clips on front apron | 90467-09242 · 90467-C0071 |
| 55752 | Front ventilator splash guard | 55752-0R040 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-0R070 |
| 55787H | Front wall upper cover heat insulation pad clip | 90467-06188 · 90467-C0003 |
| 56111 | windshield | 56101-0R450 · 56101-0R570 · 56101-0R640 · 56101-0R680 · 56101-0R710 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-0R060 |
| 56153C | Front center window inner protective strip | 56153-0R030 |
| 75545M | Windshield outer protective strip clip | 75545-42010 |
| 75547F | Windshield outer protective strip clip | 75547-0N010 · 75547-51021 |
| F1969 | Sealing tape (for toll collection machine ECU) | F1969-YY010 |
