Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

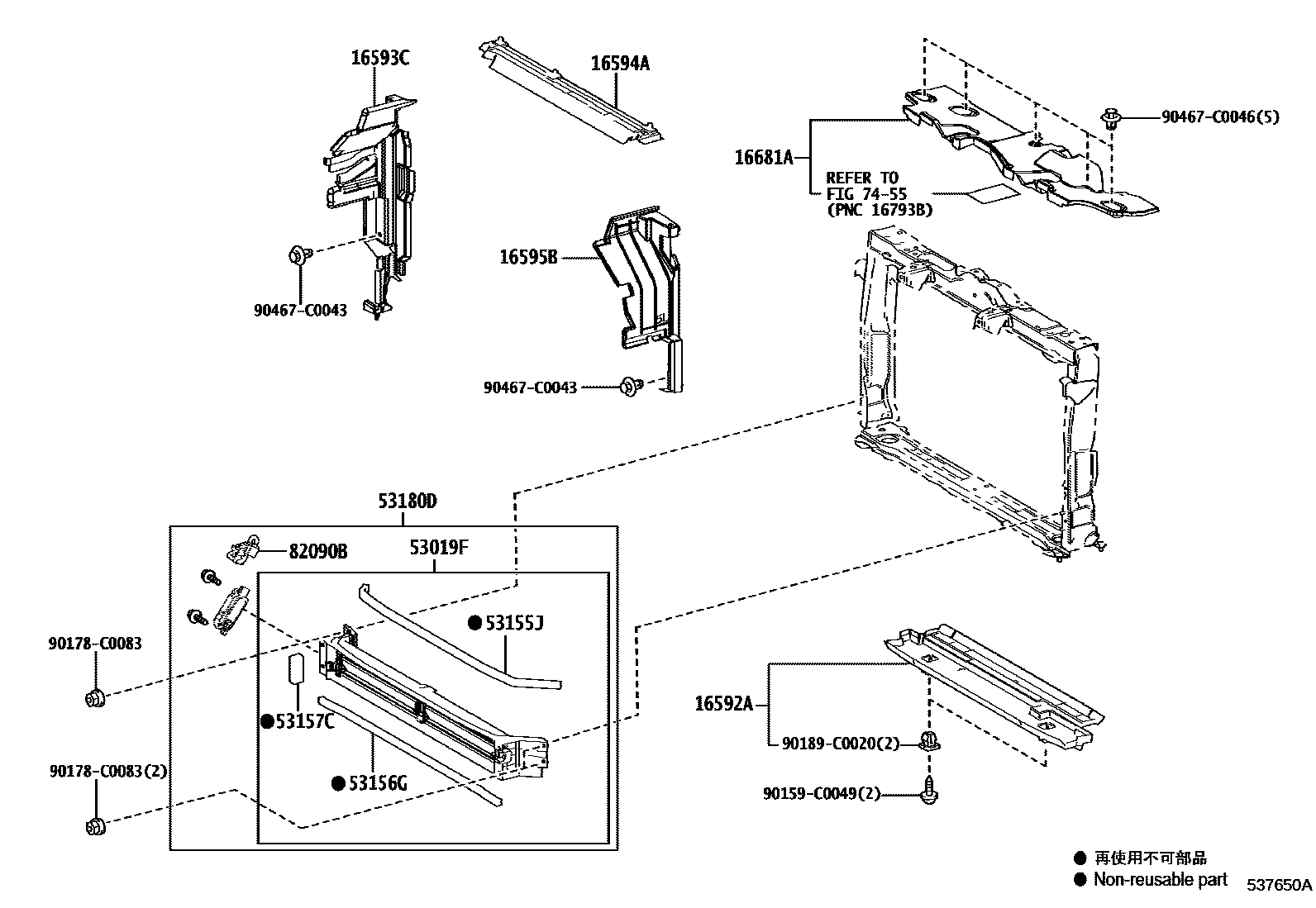

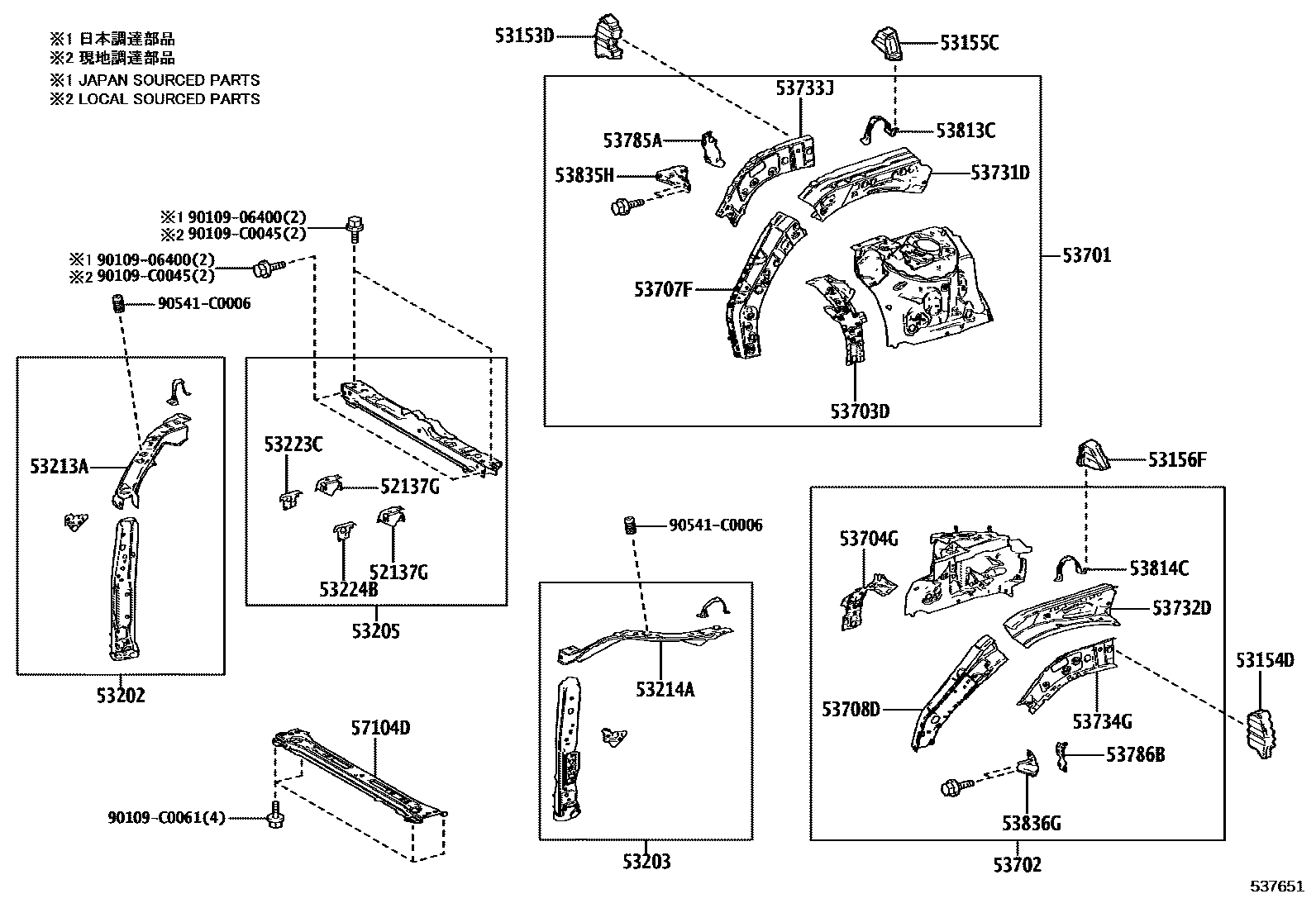

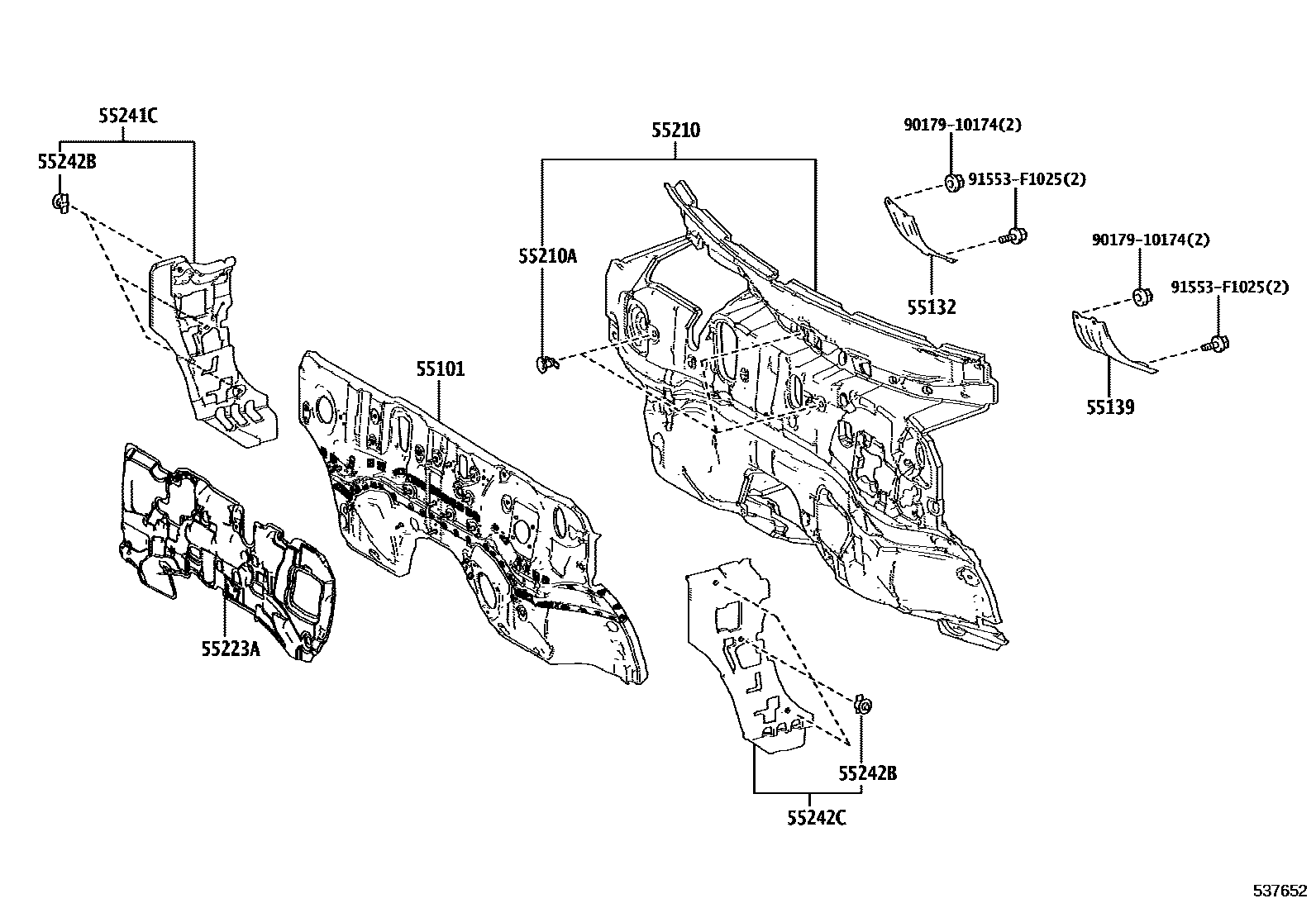

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 3 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-F0110 |
| 16593C | Radiator deflector No. 1 | 16593-F0250 |
| 16594A | Radiator deflector No. 2 | 16594-F0100 |
| 16595B | No. 1 radiator left deflector | 16595-F0260 |
| 16681A | Radiator upper deflector | 16681-F0010 |
| 52137G | Front bumper arm No. 3 mounting bracket | 52137-0R040 |
| 53019F | Radiator louver sub-assembly | 53019-0R110 |
| 53153D | Radiator grille right deflector | 53153-0R040 |
| 53154D | Radiator grille left deflector | 53154-0R040 |
| 53155C | Radiator grille seal No. 1 | 53155-0R040 |
| 53155J | Radiator grille seal No. 1 | 53155-0R110 |
| 53156F | Radiator grille seal No. 2 | 53156-0R040 |
| 53156G | Radiator grille seal No. 2 | 53156-0R130 |
| 53157C | Radiator grille seal No. 3 | 53157-0R020 |
| 53180D | Radiator shutter assembly | 53180-0R080 · 53180-0R081 · 53180-0R082 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0R903 |
| 53203 | Radiator left bracket sub-assembly | 53203-0R900 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0R900 |
| 53213A | Radiator upper right bracket | 53213-0R060 |
| 53214A | Radiator upper left bracket | 53214-0R060 |
| 53223C | Radiator grille right side mounting bracket | 53223-0R060 |
| 53224B | Radiator grille left mounting bracket | 53223-0R060 |
| 53701 | Right front fender fender sub-assembly | 53701-0R070 |
| 53702 | Left front fender fender sub-assembly | 53702-0R070 |
| 53703D | No. 2 right front fender fender sub-assembly | 53703-0R040 |
| 53704G | No. 2 left front fender fender sub-assembly | 53704-0R040 |
| 53707F | Right front fender fender lower corner plate sub-assembly | 53707-0R040 |
| 53708D | Fender left fender sub-assembly | 53708-0R041 |
| 53731D | Right front fender to cowl side upper beam | 53731-0R060 |
| 53732D | Left front fender to cowl side upper beam | 53732-0R060 |
| 53733J | Right front fender to front wall side outer beam | 53733-0R030 |
| 53734G | Left front fender to front wall side outer beam | 53734-0R040 |
| 53785A | Right front fender corner plate | 53785-0R020 |
| 53786B | Left front fender corner plate | 53786-0R020 |
| 53813C | Right front fender extension | 53813-0R060 |
| 53814C | Left front fender extension | 53814-0R060 |
| 53835H | Right front fender to extension stay | 53835-0R070 |
| 53836G | Left front fender to extension stay | 53836-0R060 |
| 55101 | Front apron sub-assembly | 55101-0R170 |
| 55132 | No. 2 cowl panel reinforcement | 55132-0R010 |
| 55139 | Front wall to frame bracket reinforcement | 55139-0R030 |
| 55210 | Front wall insulation pad assembly | 55210-0R100 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-0R080 |
| 55241C | Front panel No. 1 right side silencer | 55241-0R020 |
| 55242B | Front panel side muffler clip | 90467-13079 |
| 55242C | Front panel No. 1 left side silencer | 55242-0R020 |
| 57104D | Front cross member sub-assembly | 57104-0R060 |
| 82090B | Extension cord assembly | 82090-0R020 |
