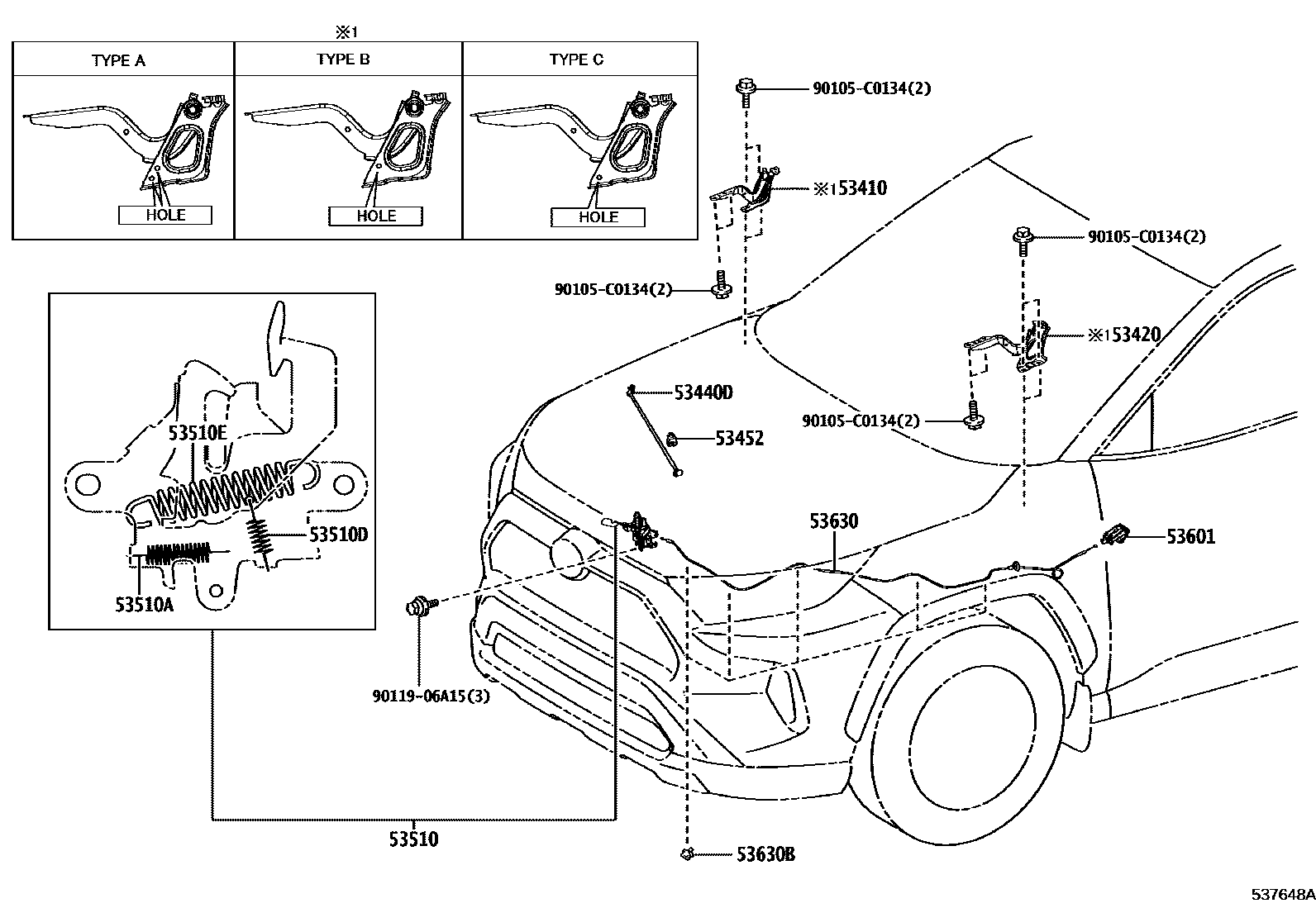

Toyota RAV4 发动机盖锁和铰链 — Figure 5354
Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0R140 · 53410-0R150 · 53410-0R160 |
| 53420 | Engine cover left hinge assembly | 53420-0R140 · 53420-0R150 · 53420-0R160 |
| 53440D | Engine cover support rod assembly | 53440-0R060 |
| 53452 | Engine cover stay rod fixing | 53452-0R030 |
| 53510 | Engine cover lock assembly | 53510-0R080 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-C0006 |
| 53630 | Engine hood lock control cable assembly | 53630-0R060 |
| 53630B | Clip (for hood lock control cable) | 90469-C0004 |
