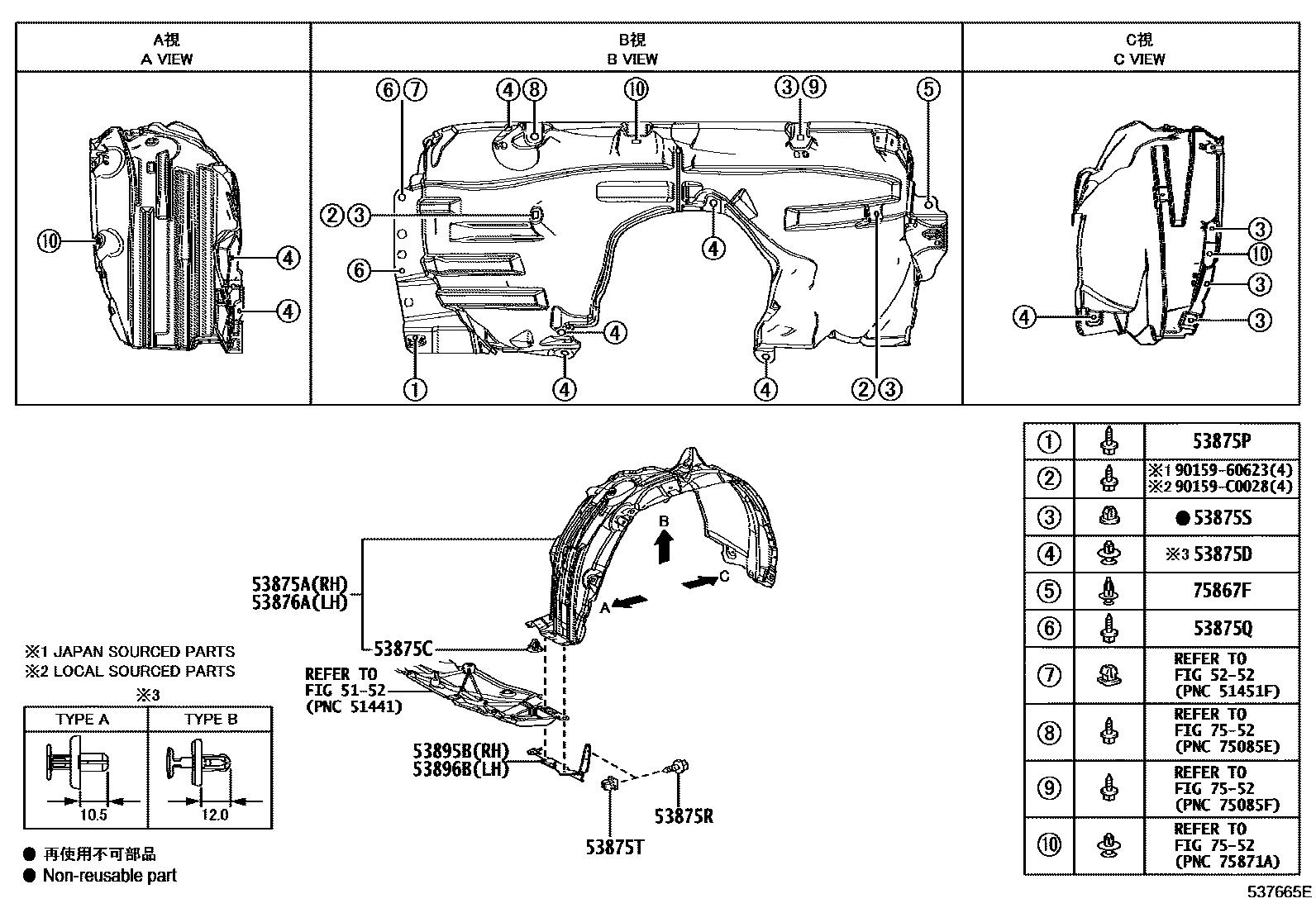

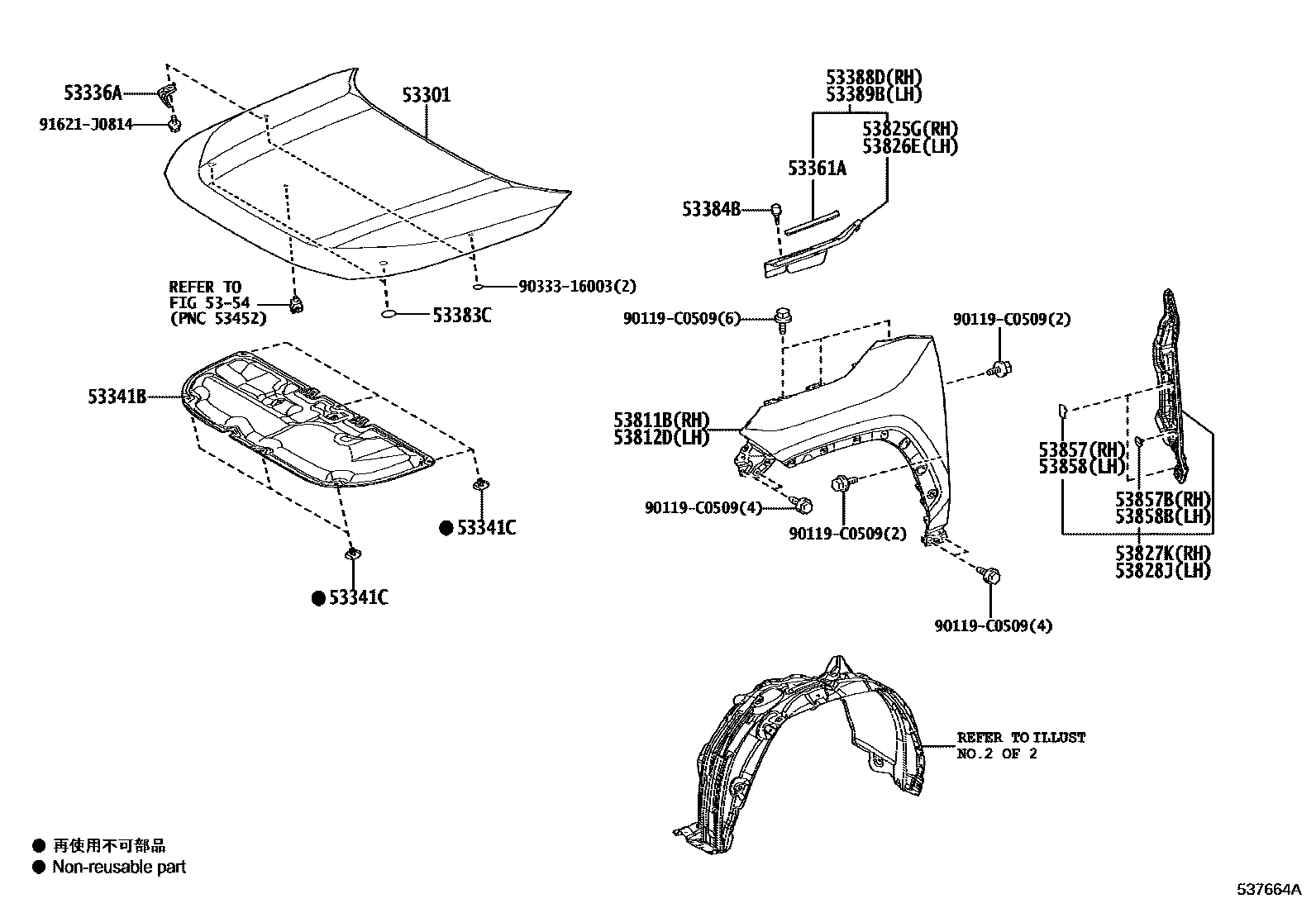

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0R090 |
| 53336A | Engine cover strut bracket | 53336-0R020 |
| 53341B | engine cover gasket | 53341-0R070 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-C0025 |
| 53361A | engine cover seal | 53361-0R040 |
| 53383C | Engine cover to cowl upper cover seal | 90950-06096 |
| 53384B | Engine cover center cushion | 53384-22070 |
| 53388D | Engine cover to right front fender seal | 53388-0R060 |
| 53389B | Engine cover to left front fender seal | 53389-0R060 |
| 53811B | right front fender | 53811-0R140 |
| 53812D | left front fender | 53812-0R120 |
| 53825G | Right front fender protection piece | 53825-0R040 |
| 53826E | Protection piece on left front fender | 53826-0R040 |
| 53827K | Right front fender side panel protector | 53827-0R060 |
| 53828J | Left front fender side panel protector | 53828-0R060 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-0R010 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-0R010 |
| 53875A | Right front fender lining | 53875-0R120 |
| 53875C | Front fender lining clip | 90467-06192 |
| 53875D | No. 2 front fender lining clip | 90467-07215 · 90467-C0043 · 90467-C0101 |
| 53875P | Screw No. 1 | 90159-C0049 |
| 53875Q | No. 2 screw | 90159-C0049 |
| 53875R | No. 3 screw | 90159-C0049 |
| 53875S | Gasket No. 1 | 90189-C0022 |
| 53875T | Gasket No. 2 | 90189-C0020 |
| 53876A | Left front fender lining | 53876-0R120 |
| 53895B | Right front fender front splash guard | 53895-0R120 |
| 53896B | Left front fender front splash guard | 53896-0R120 |
| 75867F | Door sill panel protective strip clip | 75867-0P010 |
