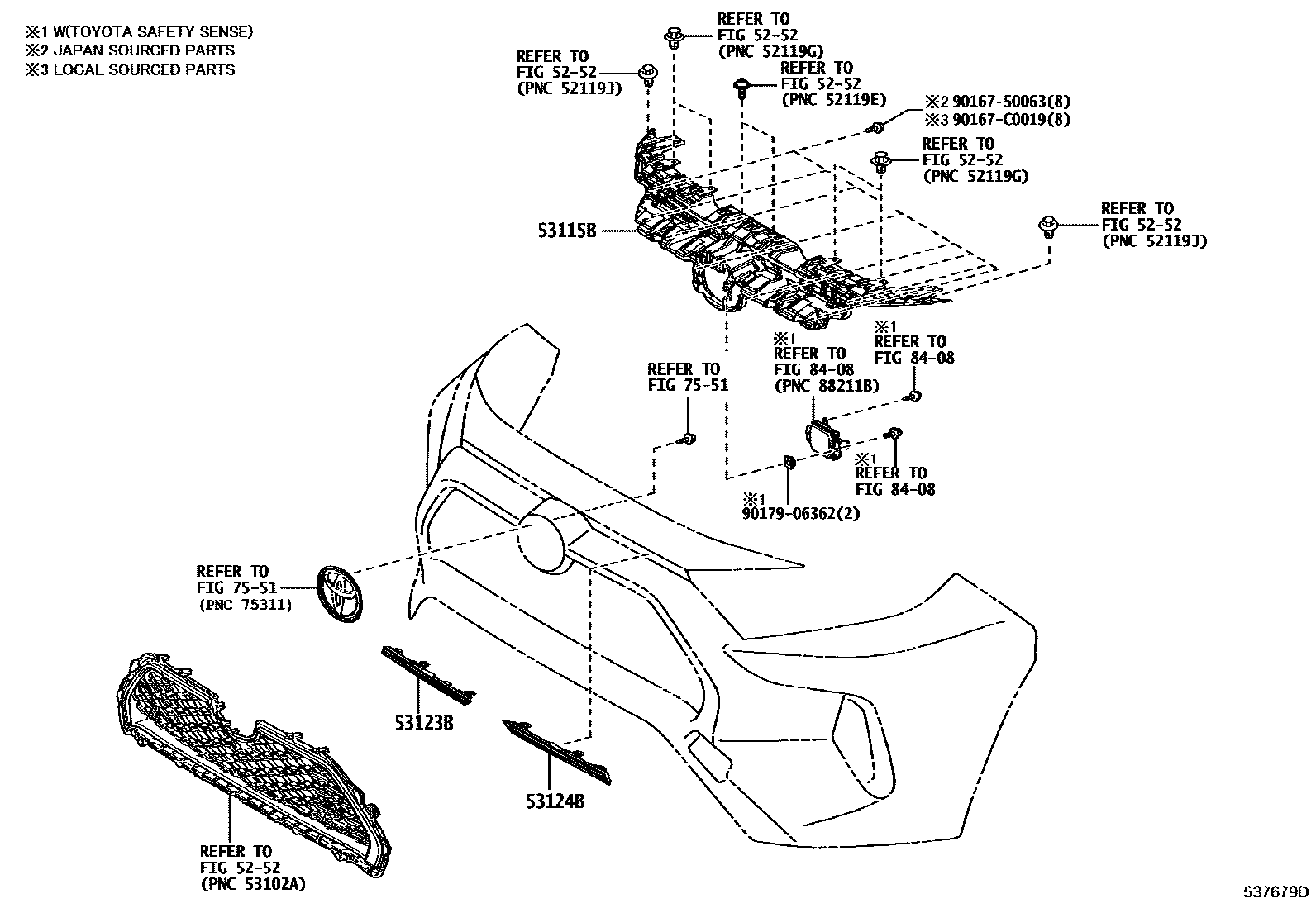

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53115B | Radiator grille bracket | 53115-0R030 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-0R080 |
| 53124B | Radiator grille left protective strip | 53124-0R070 |
