Toyota RAV4 后保险杠及附件 — Figure 5253

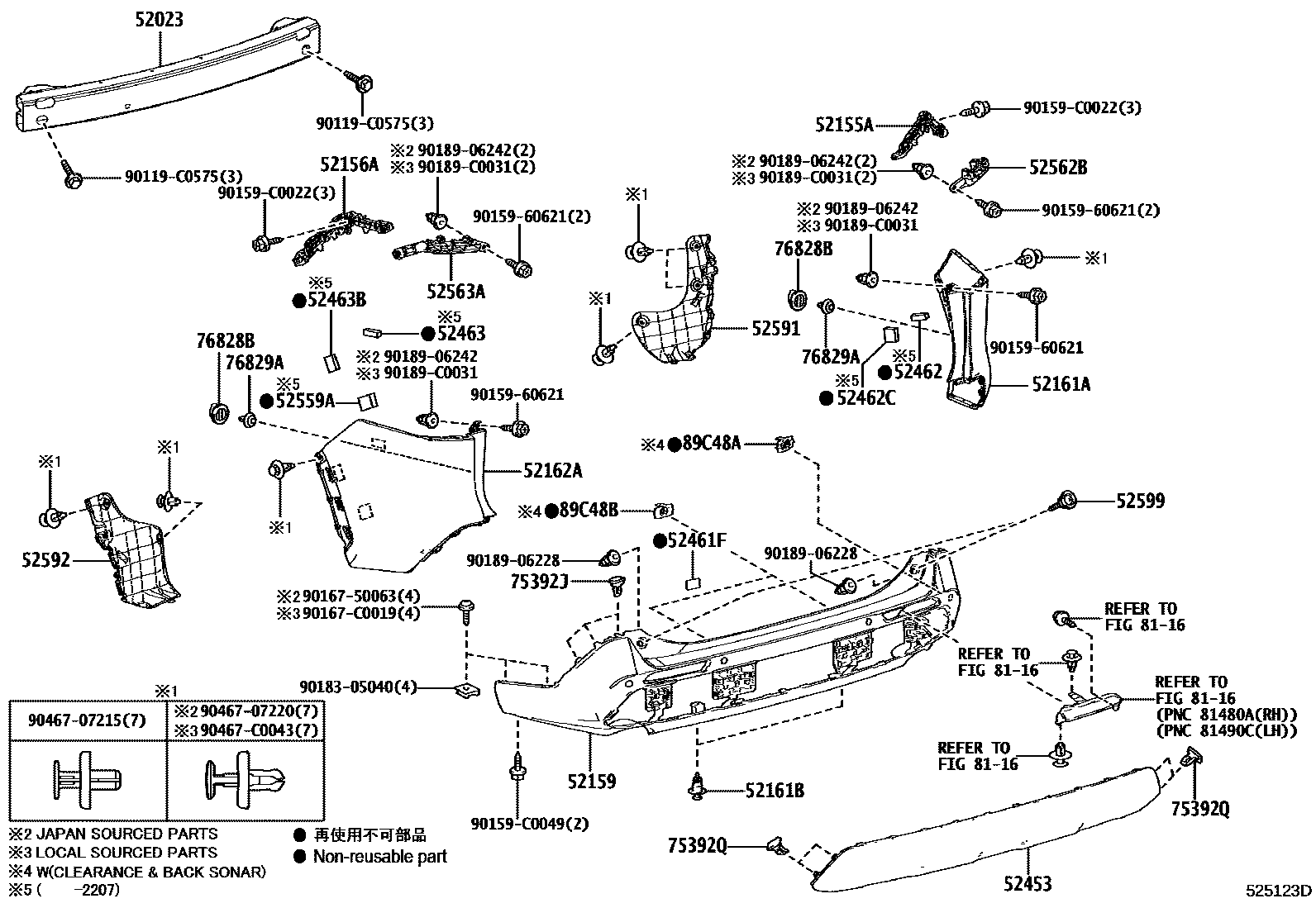

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0R060 |
| 52155A | Rear bumper right side bracket | 52155-0R080 |
| 52156A | Rear bumper left bracket | 52156-0R080 |
| 52159 | rear bumper cover | 52159-0R240 · 52159-0R390 · 52159-0R927 |
| 52161A | Rear bumper right side gap filler | 52161-0R908 |
| 52161B | Rear bumper insert | 52161-02040 |
| 52162A | Rear bumper left insert | 52162-0R908 |
| 52453 | Rear bumper center anti-collision bar | 52453-0R100 |
| 52461F | rear bumper lining | 52461-0R040 |
| 52462 | Rear bumper right side lining | 52462-0R030 |
| 52462C | Rear bumper right side lining | 52463-0R020 |
| 52463 | Rear bumper left lining | 52462-0R030 |
| 52463B | Rear bumper left lining | 52463-0R020 |
| 52559A | Rear bumper left curved filler liner | 52559-0R010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0R080 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0R080 |
| 52591 | Rear bumper right seal | 52591-0R080 |
| 52592 | Rear bumper left seal | 52592-0R080 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 75392J | External protective strip fixings | 75392-0R030 |
| 75392Q | No. 2 outer protective strip fixings | 75392-0R030 |
| 76828B | Rear door decorative strip fasteners | 76828-60030 |
| 76829A | Rear door decorative strip fasteners | 76829-60020 |
