Toyota RAV4 前保险杠及附件 — Figure 5252

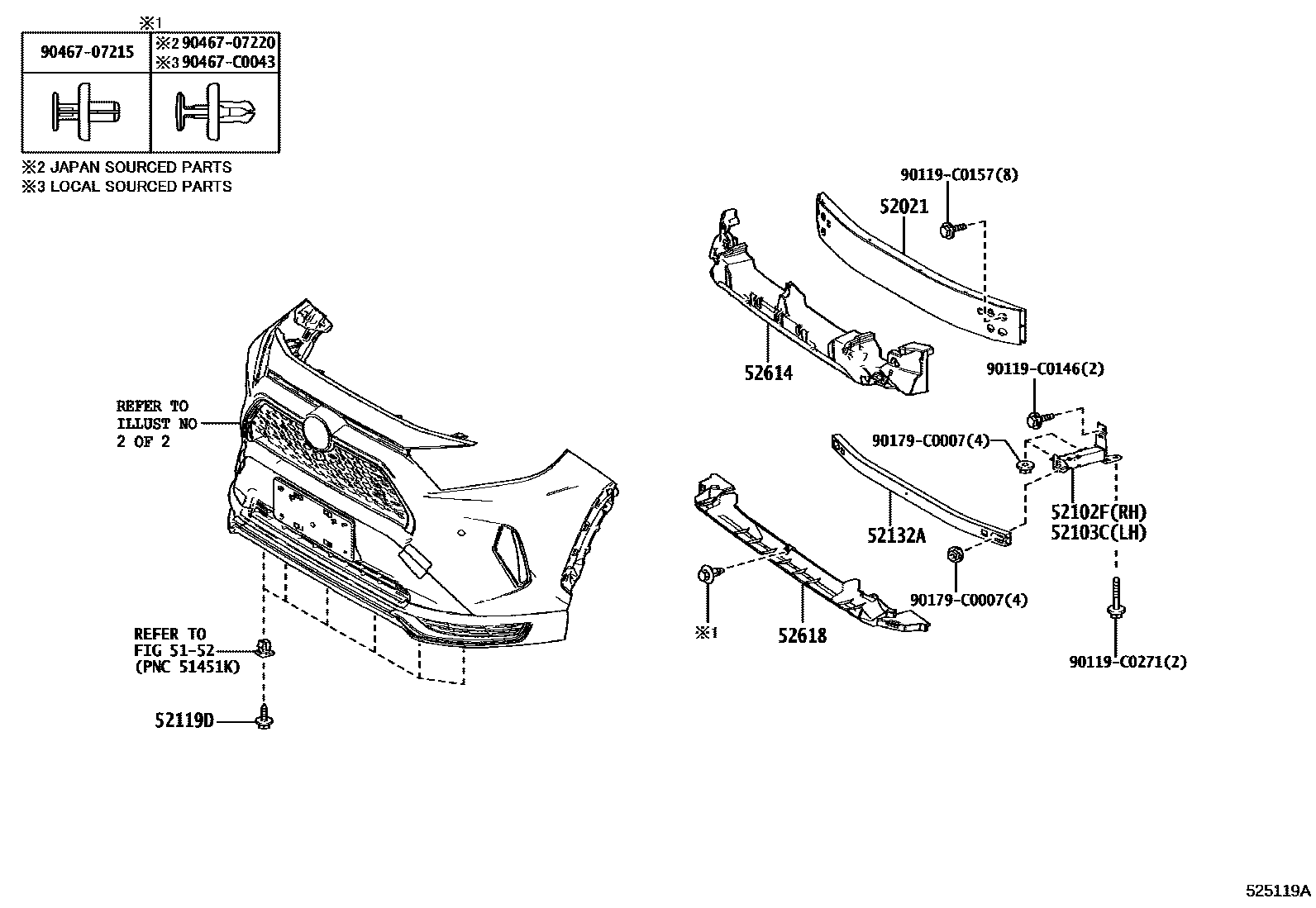

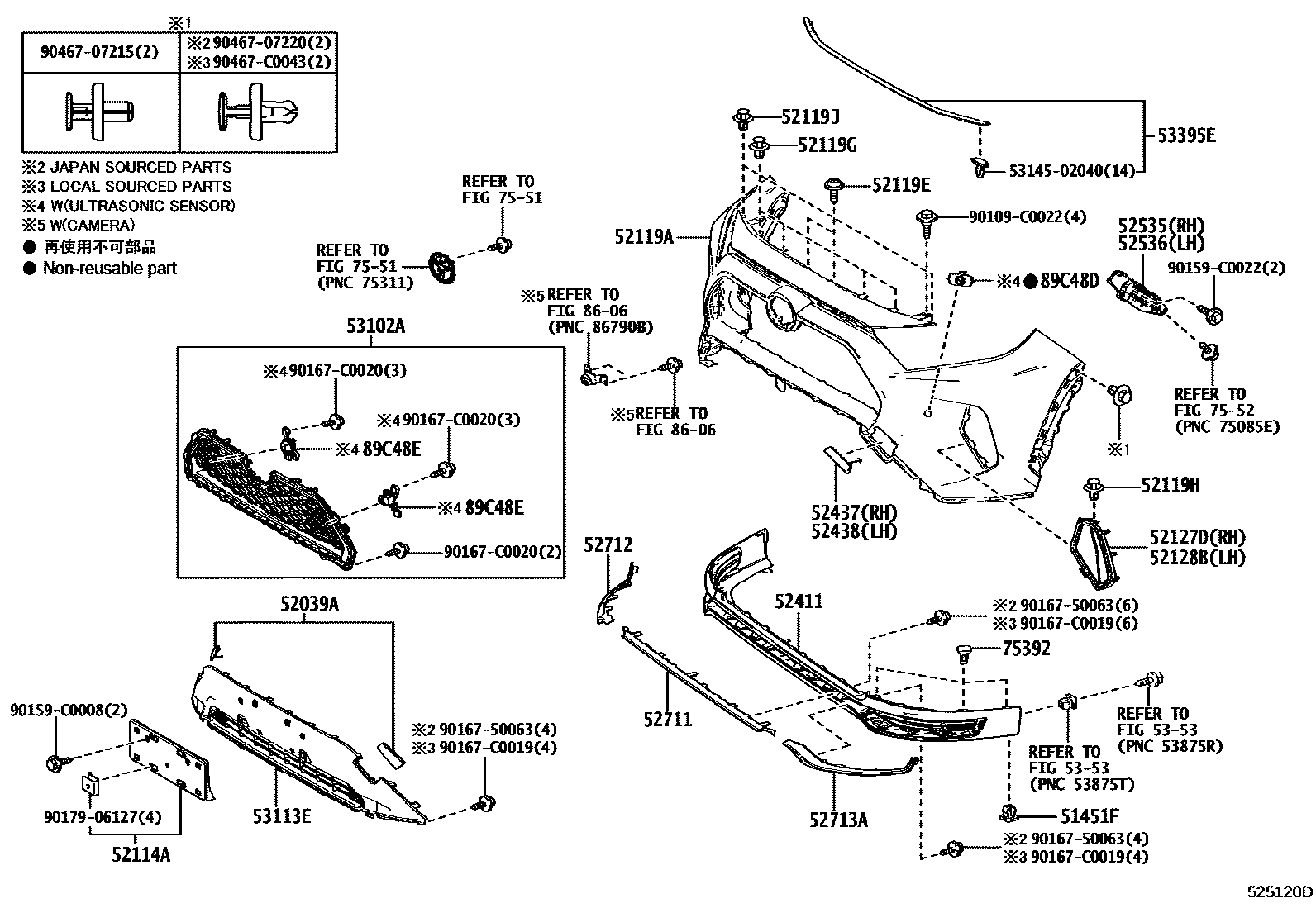

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Gasket No. 1 | 90189-C0020 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0R140 |
| 52039A | Front bumper hole cover assembly | 52039-0R010 |
| 52102F | Front bumper right extension section sub-assembly | 52102-0R060 |
| 52103C | Front bumper left extension section sub-assembly | 52103-0R060 |
| 52114A | Front bumper extension mounting bracket | 52114-0R180 |
| 52119A | front bumper cover | 52119-0R927 · 52119-0R930 |
| 52119D | Screw No. 1 | 90159-C0049 |
| 52119E | No. 2 screw | 90167-50063 · 90167-C0019 |
| 52119G | No. 1 clip | 90467-07220 · 90467-C0043 |
| 52119H | No. 2 clip | 90467-07220 · 90467-C0043 |
| 52127D | Front bumper right hole cover | 52127-0R220 · 52127-0R230 |
| 52128B | Front bumper left hole cover | 52128-0R220 · 52128-0R230 |
| 52132A | No. 2 front bumper reinforcement | 52132-0R080 |
| 52411 | Front bumper anti-collision bar | 52411-0R330 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-0R901 |
| 52438 | Front bumper left anti-collision bar cover | 52438-0R901 |
| 52535 | Front bumper right side fixing bracket | 52535-0R100 |
| 52536 | Front bumper left fixed bracket | 52536-0R080 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0R140 |
| 52618 | Front bumper lower shock absorber | 52618-0R110 |
| 52711 | Front bumper protection strip | 52711-0R250 |
| 52712 | Front bumper right side protective strip | 52712-0R030 |
| 52713A | Front bumper left protective strip | 52713-0R030 |
| 53102A | Radiator lower grille sub-assembly | 53102-0R020 · 53102-0R030 · 53102-0R040 |
| 53113E | No. 2 radiator lower grille | 53113-0R140 |
| 53395E | Engine cover to front end plate seal | 53395-0R090 |
| 75392 | External protective strip fixings | 75392-0R030 |
| 89C48E | Front central ultrasonic sensor holder | 89348-0R200 · 89348-0R210 |
