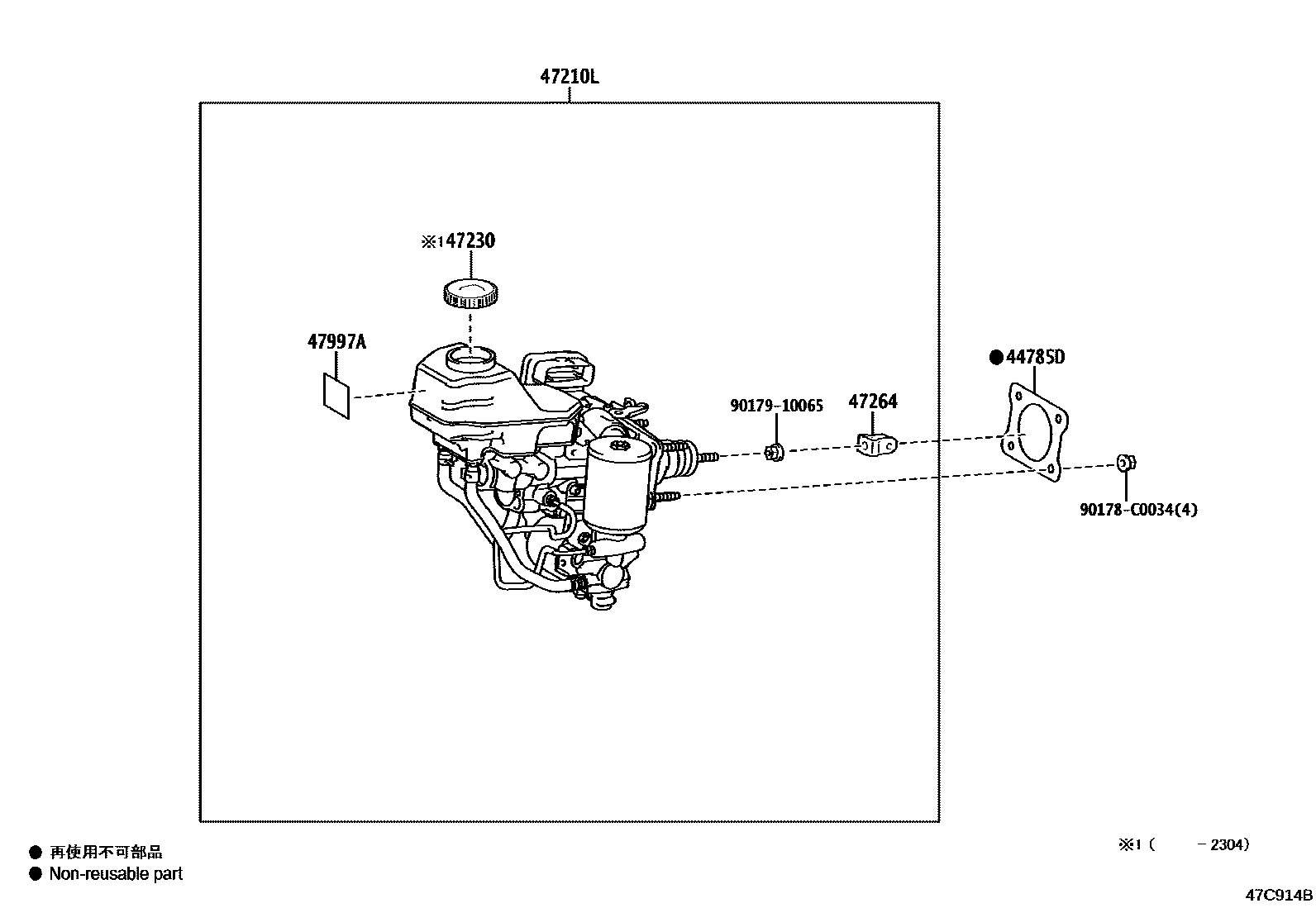

Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785D | brake master cylinder gasket | 44785-02050 |
| 47210L | Brake booster assembly with master cylinder | 47050-0R010 · 47050-0R011 · 47050-0R100 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
