Toyota RAV4 Front Drive Shaft — Figure 4302

Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 2 images and 33 PNC and OE references.

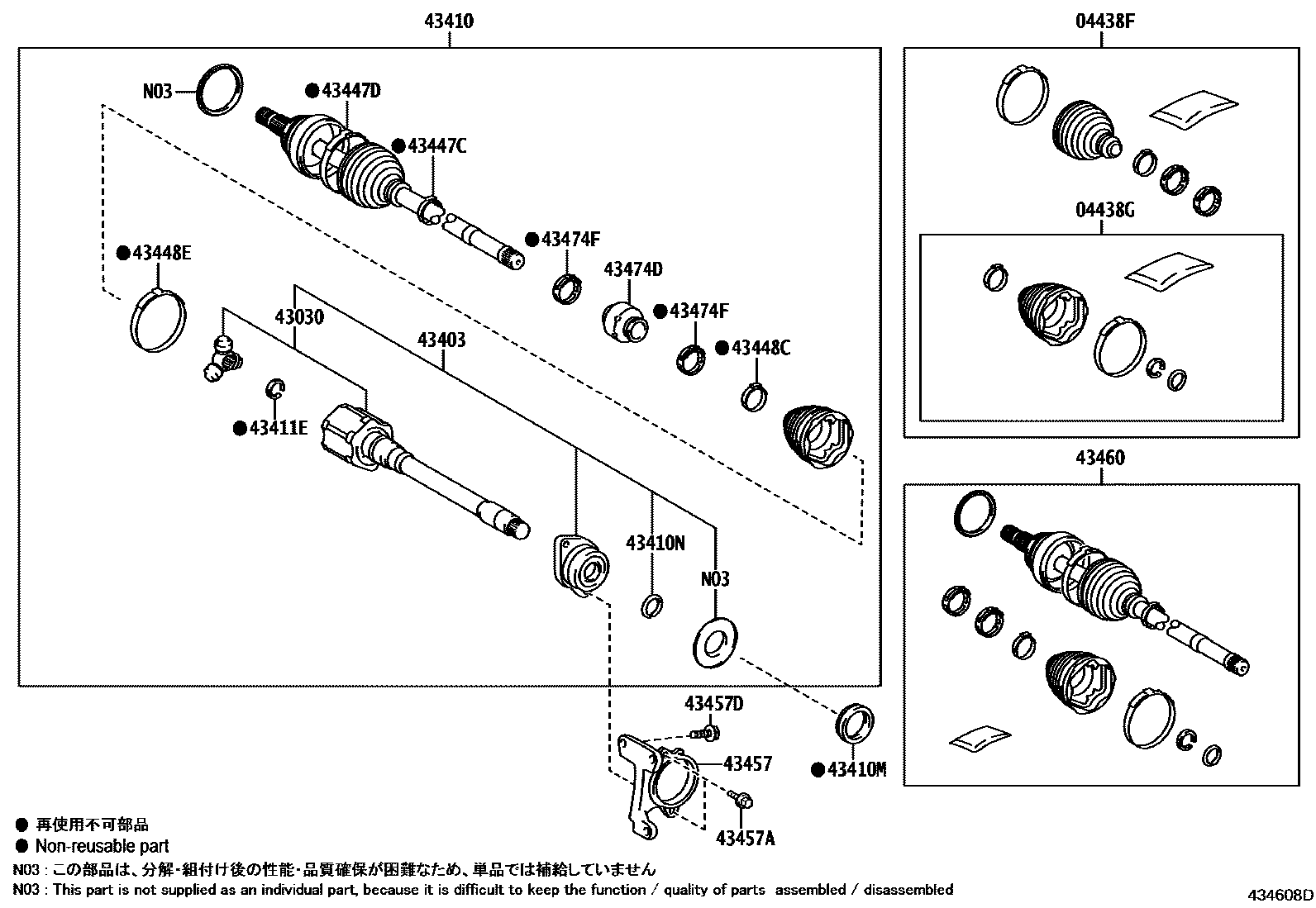

Toyota RAV4 Front Drive Shaft EPC diagram — 434608D
Front Drive Shaft — 434608D (202104 – 999999)

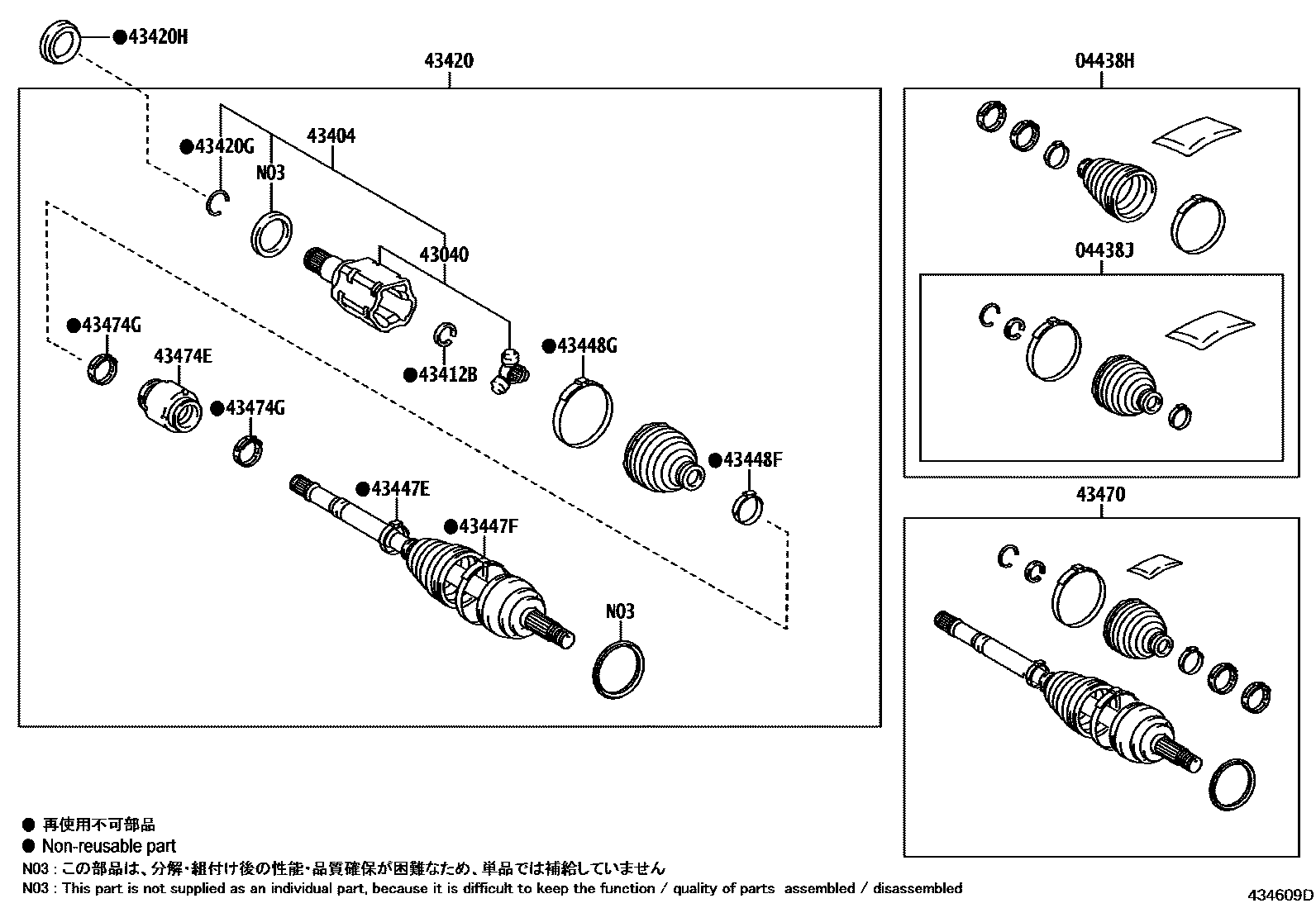

Toyota RAV4 Front Drive Shaft EPC diagram — 434609D
Front Drive Shaft — 434609D (202104 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0R200
04438GRight front drive shaft inner universal joint dust boot assembly04437-0R120
04438HLeft front driveshaft inboard and outboard dust boot assembly04427-0R210
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0R130
43030Right front drive shaft inner universal joint assembly43030-0R200
43040Left front drive shaft inner universal joint assembly43040-0R070
43403Right front axle inner universal joint assembly43403-0R030
43404Left front axle inner universal joint assembly43404-0R011
43410Right front driveshaft assembly43410-0R260
43410MFront drive shaft right oil seal90311-C0057
43410NHole snap ring (for right front driveshaft)43425-0R200
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-F4150
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-F4150
43420Left front drive shaft assembly43420-0R161
43420GHole snap ring (for left front driveshaft)43425-F4170
43420HFront drive shaft left oil seal90311-C0060
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-F4260
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-F4270
43447EClamp (for left front axle outer universal joint dust cover)42345-F4260
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-F4270
43448CClamp (for the universal joint dust cover inside the right front axle)42345-F4240
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-F4250
43448FClamp (for left front axle inner universal joint dust cover)42345-F4240
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-F4250
43457drive shaft bearing bracket43457-07020
43457ABolts (for securing the No. 1 drive shaft bearing bracket)90105-C0124
43457DBolts (for securing the No. 2 drive shaft bearing bracket)90105-C0014
43460Right front outer drive universal joint shaft assembly43470-8Z857
43470Left front outer drive universal joint shaft assembly43470-8Z865
43474DRight front driveshaft shock absorber43474-0R070
43474ELeft front driveshaft shock absorber43474-0R080
43474FClamp (for right front driveshaft shock absorber)42345-0R250
43474GClamp (for left front driveshaft shock absorber)42345-0R250
