Toyota RAV4 车轮和车轮盖 — Figure 4103

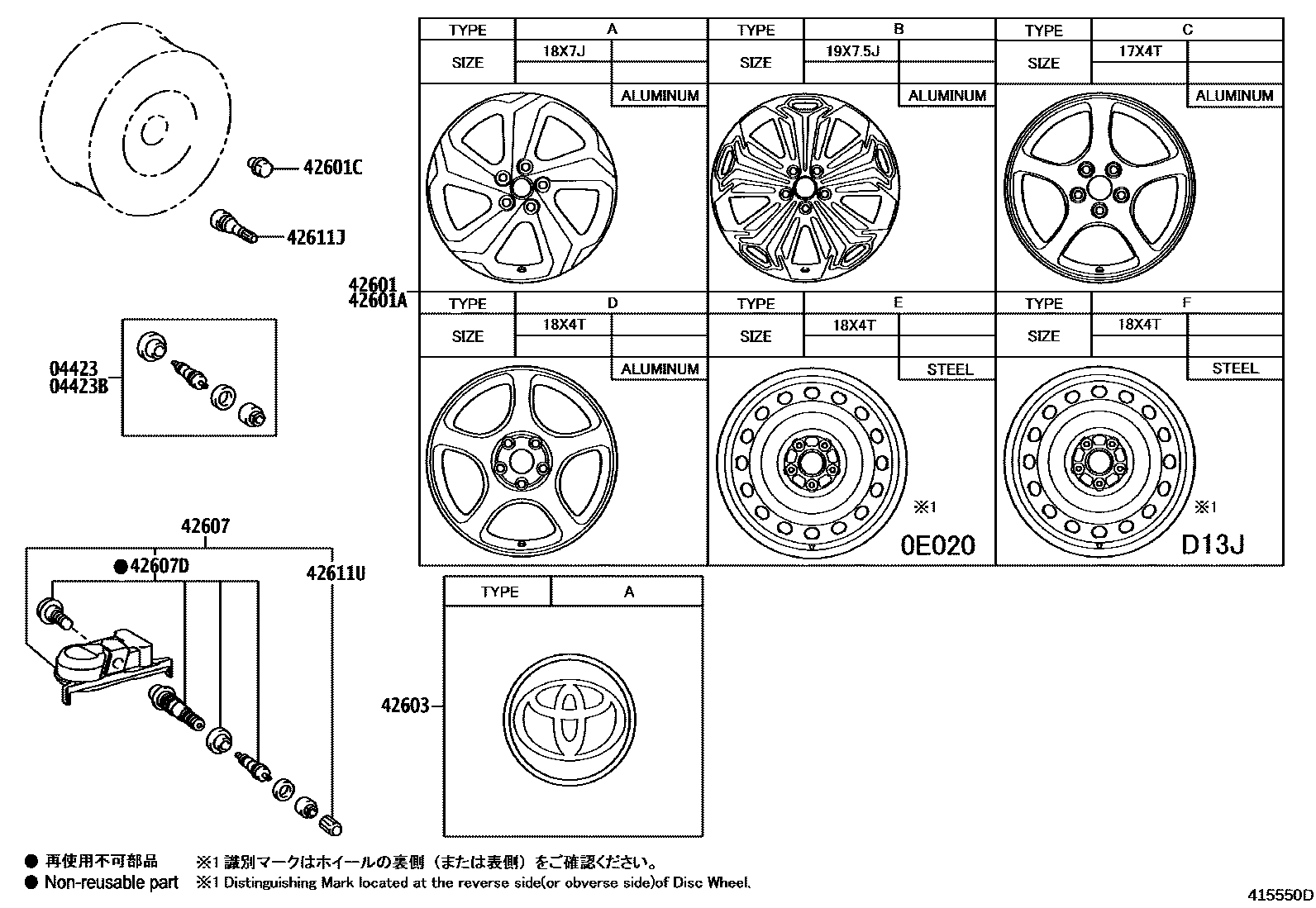

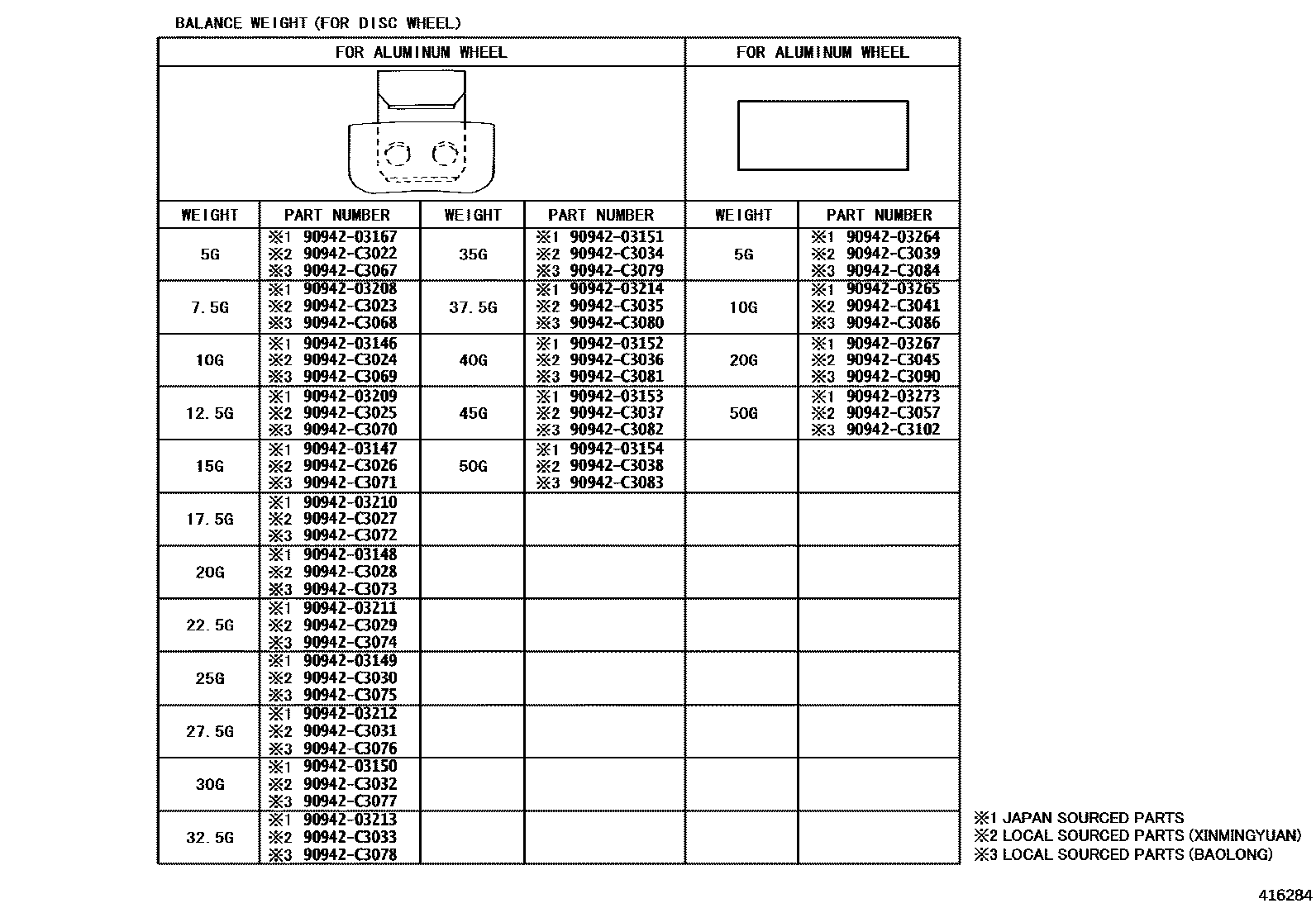

Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-0N010 |
| 42601 | spoke wheel | 42611-0R400 · 42611-0R410 |
| 42601A | Spoke wheel (for spare tire) | 4261B-0E010 · 4261B-0E020 · 4261B-0R080 · 4261B-0R090 |
| 42601C | Hub nut (for axle) | 90942-C1001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02320 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02090 |
| 42607D | tire pressure monitoring valve | 90942-C5003 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 · 90942-C5004 |
| 42611U | tire valve cover | 90942-C5001 |
