Toyota RAV4 冷却器和配管(HEV 或 BEV 或 FCEV) — Figure 3914

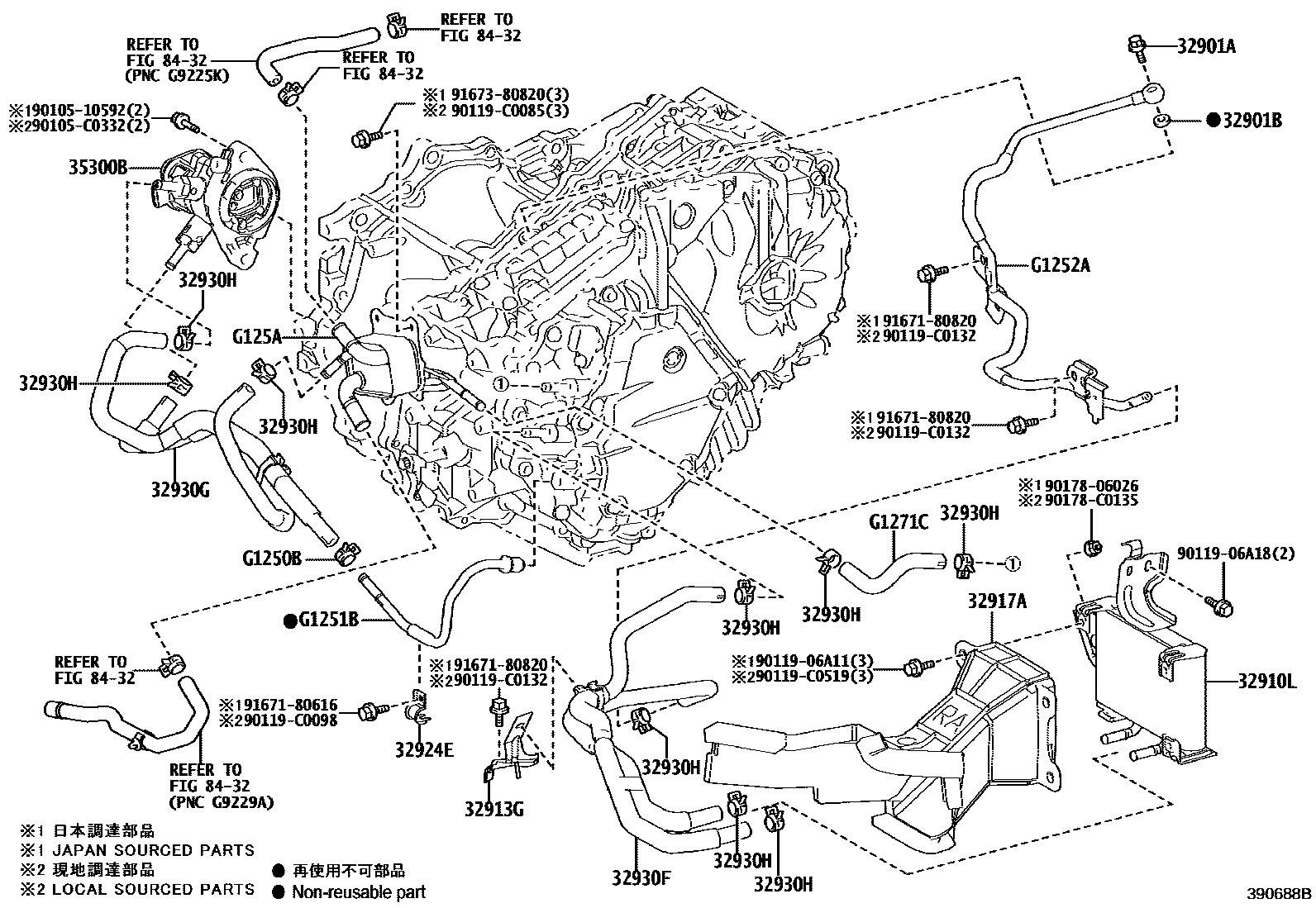

Toyota RAV4 EPC diagram 3914, 冷却器和配管(HEV 或 BEV 或 FCEV), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901A | Connector bolt (for oil cooler) | 90401-12039 |
| 32901B | Gasket (for transmission oil cooler connector) | 90430-12037 |
| 32910L | Oil cooler assembly | 32910-0R010 |
| 32913G | Transmission oil cooler bracket | 32913-0R020 |
| 32917A | Transmission oil cooler air duct | 32917-0R010 |
| 32924E | No. 2 transmission oil cooler pipe clamp | 32924-48010 |
| 32930F | No. 1 transmission oil cooler hose assembly | 32930-0R040 |
| 32930G | No. 2 transmission oil cooler hose assembly | 32930-0R050 |
| 32930H | Clamp No. 1 (for transmission oil cooler hose) | 90466-16004 · 90466-C0024 |
| 35300B | Oil pump assembly with motor | 35300-48070 |
| G1250B | Clamp No. 1 (for motor cooling pipe) | 90466-16004 · 90466-C0024 |
| G1251B | No. 1 motor cooling pipe | G1251-0R010 |
| G1252A | No. 2 motor cooling pipe | G1252-0R030 |
| G125A | Motor cooler | G125A-0R020 |
| G1271C | No. 1 motor cooling hose | G1271-0R020 |
