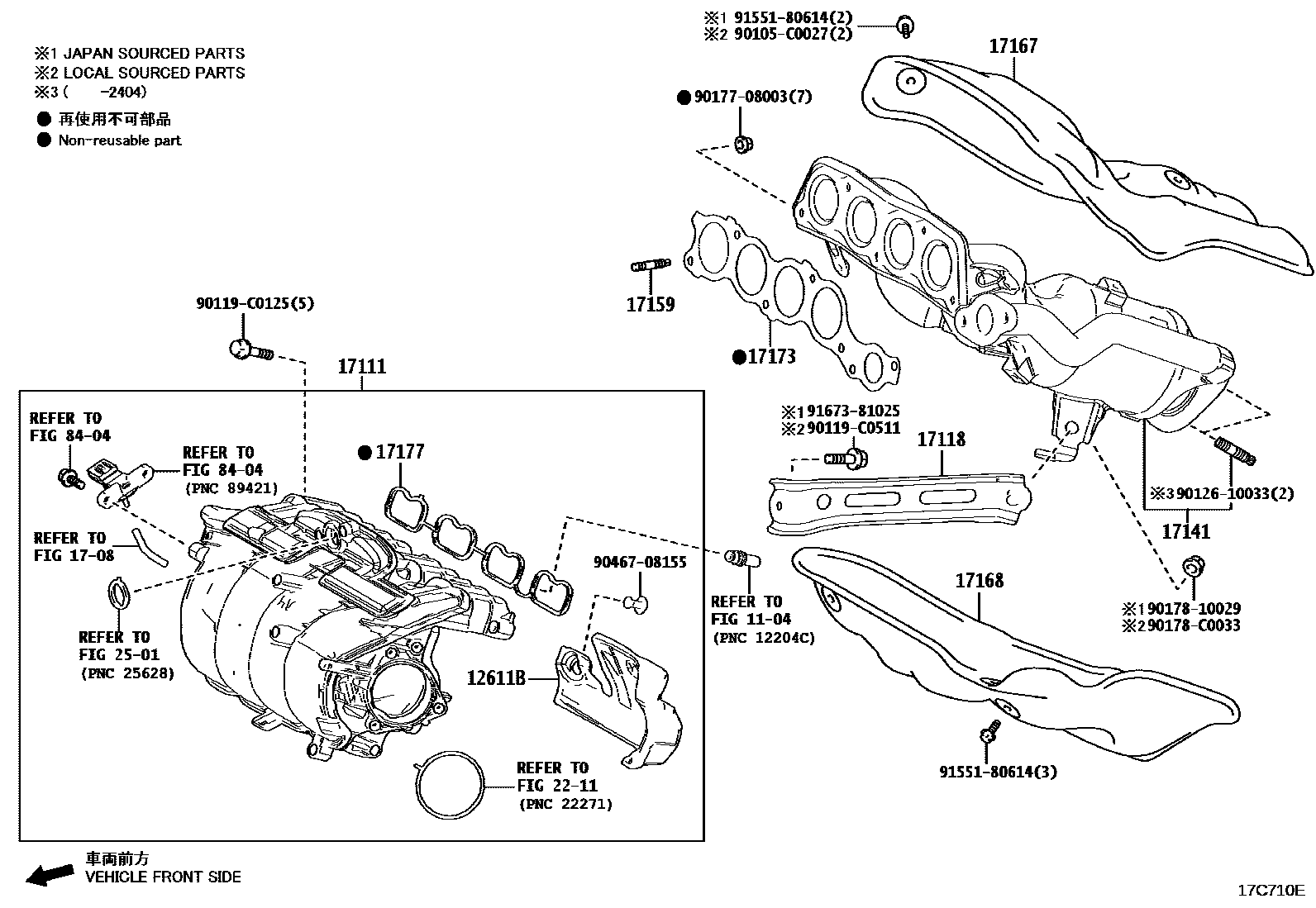

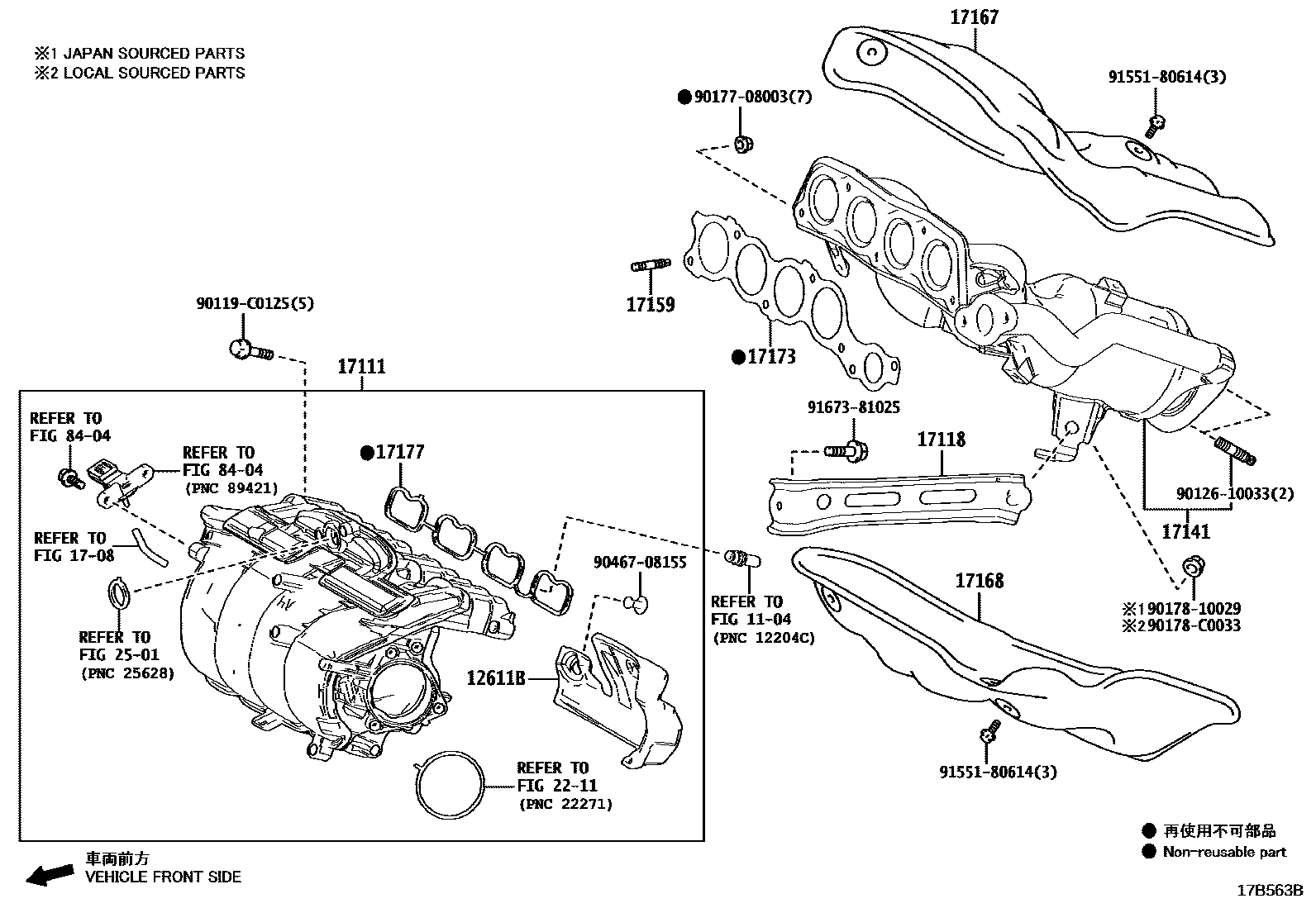

Toyota RAV4 Manifold — Figure 1701
Toyota RAV4 EPC diagram 1701, Manifold, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12611B | Engine hood No. 1 | 12613-25020 · 12613-F0030 |
| 17111 | Intake Manifold | 17120-25020 · 17120-F0090 |
| 17118 | Manifold stays | 17118-25030 · 17118-F0060 |
| 17141 | exhaust manifold | 17141-F0080 · 17141-F0200 · 17141-F0420 |
| 17159 | Studs (for manifold to cylinder head) | 90126-C0010 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-F0020 · 17167-F0030 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-F0020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-25020 · 17173-F0030 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-25010 |
