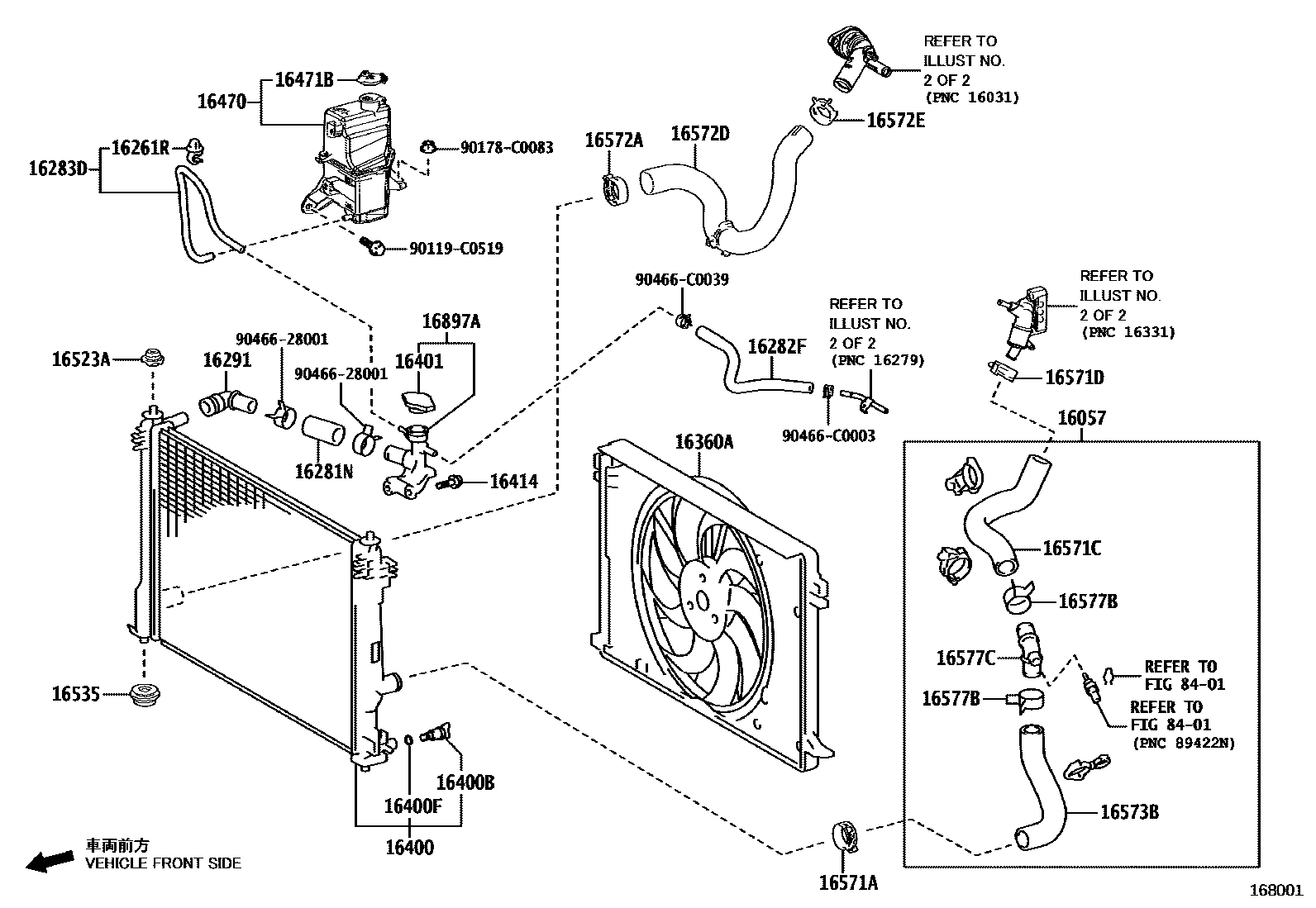

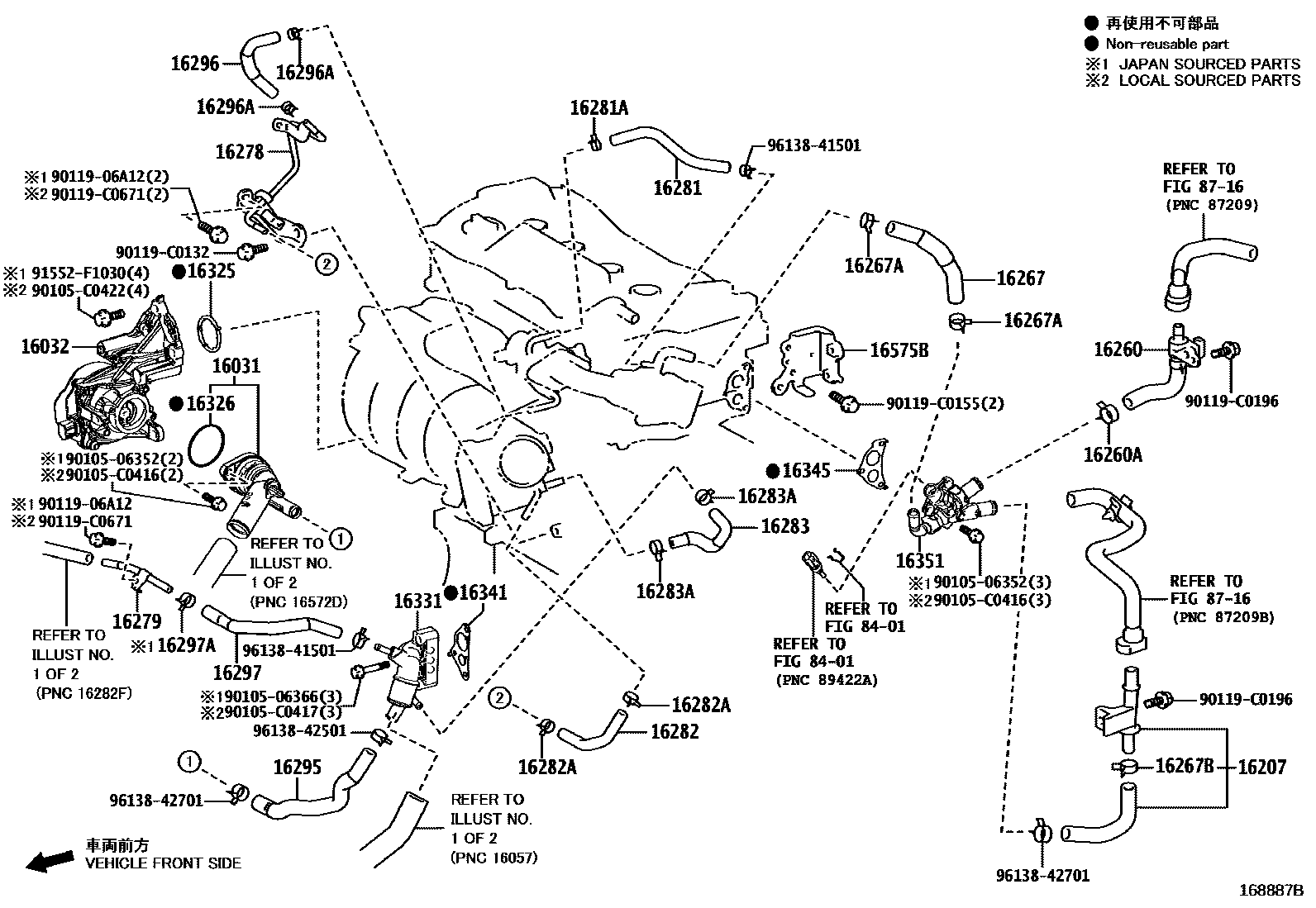

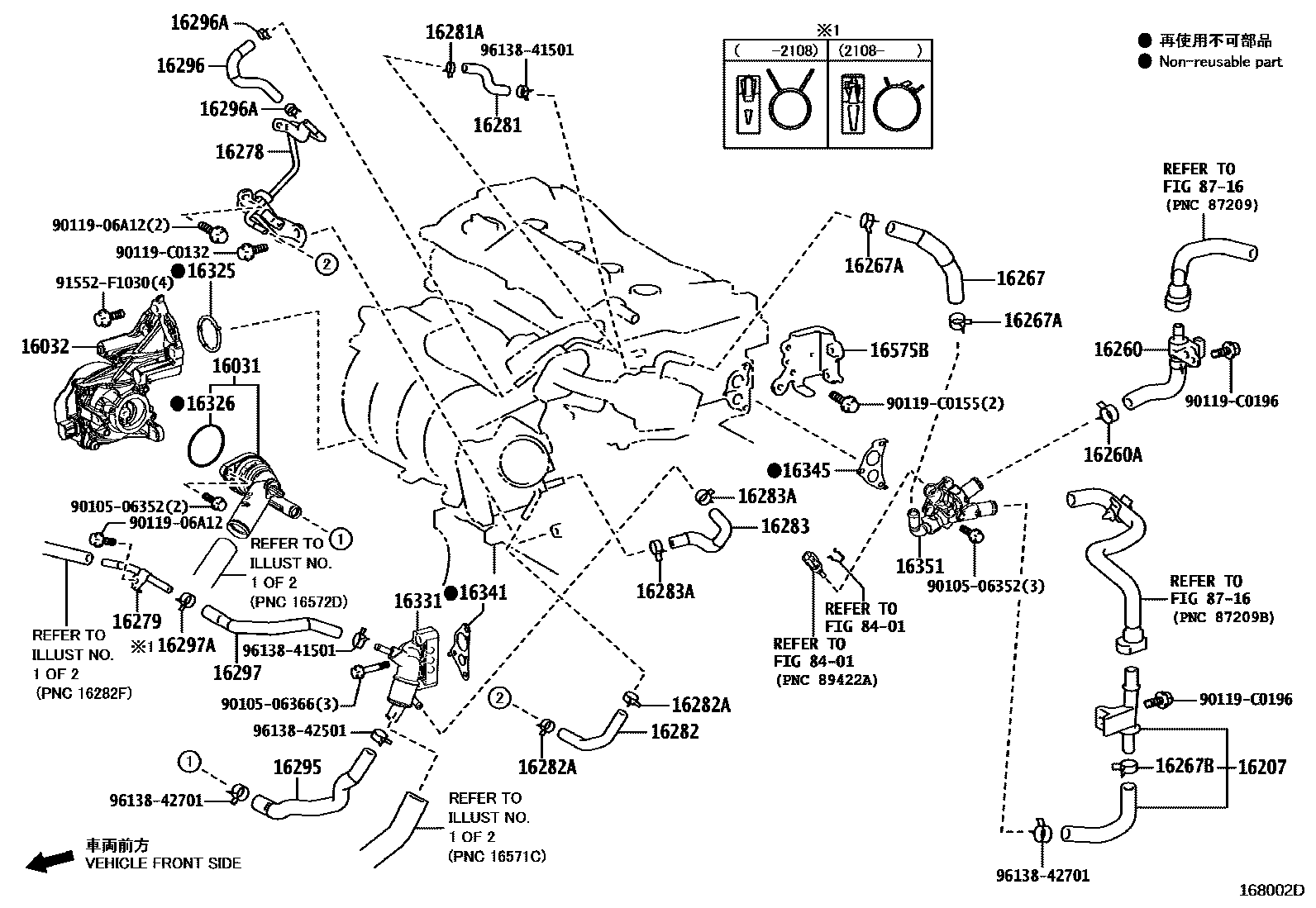

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-25011 · 16031-F0020 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-25010 · 16032-F0030 |
| 16057 | Radiator hose sub-assembly | 16057-F0130 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-F0130 |
| 16260 | Water bypass hose assembly | 16260-F0120 |
| 16260A | Clamp (for water bypass hose assembly) | 96138-42701 |
| 16261R | Clip or clip (for water bypass hose) | 90469-12014 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-25020 · 16267-F0080 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96138-42101 |
| 16267B | Clip (for water bypass hose) | 96138-42701 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-25030 · 16278-F0050 |
| 16279 | No. 3 water bypass pipe | 16279-25020 · 16279-F0030 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-25021 · 16281-F0140 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-41501 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-F0030 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-25040 · 16282-F0240 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16282F | HOSE, WATER BY-PASS, NO.5 | 16282-F0060 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-25020 · 16283-F0140 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-41501 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-F0010 |
| 16291 | water hose connector | 16291-F0010 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-25010 · 16295-F0010 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-25020 · 16296-F0010 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-25020 · 16297-F0010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90467-15022 · 96138-51701 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-F2030 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-47020 · 16326-F0010 |
| 16331 | Water outlet | 16331-25030 · 16331-F0030 |
| 16341 | GASKET, WATER OUTLET | 16341-25010 · 16341-F0030 |
| 16345 | Outlet pipe gasket | 16345-25030 · 16345-F0030 |
| 16351 | water bypass outlet | 16351-25040 · 16351-F0030 |
| 16360A | Fan assembly with motor | 16360-F0160 |
| 16400 | Radiator assembly | 16400-F2070 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0P460 |
| 16401 | Radiator cover sub-assembly | 16401-36030 · 16401-F0010 |
| 16414 | Radiator tank pipe bolts | 90119-C0519 |
| 16470 | Radiator reservoir assembly | 16470-F0040 |
| 16471B | Reservoir tank cover | 16471-F0030 |
| 16523A | Radiator bracket cushion | 16523-F0050 |
| 16535 | Radiator lower support | 16535-0H040 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-39002 |
| 16571C | Radiator hose No. 1 | 16571-F0310 |
| 16571D | No. 1 radiator hose clip | 90466-C0053 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-39002 |
| 16572D | Radiator hose No. 2 | 16572-F0140 |
| 16572E | No. 2 radiator hose clip | 90466-C0053 |
| 16573B | Radiator hose No. 3 | 16573-F0170 |
| 16575B | No. 2 water hose clamp bracket | 16575-F0160 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90466-C0053 |
| 16577C | radiator pipe | 16577-F0120 |
| 16897A | Filling port neck | 16897-F0120 |
