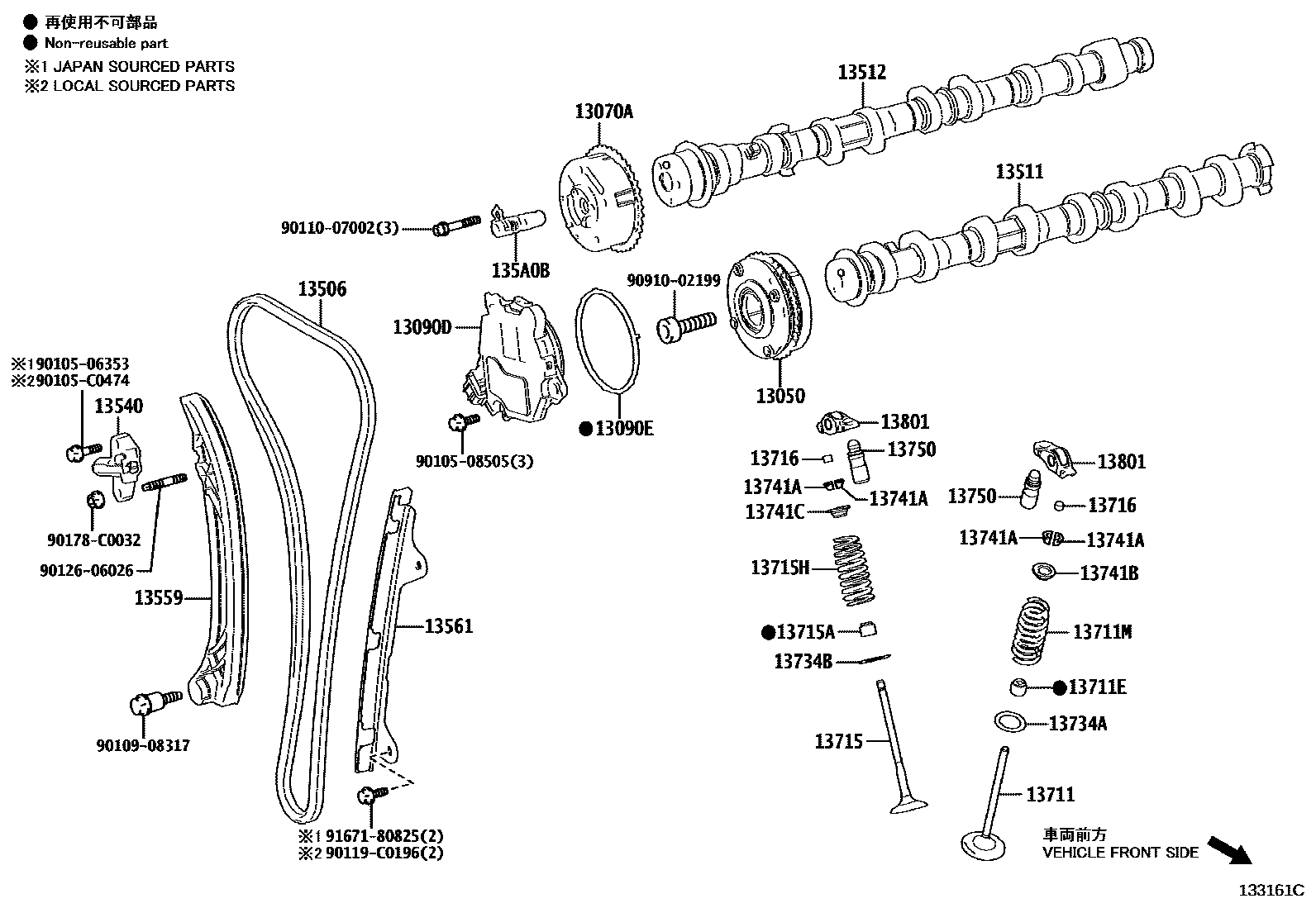

Toyota RAV4 Camshaft & Valve — Figure 1302
Toyota RAV4 EPC diagram 1302, Camshaft & Valve, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-25010 · 13050-F2030 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-F2020 · 13070-F2030 |
| 13090D | Cam timing control motor assembly with EDU | 13090-25010 · 13090-F2010 |
| 13090E | O-ring (for cam timing control motor) | 90301-C0081 |
| 13506 | Chain sub-assembly | 13506-25020 · 13506-F0020 |
| 13511 | camshaft | 13501-25020 · 13501-F0060 |
| 13512 | Camshaft No. 2 | 13502-25020 · 13502-F0060 |
| 13540 | No. 1 chain tensioner assembly | 13540-F2010 |
| 13559 | chain tensioner guide plate | 13559-25010 · 13559-F0020 |
| 13561 | No. 1 chain shock absorber | 13561-25021 · 13561-F0020 |
| 135A0B | Camshaft timing valve assembly | 135A0-F2020 · 135A0-F2040 |
| 13711 | intake valve | 13711-25020 · 13711-F0050 |
| 13711E | Intake valve stem oil seal | 90913-T2001 |
| 13711M | Compression spring (for intake valve) | 90501-31031 · 90501-C0068 |
| 13715 | exhaust valve | 13715-25020 · 13715-F0030 |
| 13715A | Exhaust valve stem oil seal | 90913-T2003 |
| 13715H | Compression spring (for exhaust valve) | 90501-32075 · 90501-C0069 |
| 13716 | valve stem cover | 13716-F2020 |
| 13734A | Intake valve spring seat | 13734-0P020 |
| 13734B | Exhaust valve spring seat | 13734-0P020 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-C3001 |
| 13741B | Intake valve spring seat ring | 13741-0Y050 |
| 13741C | Exhaust valve spring seat ring | 13741-0Y050 |
| 13750 | Valve lash adjuster assembly | 13750-F2030 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-F2030 |
