Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 1 images and 4 PNC and OE references.

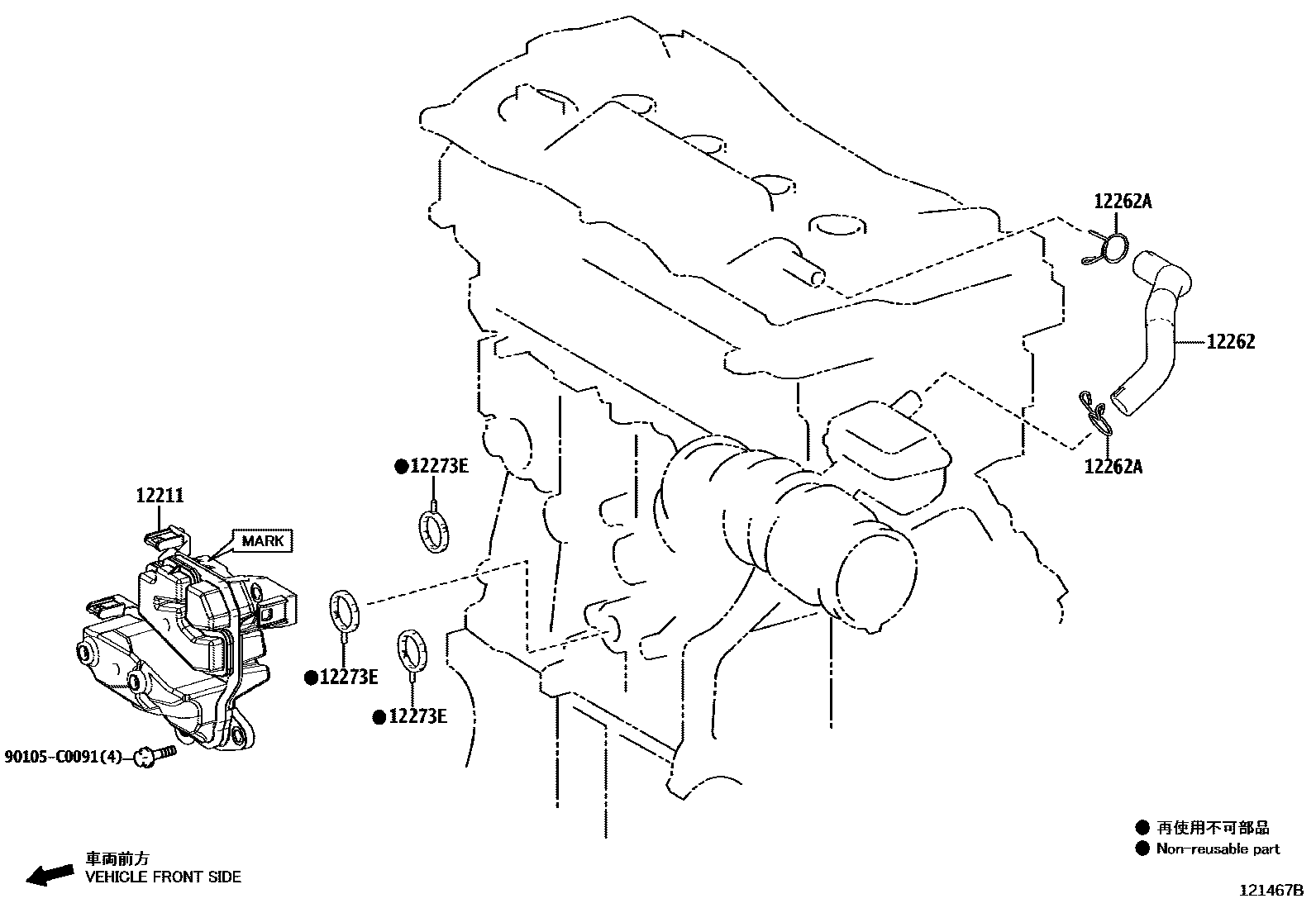

Toyota RAV4 Ventilation Hose EPC diagram — 121467B — Ventilation Hose — 121467B (202104 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12211	Ventilation box No. 1	12211-25011 · 12211-F0020
12262	Ventilation hose No. 2	12262-25080
12262A	Clamp (for vent hose No. 2)	90467-21004
12273E	Pads (for ventilation boxes)	12273-F2020
