Toyota RAV4 Engine Mounting — Figure 1107

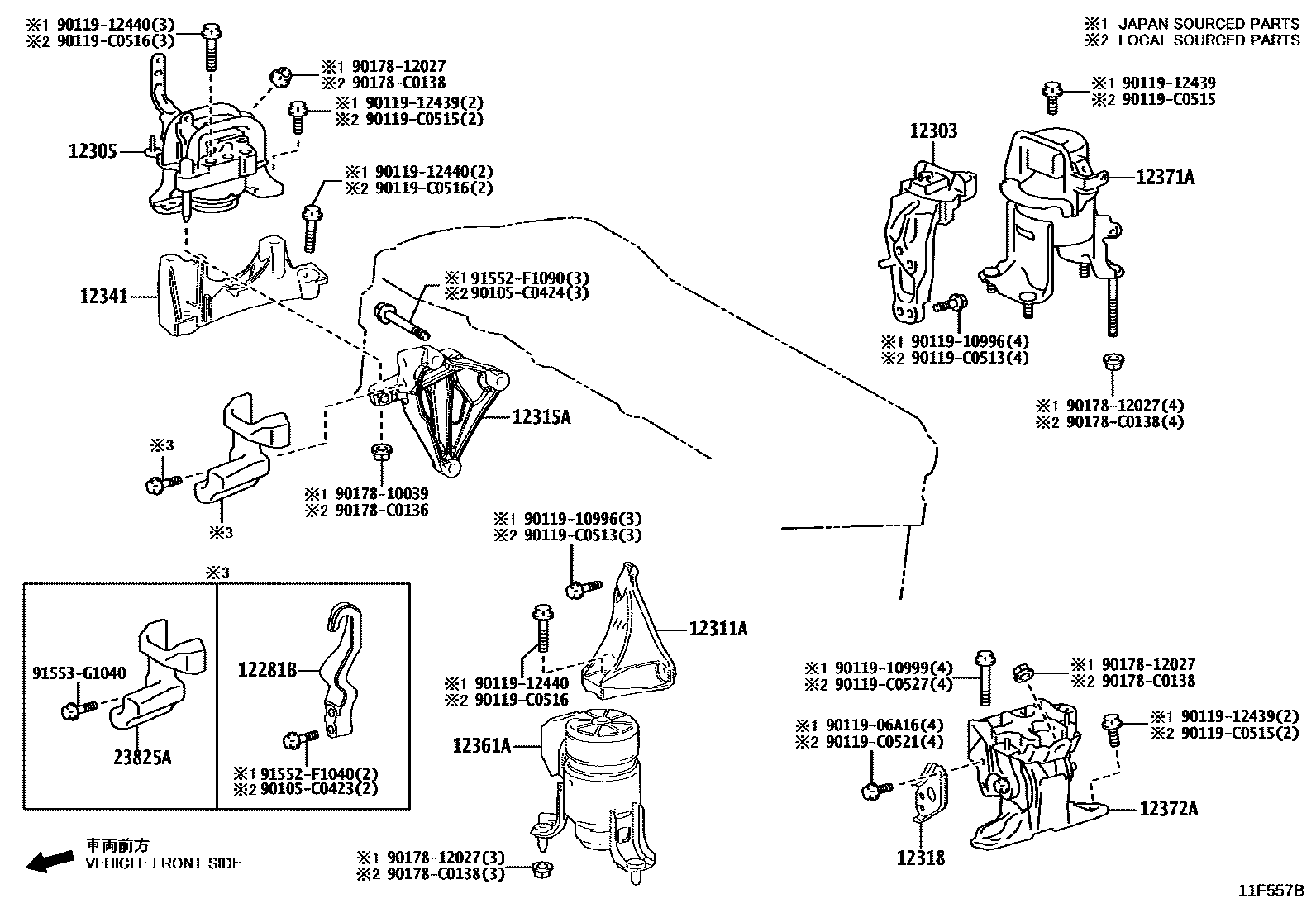

Toyota RAV4 EPC diagram 1107, Engine Mounting, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-F2010 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-F0210 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-F0170 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-F0140 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-25031 · 12315-F0030 |
| 12318 | Engine left mounting bracket | 12318-F0140 |
| 12341 | engine mounting spacer | 12341-F0050 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-F0180 |
| 12371A | Engine rear mount vibration isolation pad | 12371-F0200 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-F0100 |
| 23825A | Oil pipeline anti-collision parts | 23825-25010 · 23825-F0010 |
