Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 7 PNC and OE references.

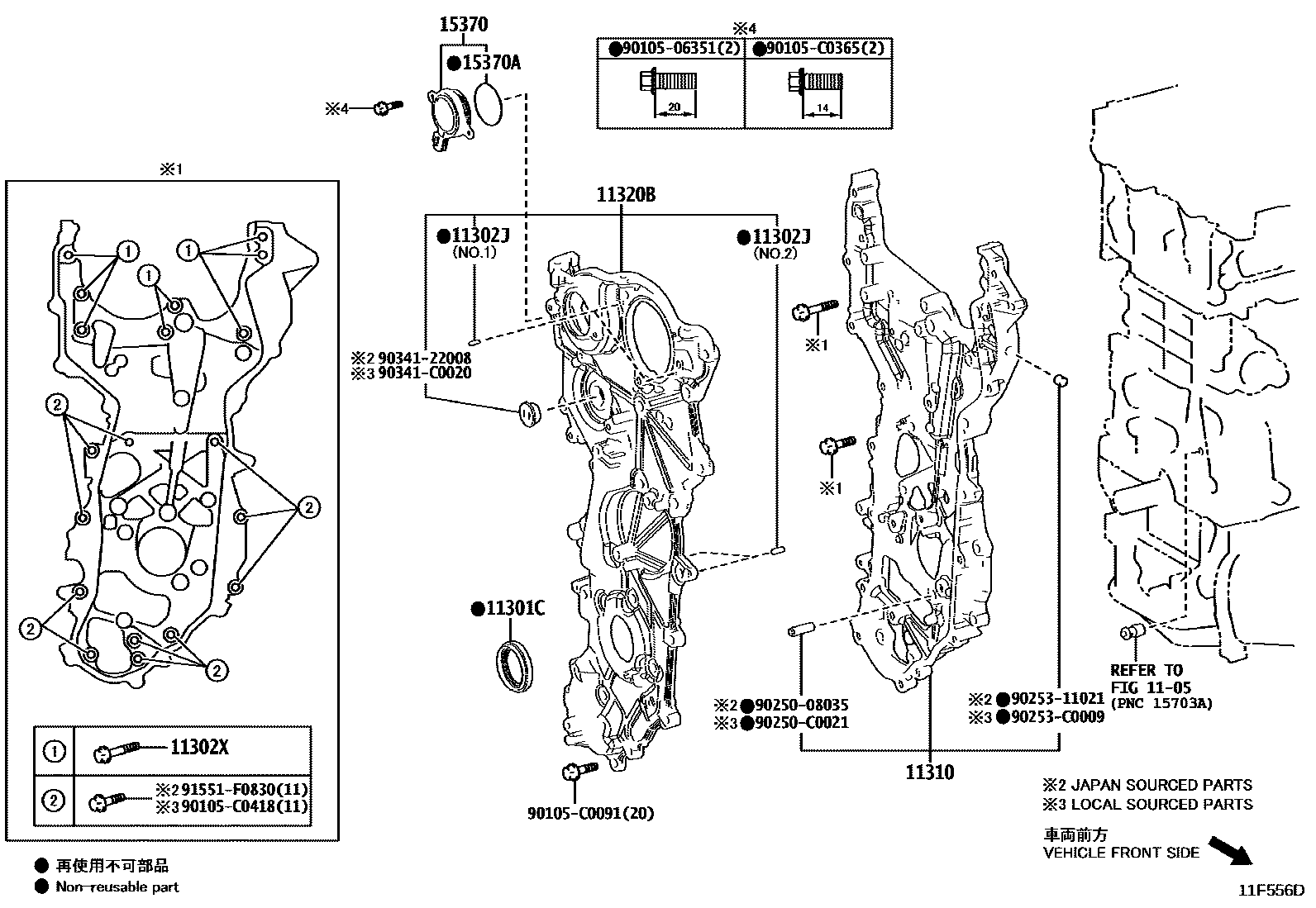

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 11F556D
Timing Gear Cover & Rear End Plate — 11F556D (202104 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-C0054
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003 · 90250-C0009
11302Xflange bolts90105-C0419 · 91551-F0845
11310Timing chain cover assembly11310-25030 · 11310-F0030 · 11310-F0031
11320BNo. 2 timing chain cover assembly11320-25011 · 11320-F0030
15370Camshaft timing oil control solenoid valve assembly15370-25020 · 15370-F2020
15370AO-ring (for camshaft timing oil control solenoid valve)90301-44006 · 90301-T0079
