Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719

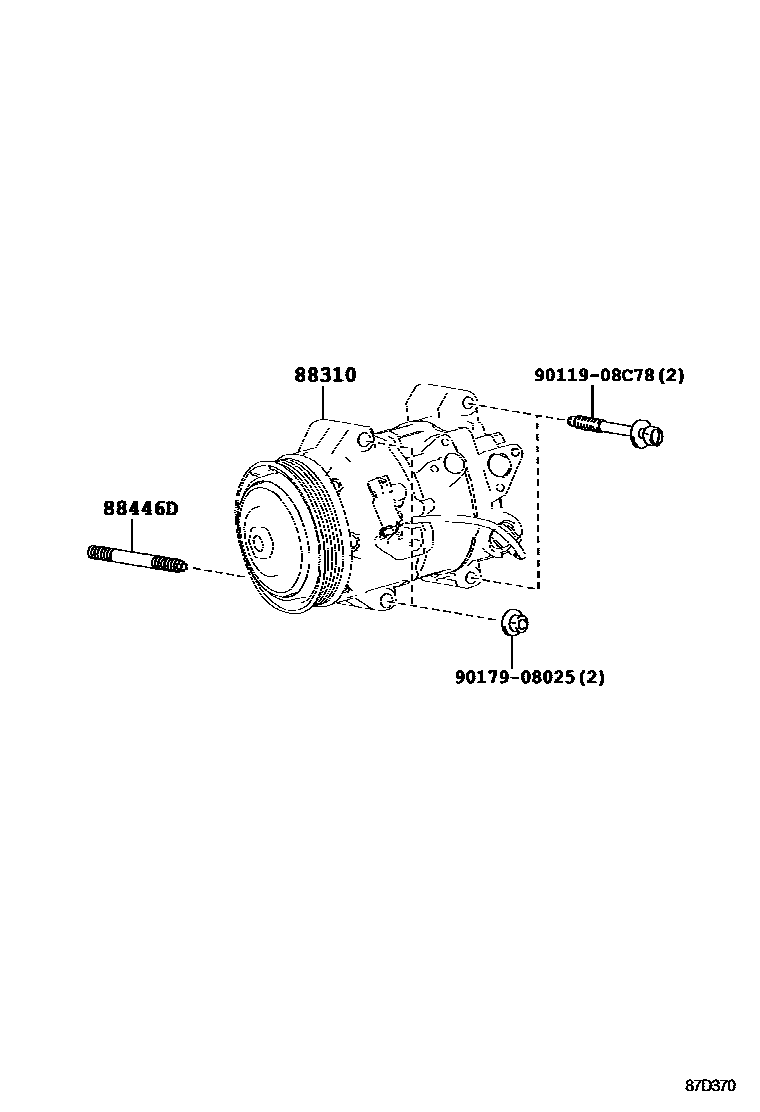

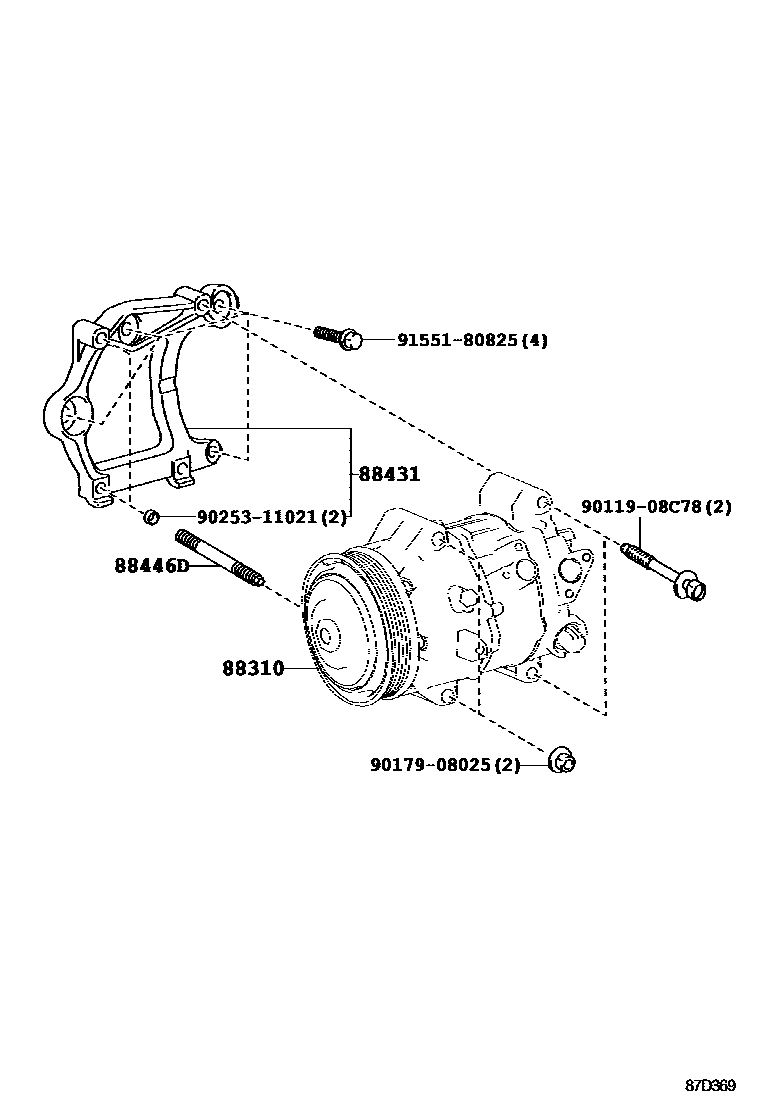

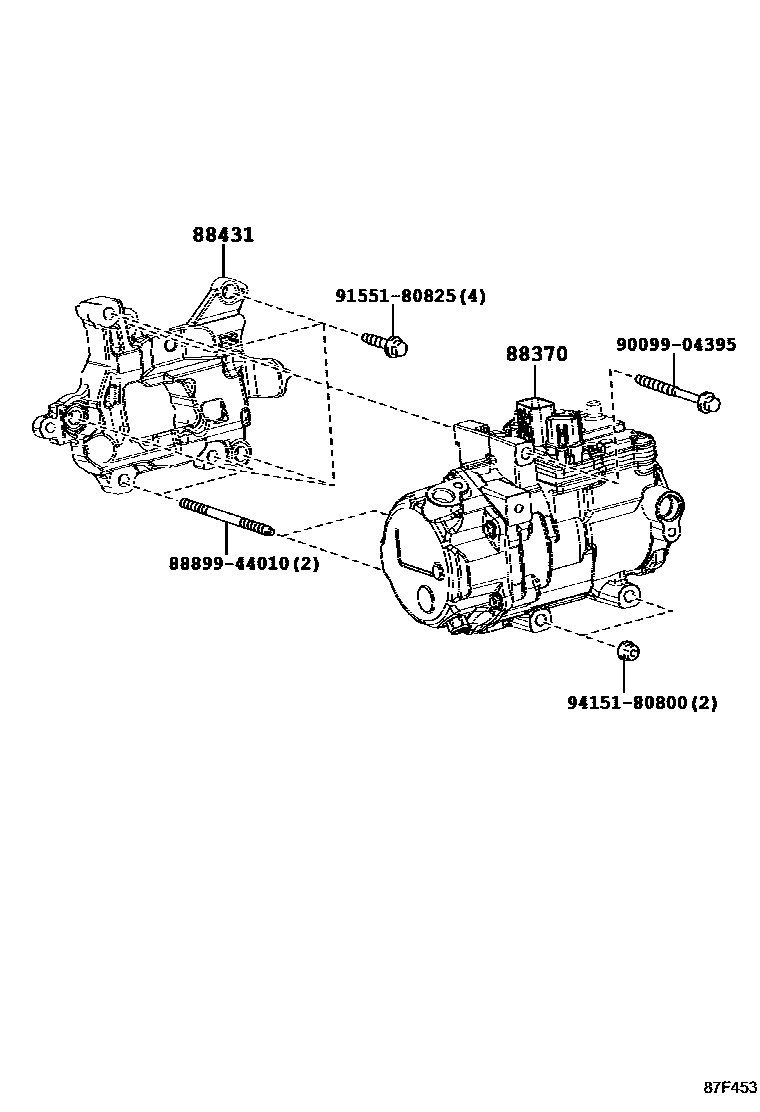

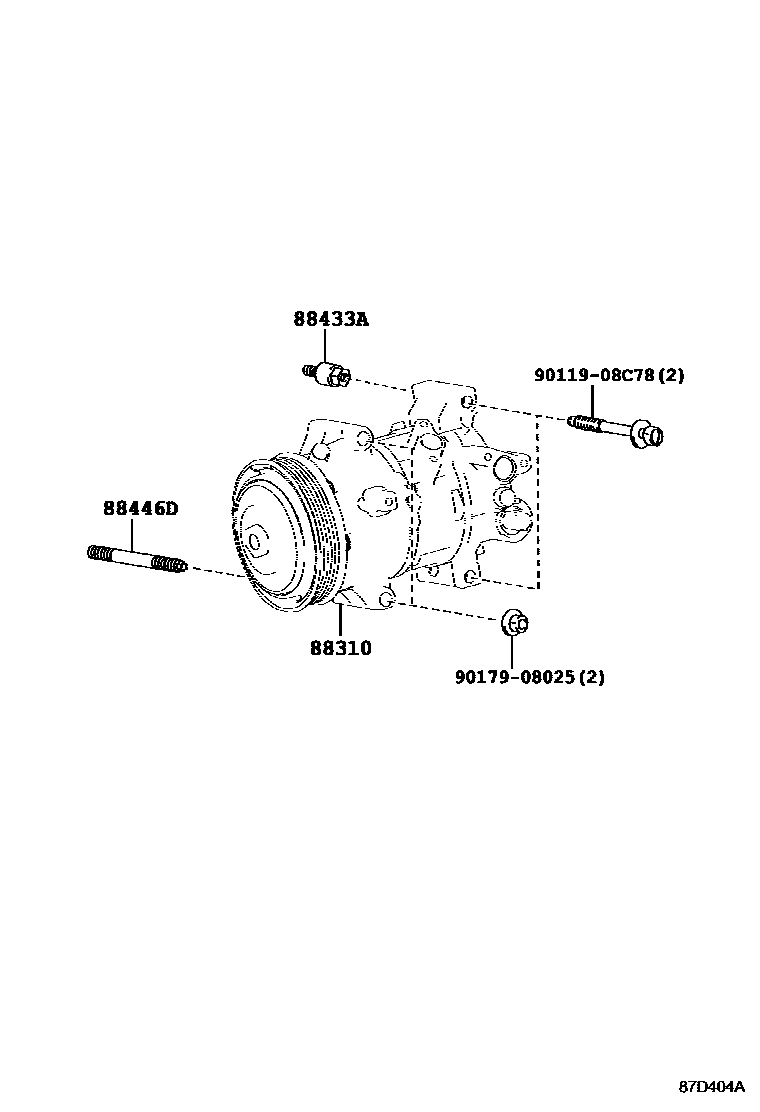

Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-42370 · 88310-42380 · 88310-42390 · 88310-42391 · 88310-42530 · 88310-42531 |
| 88370 | Compressor assembly with motor | 88370-33030 |
| 88431 | Compressor No. 1 mounting bracket | 12502-36010 · 88431-33050 |
| 88433A | Compressor stays | 88433-20040 |
| 88446D | cooler bolt | 88446-42030 |
