Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

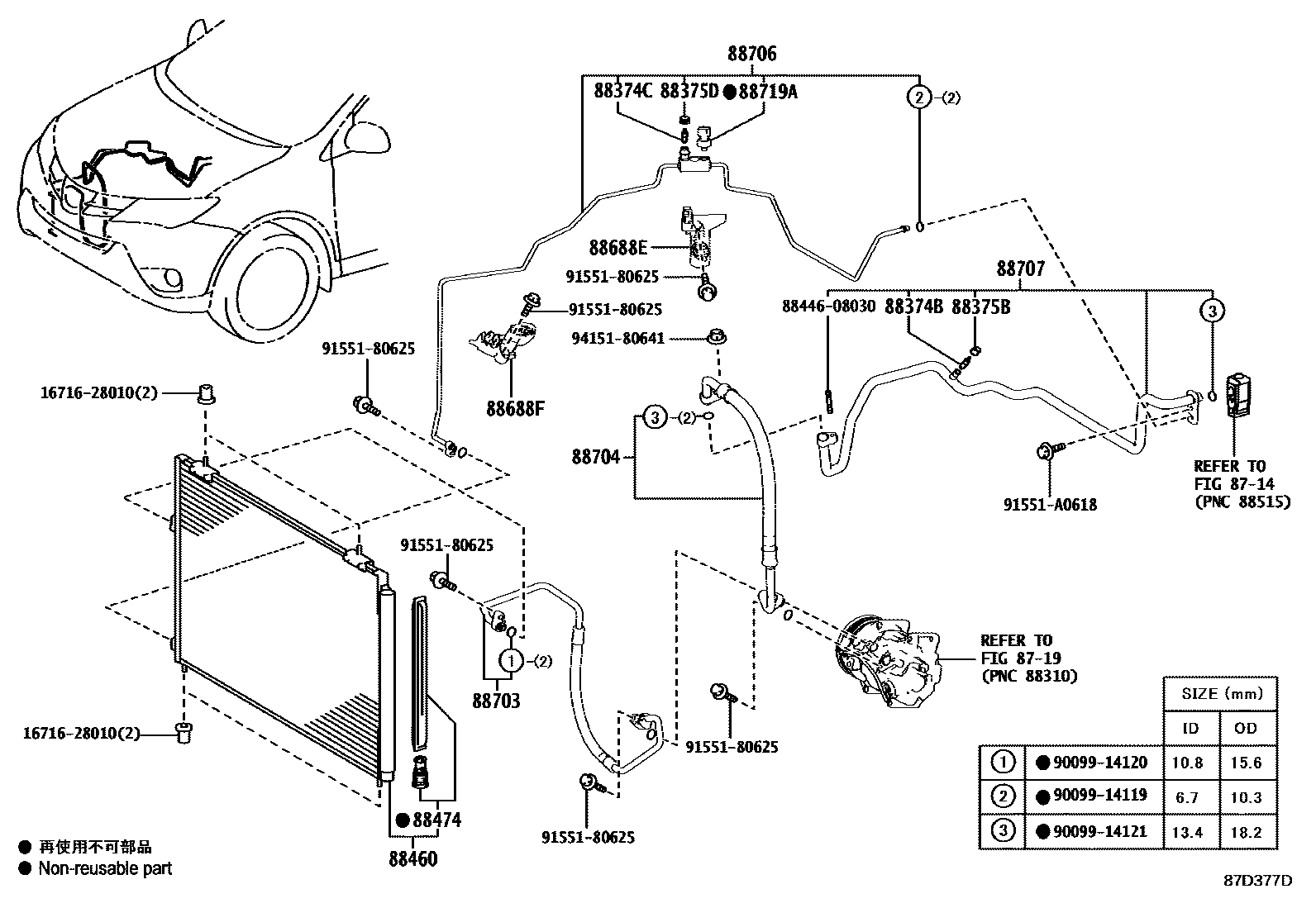

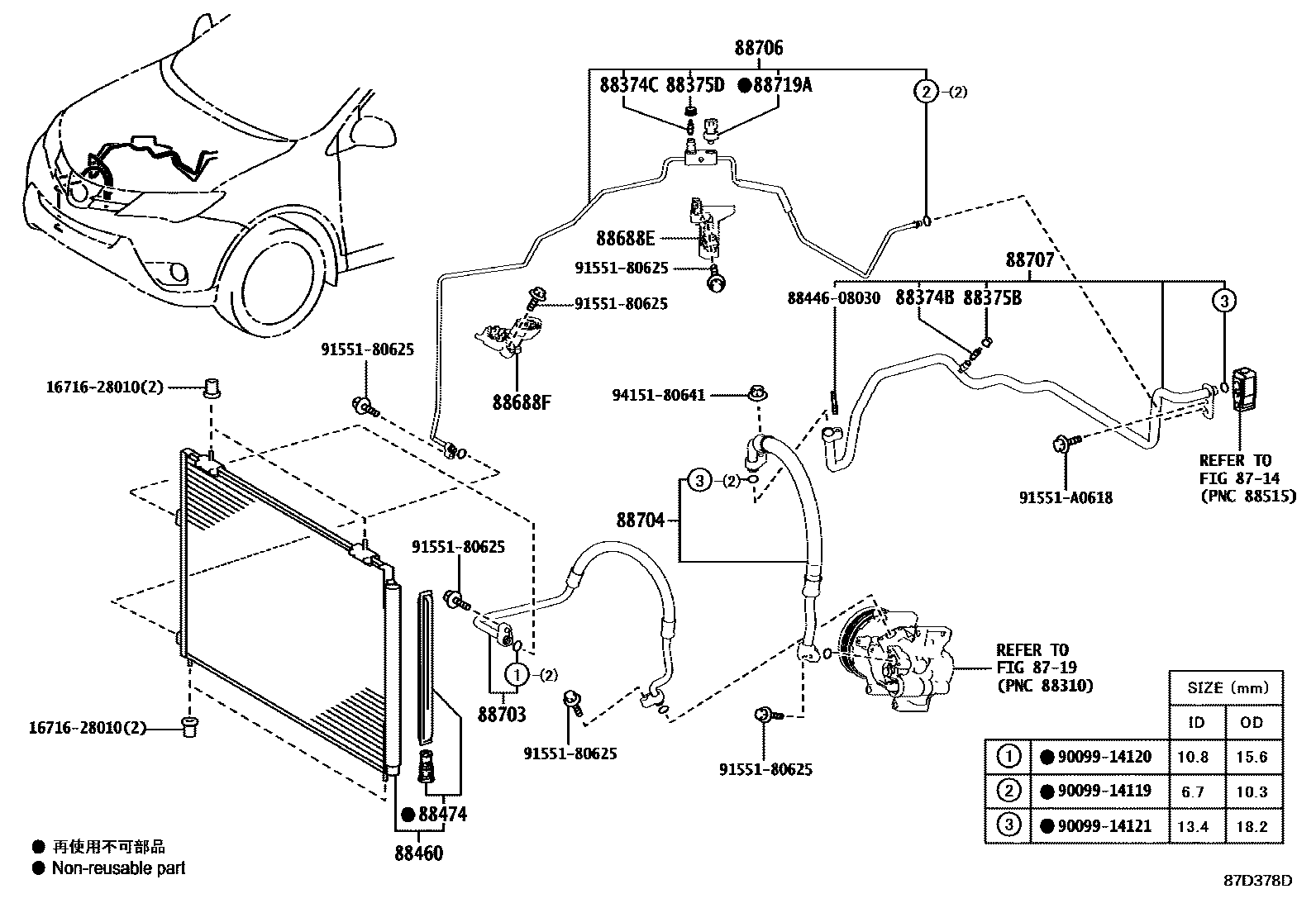

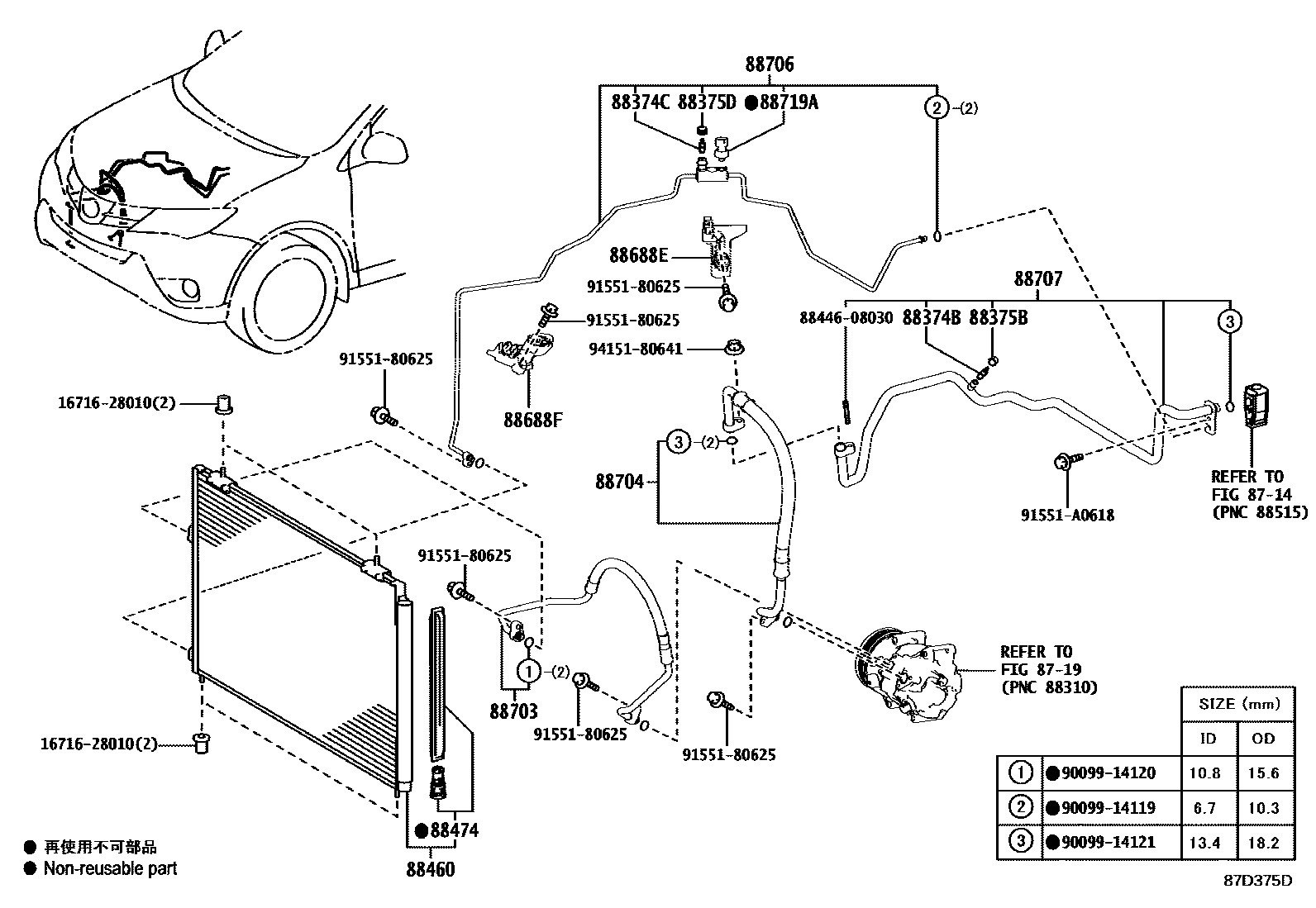

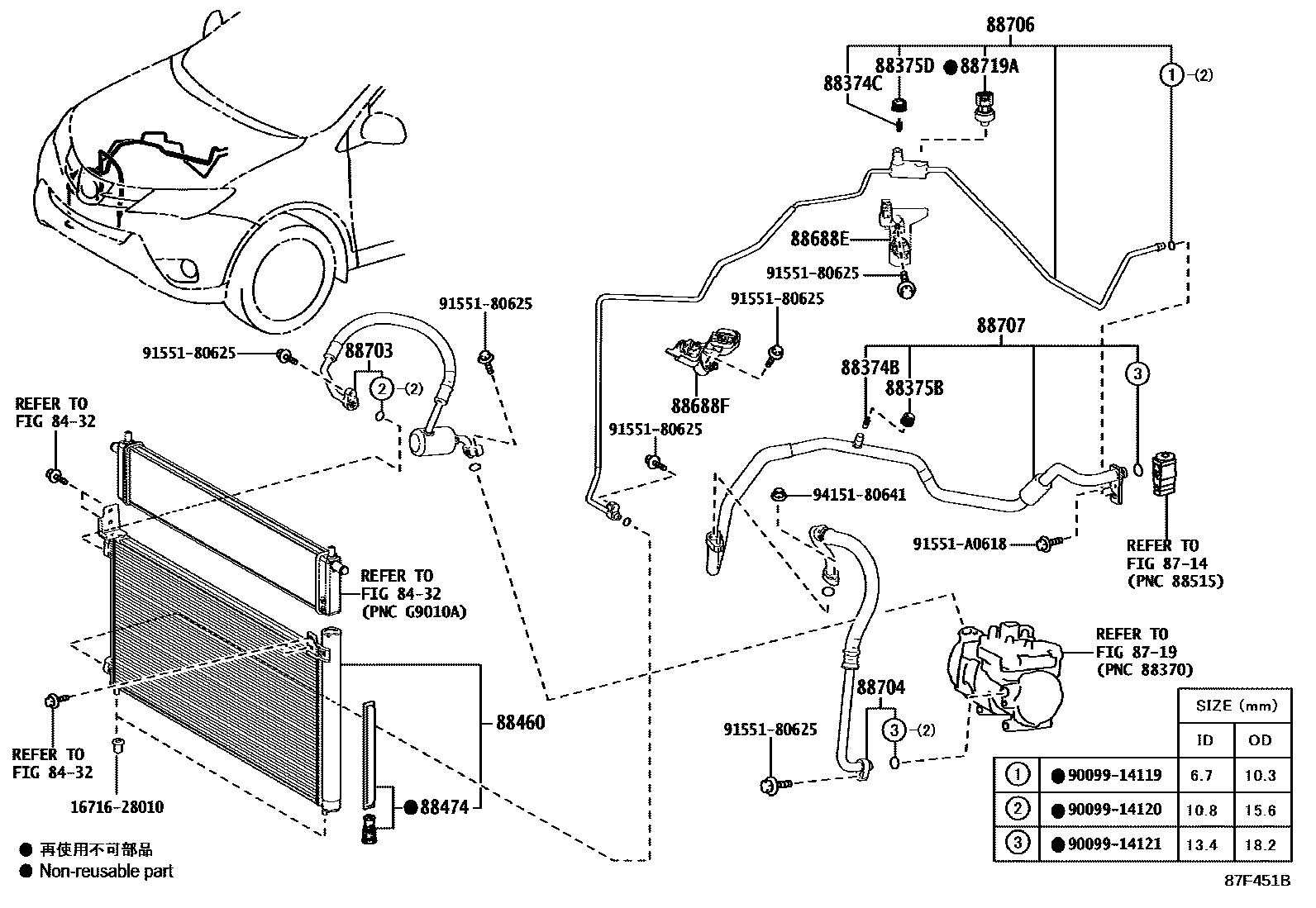

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-42110 · 88460-42150 |
| 88474 | cooler dryer | 88474-12030 · 88474-47020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-42510 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-42520 |
| 88703 | Discharge hose sub-assembly | 88703-42190 · 88703-42210 · 88703-42220 · 88703-42240 |
| 88704 | Oil suction hose sub-assembly | 88704-42270 · 88704-42280 · 88704-42290 · 88704-42710 |
| 88706 | Liquid pipe sub-assembly | 88706-42450 · 88706-42470 · 88706-42480 · 88706-42810 |
| 88707 | Suction pipe sub-assembly | 88707-42120 · 88707-42130 · 88707-42150 · 88710-42080 |
| 88718L | Pipe clamp | 88718-2D150 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
