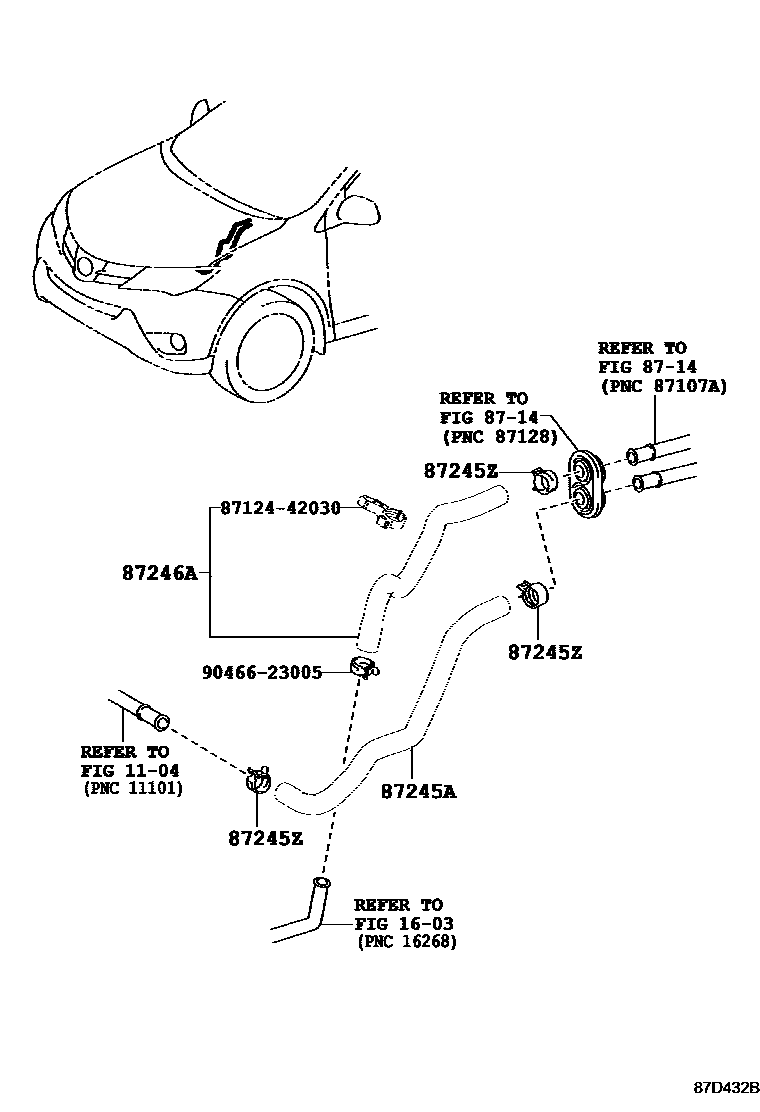

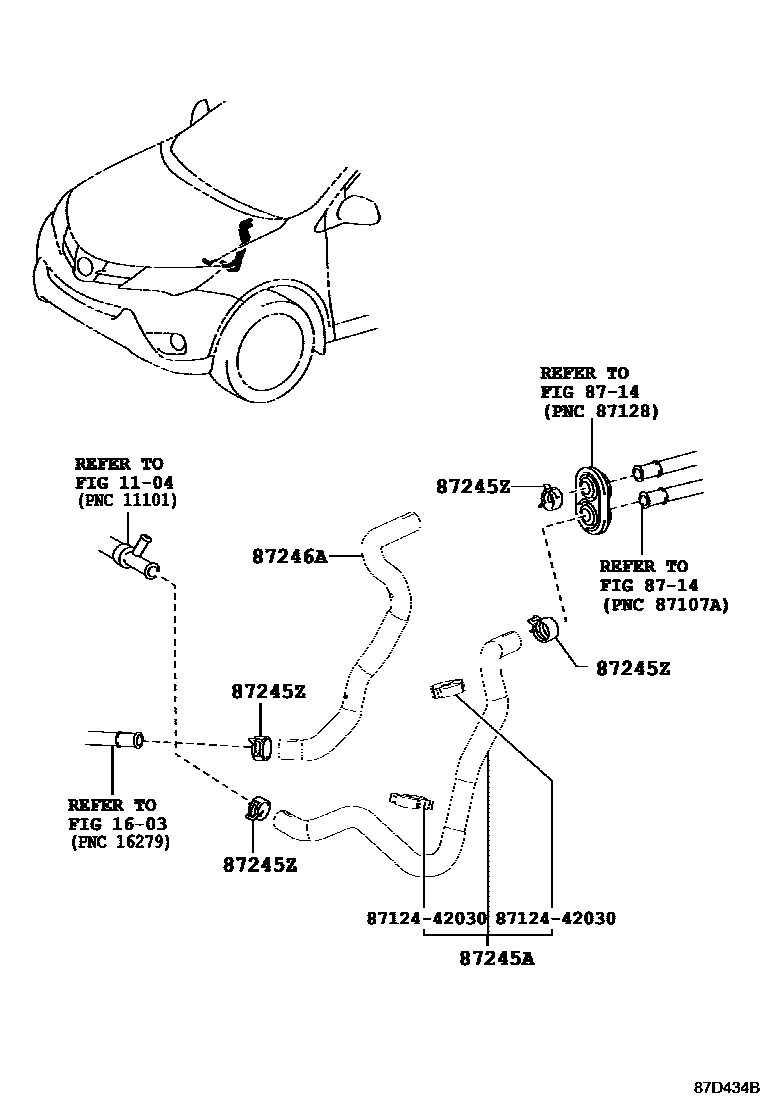

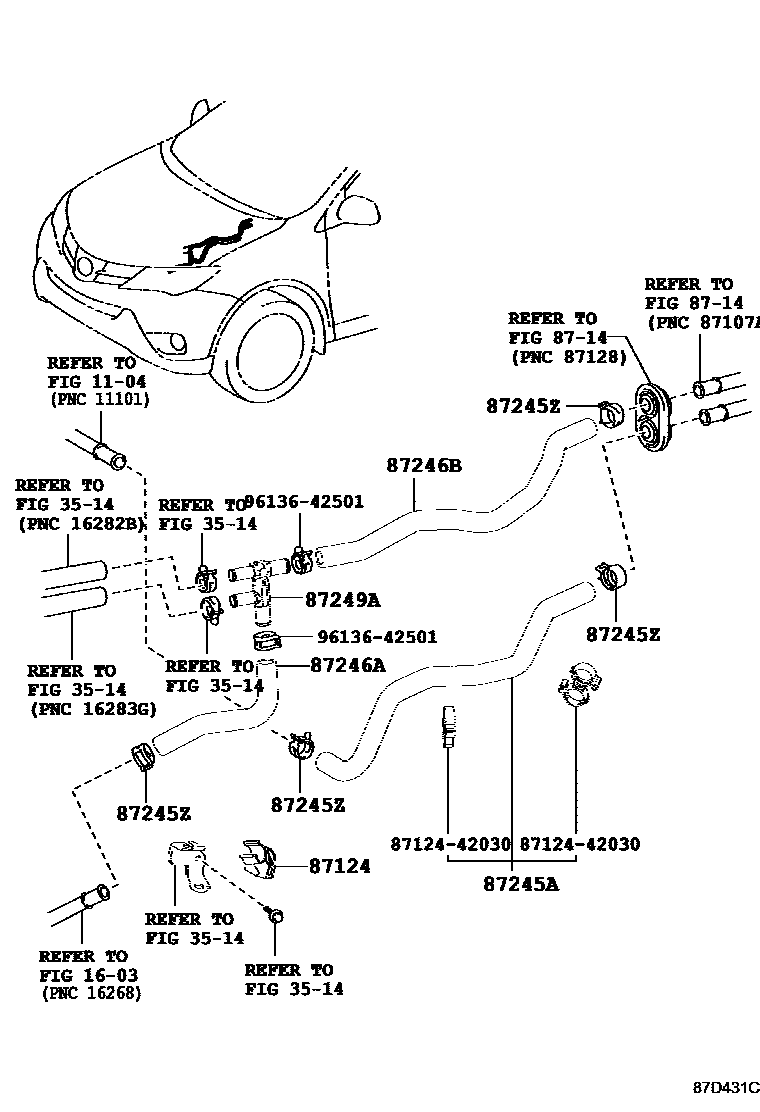

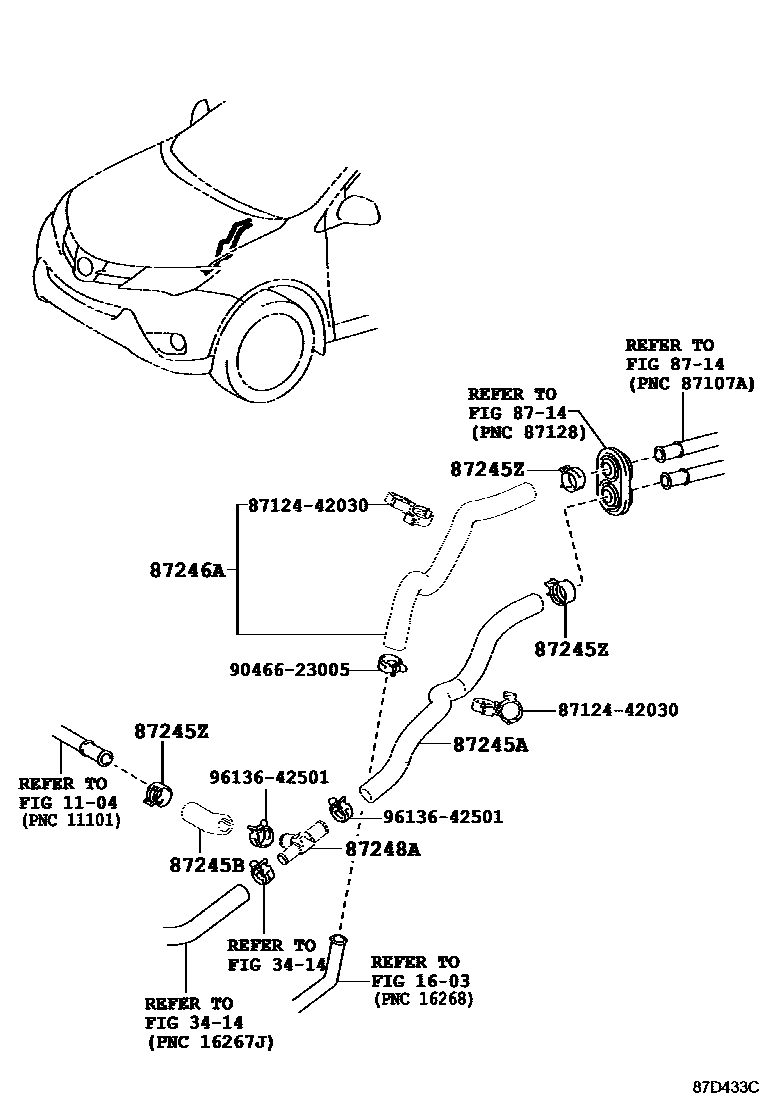

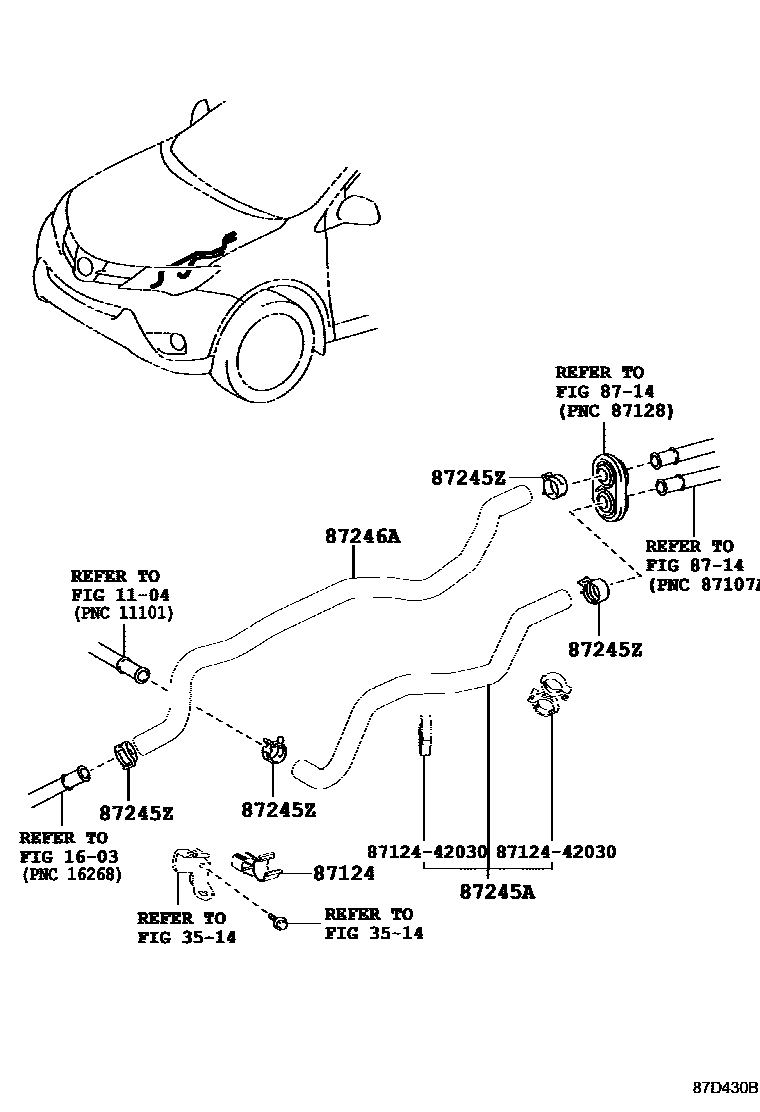

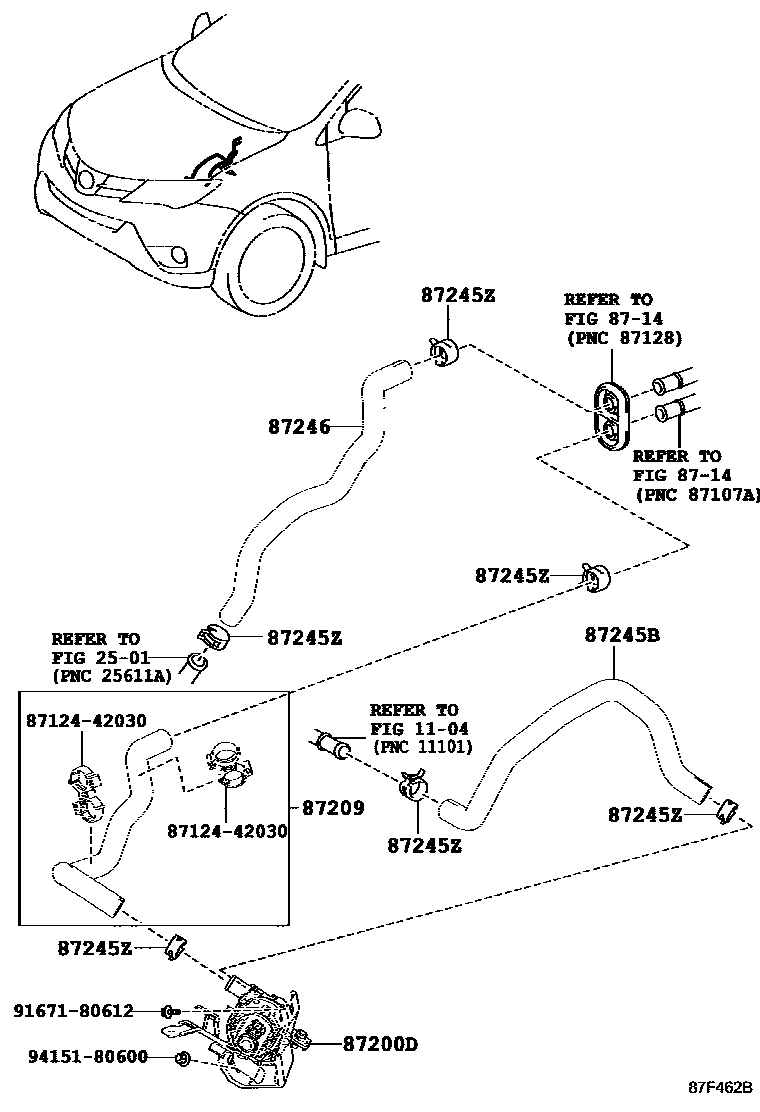

Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716
Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-42050 · 87124-42060 |
| 87200D | Heater accessory assembly | 87200-48110 |
| 87209 | Water hose sub-assembly | 87209-78050 |
| 87245A | Heater water inlet hose A | 87209-42161 · 87209-42170 · 87209-42210 · 87245-42500 · 87245-48C90 |
| 87245B | Heater water inlet hose B | 87245-42440 · 87245-48B40 |
| 87245Z | Clip or clip (for heater water hose) | 96136-42501 · 96138-42501 |
| 87246 | Heater outlet hose | 87245-78080 |
| 87246A | Heater outlet hose A | 87209-42180 · 87245-42470 · 87245-42481 · 87245-42540 · 87245-48B60 |
| 87246B | Heater outlet hose B | 87245-42530 |
| 87248A | Heater water inlet pipe A | 87248-12310 |
| 87249A | Heater outlet pipe A | 87248-33020 |
