Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

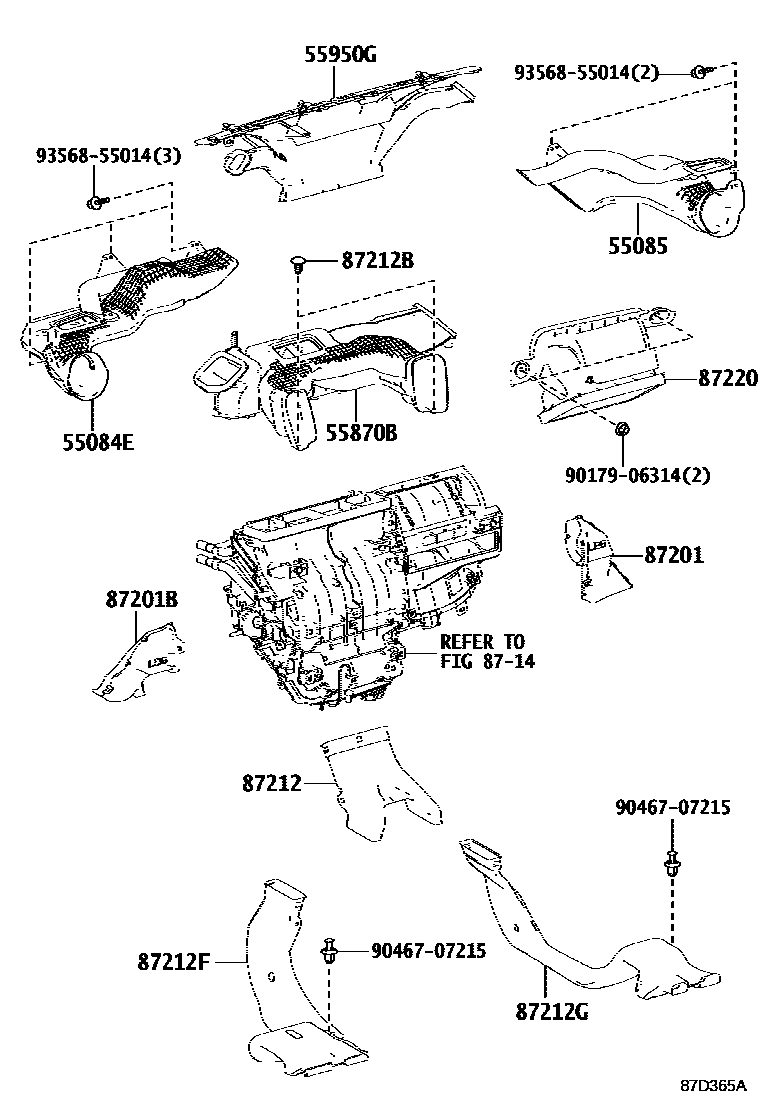

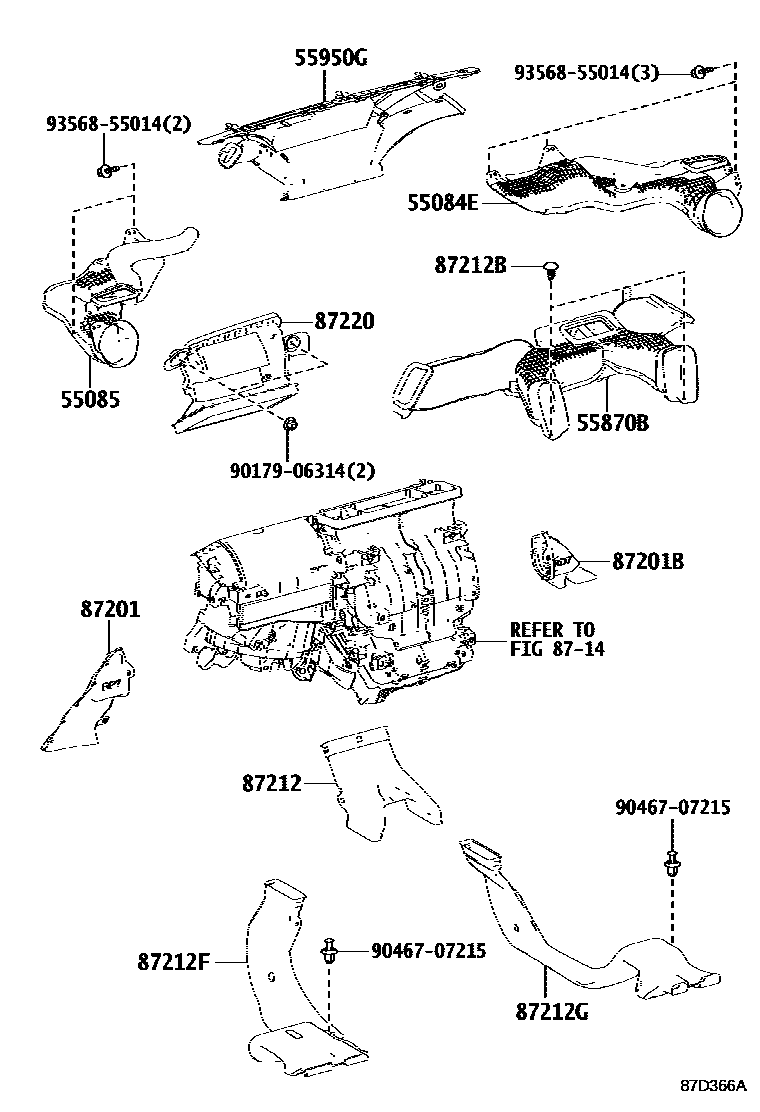

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-42020 · 55084-42030 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-42010 · 55085-42020 |
| 55870B | Heater to air regulator air duct assembly | 55870-42040 · 55870-42050 |

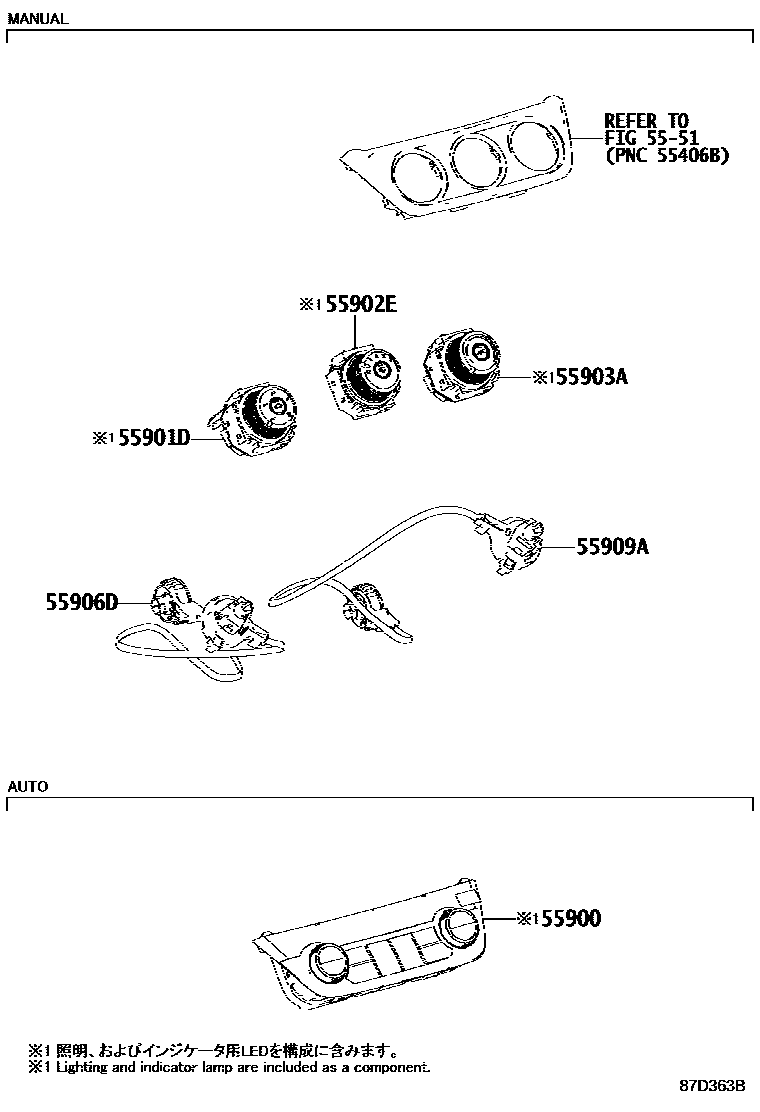

| 55900 | Air conditioning control assembly | 55900-42370 · 55900-42390 · 55900-42410 · 55900-42420 · 55900-42430 |
| 55901D | No. 1 heater control sub-assembly | 55901-12250 · 55901-42040 |
| 55902E | No. 2 heater control sub-assembly | 55902-12190 · 55902-42160 |
| 55903A | No. 3 heater control sub-assembly | 55903-12280 · 55903-42090 · 55903-42100 · 55903-42110 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-26060 |
| 55909A | Air mix damper control cable sub-assembly | 55909-26080 |
| 55950G | Defroster nozzle assembly | 55950-42040 · 55950-42050 |
| 87201 | No. 1 air duct sub-assembly | 87211-42120 · 87211-42140 |
| 87201B | No. 2 air duct sub-assembly | 87211-42110 · 87211-42130 |
| 87212 | No. 1 rear air duct | 87215-42050 |
| 87212F | No. 2 rear air duct | 87213-42060 |
| 87212G | No. 3 rear air duct | 87212-42070 |
| 87220 | Air duct assembly | 87220-42080 · 87220-42090 |

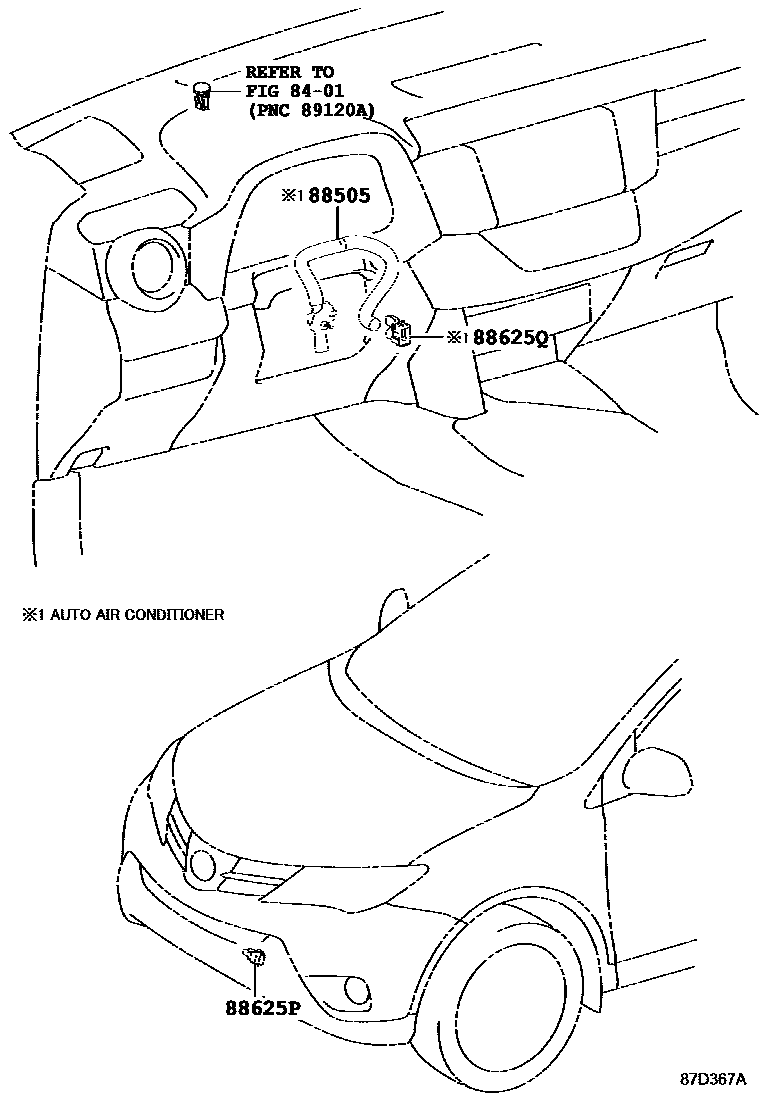

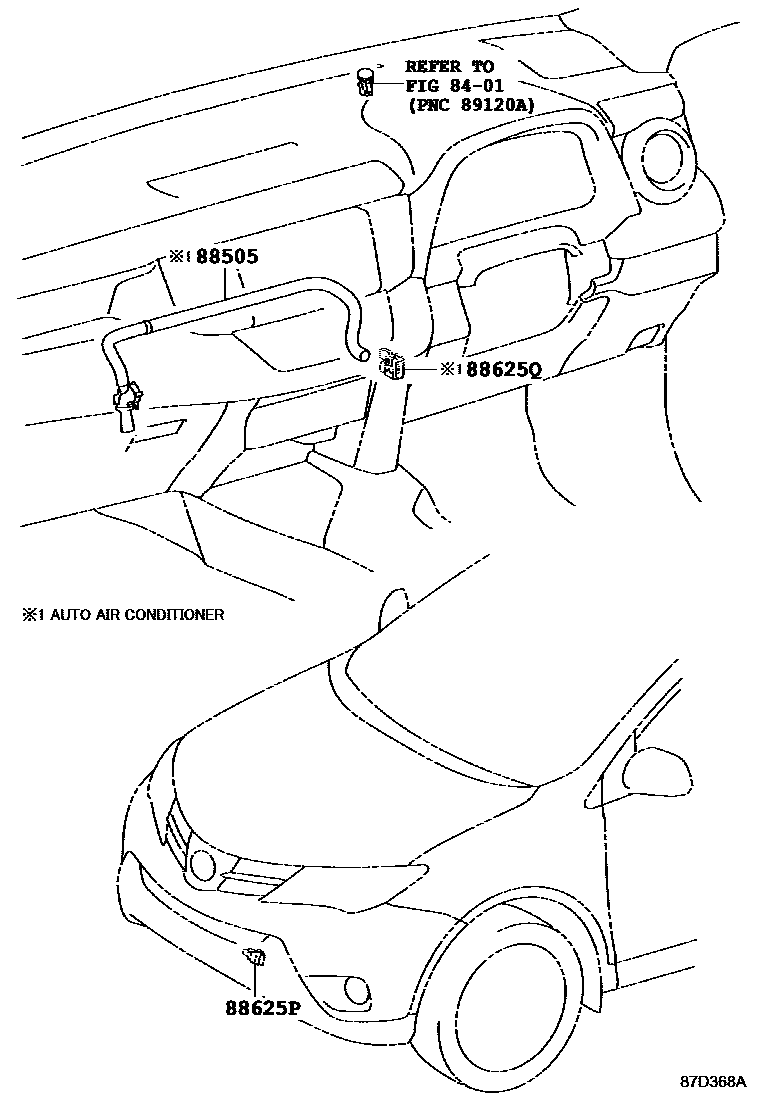

| 88505 | Air conditioning duct sub-assembly | 88505-42010 · 88505-42020 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
