Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 14 PNC and OE references.

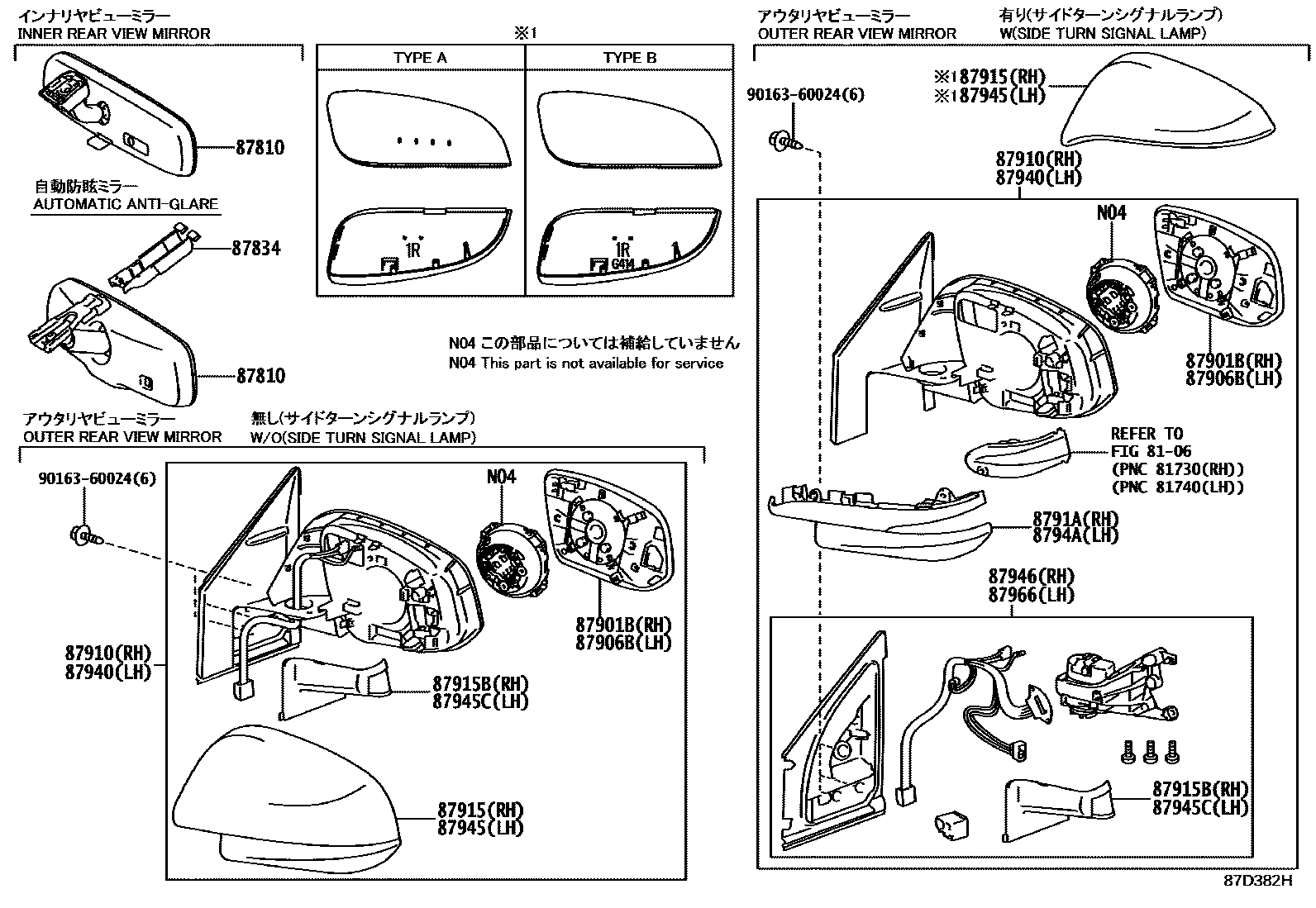

Toyota RAV4 后视镜 EPC diagram — 87D382H
后视镜 — 87D382H (201212 – 201510)

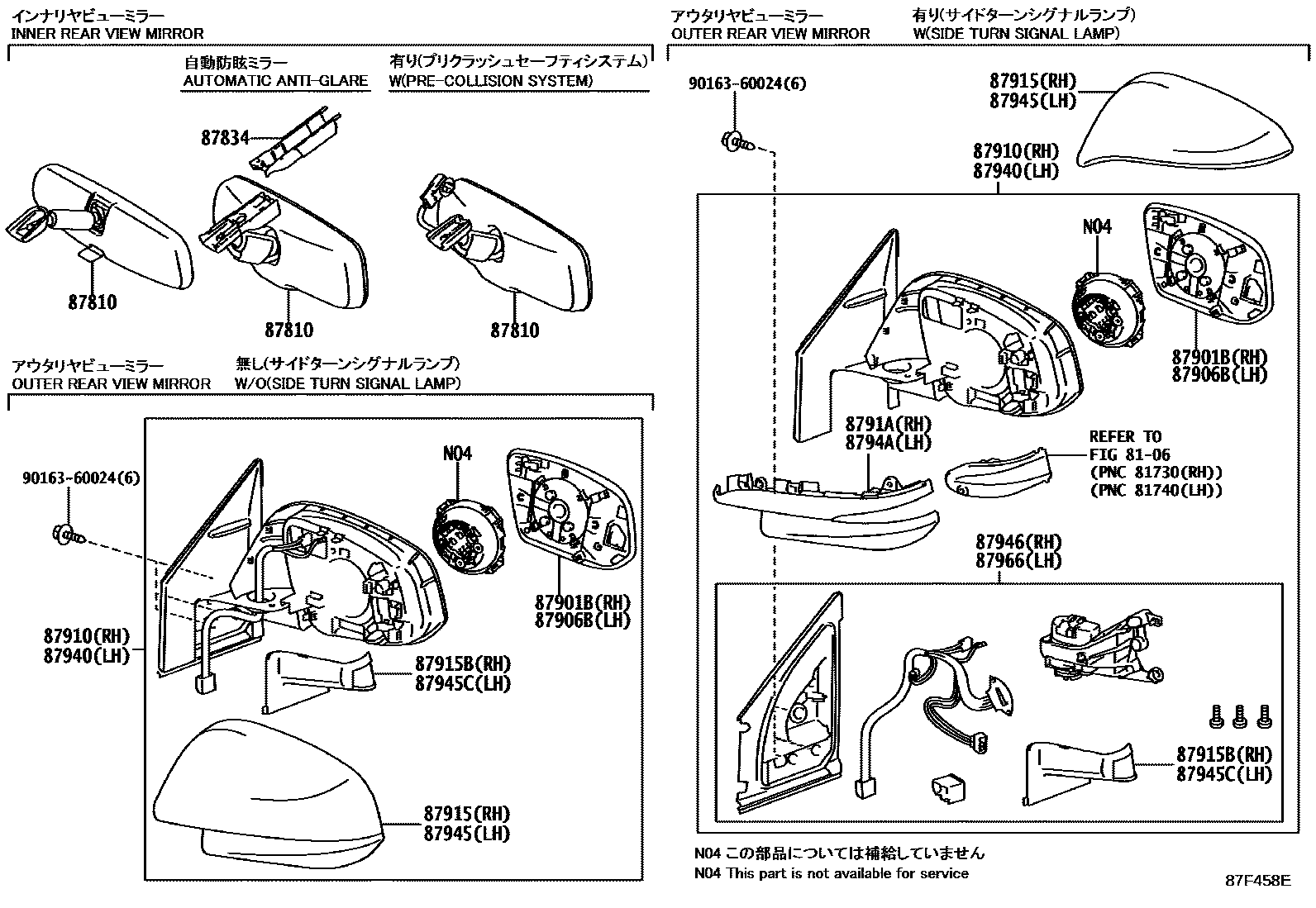

Toyota RAV4 后视镜 EPC diagram — 87F458E
后视镜 — 87F458E (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0WK00 · 87810-0WK20 · 87810-0WQ10 · 87810-0WQ40 · 87810-52041
87834Interior rearview mirror stay fixing cover87818-47010 · 87818-76010
87901BRight exterior rearview mirror sub-assembly87931-42C00 · 87931-42C10 · 87931-42C20 · 87931-42C30 · 87931-42C40 · 87931-42D80 · 87931-42E10 · 87931-42E20 · 87931-42G80
87906BLeft exterior rearview mirror sub-assembly87961-42B70 · 87961-42B80 · 87961-42B90 · 87961-42C00 · 87961-42C10 · 87961-42D50 · 87961-42D80 · 87961-42D90 · 87961-42G60
87910Right exterior rearview mirror assembly87910-42C00 · 87910-42C10 · 87910-42C20 · 87910-42C30 · 87910-42C40 · 87910-42C50 · 87910-42C60 · 87910-42C70 · 87910-42D10 · 87910-42D80 · 87910-42E10 · 87910-42G10 · 87910-42G20 · 87910-42G30 · 87910-42G40 · 87910-42G80
87915Right exterior rearview mirror cover87915-42150 · 87915-42190
87915BRight exterior rearview mirror lower cover87915-42140 · 87915-42170
8791ARight exterior rearview mirror cover No. 28791B-42C10
87940Left exterior rearview mirror assembly87940-42B70 · 87940-42B80 · 87940-42B90 · 87940-42C00 · 87940-42C10 · 87940-42C20 · 87940-42C30 · 87940-42C40 · 87940-42C80 · 87940-42D50 · 87940-42D80 · 87940-42F90 · 87940-42G00 · 87940-42G10 · 87940-42G20 · 87940-42G60
87945Left exterior rearview mirror cap87945-42150 · 87945-42190
87945CLeft exterior rearview mirror lower cover87945-42140 · 87945-42170
87946Right exterior rearview mirror retractor00000-00000 · 87946-42C10 · 87946-42C20 · 87946-42C50 · 87946-42C70
8794ANo. 2 left exterior rearview mirror cap8794B-42B80
87966Left exterior rearview mirror retractor00000-00000 · 87966-42B80 · 87966-42B90 · 87966-42C20 · 87966-42C40
