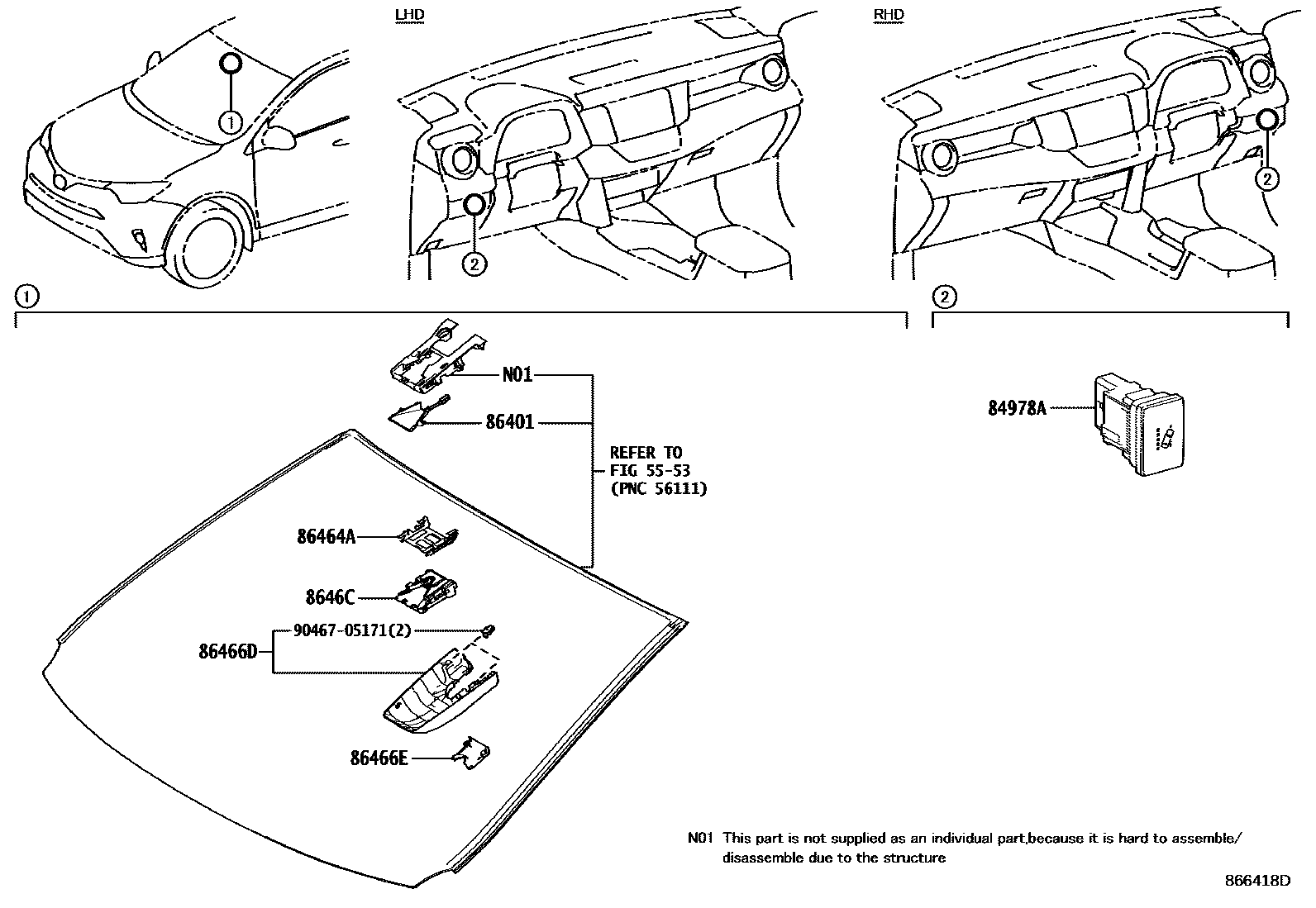

Toyota RAV4 预碰撞安全系统 — Figure 8617
Toyota RAV4 EPC diagram 8617, 预碰撞安全系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84978A | Lane Keeping Assist Master Switch | 84978-42030 |
| 86401 | Front identification hood sub-assembly with heater | 86401-48030 |
| 86464A | Front identification lock | 86464-48011 |
| 86466D | Front identification cover No. 1 | 86466-42020 · 86466-42080 |
| 86466E | Front identification cover No. 2 | 86466-42030 · 86466-42090 |
| 8646C | front recognition camera | 8646C-42010 · 8646C-42020 · 8646C-42021 |
