Toyota RAV4 喇叭 — Figure 8611

Toyota RAV4 EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.

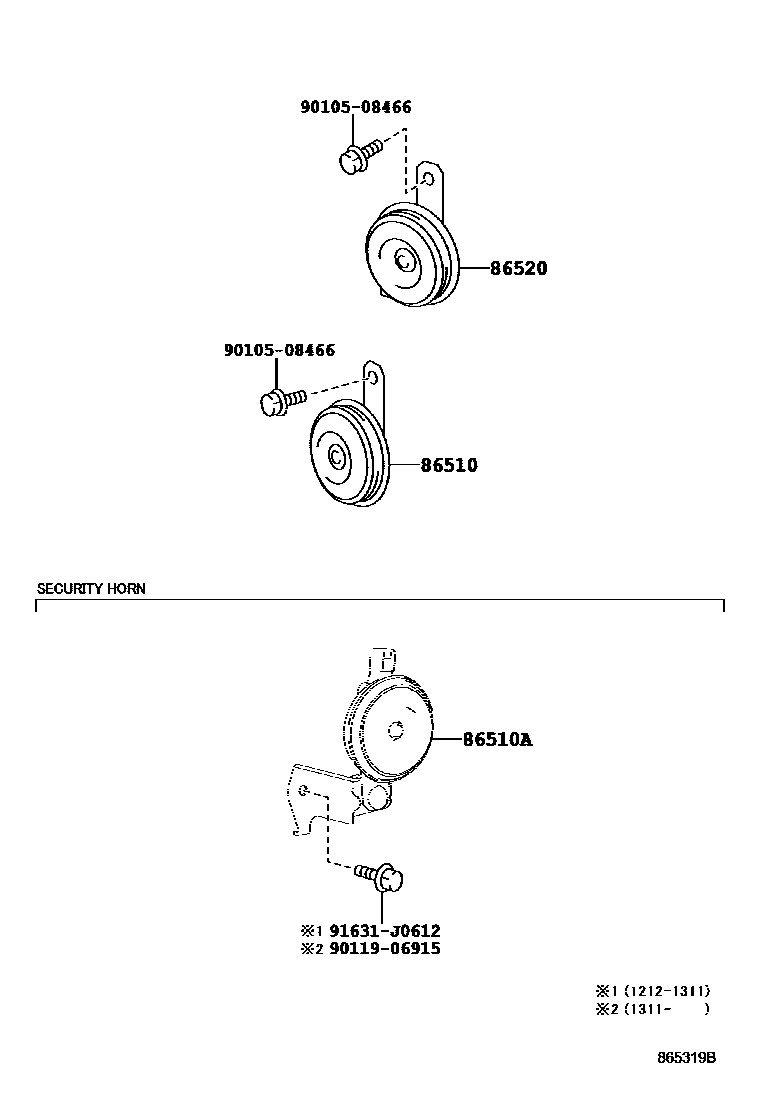

Toyota RAV4 喇叭 EPC diagram — 865319B
喇叭 — 865319B (201212 – 201510)

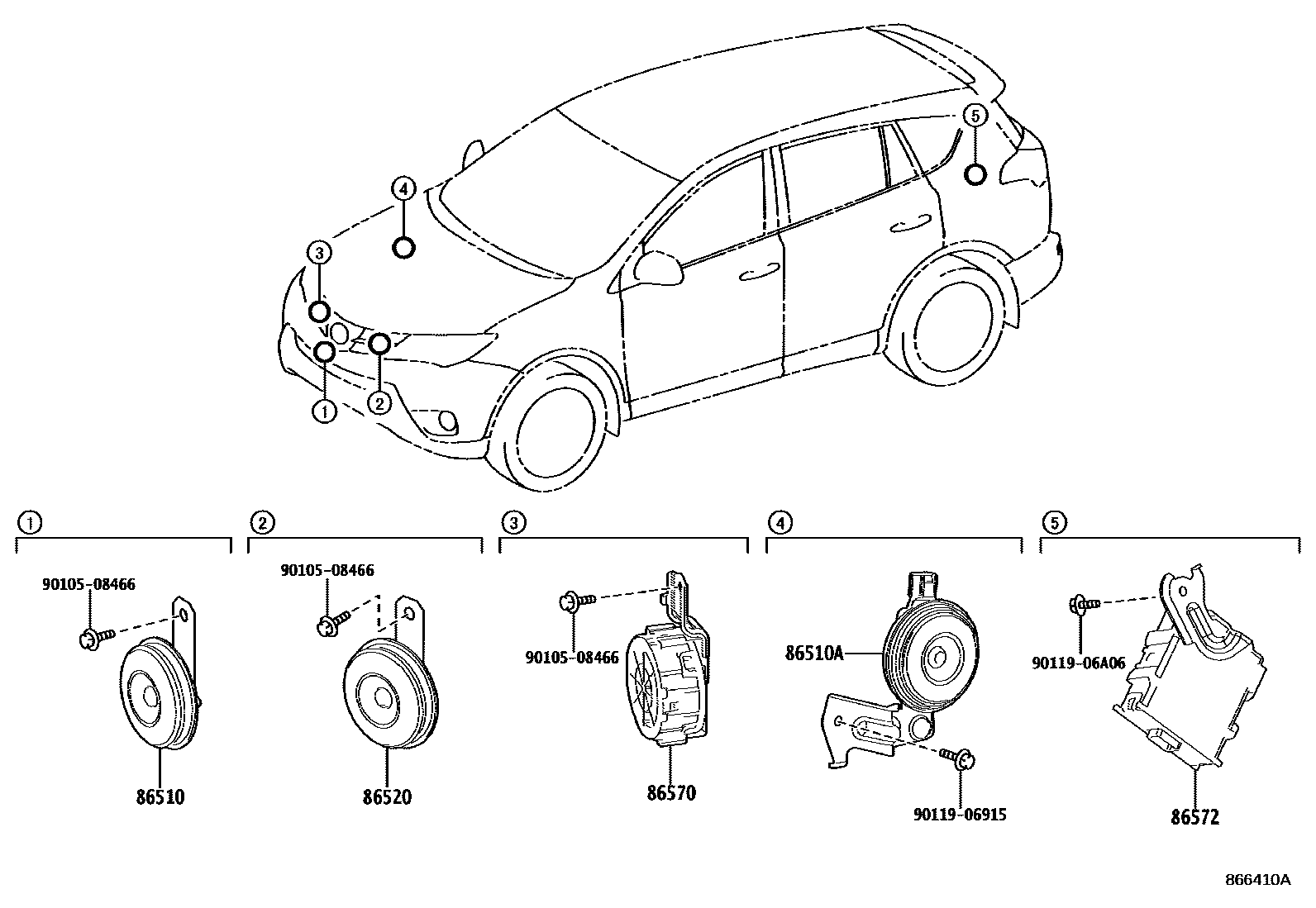

Toyota RAV4 喇叭 EPC diagram — 866410A
喇叭 — 866410A (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-20280
86510AAlarm horn assembly86560-42010
86520Subwoofer assembly86520-20300
86570Vehicle intrusion speaker assembly86570-42020
86572vehicle hacking speaker controller86572-42020
