Toyota RAV4 antenna — Figure 8604

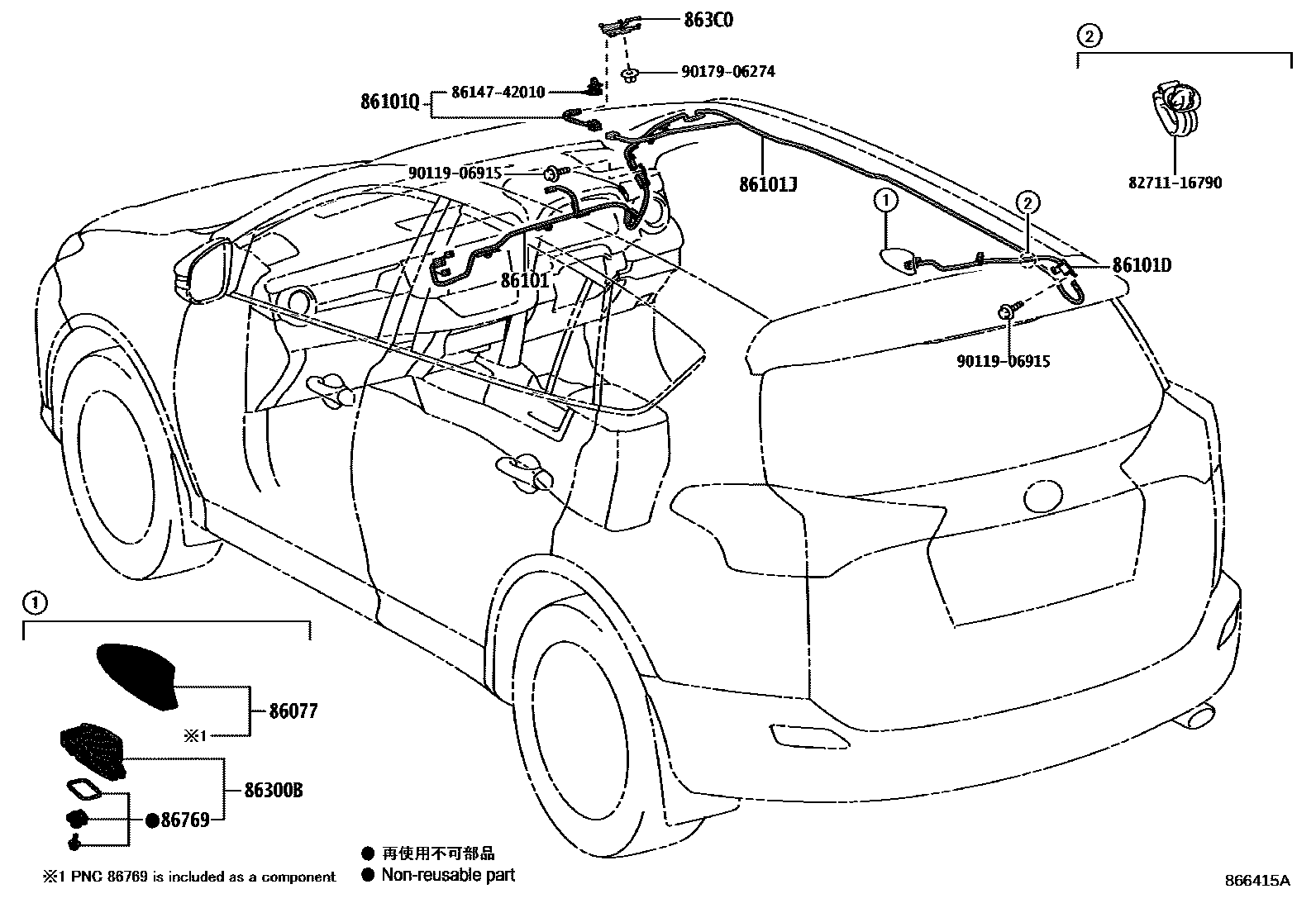

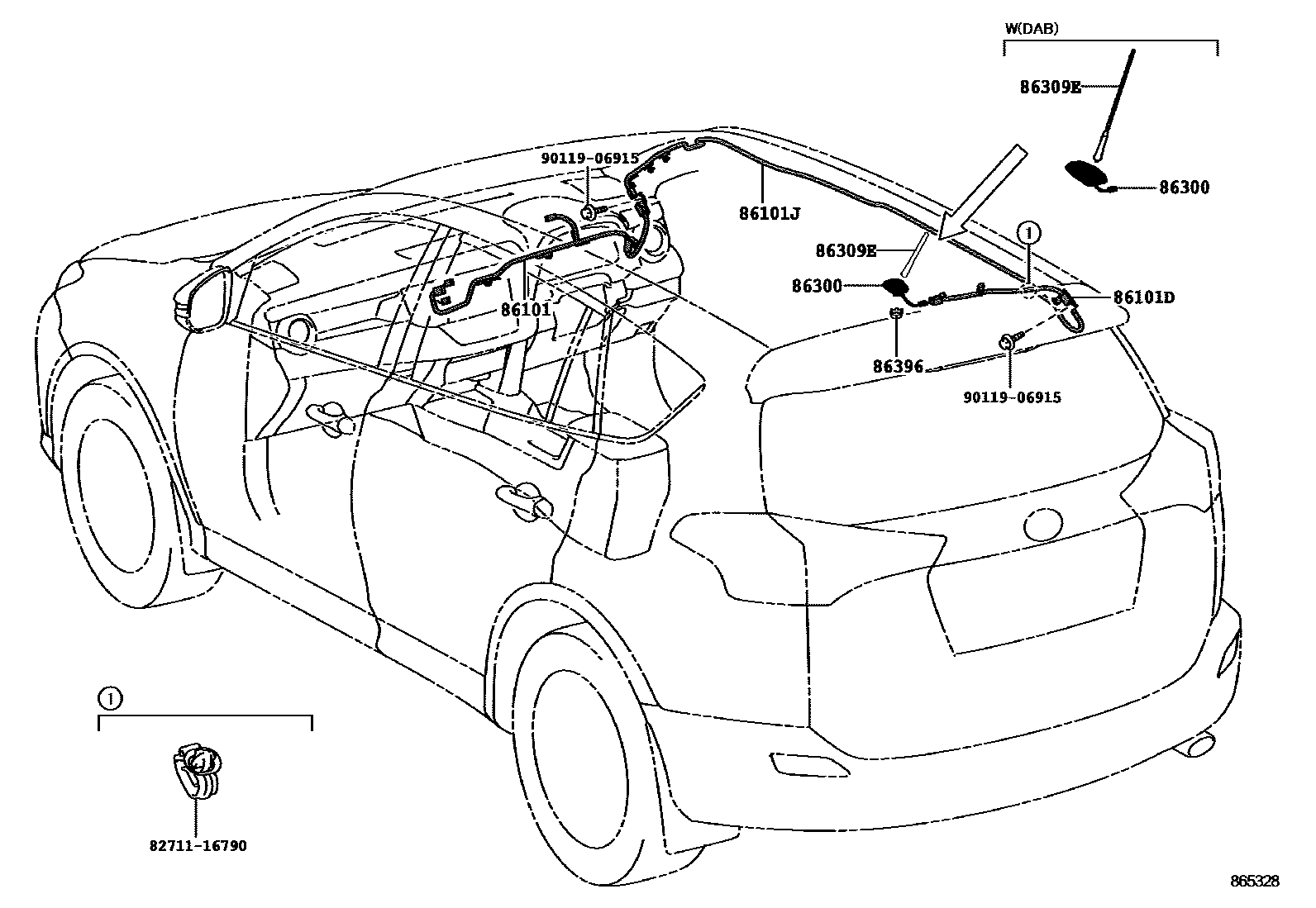

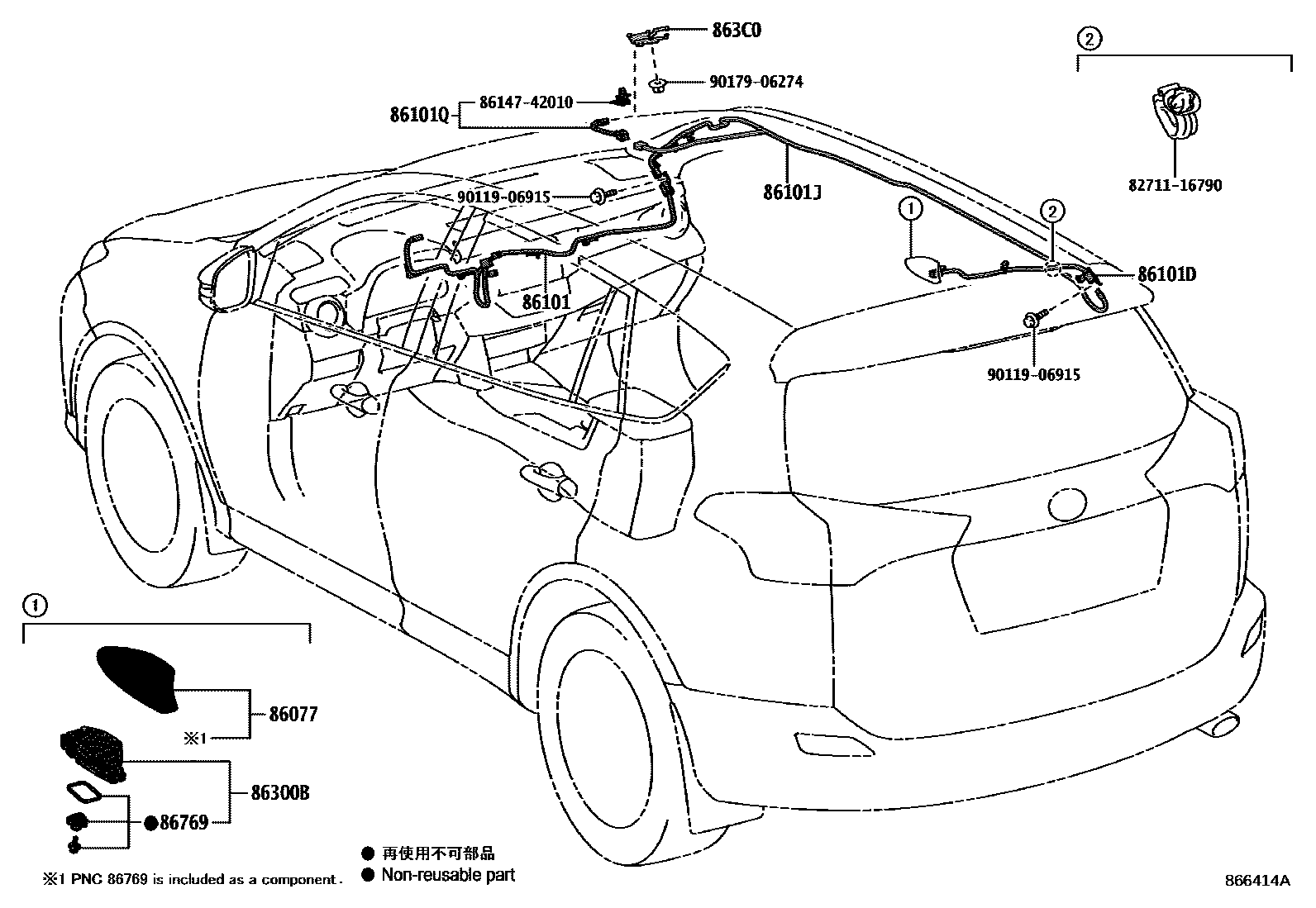

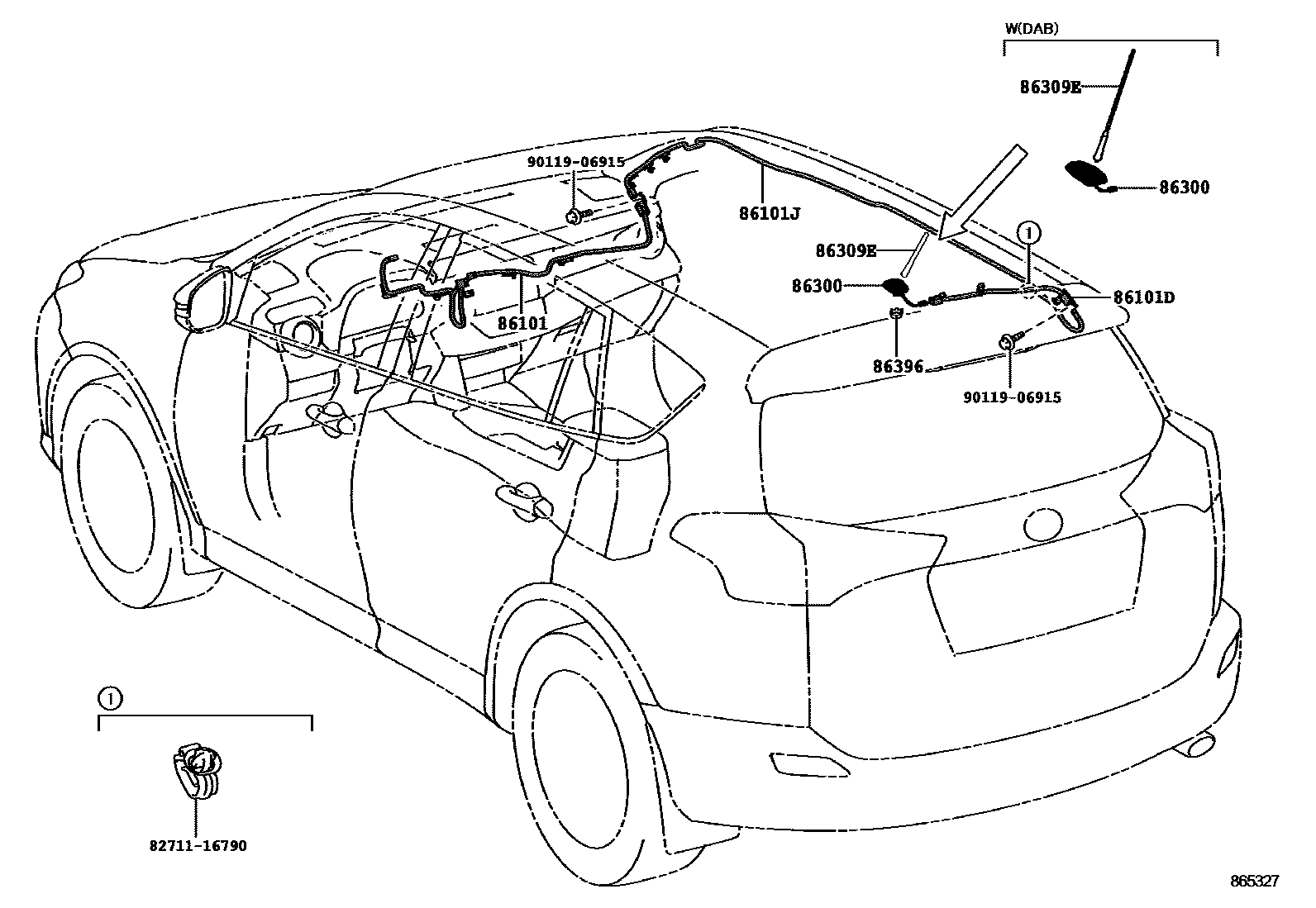

Toyota RAV4 EPC diagram 8604, antenna, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-42500 · 86101-42520 · 86101-42521 · 86101-42522 · 86101-42530 · 86101-42531 · 86101-42532 · 86101-42540 · 86101-42550 · 86101-42551 · 86101-42552 · 86101-42641 · 86101-42642 · 86101-42860 · 86101-42870 · 86101-42880 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-42660 · 86101-42670 · 86101-42790 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-42580 · 86101-42590 · 86101-42750 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-42820 |
| 86300 | Antenna assembly with fixing parts | 86300-42210 · 86300-42221 |
| 86300B | No. 1 amplifier antenna assembly | 86300-47180 |
| 86309E | Roof antenna sub-assembly | 86309-13030 · 86309-42090 |
| 86396 | Antenna nut | 86396-47010 |
| 863C0 | Digital audio broadcast receiver antenna assembly | 863C0-78010 |
| 86769 | roof radome | 86769-12010 |
