Toyota RAV4 前大灯清洗器 — Figure 8505

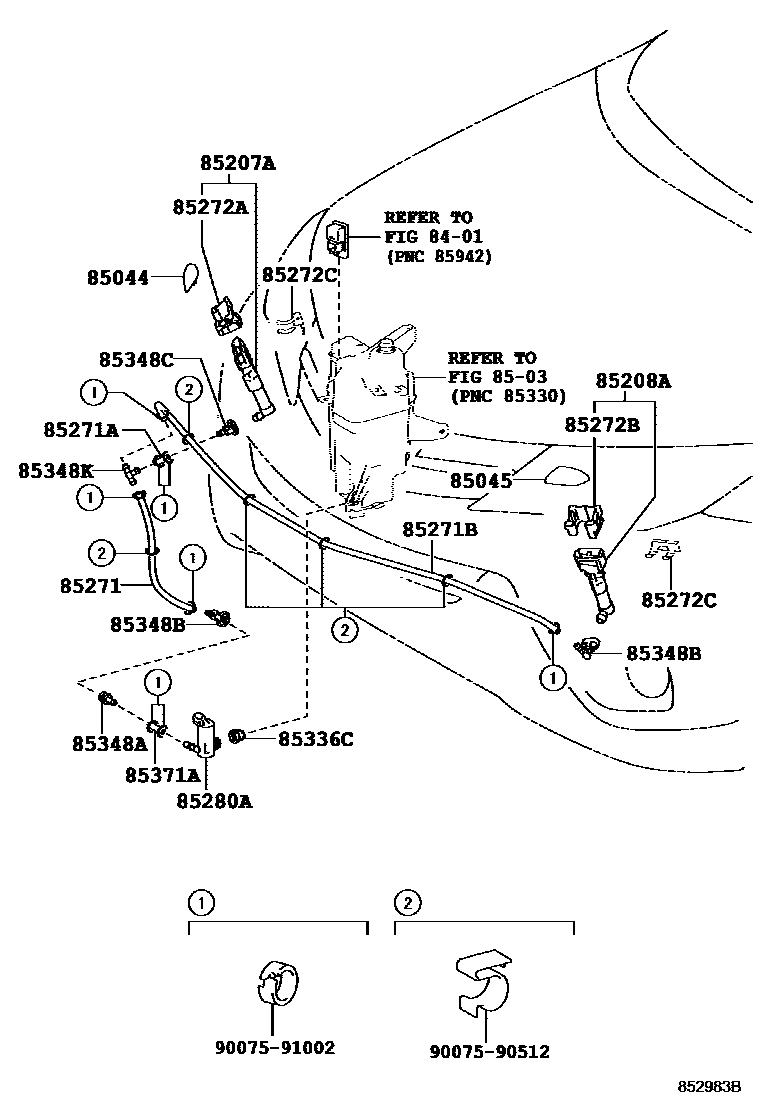

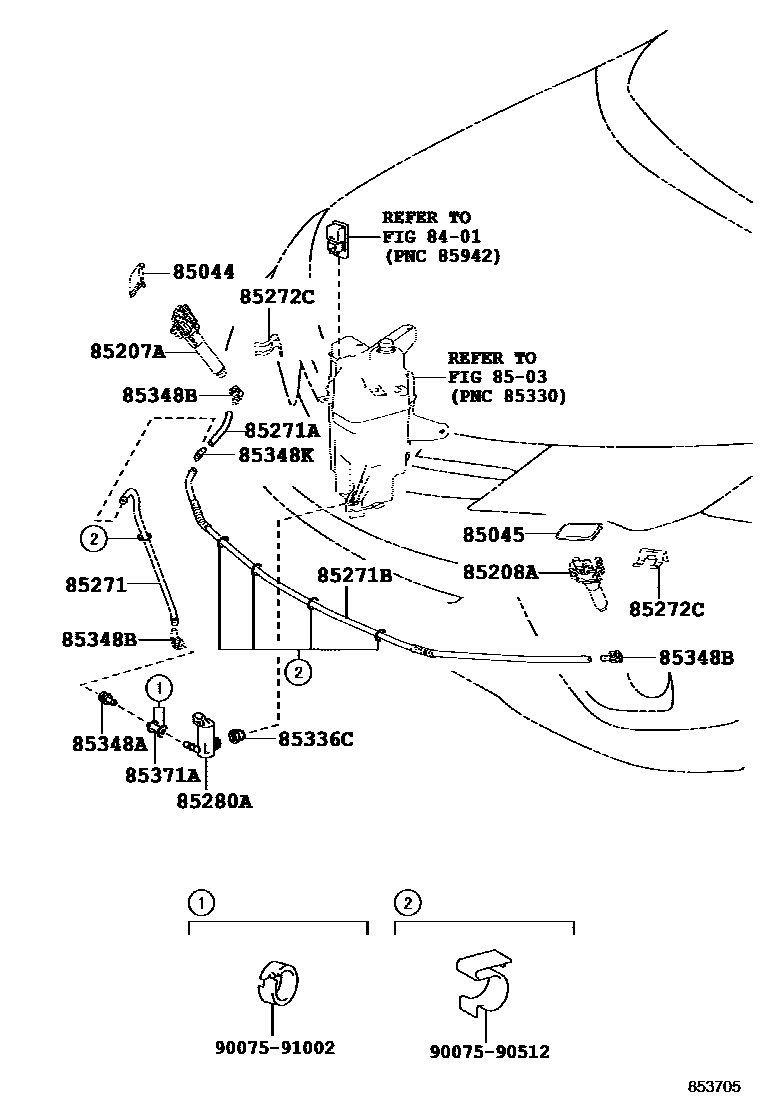

Toyota RAV4 EPC diagram 8505, 前大灯清洗器, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-42051 · 85207-42060 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-42051 · 85208-42060 |
| 85271 | No. 1 headlight washer hose | 90075-15093 · 90075-15101 |
| 85271A | No. 2 headlight washer hose | 90075-15053 · 90075-15055 |
| 85271B | No. 3 headlight washer hose | 90075-15061 · 90075-15065 |
| 85272A | Headlight washer No. 1 clip | 85272-42031 |
| 85272B | Headlight washer clip No. 2 | 85273-42021 |
| 85272C | Headlight washer clip No. 3 | 85272-28030 · 85272-75050 |
| 85280A | Headlight washer motor and pump assembly | 85280-47010 |
| 85336C | Headlight washer motor seal | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17002 · 90075-17012 |
| 85348B | No. 2 headlight washer hose connector | 90075-17001 · 90075-17009 |
| 85348C | No. 3 headlight washer hose connector | 90075-17005 |
| 85348K | No. 1 headlight washer elbow joint | 90075-17003 · 90075-17010 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15053 |
