Toyota RAV4 挡风玻璃刮水器 — Figure 8501

Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 4 images and 14 PNC and OE references.

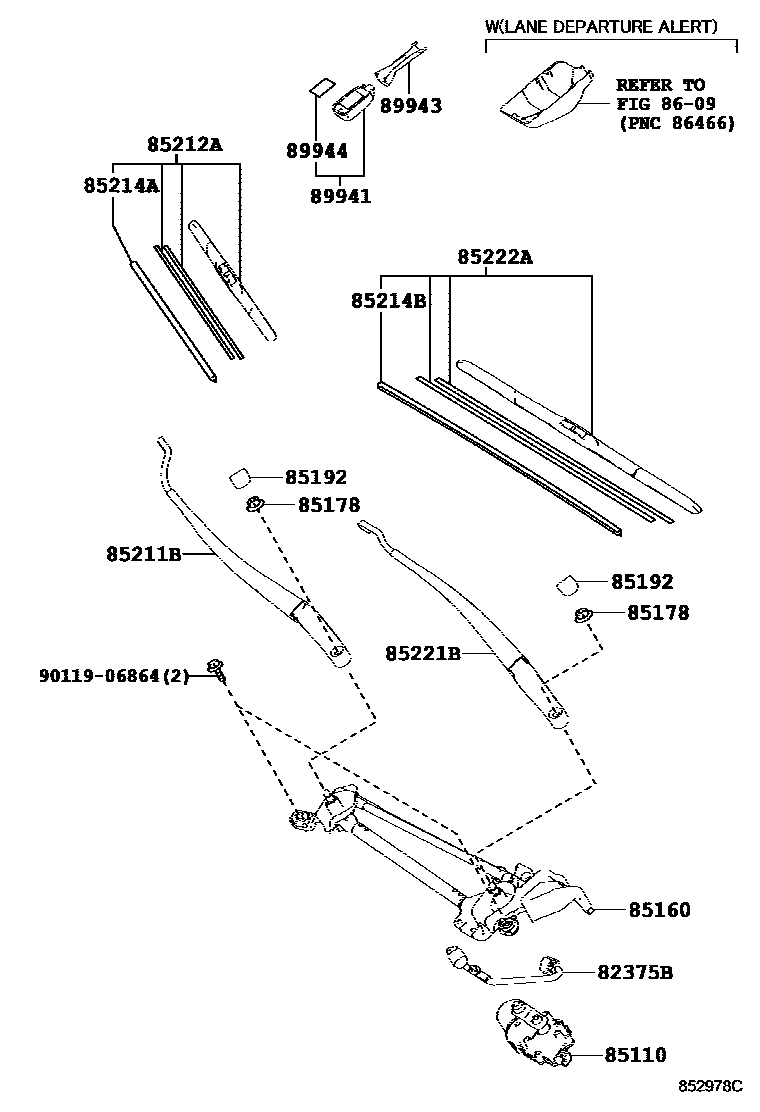

Toyota RAV4 挡风玻璃刮水器 EPC diagram — 852978C
挡风玻璃刮水器 — 852978C (201212 – 201510)

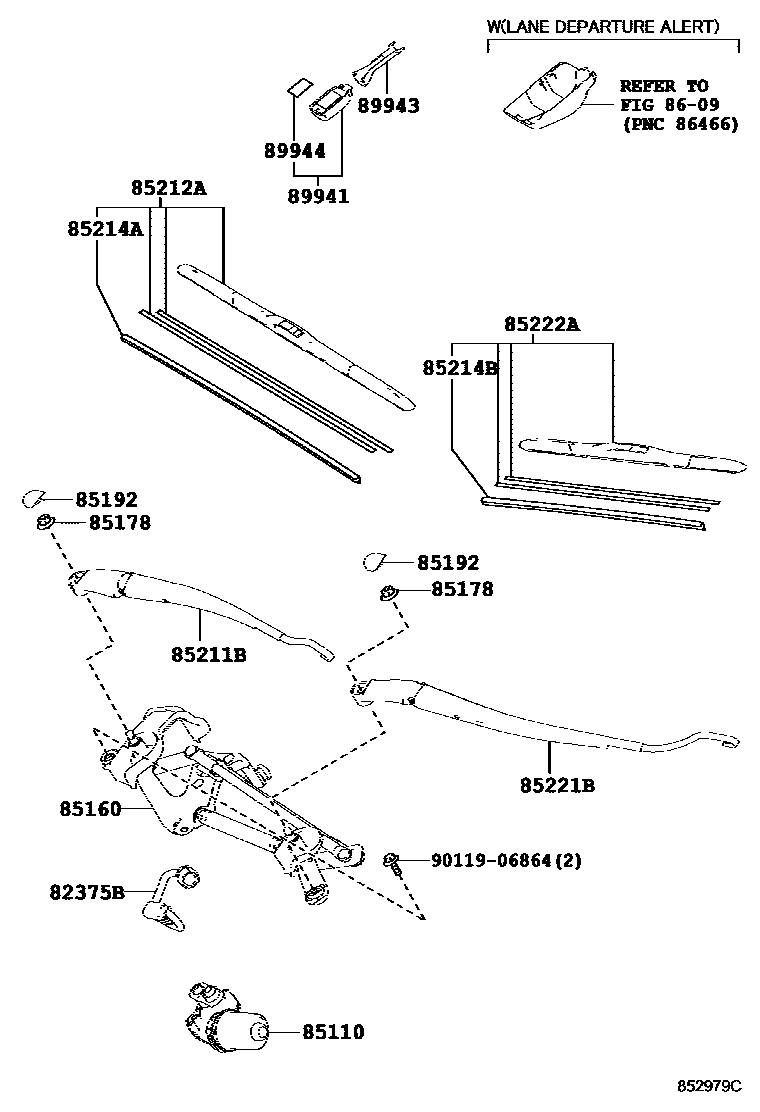

Toyota RAV4 挡风玻璃刮水器 EPC diagram — 852979C
挡风玻璃刮水器 — 852979C (201212 – 201510)

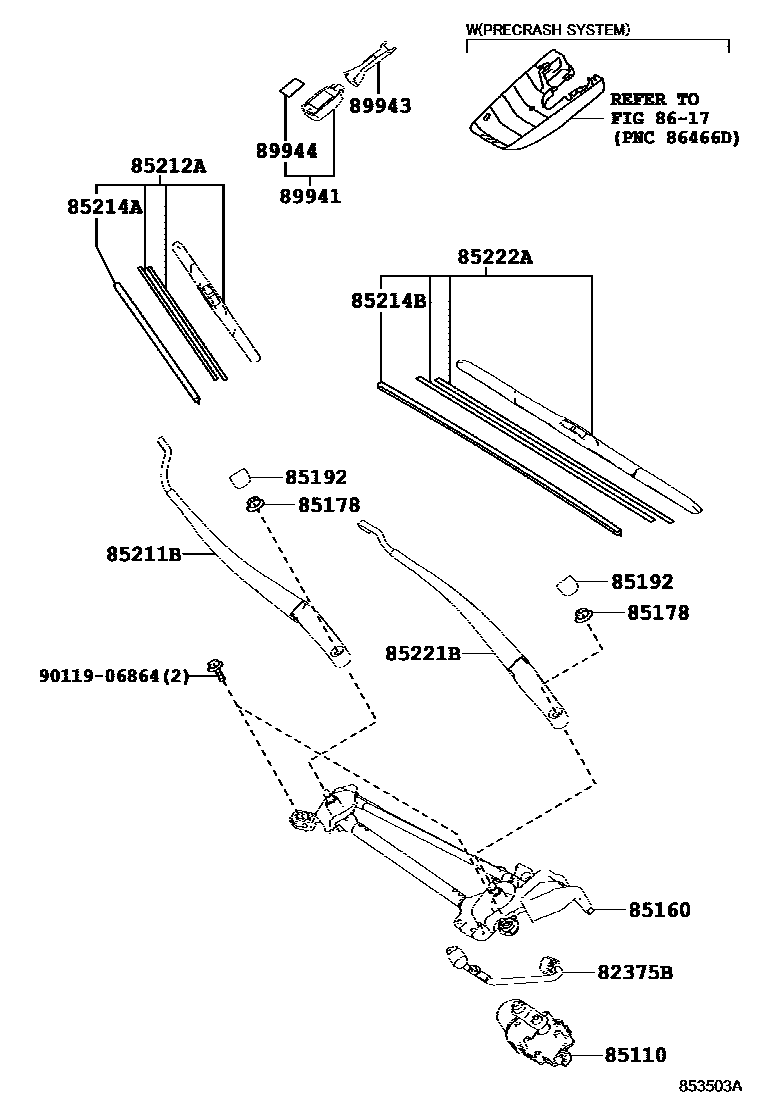

Toyota RAV4 挡风玻璃刮水器 EPC diagram — 853503A
挡风玻璃刮水器 — 853503A (201510 – 999999)

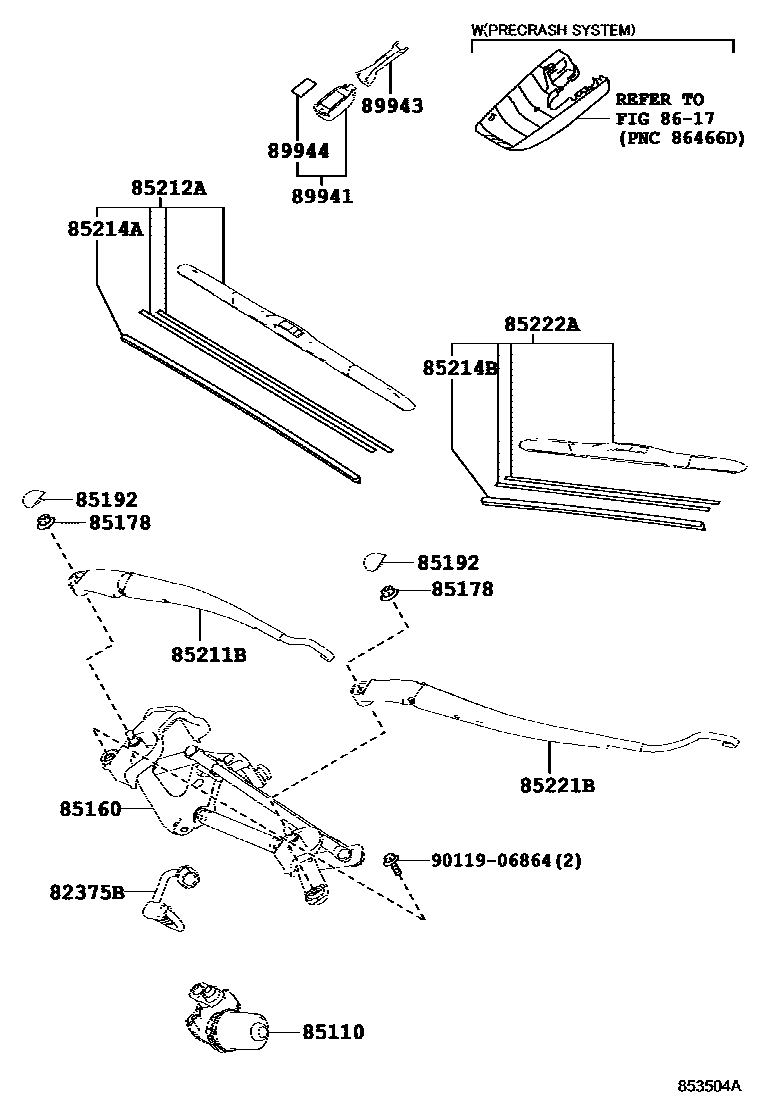

Toyota RAV4 挡风玻璃刮水器 EPC diagram — 853504A
挡风玻璃刮水器 — 853504A (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-48020
85110Windshield wiper motor assembly85110-42180 · 85110-42181 · 85110-42190 · 85110-42200 · 85110-42201
85160Windshield wiper connecting rod assembly85150-42160 · 85150-42170 · 85150-42180
85178Nut (for securing front wiper arm)90182-10006
85192windshield wiper arm cover85292-13010
85211BRight front wiper arm85211-42140 · 85211-42160
85212ARight front wiper blade85212-42130 · 85212-52250
85214ARight wiper rubber strip85214-28090 · 85214-52110 · 85214-68020
85214BLeft wiper rubber strip85214-28090 · 85214-52110 · 85214-68020
85221BLeft front wiper arm85221-42140 · 85221-42150 · 85221-42160
85222ALeft front wiper blade85222-42120 · 85222-42130
89941rain sensor89941-52010
89943Rain sensor cover89943-33050 · 89943-42020
89944Rain sensor tape89944-42010
