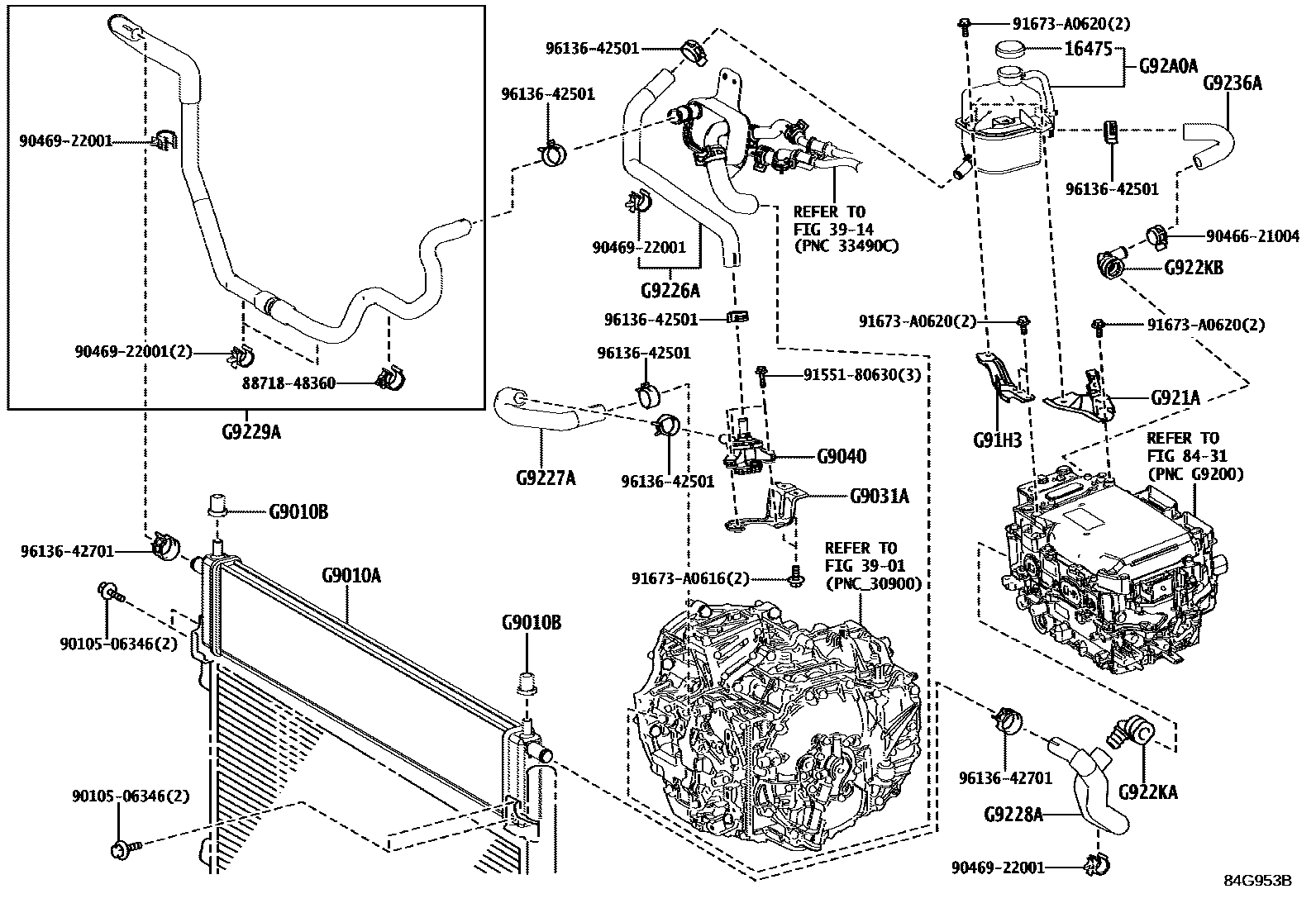

Toyota RAV4 逆变器冷却系统 — Figure 8432
Toyota RAV4 EPC diagram 8432, 逆变器冷却系统, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-28140 · 16475-37011 |
| G9010A | Radiator assembly | G9010-42020 |
| G9010B | Inverter radiator cushion pad | 16716-37010 |
| G9031A | Hybrid water pump bracket sub-assembly | G9141-48030 |
| G9040 | Inverter water pump assembly (with motor) | G9040-48010 |
| G91H3 | No. 2 inverter liquid tank bracket | G91H3-48010 · G91H3-78010 |
| G921A | No. 1 inverter tank bracket | G91H2-78010 |
| G9226A | No. 2 inverter cooling hose | G9226-48060 |
| G9227A | No. 3 inverter cooling hose | G9227-48060 |
| G9228A | No. 4 inverter cooling hose | G9228-42010 · G9228-42020 |
| G9229A | No. 5 inverter cooling hose | G9229-42010 |
| G922KA | No. 1 HV water pipe connector | G922K-33030 · G922K-47011 |
| G922KB | No. 2 HV water pipe connector | G922K-33020 |
| G9236A | No. 6 inverter cooling hose | G9236-48010 |
| G92A0A | Inverter liquid tank assembly | G910F-48011 · G910F-48012 |
