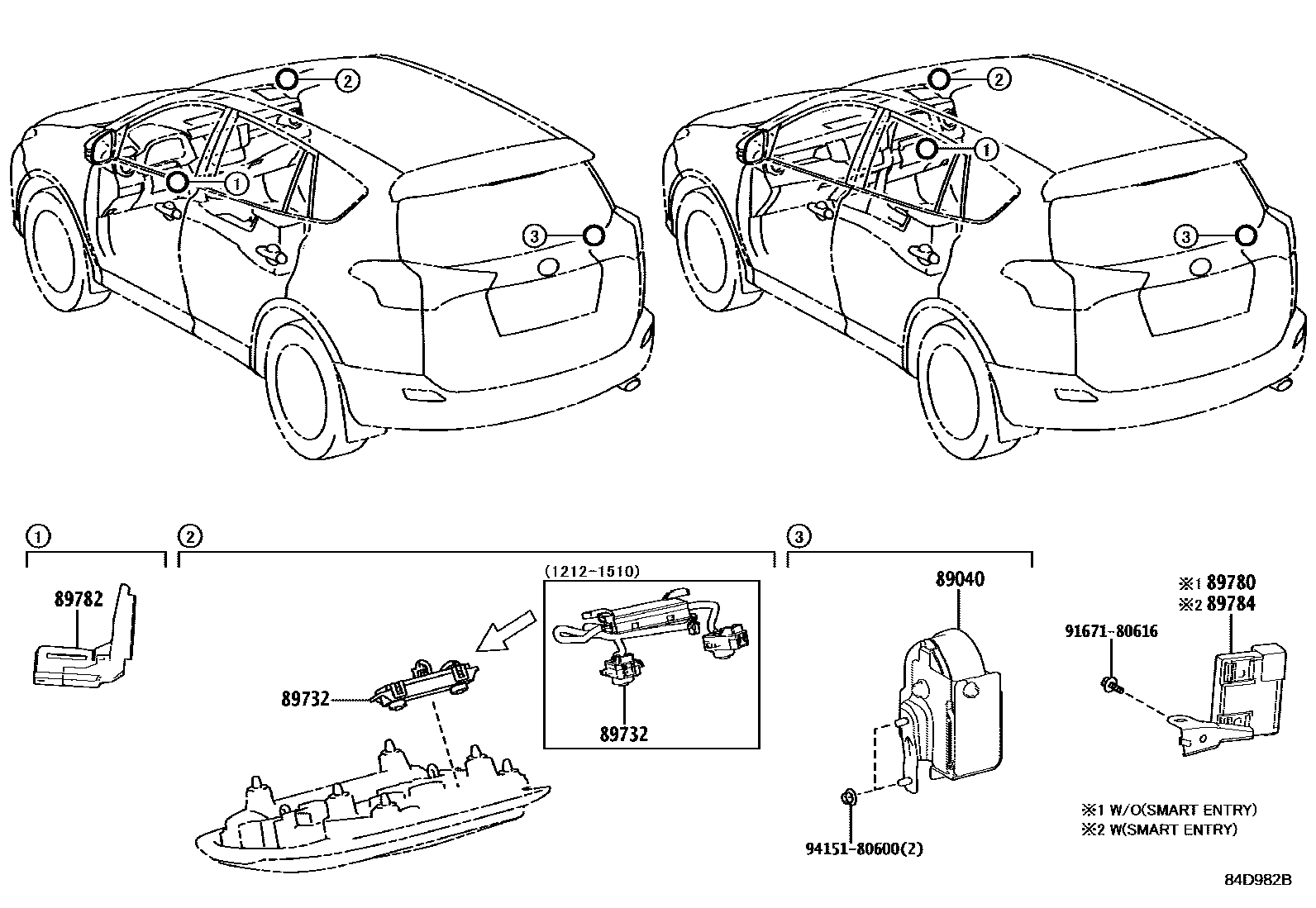

Toyota RAV4 防盗装置 — Figure 8424
Toyota RAV4 EPC diagram 8424, 防盗装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89040 | Anti-theft alarm assembly | 89040-42010 · 89040-42011 |
| 89732 | Anti-theft warning radar sensor | 89732-42030 · 89732-71010 |
| 89780 | Transceiver key ECU assembly | 89780-42170 · 89780-42171 · 89780-42190 · 89780-42191 · 89780-42200 · 89780-42210 · 89780-42211 |
| 89782 | transceiver key coil | 89782-42020 |
| 89784 | Shutdown code system ECU | 89784-42051 |
