Toyota RAV4 电子控制柴油机(ECD) — Figure 8405

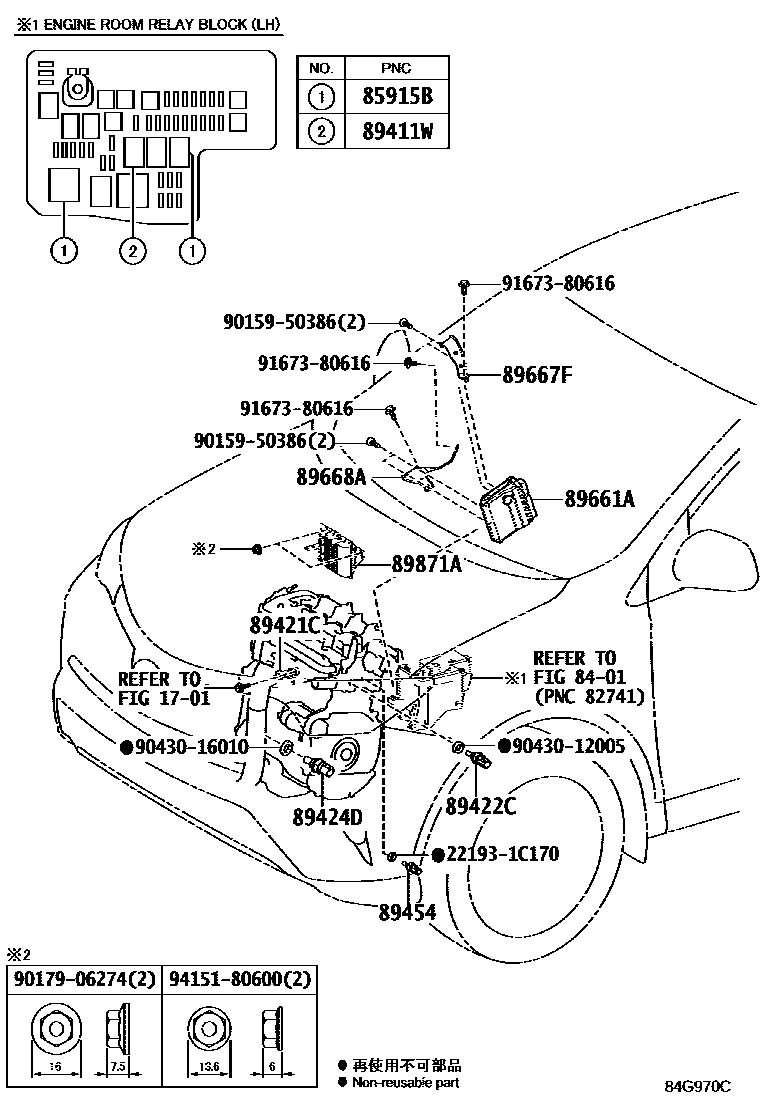

Toyota RAV4 EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 90987-02027 |
| 89411W | Electronic drive unit relay | 90987-02027 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20200 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-60020 |
| 89661A | Engine control ECU | 89661-42X10 · 89661-42X20 · 89661-42X30 · 89661-42X40 · 89661-42X50 · 89661-42Y30 |
| 89667F | No. 1 engine control ECU bracket | 89667-42070 |
| 89668A | No. 2 engine control ECU bracket | 89668-42070 |
| 89871A | Injector driver | 89870-42070 |
