Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

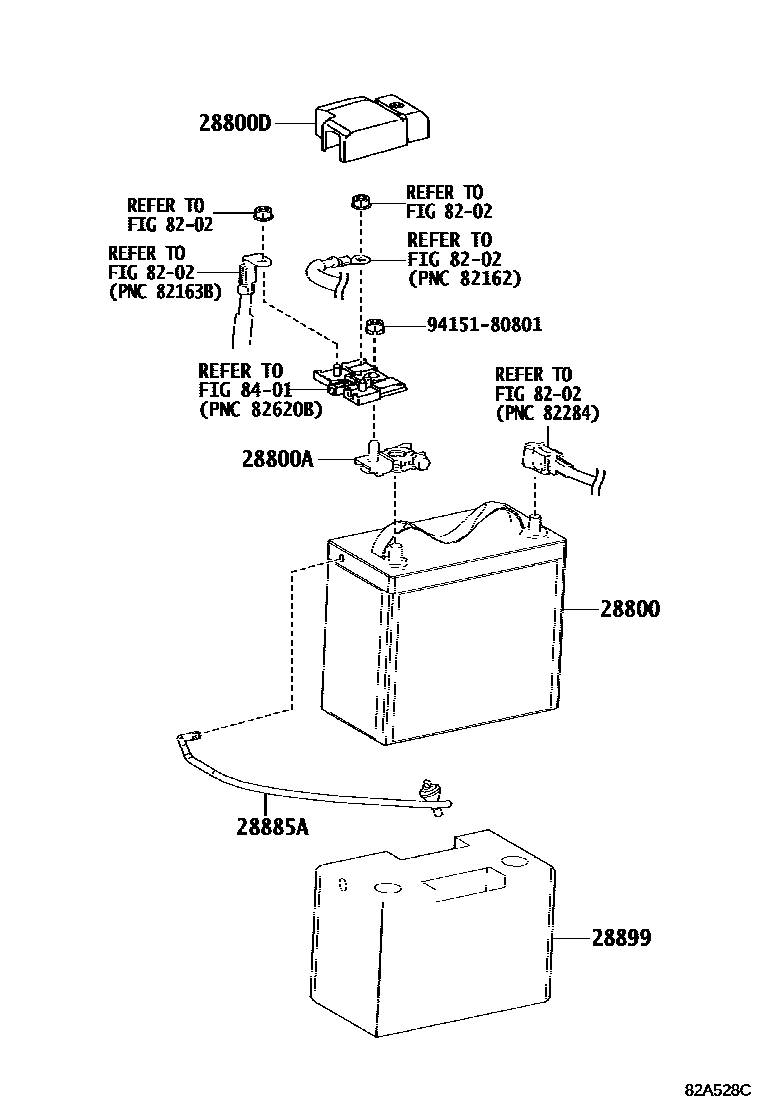

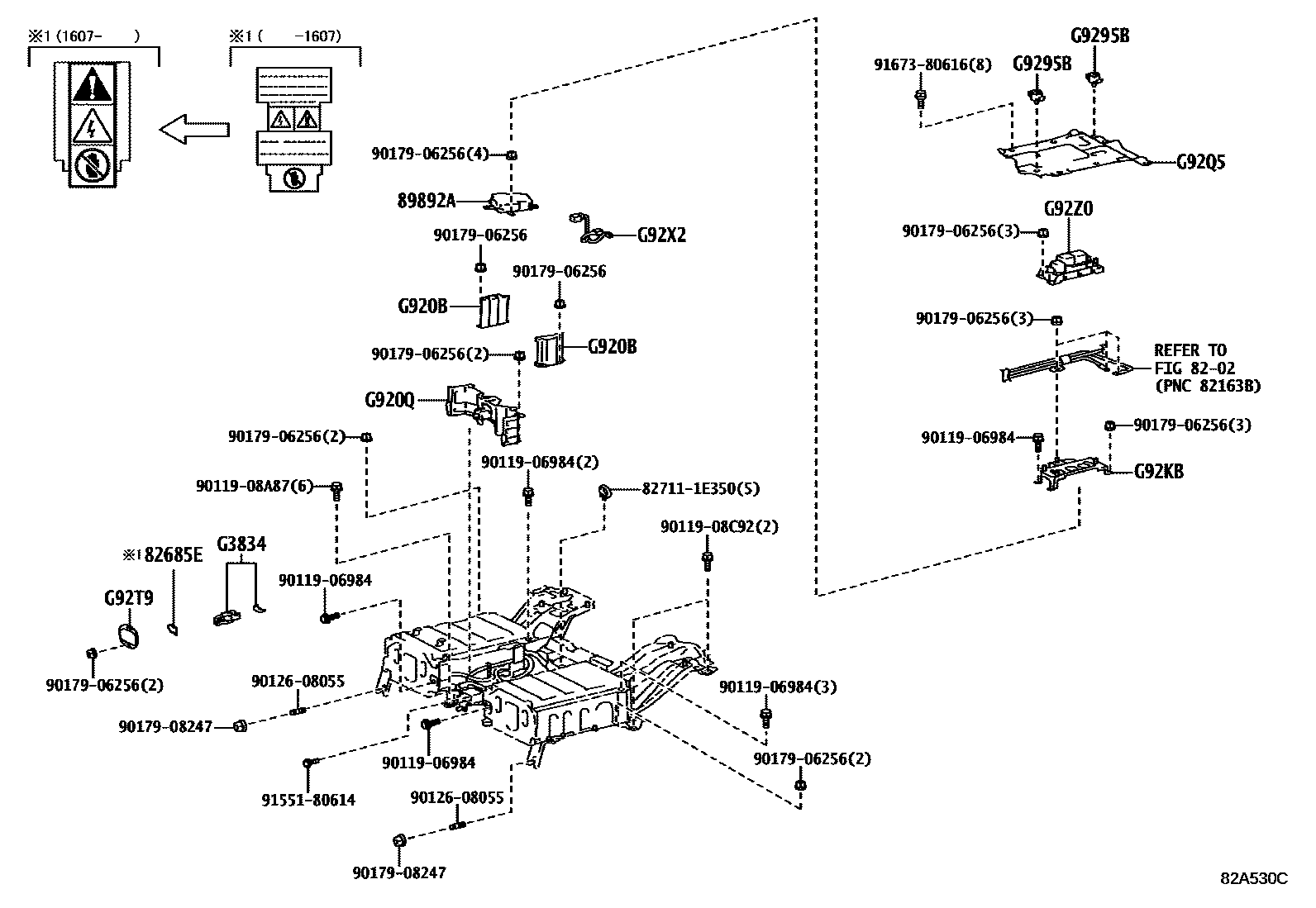

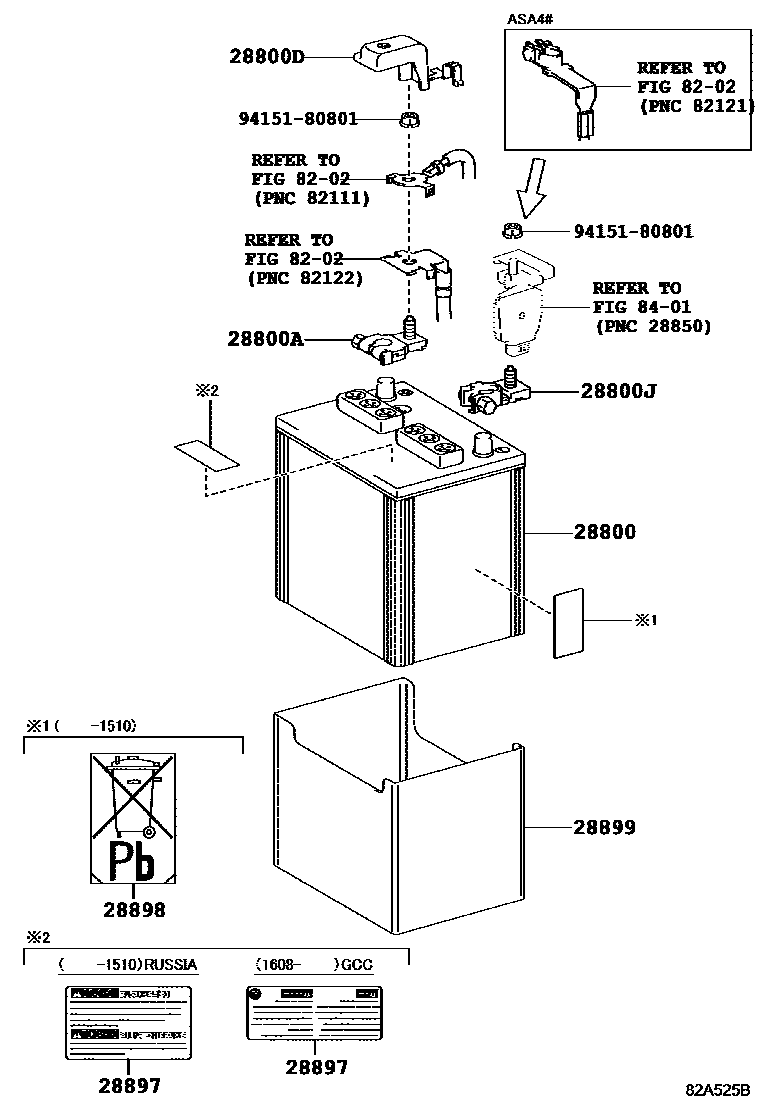

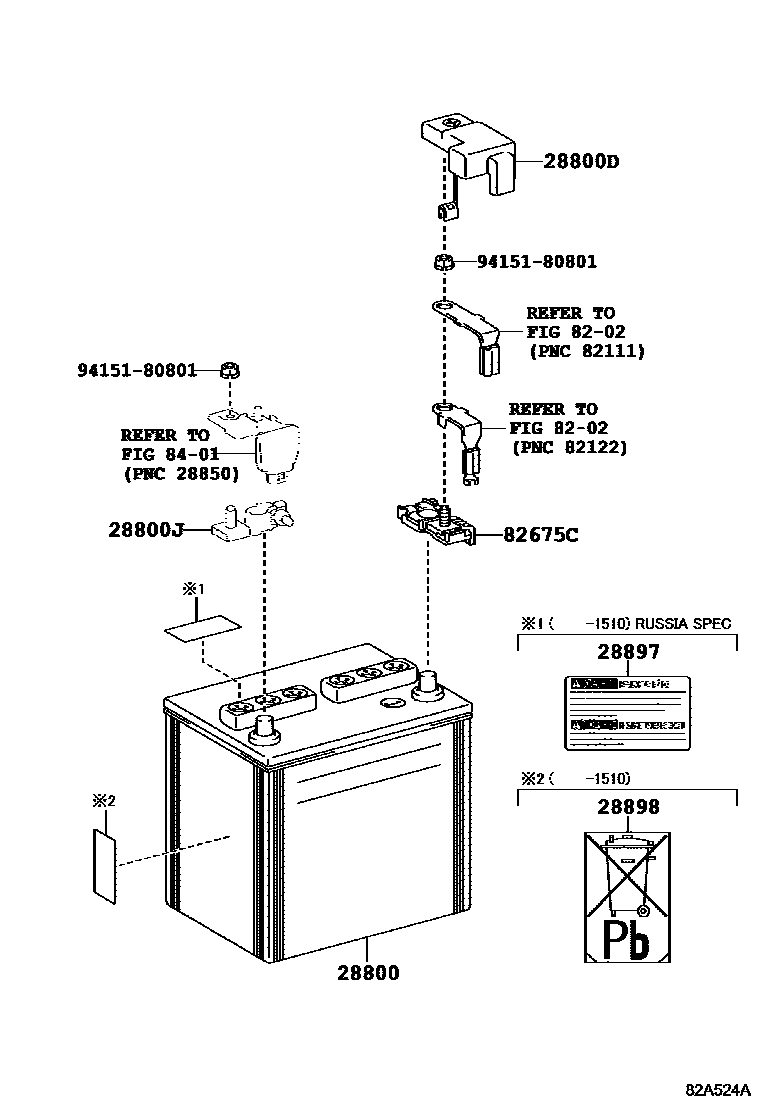

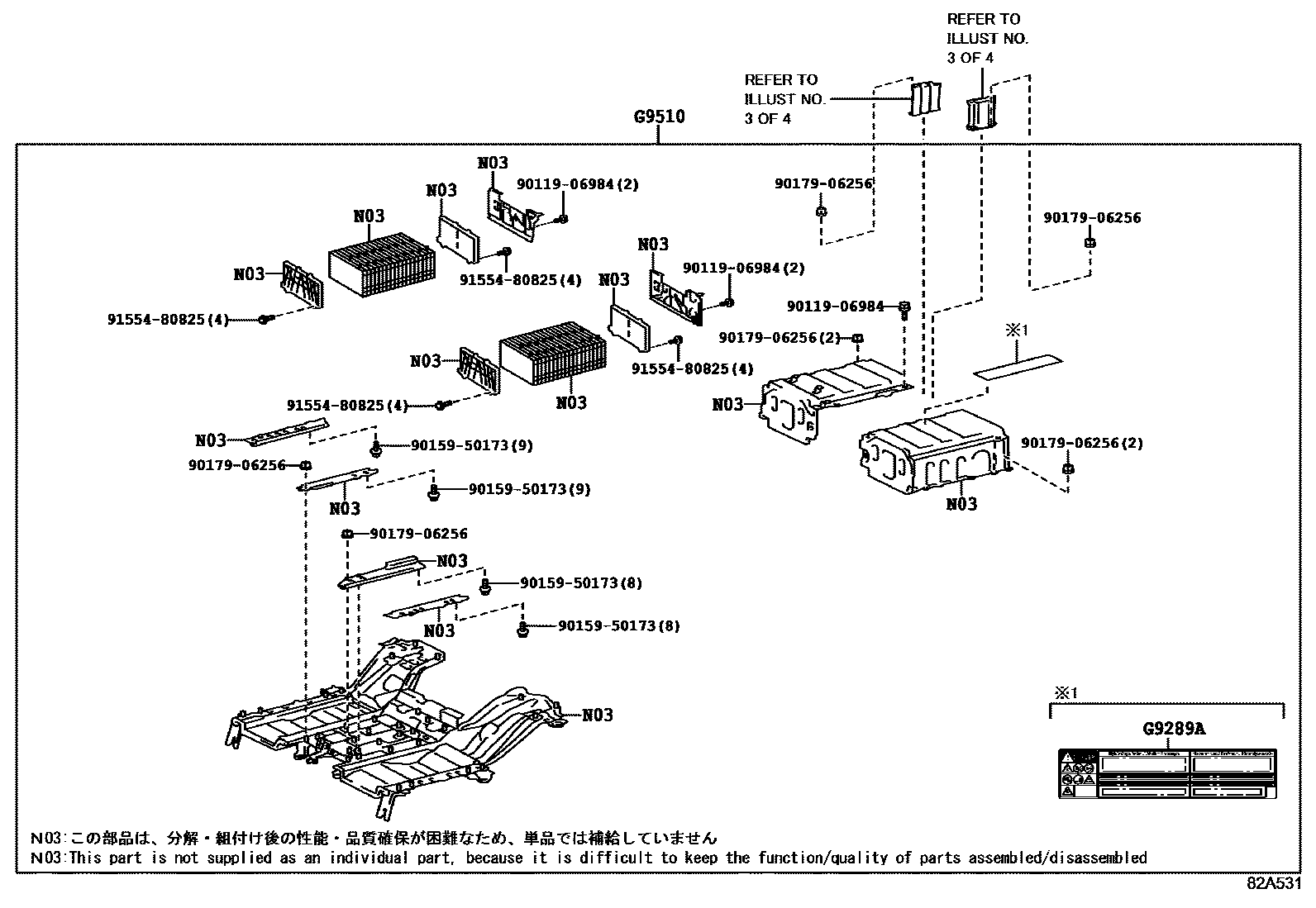

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-21171 · 28800-26141 · 28800-26902 · 28800-28150 · 28800-28151 · 28800-28160 · 28800-28161 · 28800-36070 · 28800-36071 · 28800-42041 · 28800-42062 |
| 28800A | battery positive terminal | 90982-05061 · 90982-05063 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 · 82821-42070 · 82821-48020 · 82821-53090 |
| 28800J | battery negative terminal | 90982-06059 · 90982-06070 |
| 28885A | Battery room ventilation hose | 28885-36050 |
| 28897 | Battery warning nameplate | 28897-31040 · 28897-38030 |
| 28898 | battery plates | 28898-46020 |
| 28899 | Battery insulation cover | 28899-26060 · 28899-36020 · 28899-36090 |
| 82675C | Terminal block | 82675-42080 |
| 82685E | Maintenance plug warning nameplate | 82685-50050 · 82685-76020 |
| 89892A | battery voltage sensor | 89892-48050 |
| G3834 | Service plug handle | G3834-48010 |
| G920B | HV battery bracket No. 1 bracket sub-assembly | G920B-48010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-48020 |
| G9230 | Battery cooling blower assembly | G9230-48070 · G9230-48080 |
| G9289A | battery warning label | G9288-48040 |
| G9295B | Battery cover lock | G9295-30020 |
| G92D1 | No. 1 HV battery air inlet | G92D1-48030 |
| G92D2 | No. 2 HV battery air inlet | G92D2-48030 |
| G92E1 | No. 1 HV battery cover air inlet | G92E1-48010 |
| G92E2 | HV battery cover air inlet 2 | G92E2-48010 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-48020 |
| G92F2 | No. 2 HV battery exhaust duct | G92F2-48020 |
| G92F3 | No. 3 HV battery exhaust duct | G92F3-48010 |
| G92F4 | No. 4 HV battery exhaust duct | G92F4-48010 |
| G92KB | No. 2 HV battery lower bracket lining plate | G92KB-48010 |
| G92Q5 | No. 2 HV battery shielding reinforcement | G92Q5-48010 |
| G92T9 | HV battery repair plug hole cover | G92T9-48010 |
| G92X2 | HV battery pack wiring harness No. 2 | G92X2-48040 |
| G92Z0 | HV battery junction box assembly | G92Z0-53010 |
| G9510 | HV power supply battery assembly | G9510-42010 · G9510-48080 |
