Toyota RAV4 后雾灯 — Figure 8116

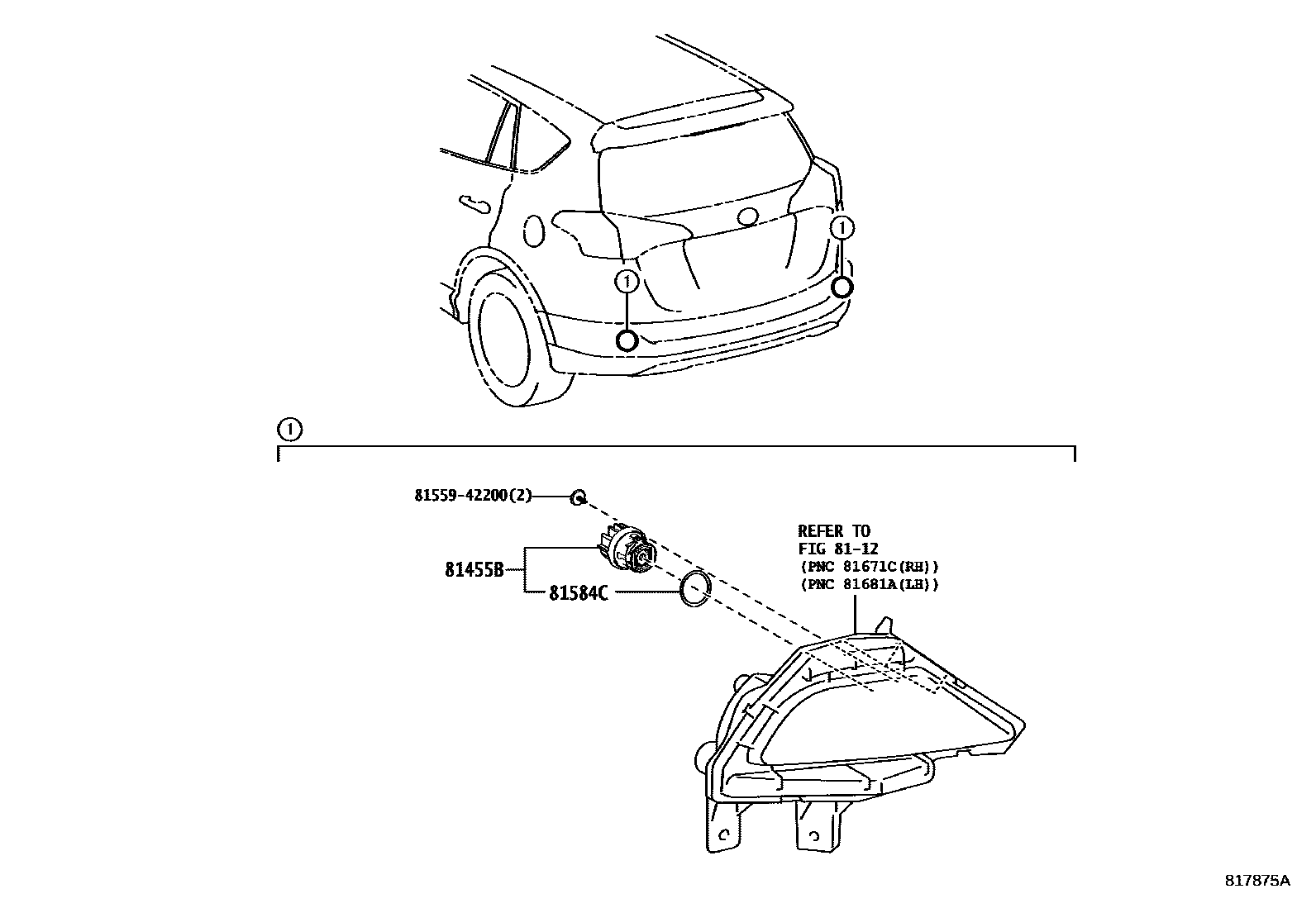

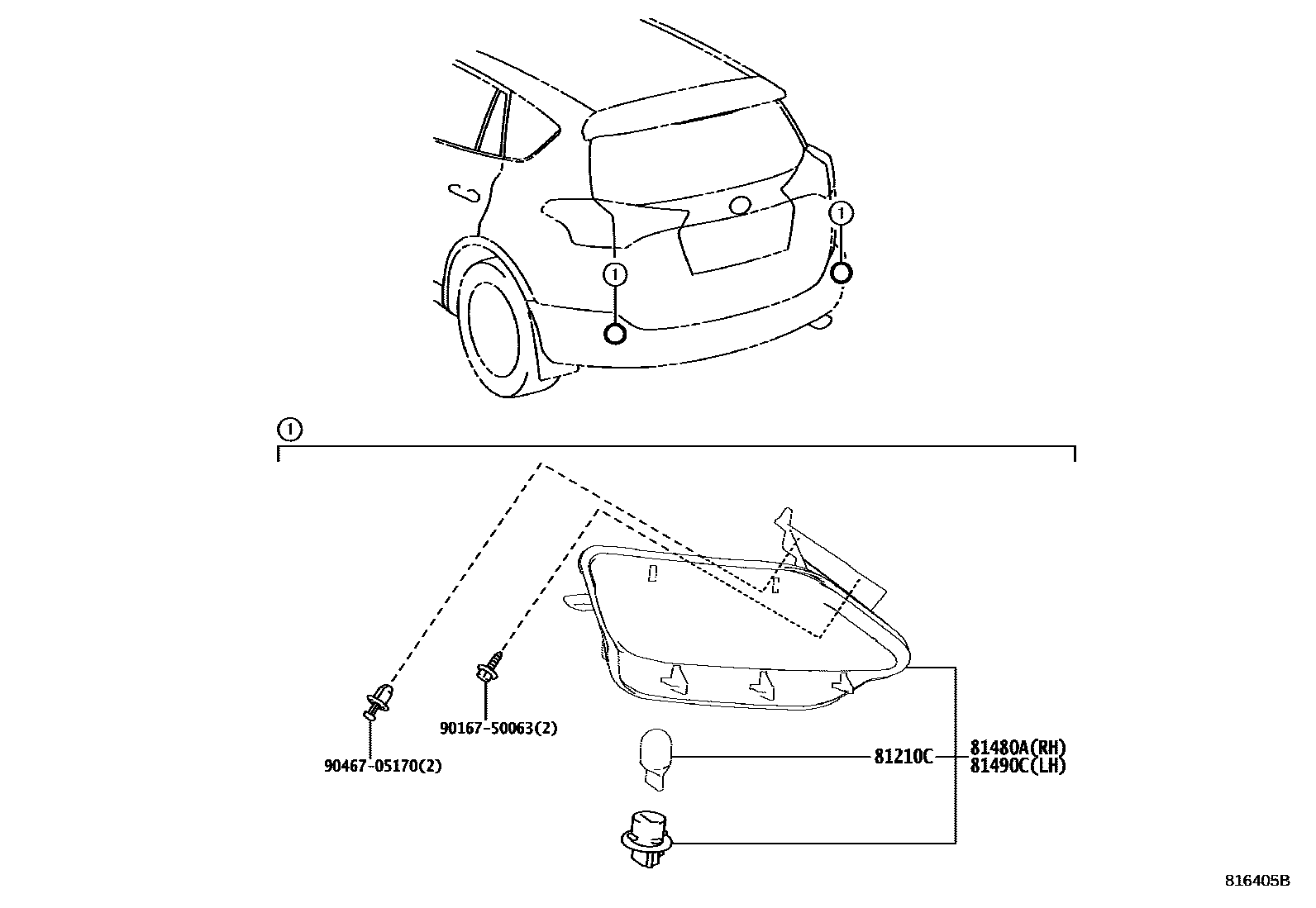

Toyota RAV4 EPC diagram 8116, 后雾灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 90981-13043 |
| 81455B | Rear LED fog lights | 81455-42060 |
| 81480A | Right rear fog light assembly | 81480-42050 |
| 81490C | Left rear fog light assembly | 81490-42050 |
| 81584C | Rear fog light gasket | 81538-42200 |
