Toyota RAV4 倒车灯 — Figure 8112

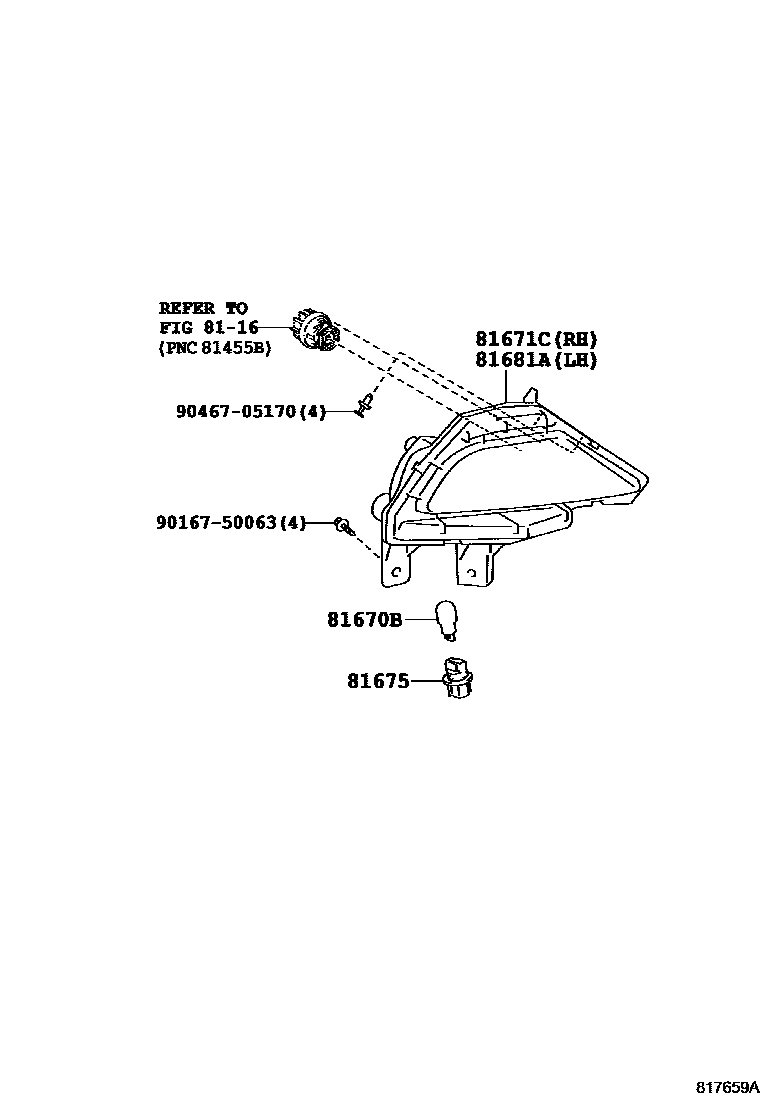

Toyota RAV4 EPC diagram 8112, 倒车灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670B | Bulb (for reversing lights) | 90981-11059 |
| 81671C | Right reversing light shade and body | 81457-42060 · 81457-42070 |
| 81675 | Reversing light holder and wiring harness | 81615-12590 |
| 81681A | Left reversing light shade and body | 81456-42060 · 81456-42070 |
