Toyota RAV4 Headlamp — Figure 8101

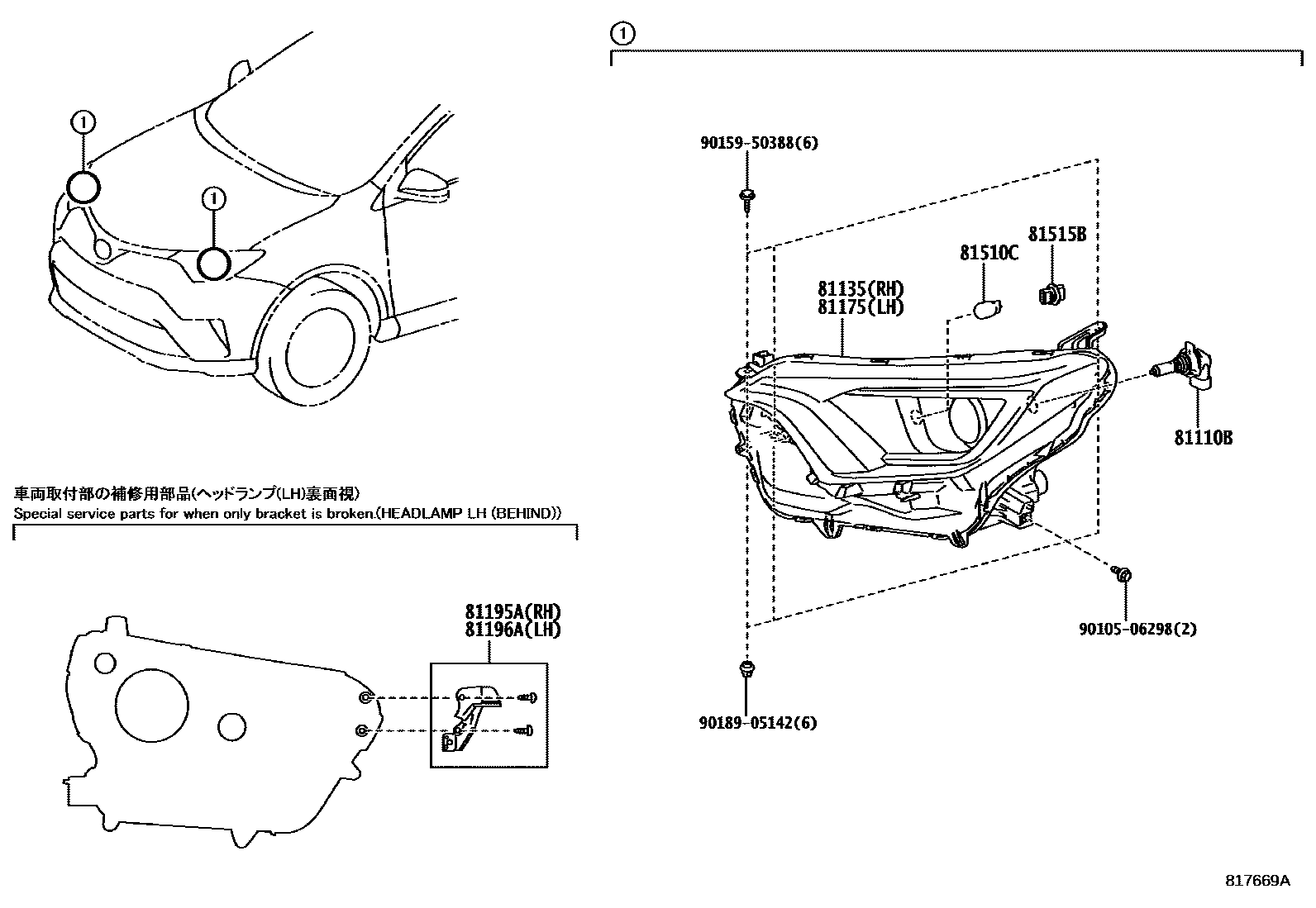

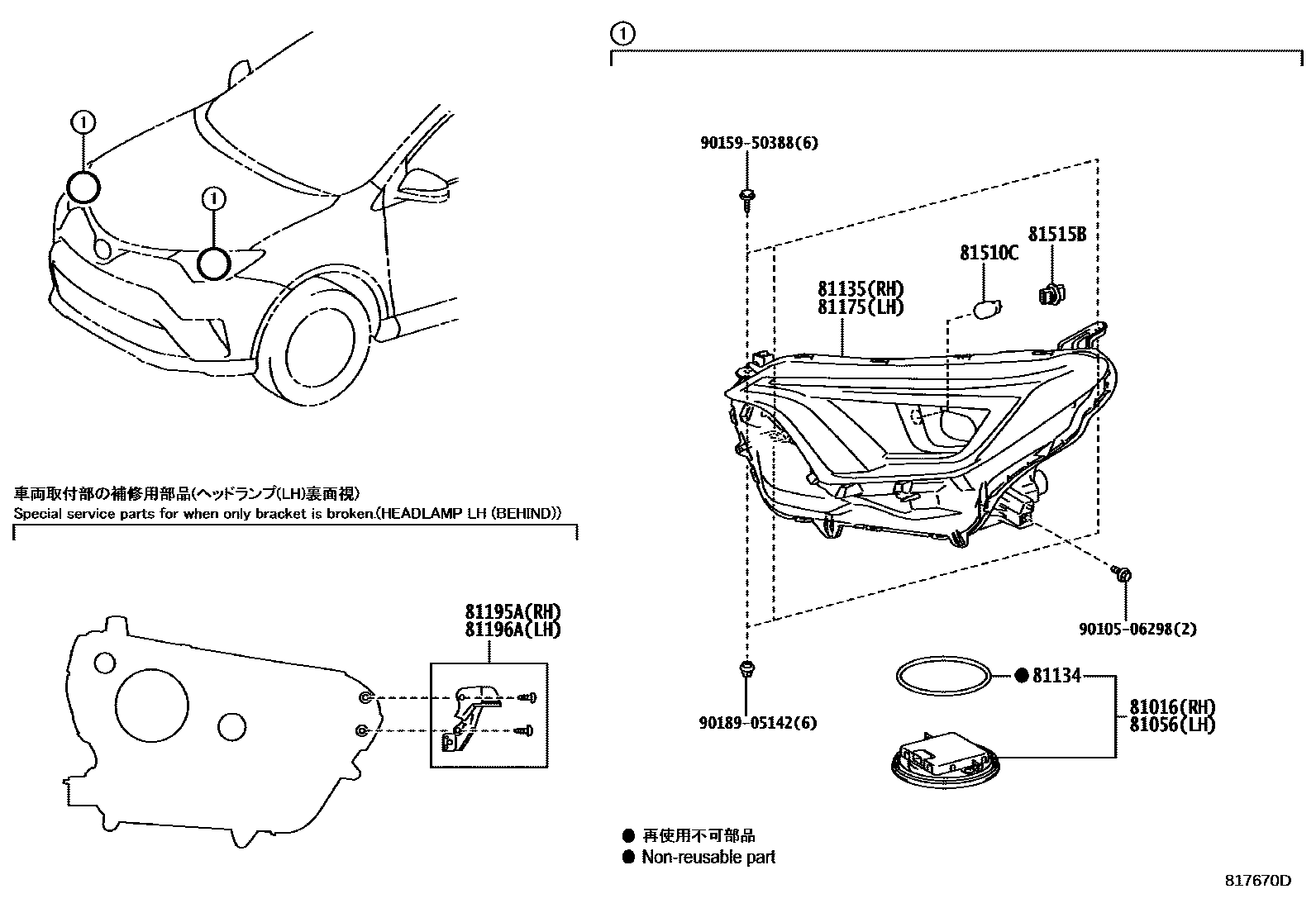

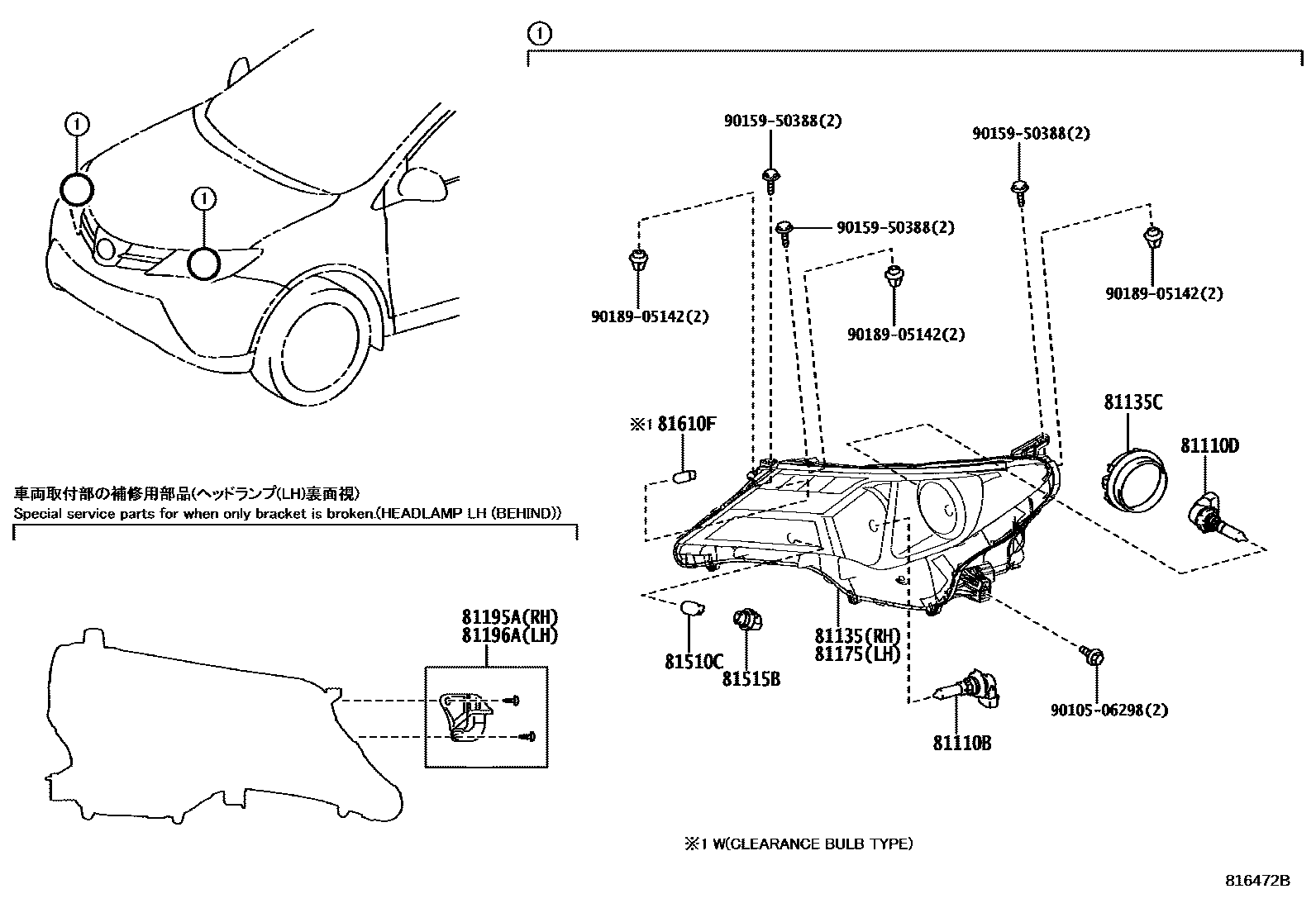

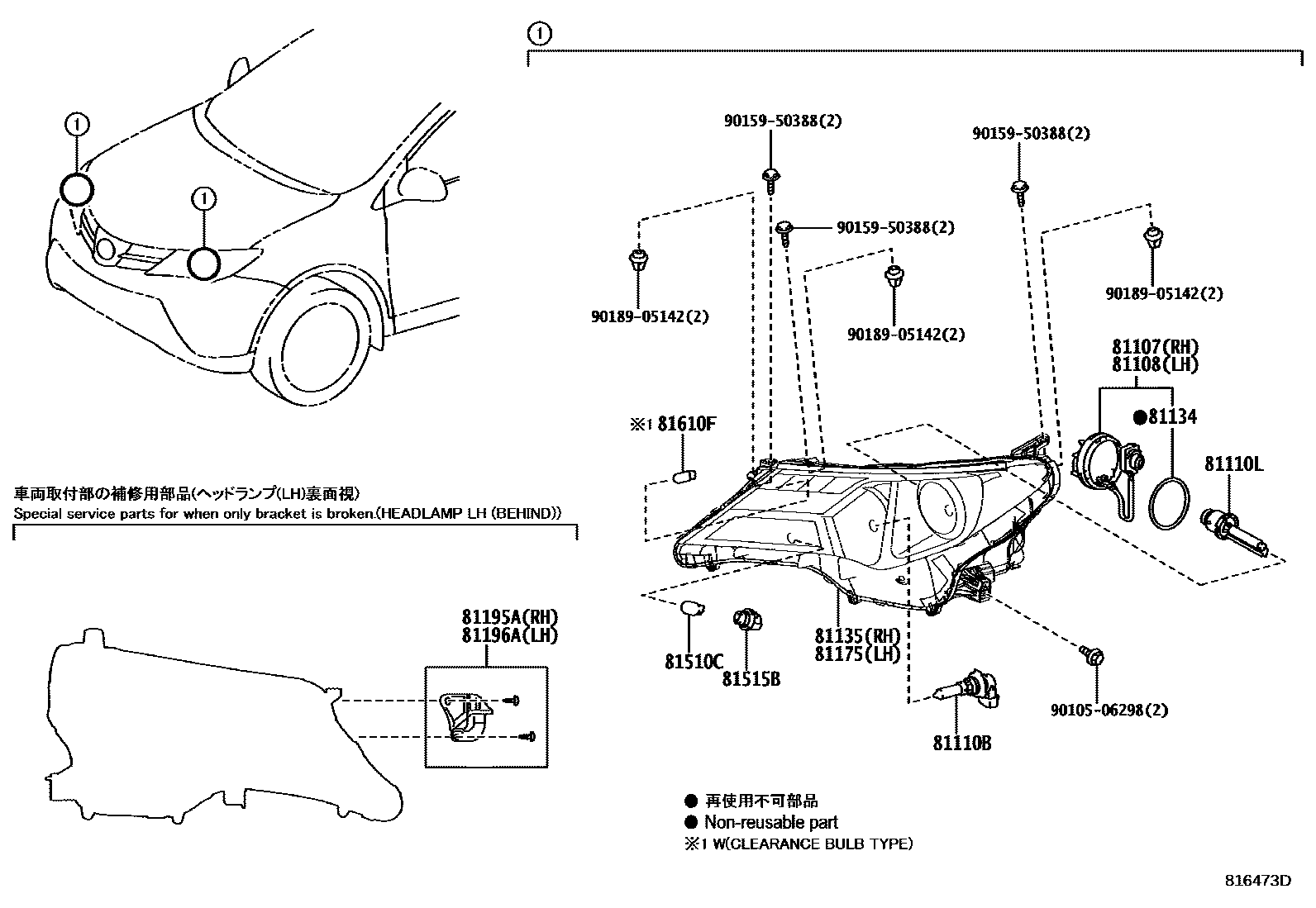

Toyota RAV4 EPC diagram 8101, Headlamp, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016 | Right No. 1 headlight ECU sub-assembly | 81016-42010 |
| 81056 | Left No. 1 headlight ECU sub-assembly | 81016-42010 |
| 81107 | Right headlight control ECU sub-assembly | 85967-45010 |
| 81108 | Left headlight control ECU sub-assembly | 85967-45010 |
| 81110B | Bulb (for headlight No. 1) | 90981-13092 · 90981-13102 |
| 81110D | Bulb (for headlight No. 2) | 90981-13092 |
| 81110L | Discharge headlight bulb | 90981-20027 |
| 81134 | headlight gasket | 81134-42010 · 90075-23002 |
| 81135 | Right headlight assembly assembly | 81130-42520 · 81130-42521 · 81130-42522 · 81130-42530 · 81130-42531 · 81130-42532 · 81130-42540 · 81130-42541 · 81130-42542 · 81130-42550 · 81130-42551 · 81130-42552 · 81130-42560 · 81130-42561 · 81130-42562 · 81130-42650 · 81130-42660 · 81130-42700 · 81145-42570 · 81145-42571 · 81145-42572 · 81145-42580 · 81145-42581 · 81145-42582 · 81145-42600 · 81145-42601 · 81145-42602 · 81145-42680 · 81145-42690 |
| 81135C | No. 1 headlight rear cover | 81135-42520 |
| 81175 | Left headlight assembly assembly | 81170-42520 · 81170-42521 · 81170-42522 · 81170-42530 · 81170-42531 · 81170-42532 · 81170-42540 · 81170-42541 · 81170-42542 · 81170-42550 · 81170-42551 · 81170-42552 · 81170-42560 · 81170-42561 · 81170-42562 · 81170-42650 · 81170-42660 · 81170-42700 · 81185-42570 · 81185-42571 · 81185-42572 · 81185-42580 · 81185-42581 · 81185-42582 · 81185-42600 · 81185-42601 · 81185-42602 · 81185-42680 · 81185-42690 |
| 81195A | Right headlight lower protection ring | 81195-42010 · 81195-42040 |
| 81196A | Left headlight lower protection ring | 81196-42010 · 81196-42040 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11064 |
