Toyota RAV4 accelerator pedal connecting rod — Figure 7851

Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.

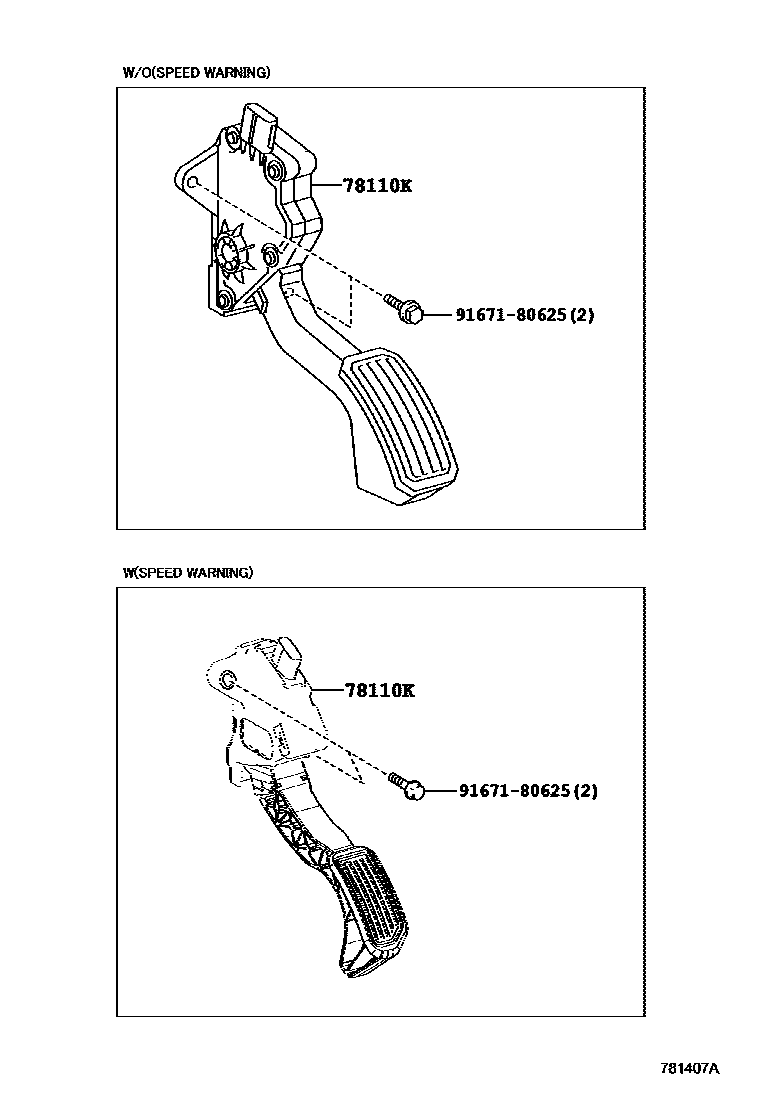

Toyota RAV4 accelerator pedal connecting rod EPC diagram — 781407A
accelerator pedal connecting rod — 781407A (201212 – 999999)

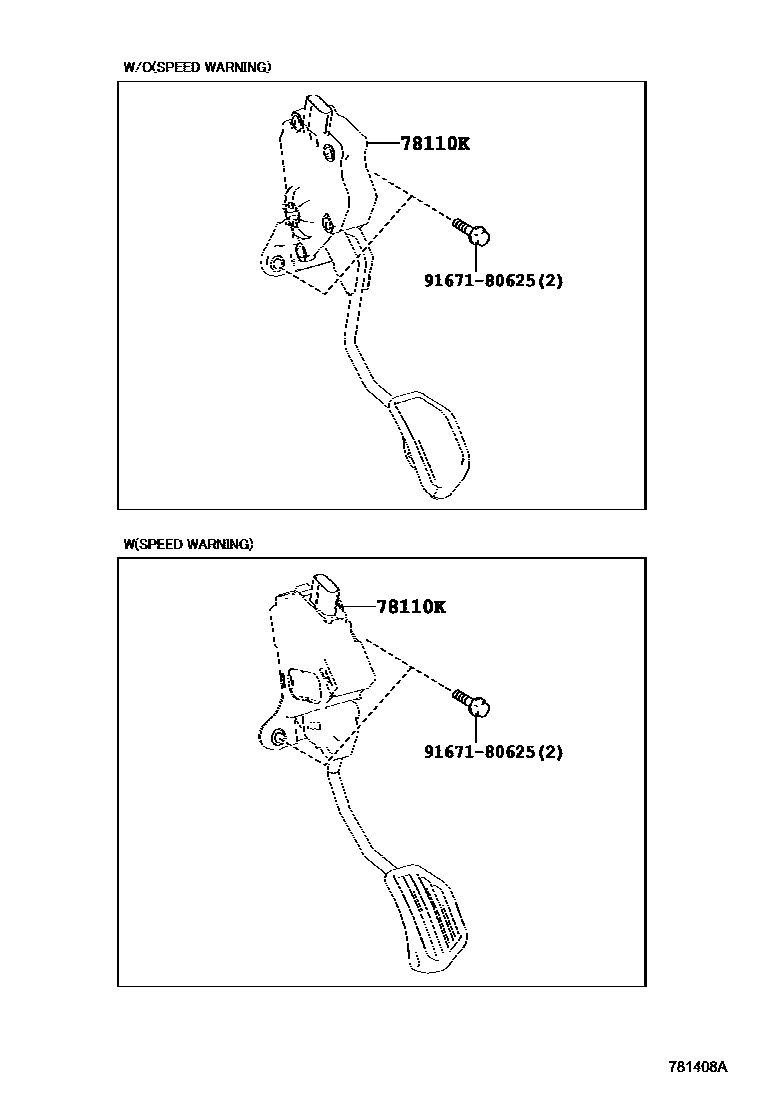

Toyota RAV4 accelerator pedal connecting rod EPC diagram — 781408A
accelerator pedal connecting rod — 781408A (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal connecting rod assembly with sensor78110-0W040 · 78110-0W050 · 78110-42040 · 78110-42041 · 78110-42050 · 78110-42051
