Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

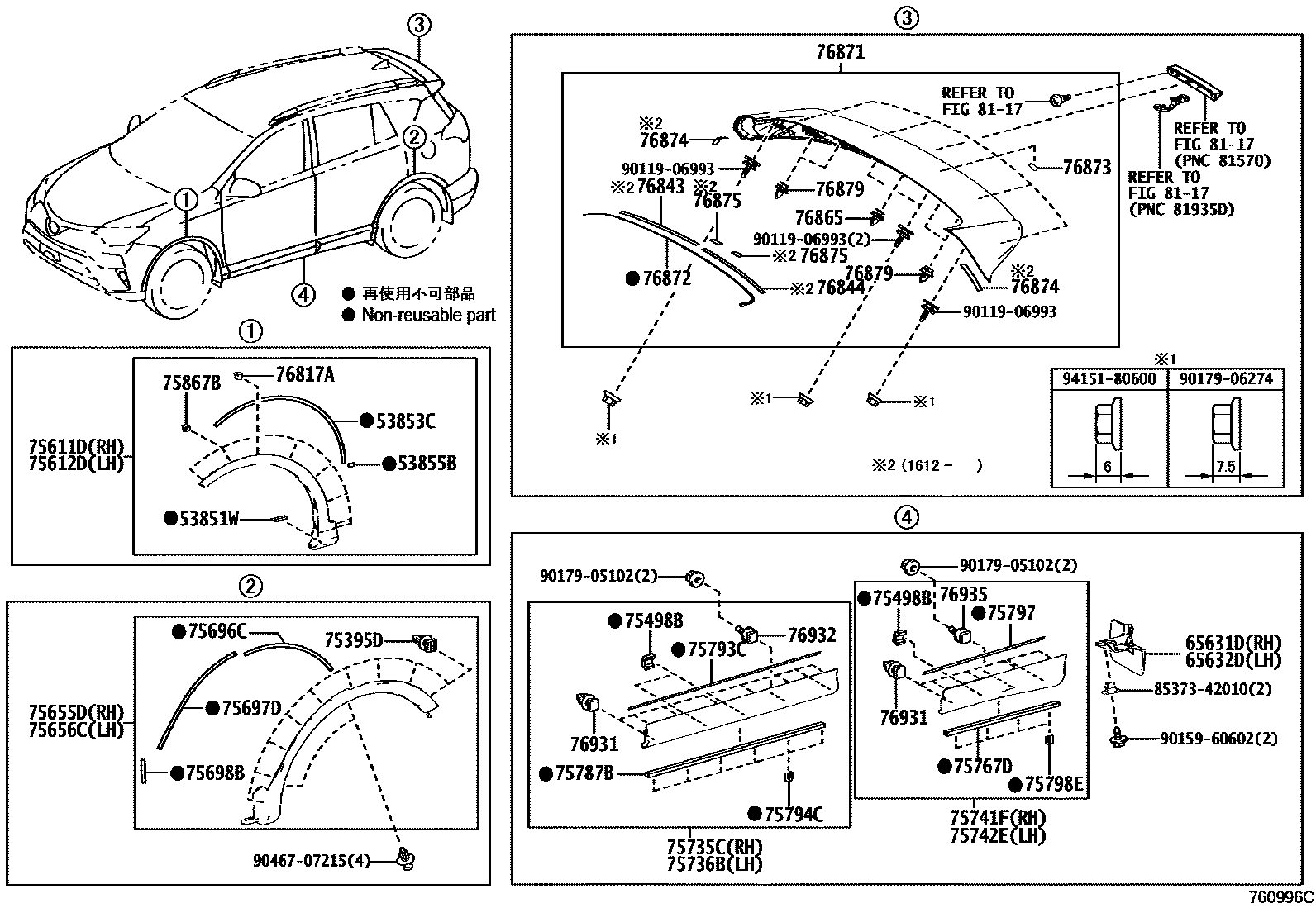

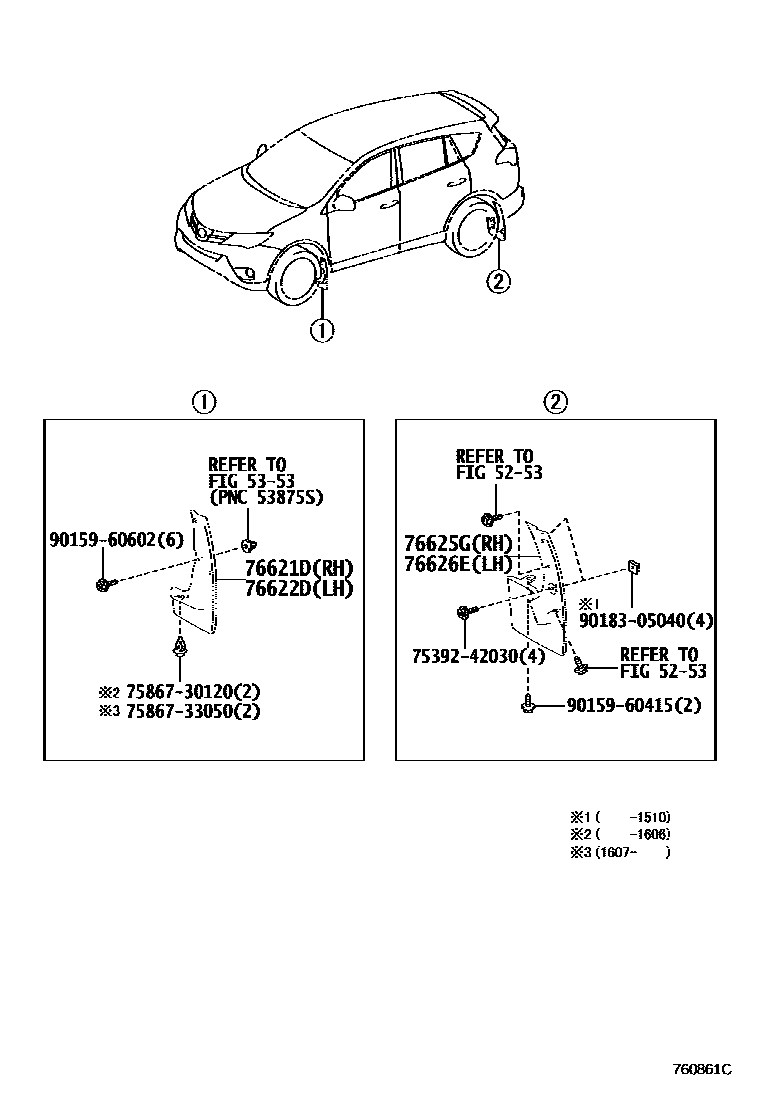

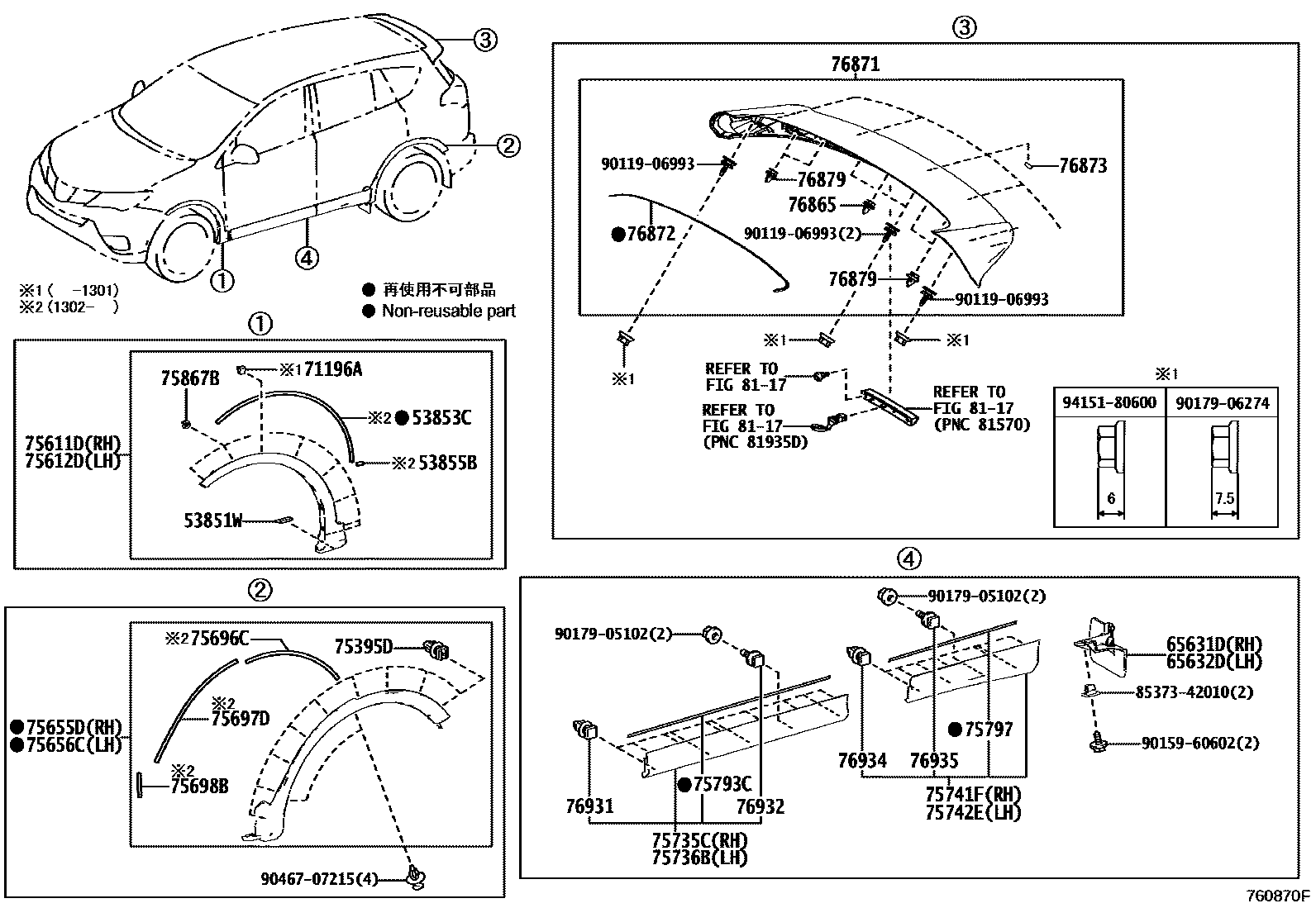

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 3 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851W | No. 1 front fender outer panel pad | 53851-42260 |
| 53853C | No. 3 front fender outer panel pad | 53853-42020 · 53853-42030 |
| 53855B | No. 5 front fender outer panel pad | 53855-42010 · 53855-42020 |
| 65631D | Right rear wheel house front panel | 65631-42020 · 65631-42030 |
| 65632D | Left rear wheel house front panel | 65632-42020 · 65632-42030 |
| 71196A | clip | 76817-68010 |
| 75395D | No. 1 outer protective strip clip | 90467-08225 |
| 75498B | No. 2 outer protective strip seal | 75498-42020 |
| 75611D | Right front fender outer front protective strip | 75601-42100 · 75601-42130 · 75601-42150 · 75601-42903 |
| 75612D | Left front fender outer front protective strip | 75602-42100 · 75602-42130 · 75602-42150 · 75602-42903 |
| 75655D | Right center panel outer protective strip | 75605-42140 · 75605-42190 · 75605-42904 |
| 75656C | Left center panel outer protective strip | 75606-42130 · 75606-42190 · 75606-42904 |
| 75696C | No. 1 body outer protective strip lining | 75696-42060 · 75696-42070 |
| 75697D | No. 2 body outer protective strip lining | 75697-42060 · 75697-42070 |
| 75698B | No. 3 body outer protective strip lining | 75698-42040 · 75698-42050 |
| 75735C | Right front door outer lower protective strip | 75073-42010 · 75073-42011 · 75073-42020 · 75073-42021 · 75073-42900 |
| 75736B | Left front door outer lower protective strip | 75074-42010 · 75074-42011 · 75074-42020 · 75074-42021 · 75074-42900 |
| 75741F | Right rear door outer protective strip | 75077-42010 · 75077-42011 · 75077-42020 · 75077-42900 |
| 75742E | Left rear door outer protective strip | 75078-42010 · 75078-42011 · 75078-42020 · 75078-42900 |
| 75767D | No. 1 rear door protective strip lining | 75767-42020 |
| 75787B | Front door outer protective strip lining | 75787-42030 |
| 75793C | Front door outer upper protective strip lining | 75793-42050 · 75793-42060 |
| 75794C | Front door outer rear protective strip lining | 75794-42020 |
| 75797 | Rear door outer upper protective strip lining | 75797-42020 · 75797-42030 |
| 75798E | Rear door outer rear protective strip lining | 75798-42020 |
| 75867B | Door sill panel protective strip clip | 75867-68010 |
| 76621D | Right front fender fender | 76621-42110 · 76621-42120 |
| 76622D | Left front fender fender | 76622-42110 · 76622-42120 |
| 76625G | Right rear side fender | 76625-42140 · 76625-42150 |
| 76626E | Left rear side fender | 76626-42200 · 76626-42210 |
| 76817A | Rear door exterior decorative strip clip | 76817-68010 |
| 76843 | No. 11 right rear spoiler protective strip | 76843-42010 |
| 76844 | No. 11 left rear spoiler protective strip | 76844-42010 |
| 76865 | No. 1 rear spoiler fixing piece | 67771-42010 |
| 76872 | No. 1 rear spoiler protective strip | 76872-42050 |
| 76873 | No. 2 rear spoiler protective strip | 76873-42010 |
| 76874 | No. 3 rear spoiler protective strip | 76874-42010 |
| 76875 | No. 4 rear spoiler protective strip | 76875-42010 |
| 76879 | No. 1 rear spoiler clip | 75819-68010 |
| 76931 | No. 3 side fender fixing piece | 62955-50010 · 90467-07221 |
| 76932 | No. 4 side fender fixings | 75392-33020 |
| 76934 | No. 6 side fender fixings | 62955-50010 · 90467-07221 |
| 76935 | No. 7 side fender fixings | 75392-33020 |
