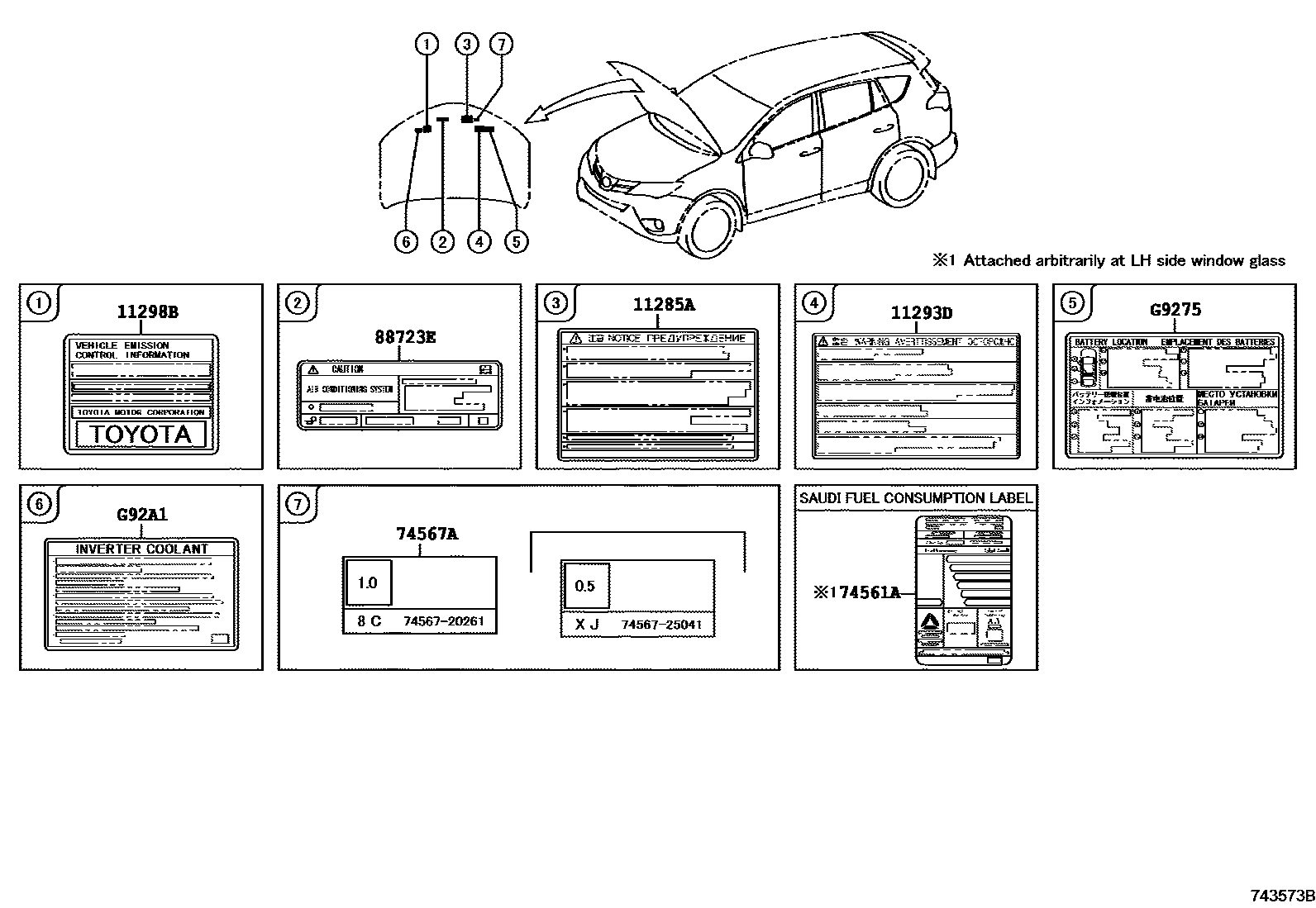

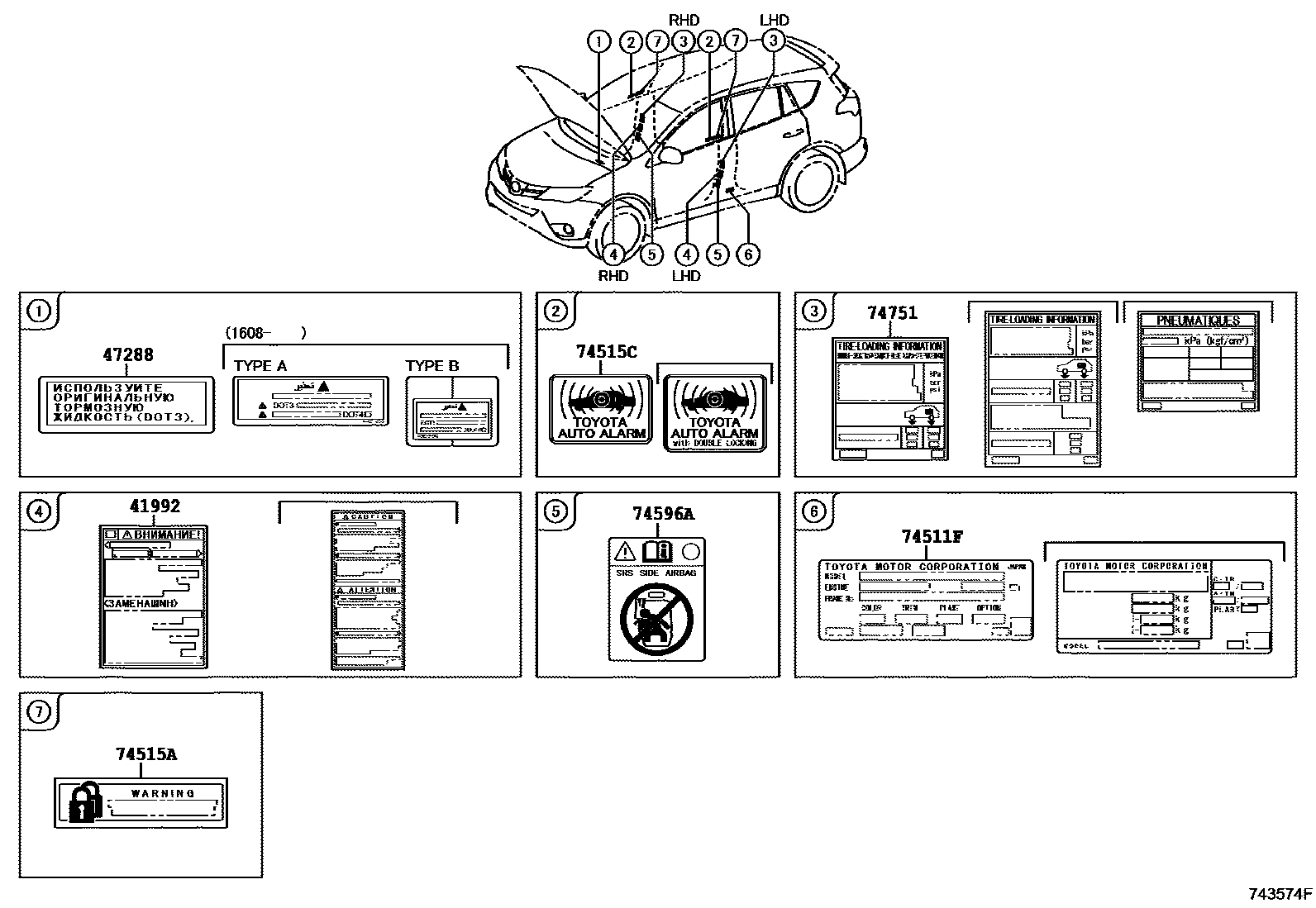

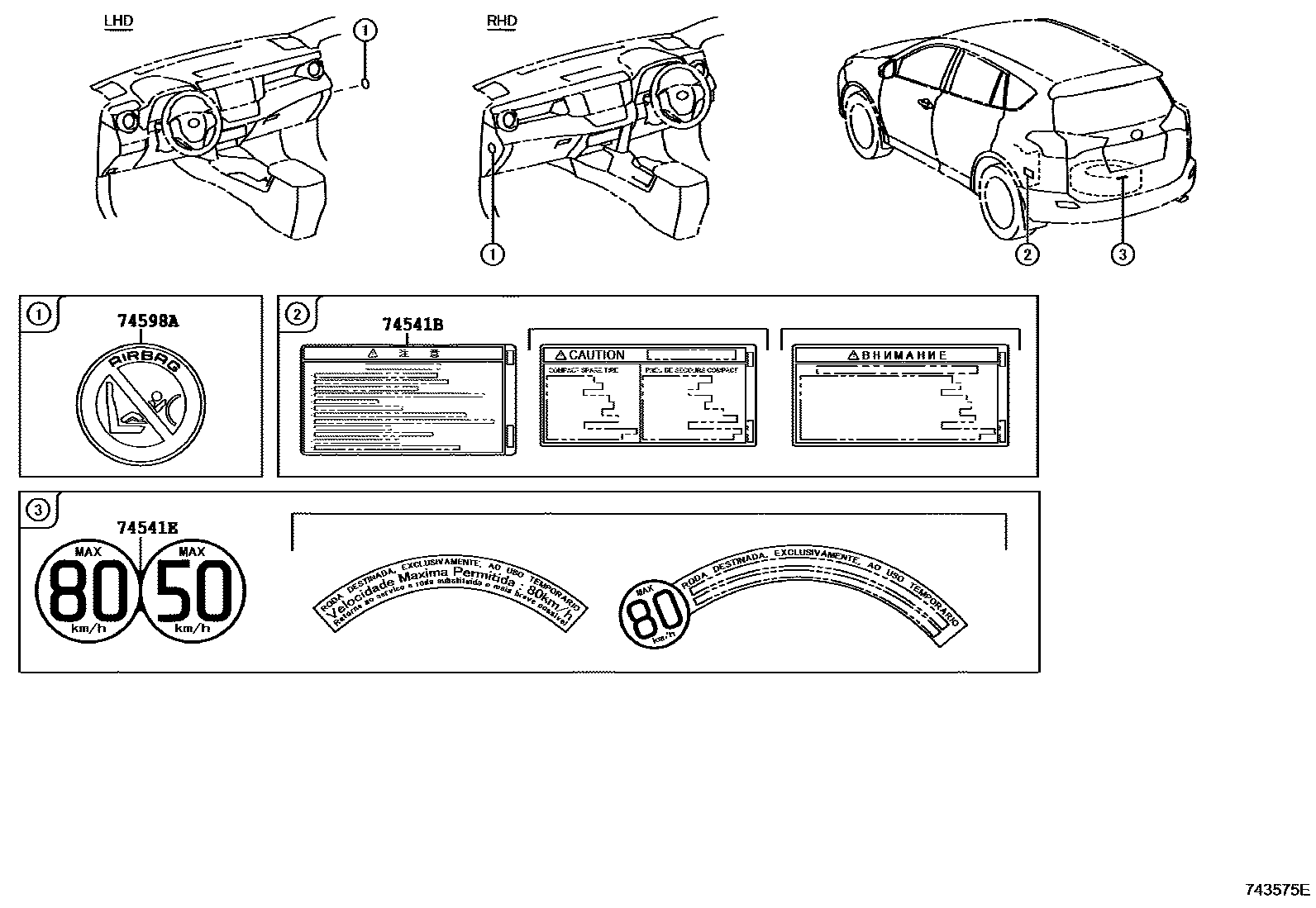

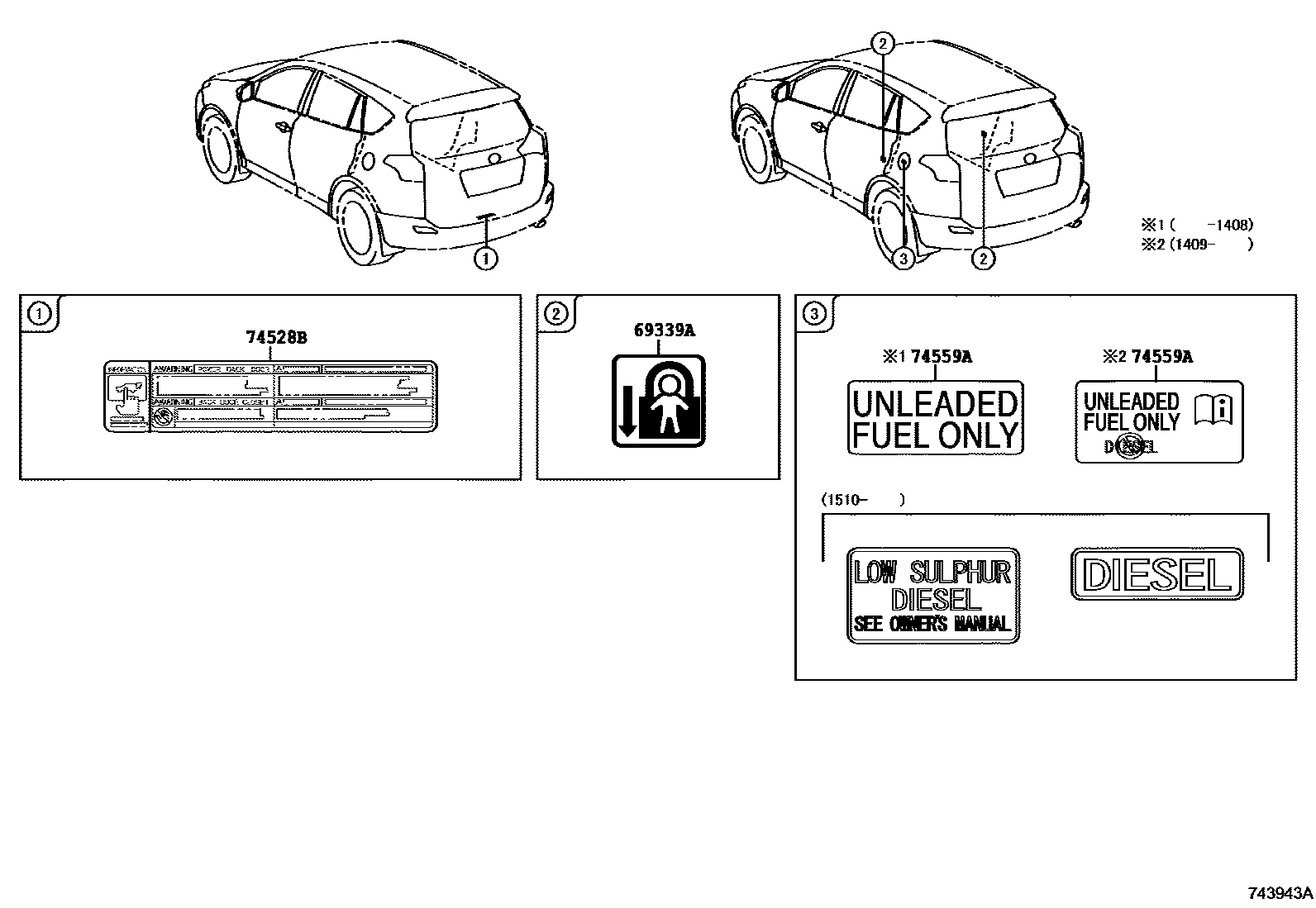

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-37060 |
| 11291B | Engine name plate | 11291-36040 |
| 11293D | engine warning label | 11293-36070 |
| 11298B | Emission Control Information Label | 11298-36160 · 11298-36161 |
| 16793E | Cooling fan warning label | 16793-31040 · 16793-36030 · 16793-36050 |
| 41992 | Differential attention label | 41992-42040 · 41992-48020 |
| 47288 | Brake Fluid Caution Label | 47288-33010 · 47288-33020 · 47288-71010 |
| 69339A | Child Restraint Lock Warning Nameplate | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-48020 · 74511-48030 · 74514-42050 · 74514-42051 · 74514-47020 |
| 74515A | Anti-theft warning nameplate | 74515-20010 · 74515-42010 |
| 74515C | Anti-theft warning information label | 74515-33020 · 74515-42010 |
| 74528B | Back door warning label | 74528-42010 · 74528-42011 · 74528-42020 · 74528-42021 · 74528-42030 |
| 74541B | Small spare tire warning plate | 42668-42020 · 42668-42030 · 42668-42040 · 42668-42050 · 42668-42060 · 42668-42070 · 42668-48030 · 42668-52020 |
| 74541E | Small spare tire warning plate | 42668-42010 · 42668-78030 · 42668-78040 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-20120 · 74559-20140 · 74559-89101 |
| 74561A | fuel consumption information label | 74561-42030 · 74561-42031 · 74561-42040 · 74561-42041 · 74561-42050 · 74561-42051 · 74561-42060 · 74561-42061 · 74561-42081 · 74561-42091 · 74561-42101 · 74561-42111 · 74561-42120 · 74561-42130 · 74561-42140 · 74561-42150 · 74561-42160 · 74561-42170 · 74561-42180 · 74561-42190 · 74561-42200 · 74561-42210 · 74561-42220 · 74561-42230 · 74561-42240 · 74561-42250 · 74561-42510 · 74561-42520 · 74561-42530 · 74561-42540 · 74561-42550 · 74561-42560 · 74561-42561 · 74561-42570 · 74561-42571 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-25041 |
| 74596A | Side air bag warning label | 74596-53012 · 74596-74020 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-42350 · 42661-42370 · 42661-42520 · 42661-42610 · 42661-42680 · 42661-42681 · 42661-42690 · 42661-42831 |
| 88723E | Cooler maintenance warning label | 88723-30240 · 88723-42070 |
| G9275 | No. 1 battery warning label | G9275-48050 |
| G92A1 | HV coolant system information label | G92A1-76010 |
