Toyota RAV4 battery holder — Figure 7454

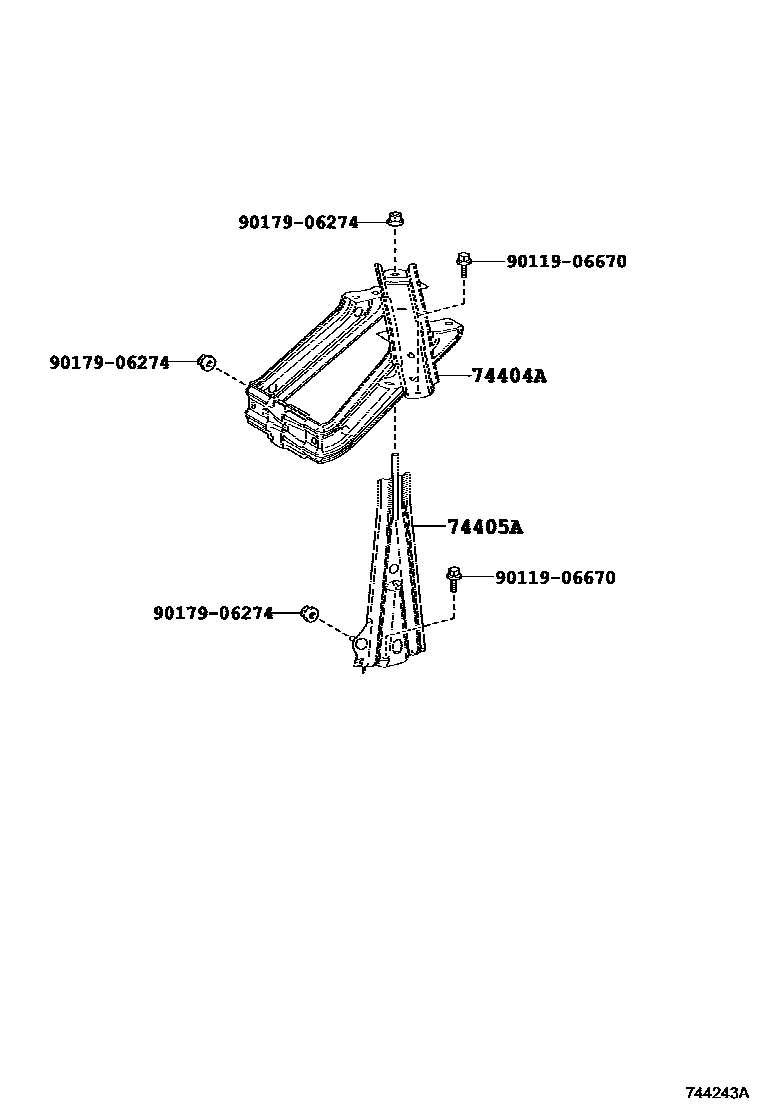

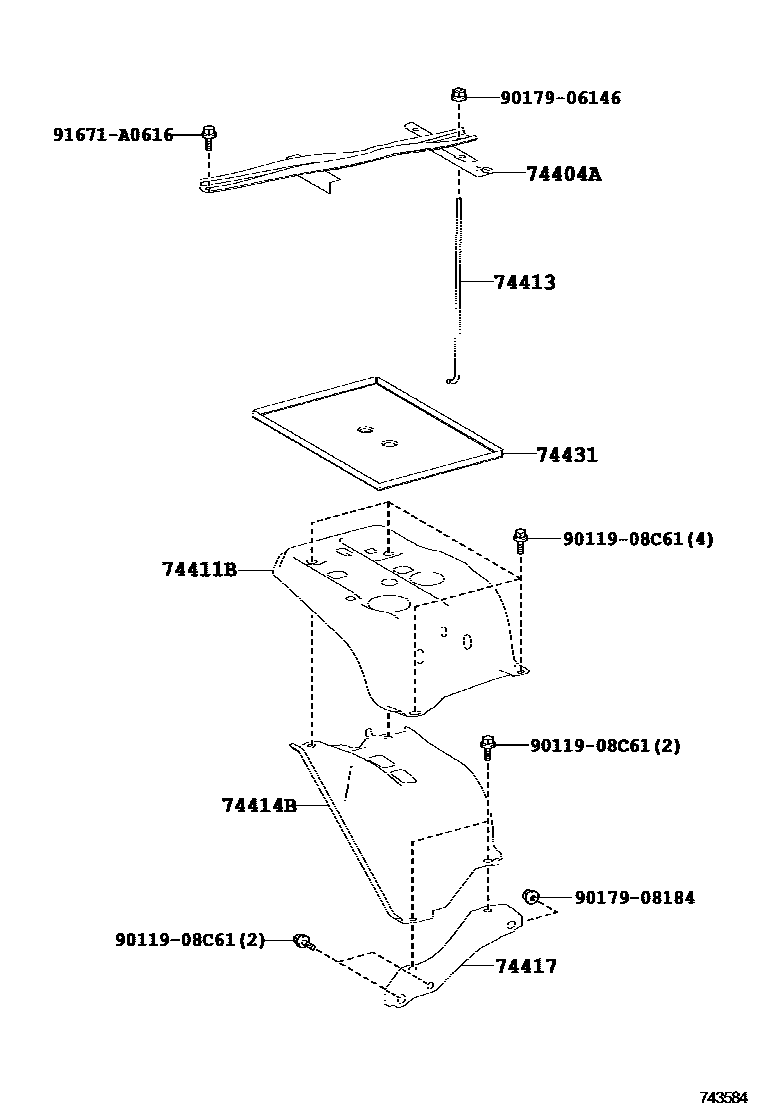

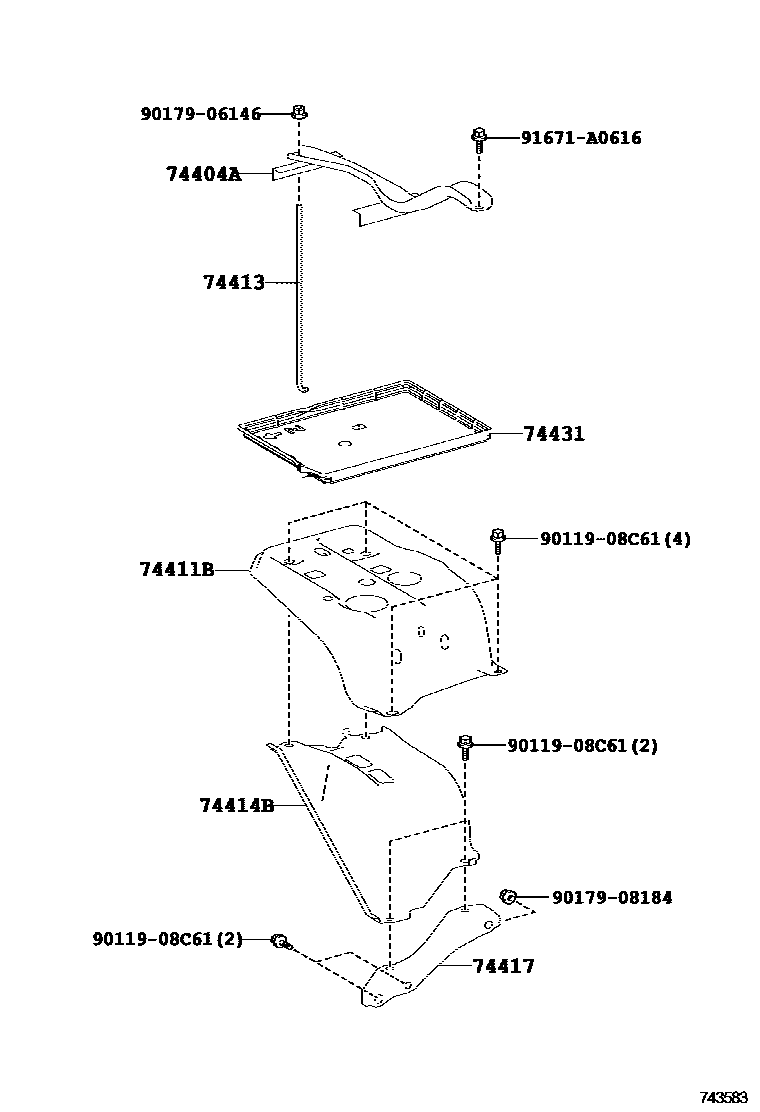

Toyota RAV4 EPC diagram 7454, battery holder, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-42190 · 74404-42200 · 74404-42210 · 74404-42250 |
| 74405A | Battery upper right bracket sub-assembly | 74405-42010 |
| 74411B | Battery front side bracket | 74410-42011 · 74411-42040 |
| 74413 | Battery clamp bolt | 74451-10060 · 74451-10061 |
| 74414B | Battery bracket reinforcement | 74414-42011 |
| 74417 | battery holder bracket | 74417-42030 |
| 74431 | battery tray | 74431-42101 · 74431-42110 · 74431-42140 |
