Toyota RAV4 seat belt — Figure 7152

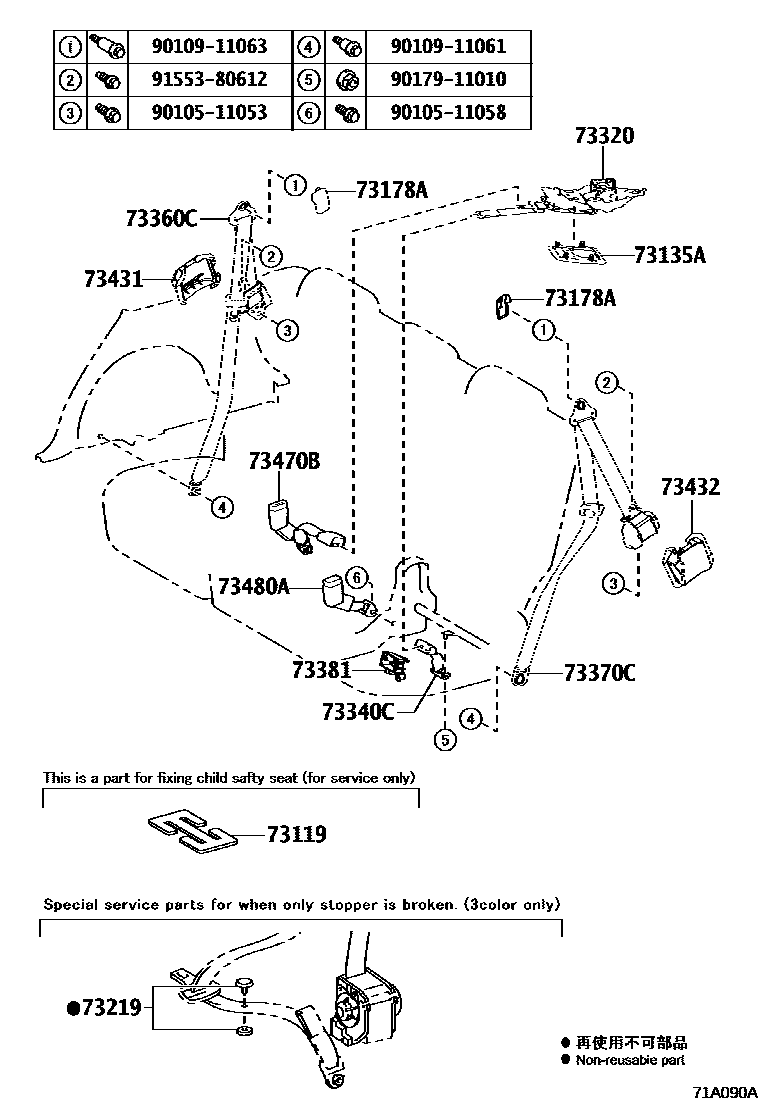

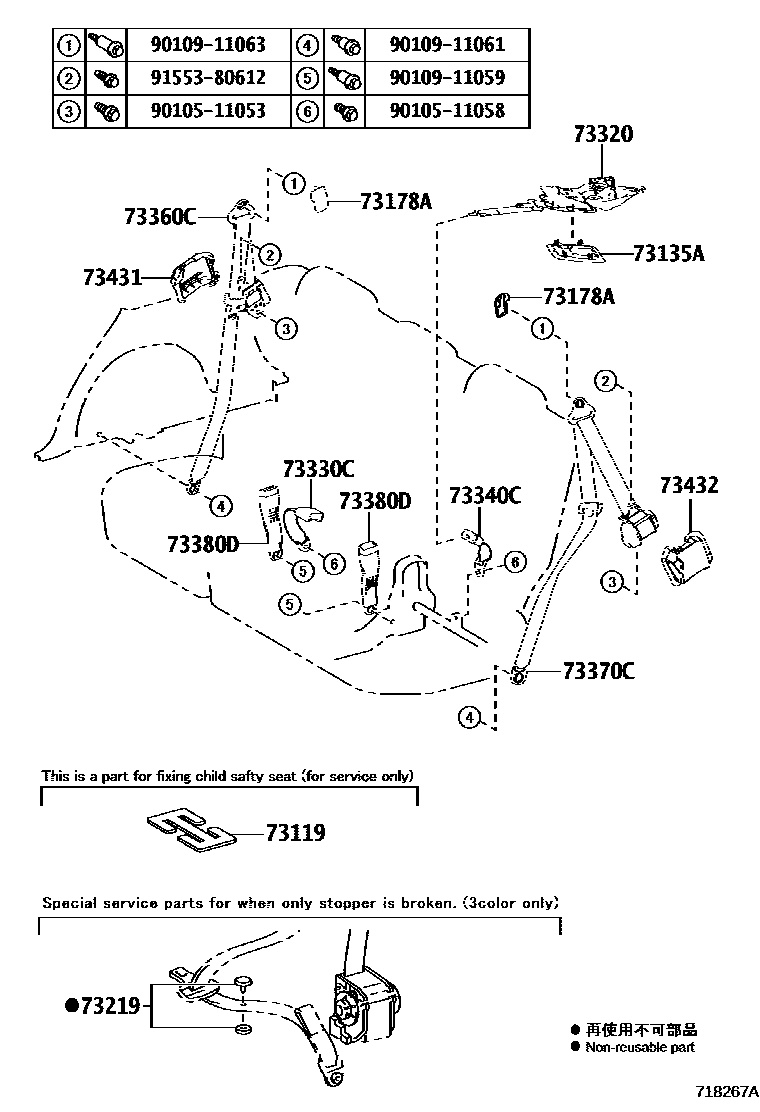

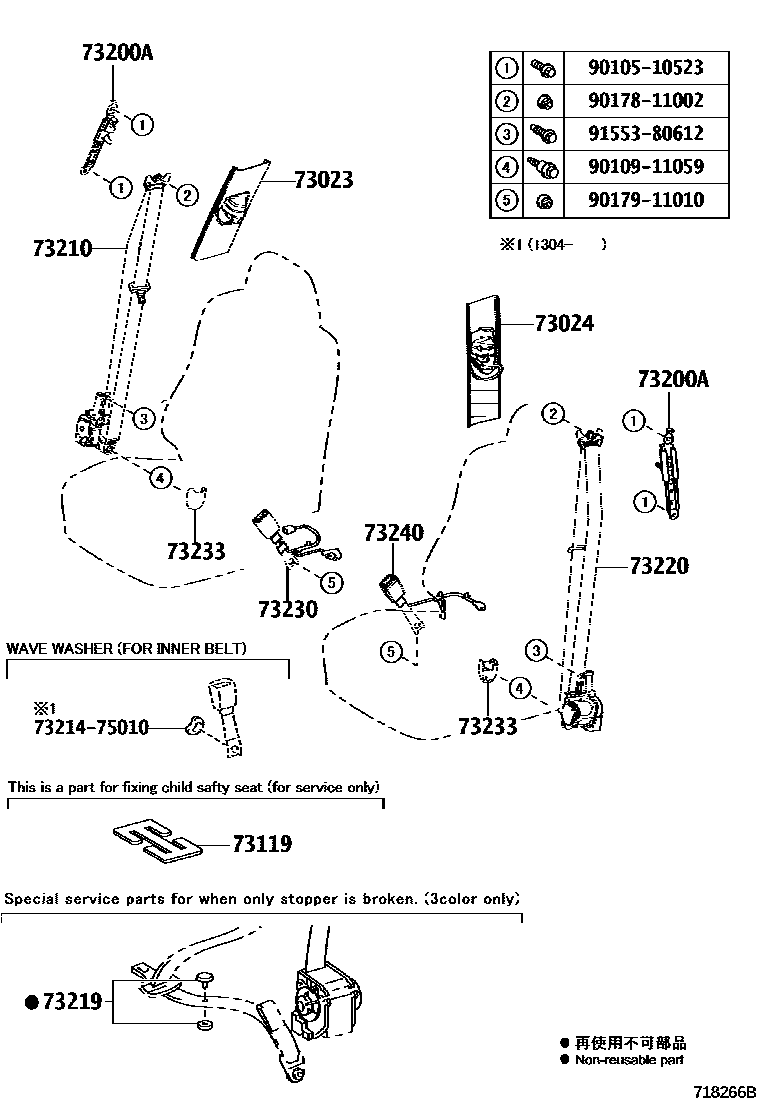

Toyota RAV4 EPC diagram 7152, seat belt, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119 | seat belt clip | 73119-22010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-12070 · 73200-53010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73431 | Rear right seat belt retractor cover | 73431-42010 |
| 73432 | Rear left seat belt retractor cover | 73432-42010 |
