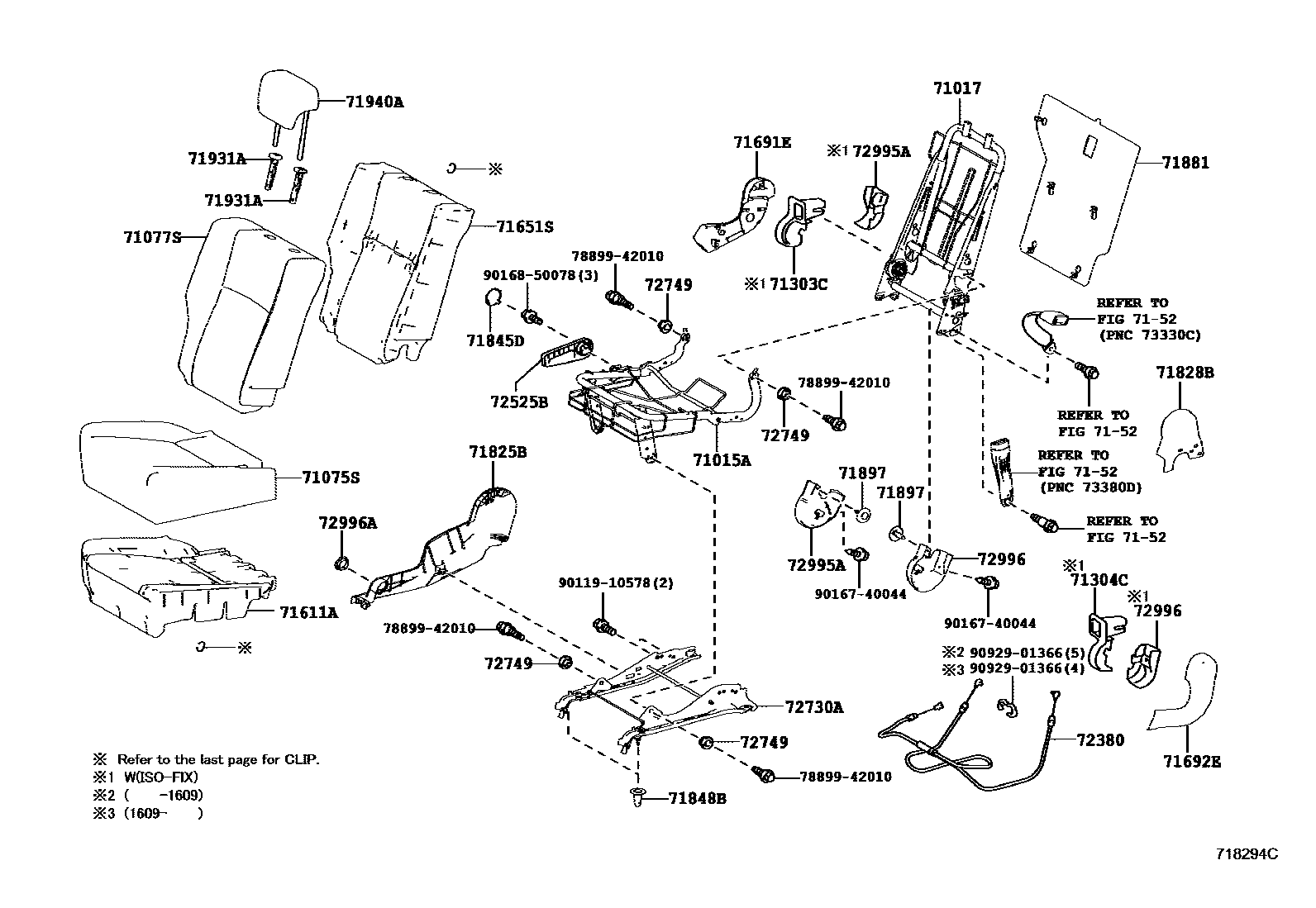

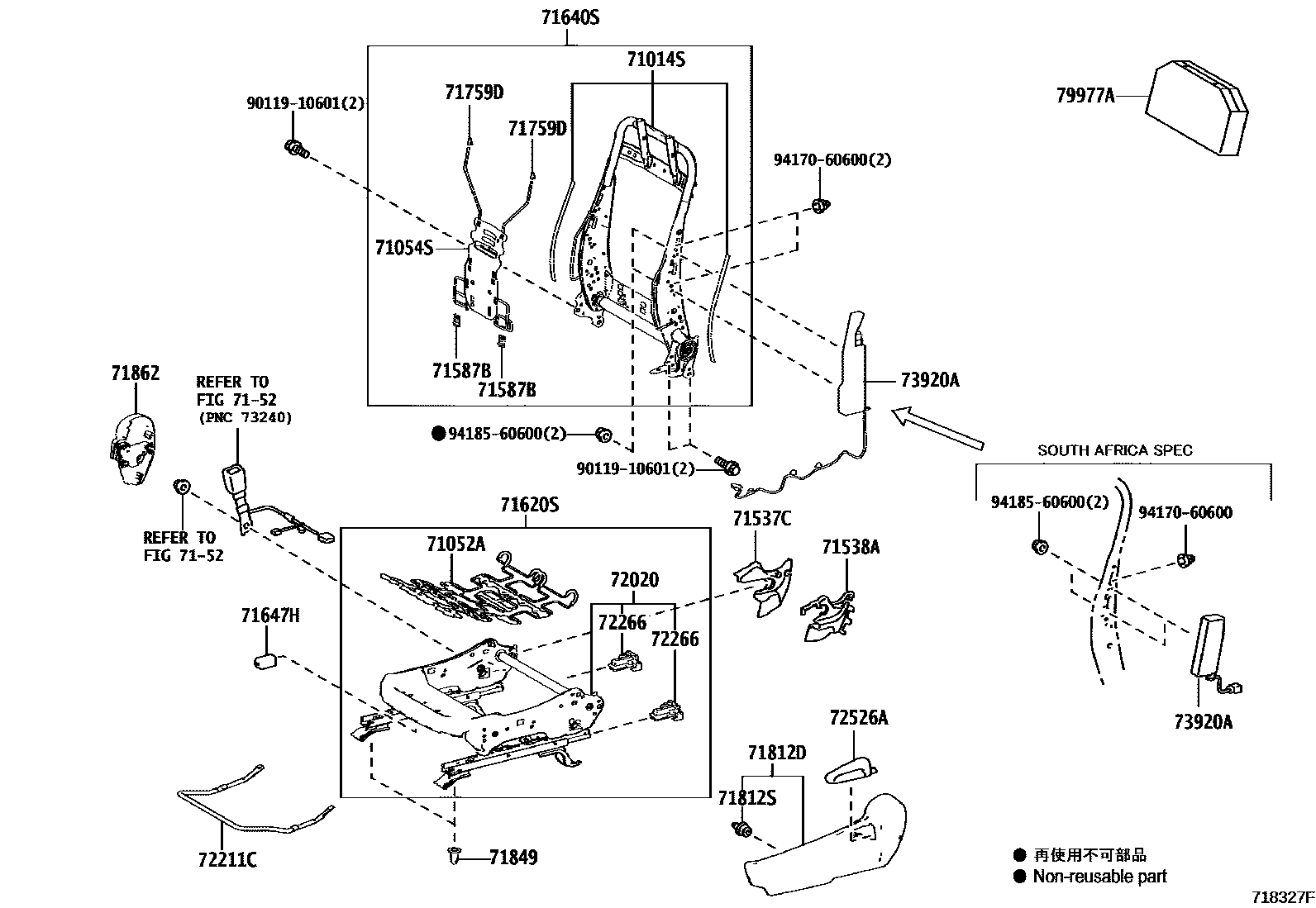

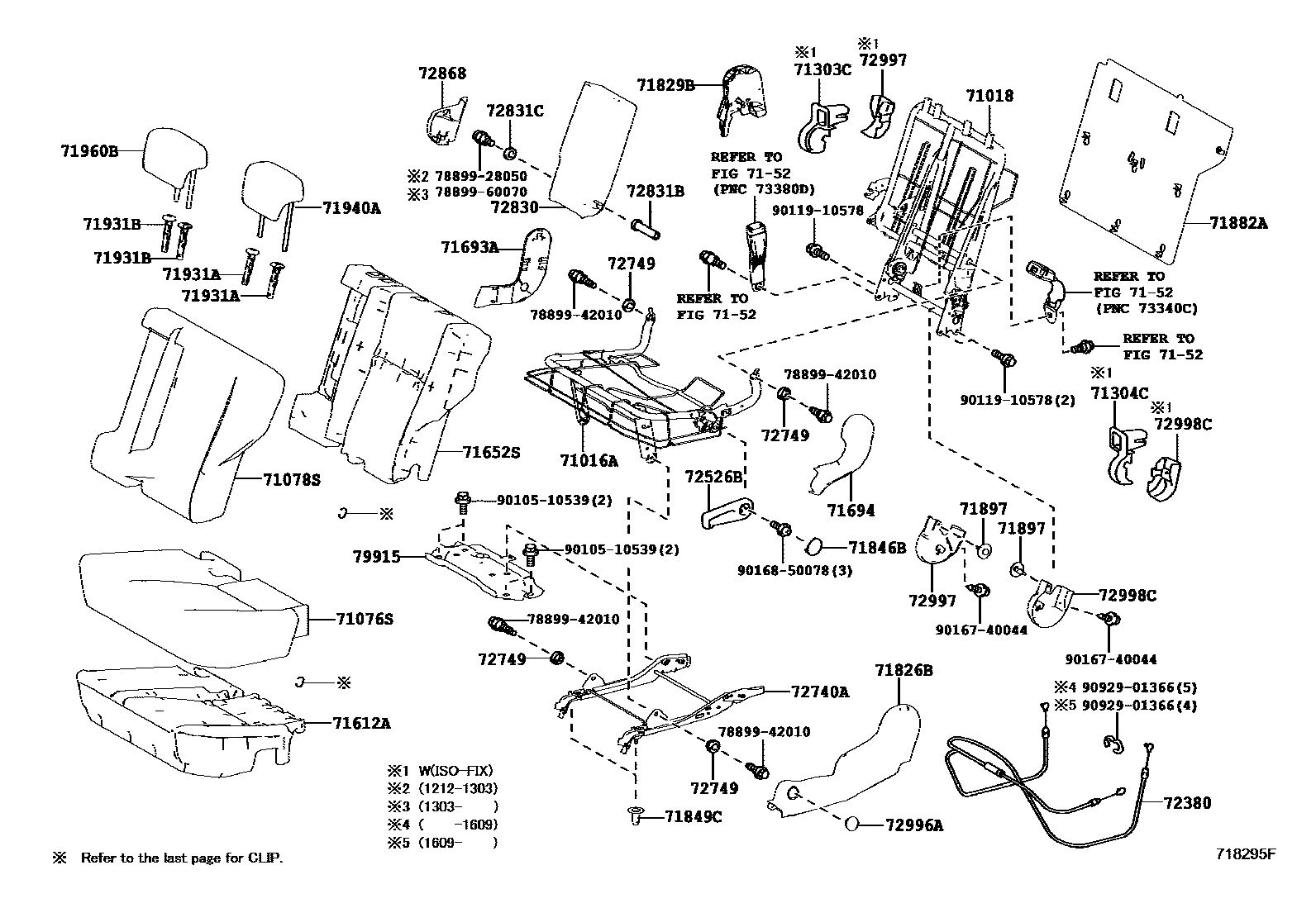

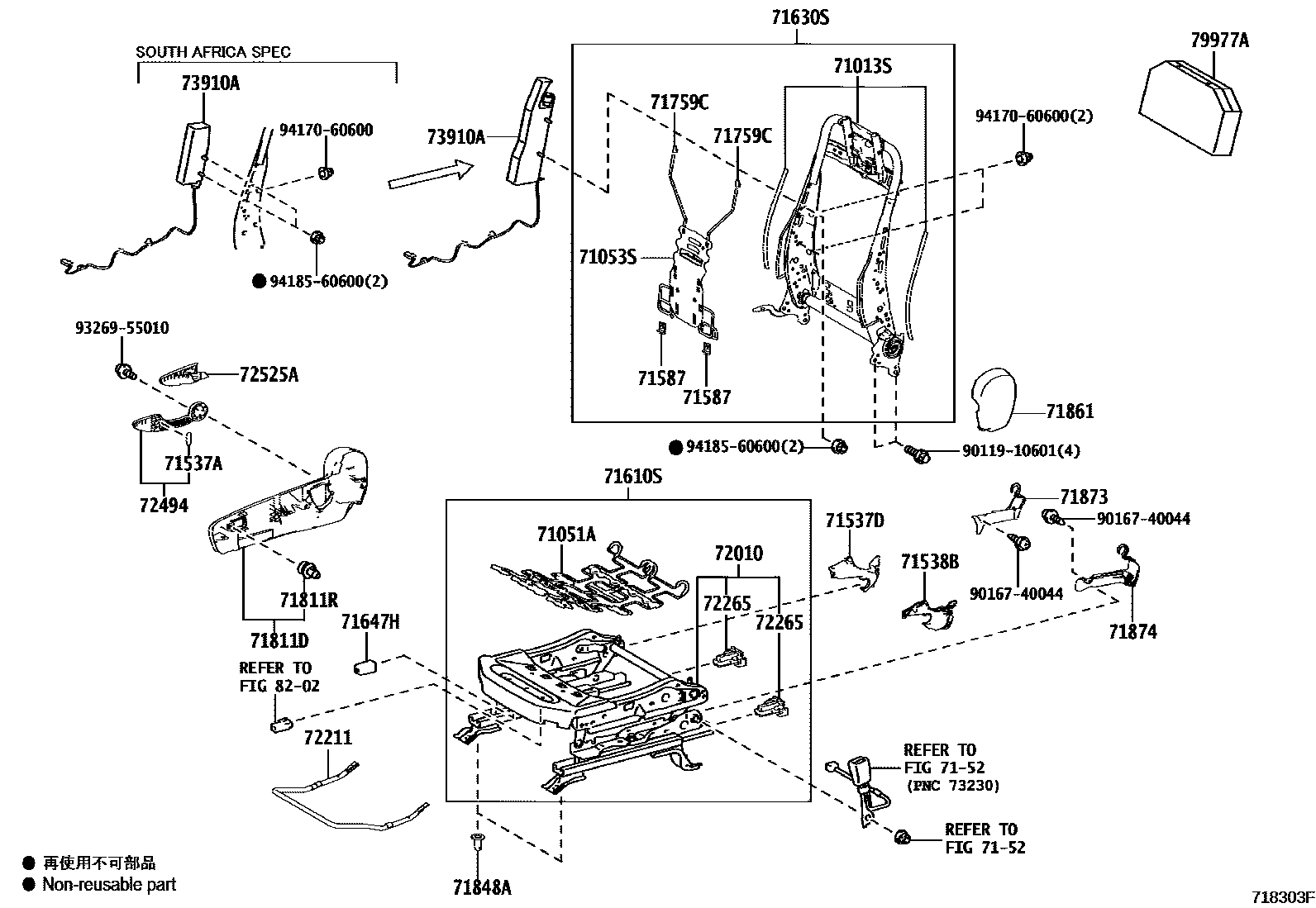

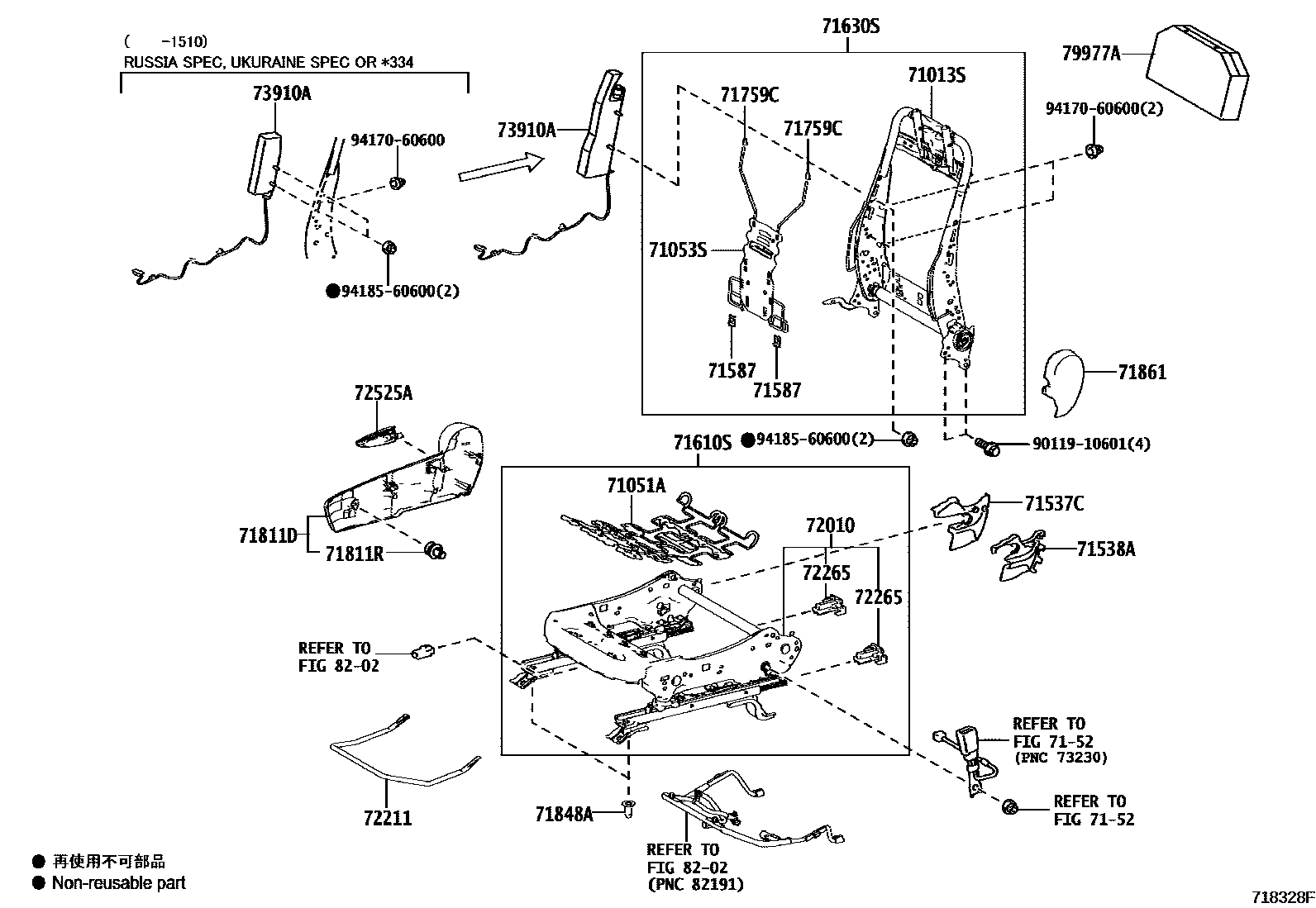

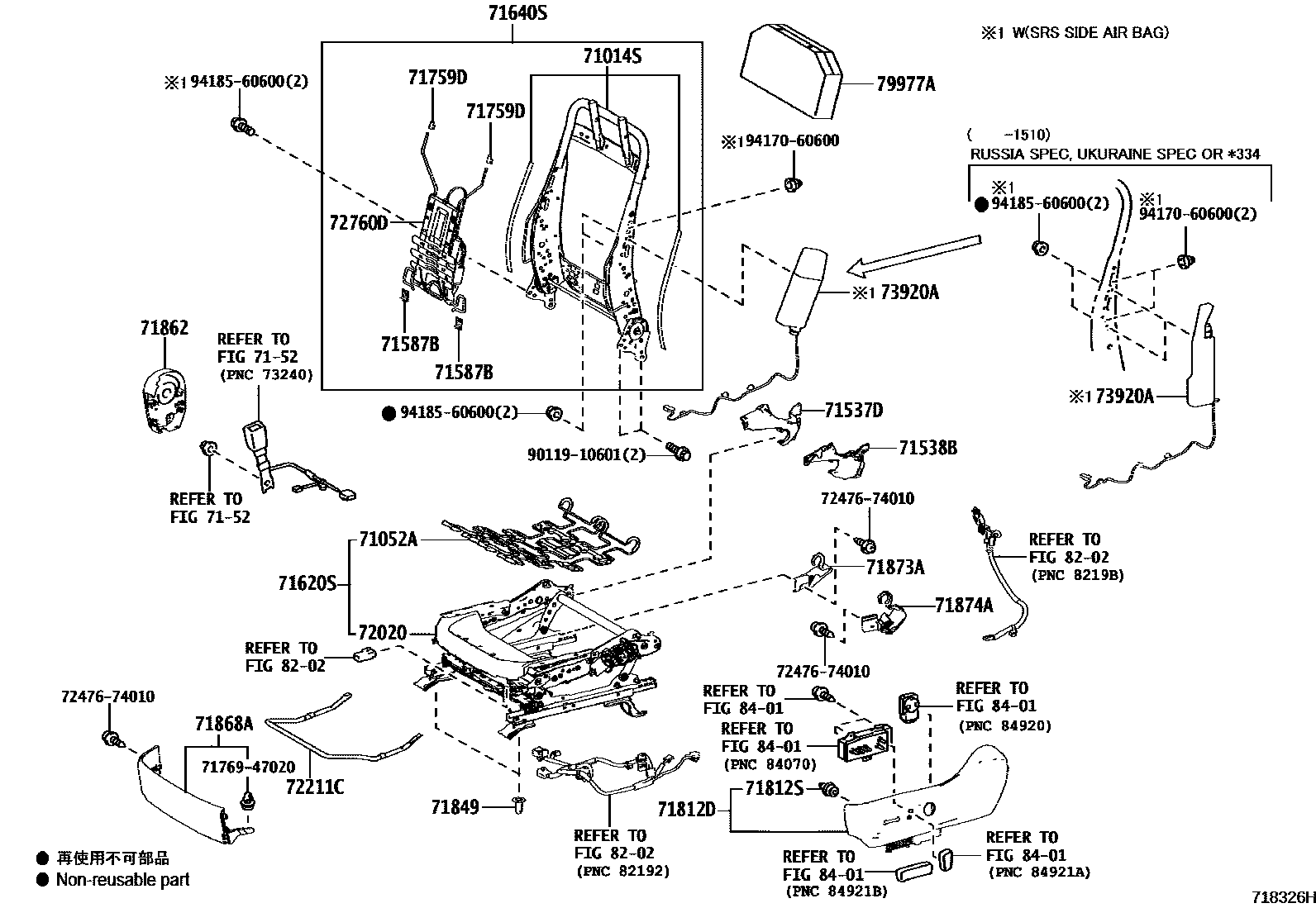

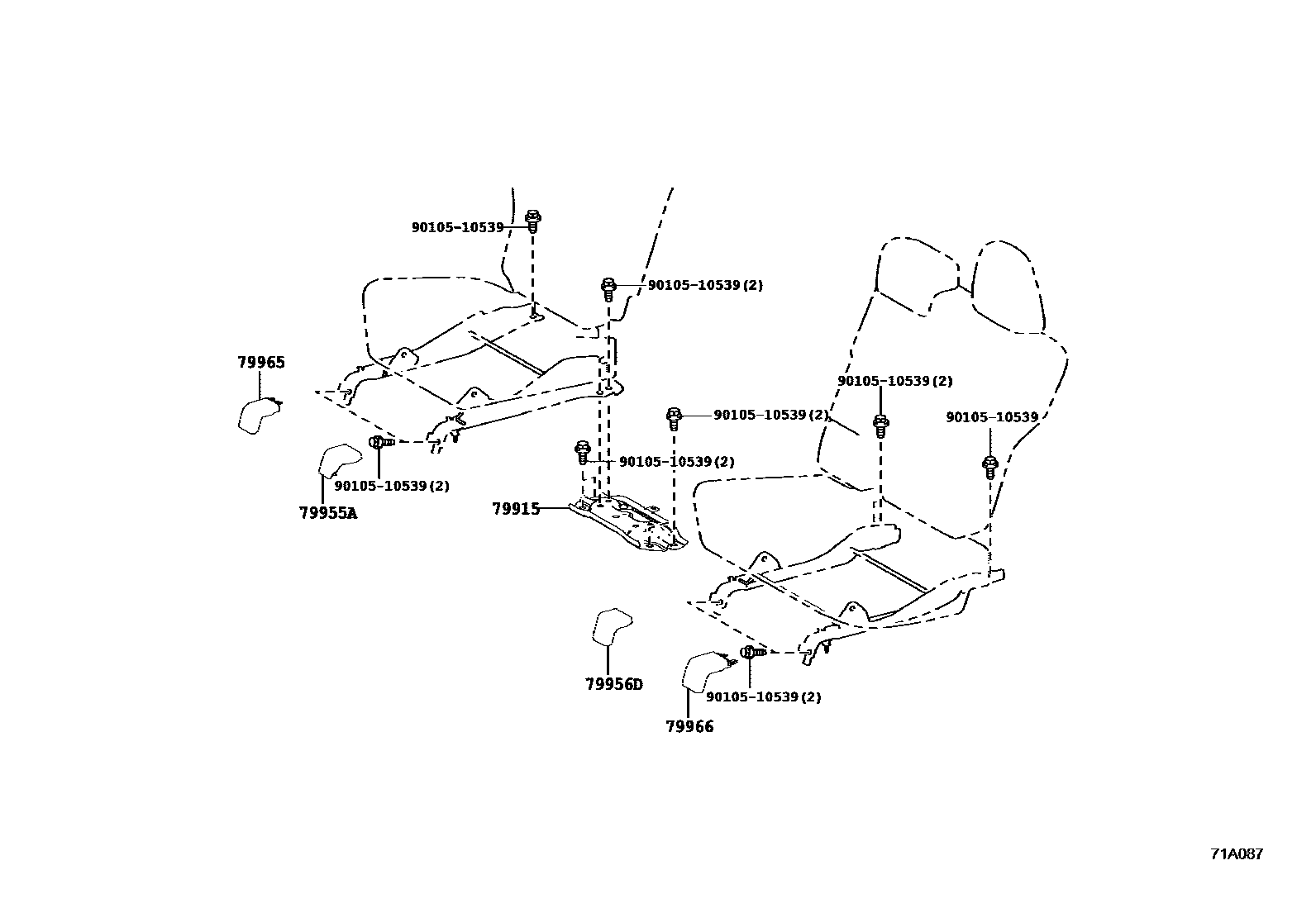

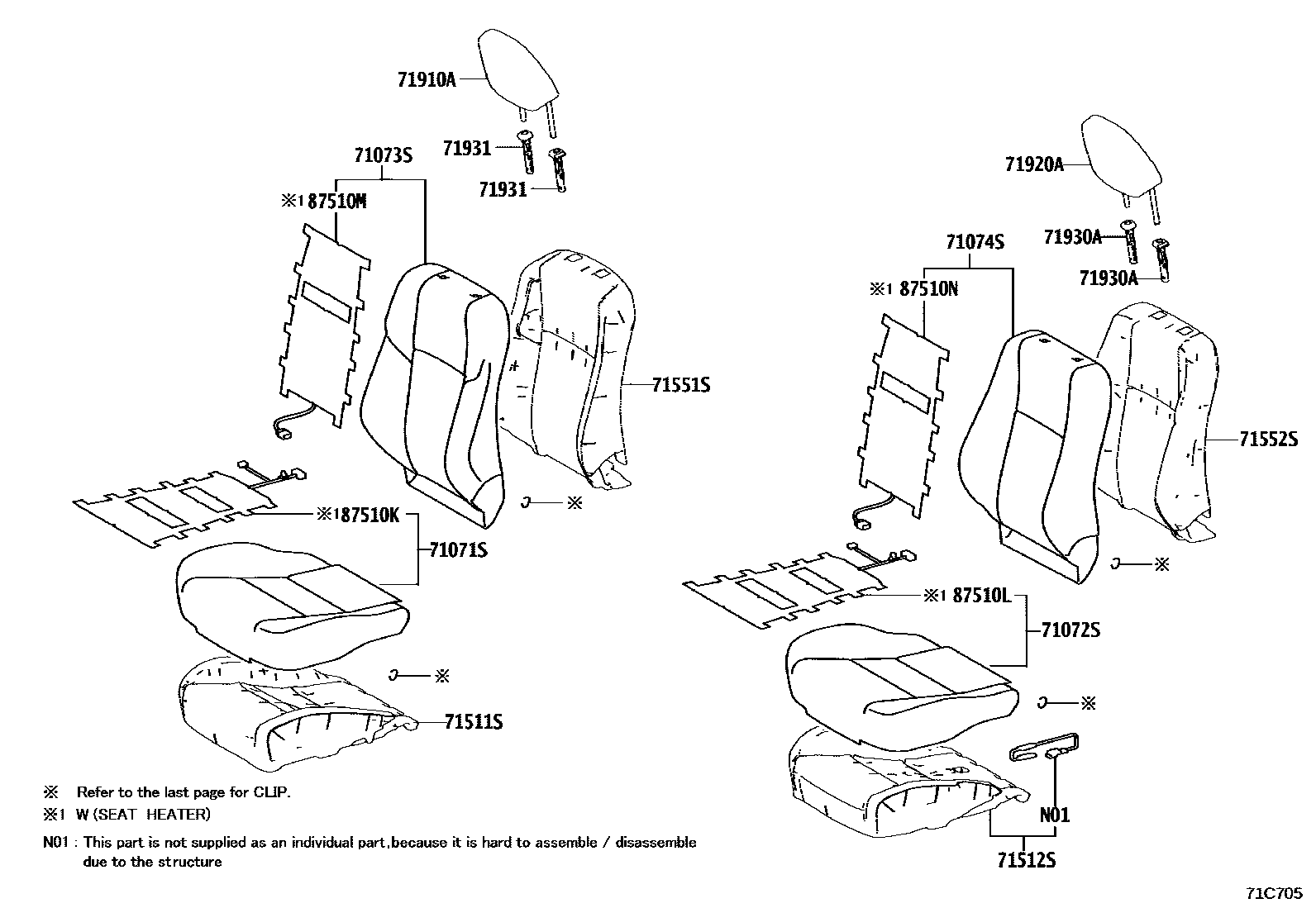

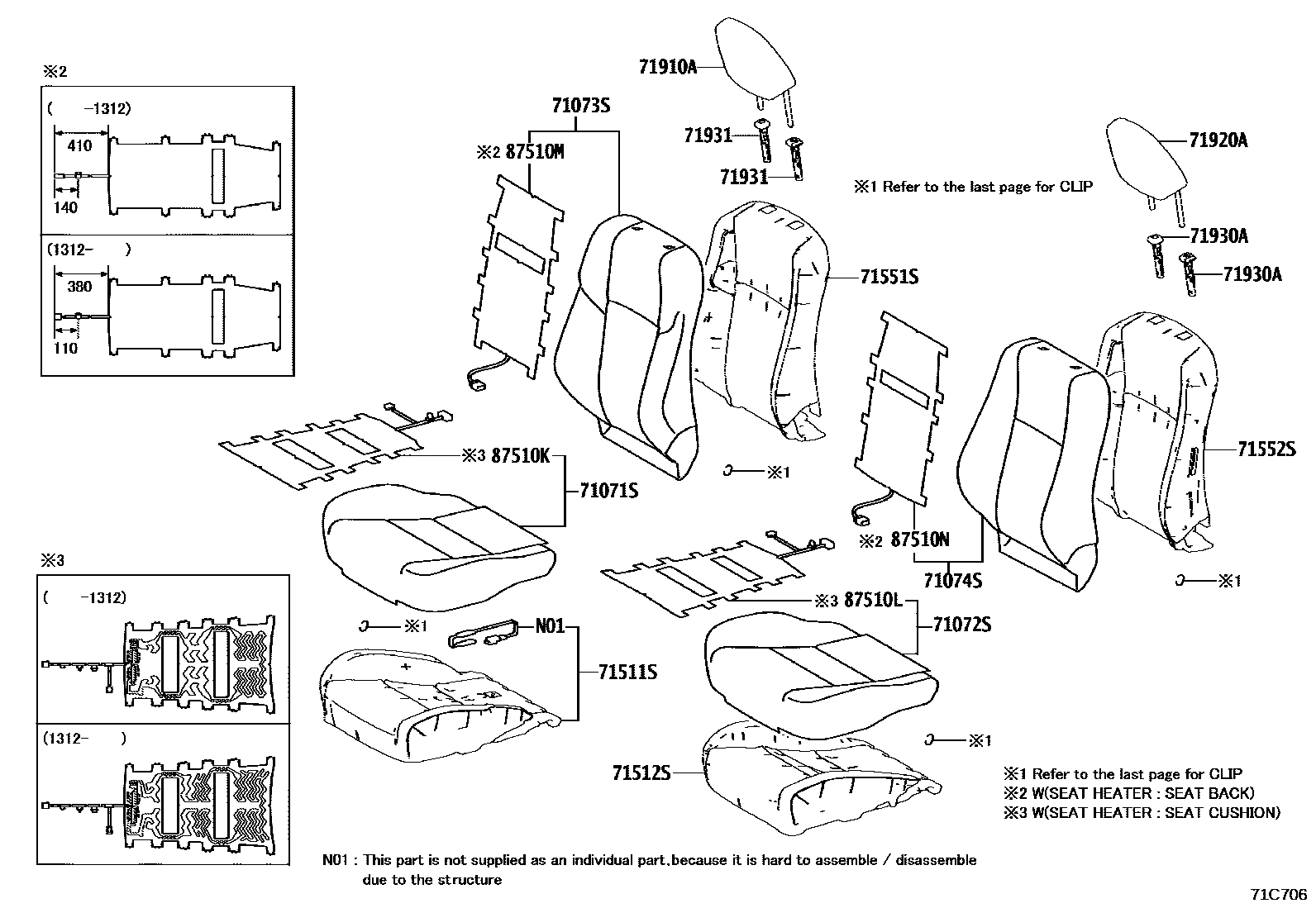

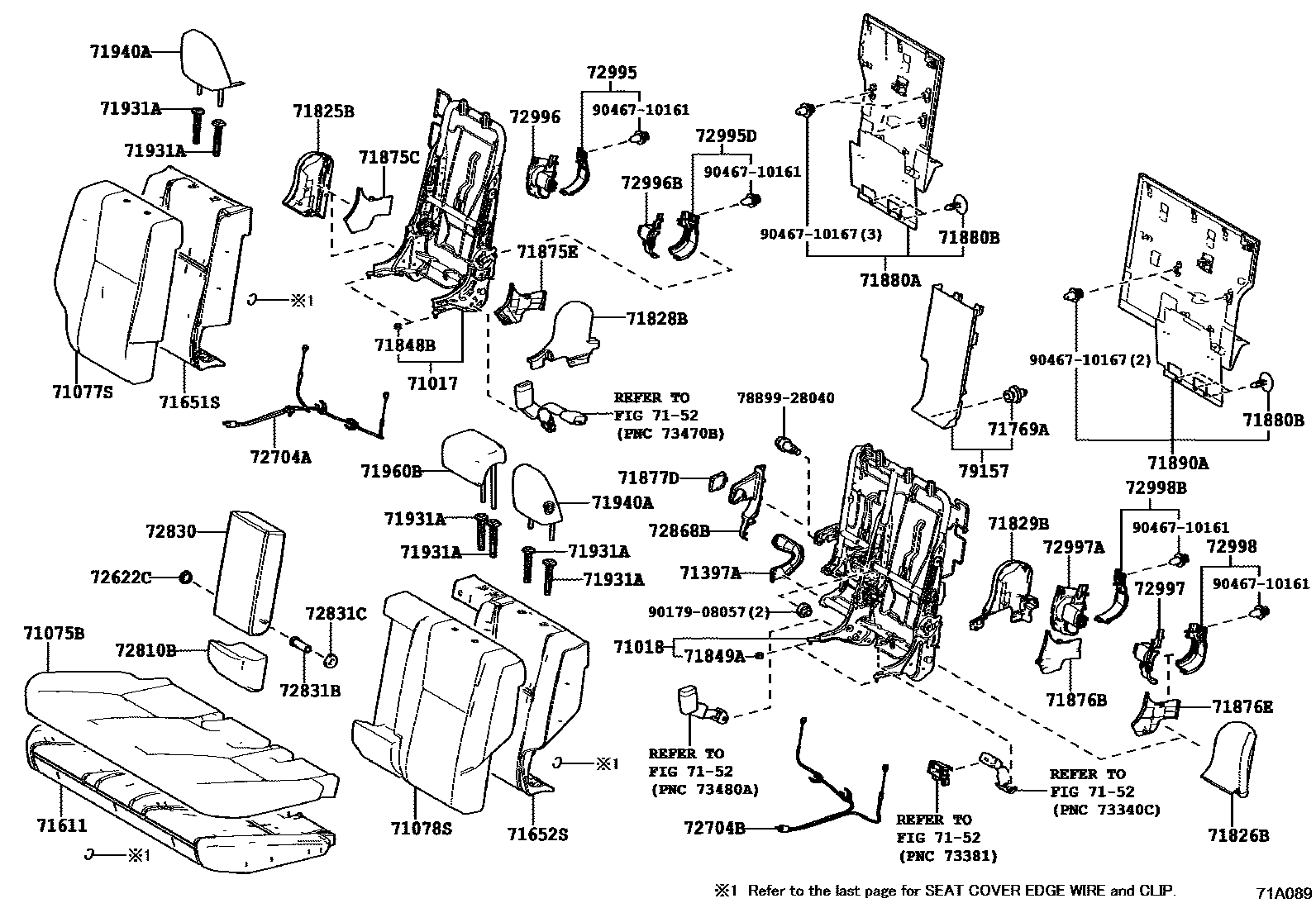

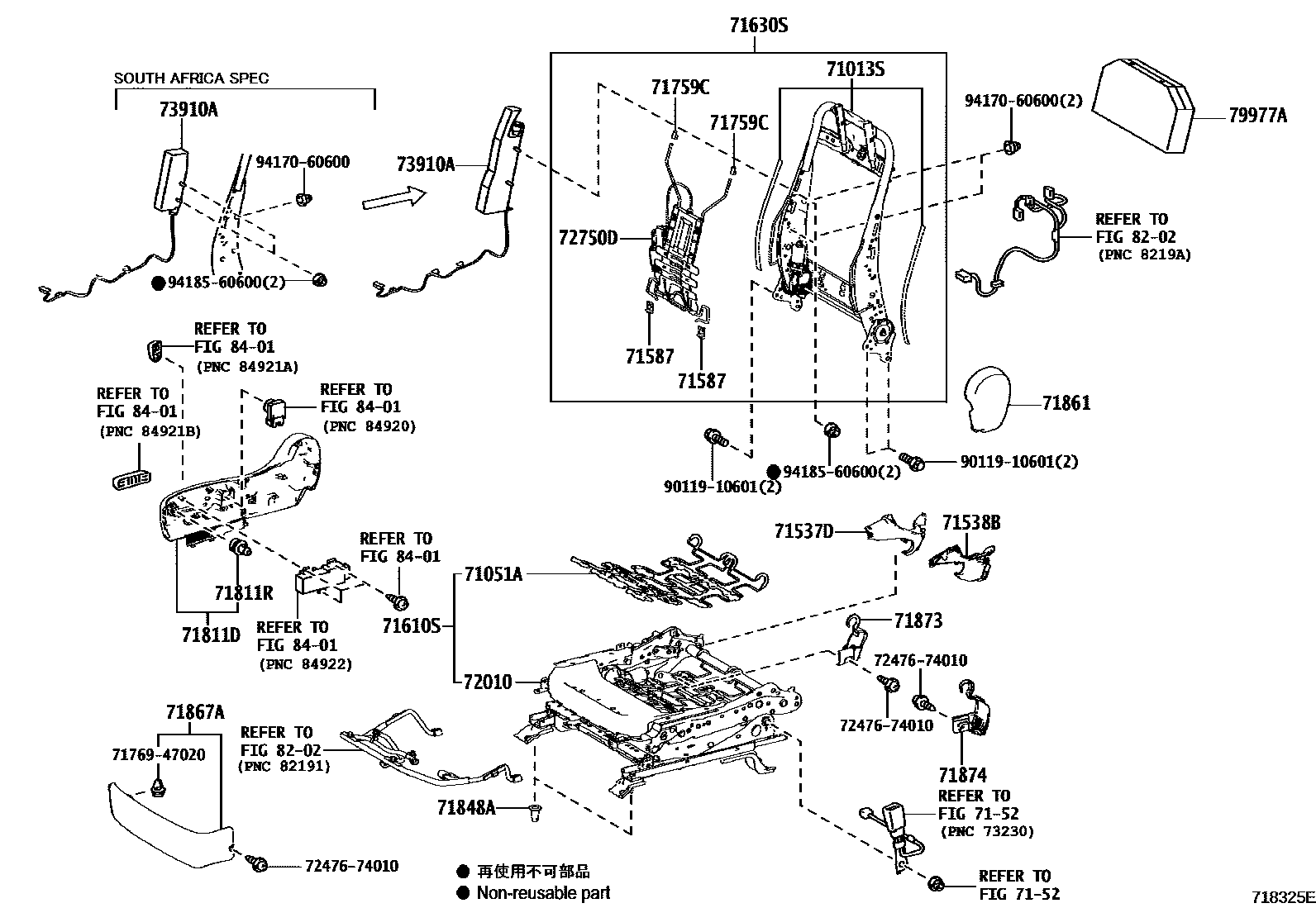

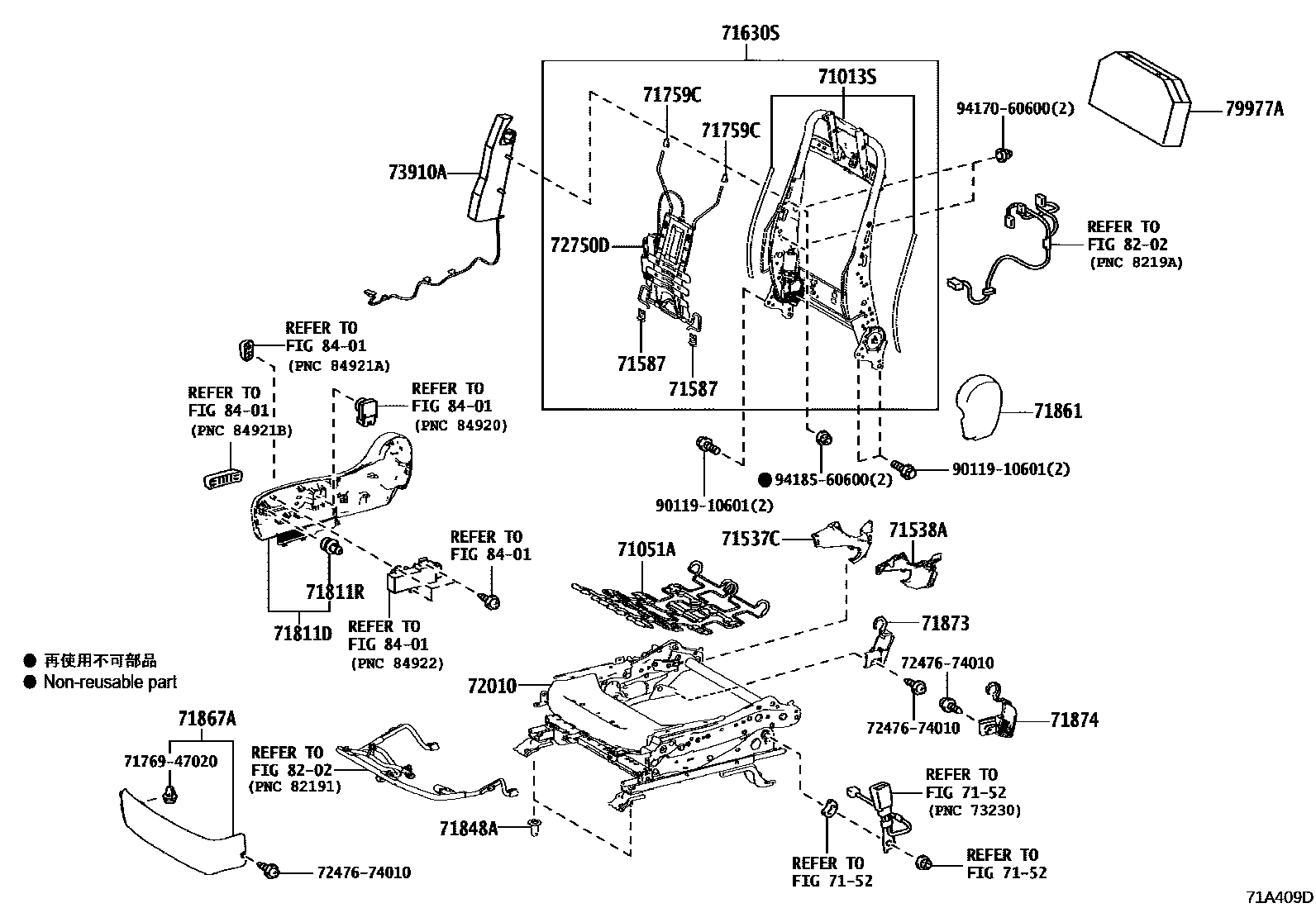

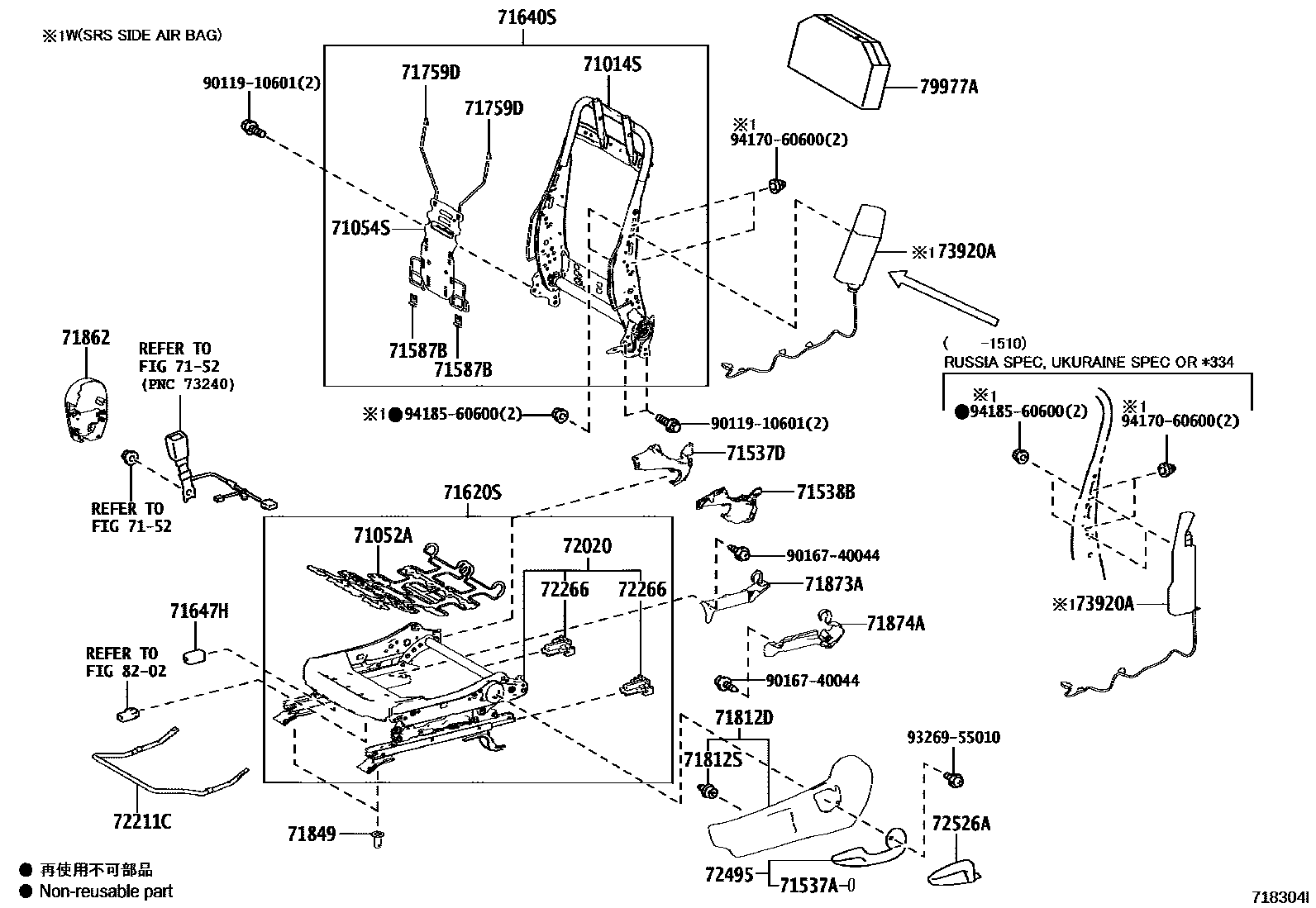

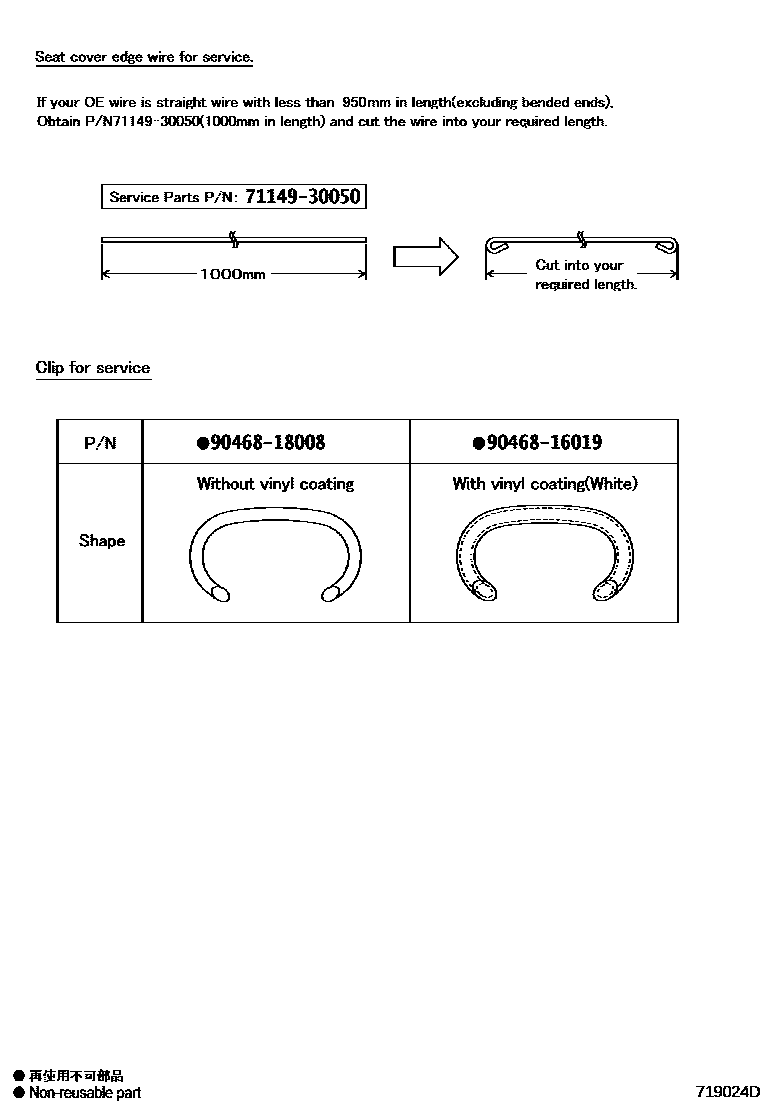

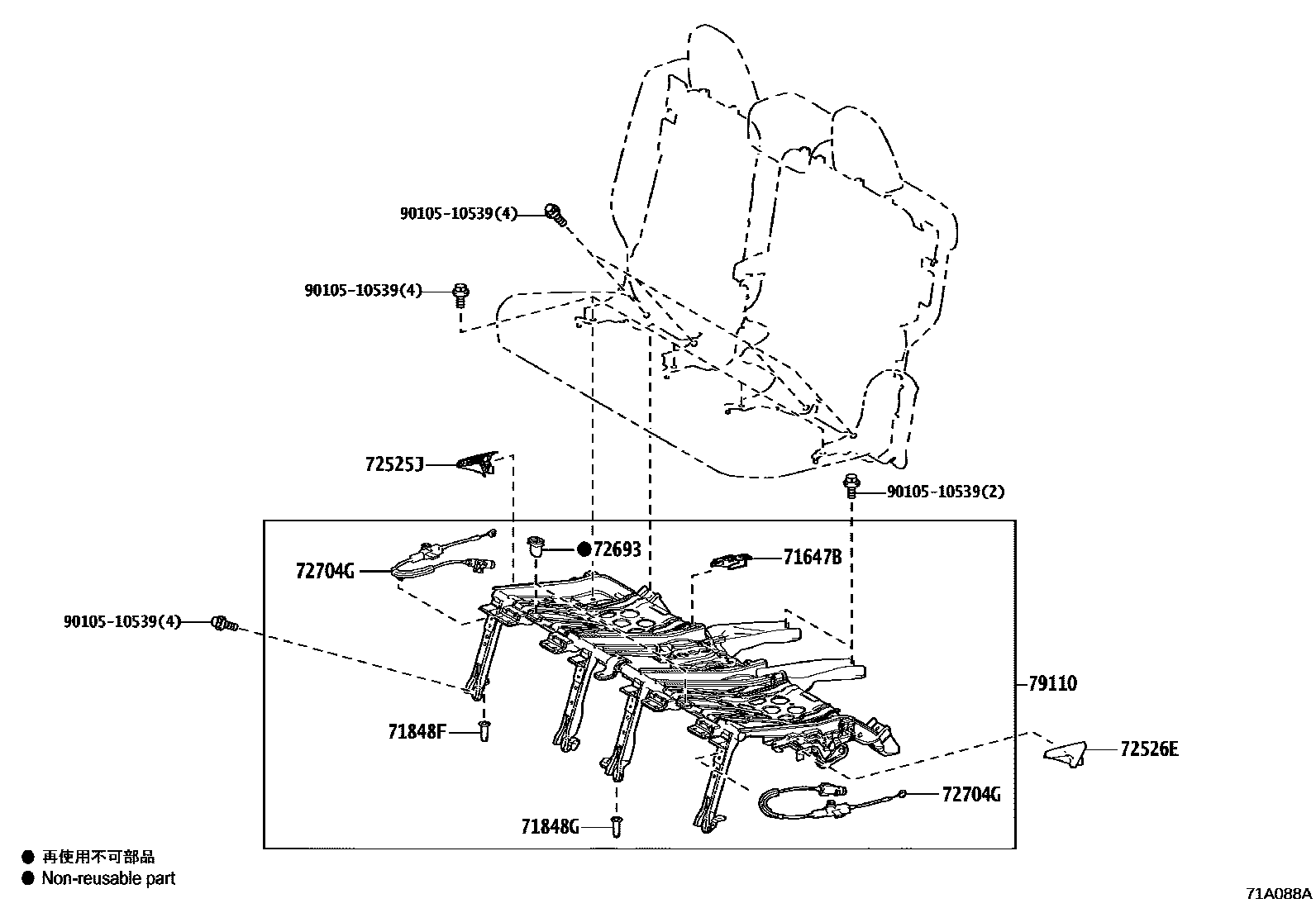

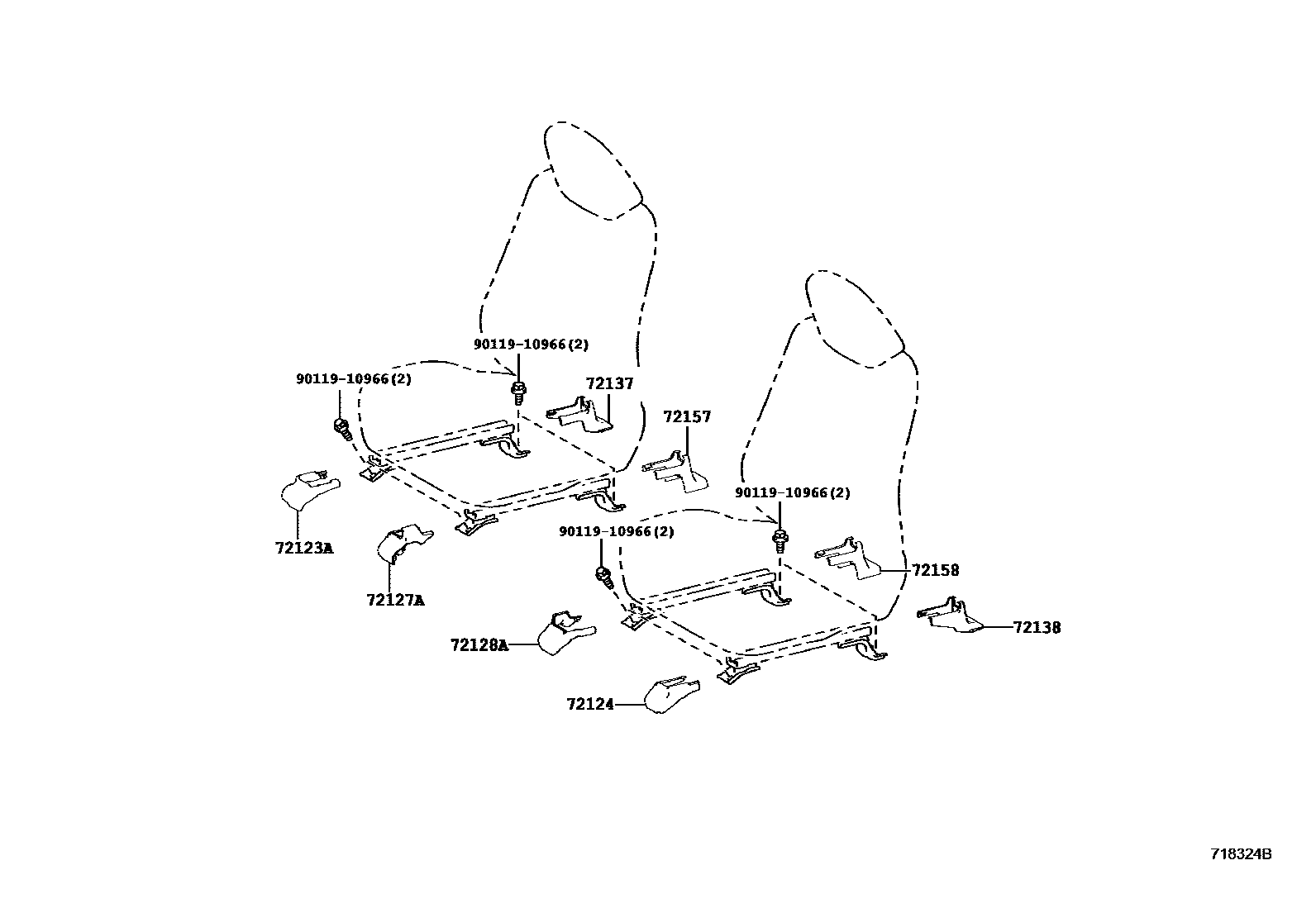

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 16 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-42060 · 71013-42070 · 71013-42080 · 71013-42090 · 71013-42110 · 71013-42130 · 71013-42150 |
| 71014S | Front left seat back frame sub-assembly | 71014-33070 · 71014-42020 · 71014-42030 · 71014-42040 · 71014-42070 · 71014-42090 · 71014-42100 · 71014-42110 · 71014-42140 |
| 71015A | Rear right seat cushion frame sub-assembly | 71650-42030 |
| 71016A | Rear left seat cushion frame sub-assembly | 71660-42030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-42150 · 71017-42160 · 71017-42170 · 71017-42171 · 71017-42180 |
| 71018 | Rear left seat back frame sub-assembly | 71018-42150 · 71018-42160 · 71018-42180 · 71018-42190 · 71018-42191 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47060 |
| 71053S | Front right seat back spring sub-assembly | 71053-52050 |
| 71054S | Front left seat back spring sub-assembly | 71053-52050 |
| 71077S | Right rear seat back cover (for split seats) | 71077-42582 · 71077-42710 |
| 71078S | Rear left seat back cover (for split seats) | 71078-42552 · 71078-42730 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-42010 · 71501-42020 · 71511-42190 · 71511-42220 · 71511-42230 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-42010 · 71502-42020 · 71512-42120 · 71512-42130 · 71512-42140 |
| 71537A | Front seat cushion protective cover | 71537-47040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-42090 · 71551-42200 · 71551-42210 · 71551-42220 · 71551-42270 · 71551-42290 · 71551-42300 · 71551-42310 |
| 71552S | Front left seat back cushion (for split seats) | 71551-42090 · 71551-42200 · 71551-42280 · 71552-42090 · 71552-42110 · 71552-42120 · 71552-42130 · 71552-42140 · 71552-42160 |
| 71587 | Front seat back edge protective cover | 71587-52030 |
| 71587B | Front seat back edge protective cover | 71587-52030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-42030 · 71610-42040 · 71610-42050 |
| 71611 | Rear seat cushion cushion | 71503-42010 |
| 71611A | Rear right seat cushion | 71611-42100 |
| 71612A | Rear left seat cushion | 71612-42100 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-42010 · 71620-42020 · 71620-42060 · 71620-42100 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-42100 · 71630-42110 · 71630-42120 · 71630-42130 · 71630-42150 · 71630-42180 · 71630-42190 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-42040 · 71640-42050 · 71640-42060 · 71640-42070 · 71640-42090 · 71640-42110 · 71640-42120 · 71640-42140 · 71640-42260 |
| 71647B | Rear seat cushion edge protective cover | 71647-48010 |
| 71647H | Front seat cushion edge protective cover | 71647-74010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-42120 · 71651-42130 · 71651-42140 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-42120 · 71652-42130 · 71652-42140 |
| 71759C | Front seat back hook No. 1 | 71759-47010 · 71759-47011 |
| 71759D | Front seat back hook 2 | 71759-47010 · 71759-47011 |
| 71769A | Rear seat back panel clip | 71769-47020 |
| 71811R | Front seat cushion right guard panel clip | 71769-47020 |
| 71812S | Front seat cushion left guard panel clip | 71769-47020 |
| 71848A | Right seat adjuster cover | 71848-48050 · 71848-76010 |
| 71848B | Right seat adjuster cover | 71848-42010 · 71848-78010 |
| 71848F | Seat adjuster cover No. 1 | 71848-48030 |
| 71848G | Seat adjuster cover No. 2 | 71848-48040 |
| 71849 | left seat adjuster cover | 71848-48050 · 71848-76010 |
| 71849A | left seat adjuster cover | 71848-78010 |
| 71849C | Left-hand seat adjuster cover (for left-hand seat) | 71848-42010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47040 · 71873-60030 |
| 71873A | Front seat cushion lower guard | 71873-47040 · 71873-60030 |
| 71874 | Front left seat cushion lower guard | 71874-47040 · 71874-60110 |
| 71874A | Front left seat cushion lower guard | 71874-47040 · 71874-60110 |
| 71881 | Rear right seat back panel | 71881-42010 |
| 71882A | Rear left seat back panel | 71882-42010 |
| 72010 | Front right seat adjuster assembly | 72010-42190 · 72010-42191 · 72010-42200 · 72010-42201 · 72010-42210 · 72010-42211 · 72010-48071 |
| 72020 | Front left seat adjuster assembly | 72020-42210 · 72020-42211 · 72020-42220 · 72020-42221 · 72020-42260 · 72020-42261 · 72020-42300 |
| 72211 | Seat slide adjustment handle | 72211-47020 |
| 72211C | Seat slide adjustment handle | 72211-47020 |
| 72265 | Right seat rail upper rail cover | 72265-42010 |
| 72266 | Left seat rail upper rail cover | 72265-42010 |
| 72380 | No. 2 seat adjuster control cable assembly | 72380-42070 |
| 72622C | Rear seat back protection shaft bushing | 72622-48010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72704A | Rear seat backrest tilt control cable | 72704-48110 |
| 72704B | Rear No. 2 seat backrest inclination control cable | 72704-48130 |
| 72704G | Rear No. 4 seat backrest angle control cable | 72704-48120 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 71308-42010 |
| 72740A | Rear left seat backrest angle adjuster assembly | 71309-42010 |
| 72749 | Rear seat backrest tilt cushion | 72749-42010 |
| 72750D | Right lumbar support adjuster assembly | 72750-33080 |
| 72760D | Left lumbar support adjuster assembly | 72760-47020 |
| 72831B | No. 1 rear seat center armrest panel | 72831-47010 |
| 72831C | No. 2 rear seat center armrest panel | 72831-42020 · 72831-52010 |
| 73910A | Front right seat airbag assembly | 73910-42040 · 73910-42060 |
| 73920A | Front left seat airbag assembly | 73920-42040 · 73920-42060 |
| 79110 | No. 1 seat leg assembly | 79110-42500 |
| 79915 | seat leg bracket | 79915-42010 |
| 79977A | Seat back felt pad | 79977-52120 |
| 87510K | Front right seat cushion heater assembly | 87510-42180 · 87510-42181 · 87510-42190 · 87510-42191 |
| 87510L | Front left seat cushion heater assembly | 87510-42180 · 87510-42181 · 87510-42190 · 87510-42191 |
| 87510M | Front right seat back heater assembly | 87510-42170 · 87510-42171 |
| 87510N | Front left seat back heater assembly | 87510-42170 · 87510-42171 |
