Toyota RAV4 背门锁和合页 — Figure 6762

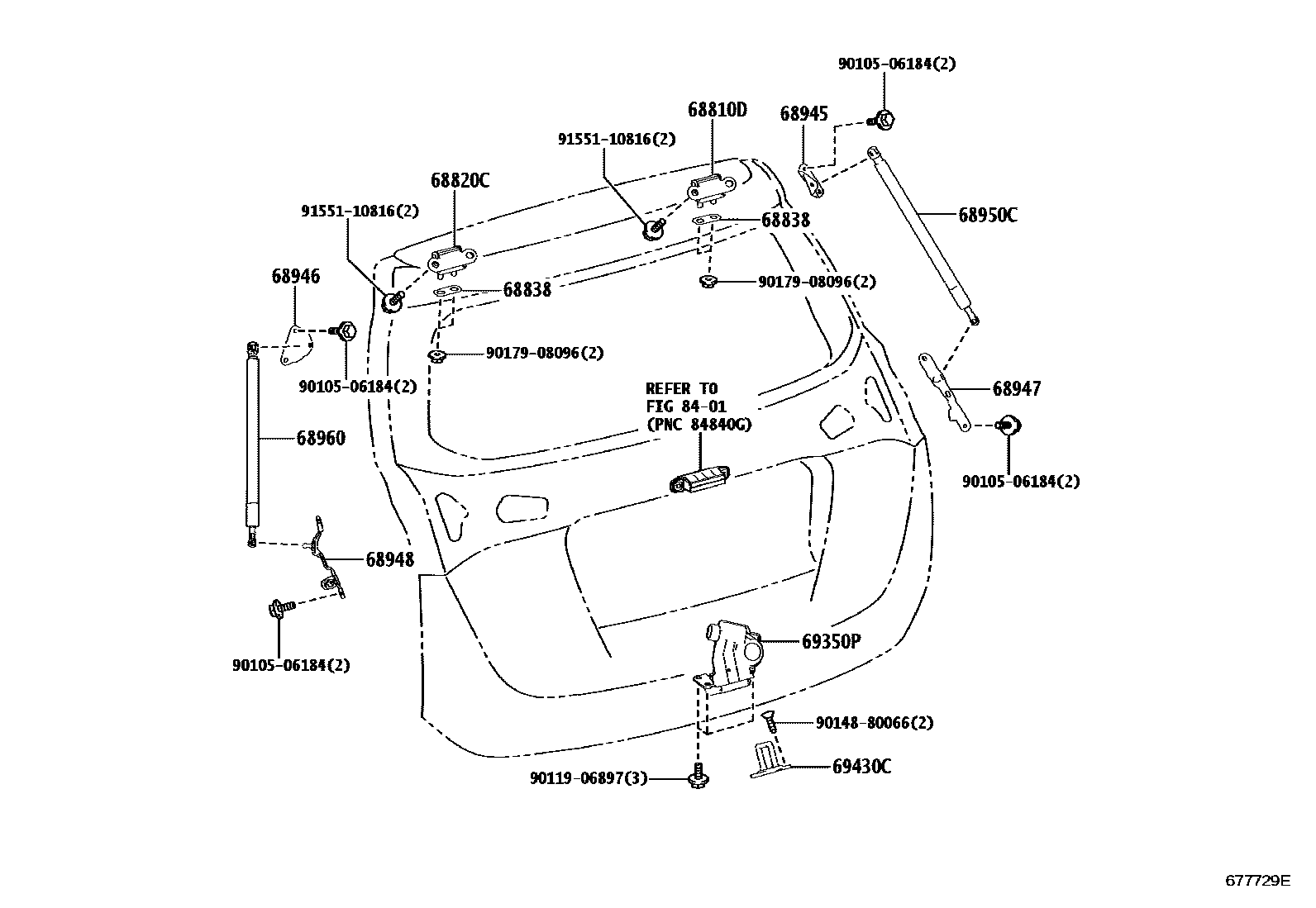

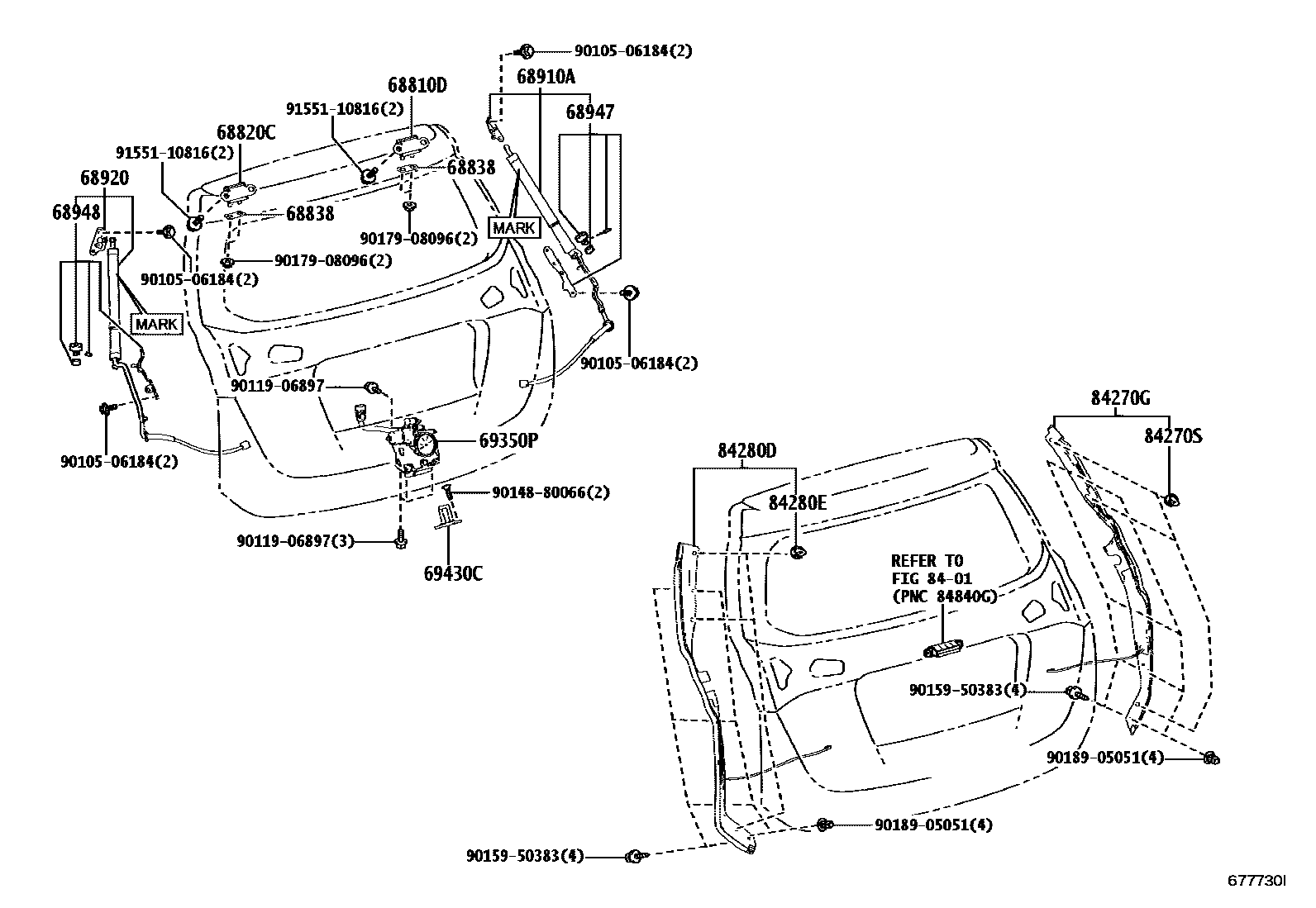

Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810D | Back door right hinge assembly | 68810-42070 |
| 68820C | Back door left hinge assembly | 68810-42070 |
| 68838 | Back door hinge No. 1 gasket | 68838-42010 · 68838-42020 · 68838-42030 |
| 68910A | Right rear door electric unit assembly assembly | 68910-49015 · 68910-49017 · 68910-49035 · 68910-49036 · 68910-49038 · 68910-49055 · 68910-49065 · 68910-49069 · 68910-49079 |
| 68920 | Left rear door electric unit assembly assembly | 68920-49015 · 68920-49017 · 68920-49035 · 68920-49036 · 68920-49038 · 68920-49055 · 68920-49065 · 68920-49069 · 68920-49079 |
| 68945 | Back door right damping stay upper bracket | 68945-42010 |
| 68946 | Rear door left damping strut upper bracket | 68946-42010 |
| 68947 | Back door right damping strut lower bracket | 68903-42010 · 68903-42011 · 68903-42012 · 68903-42013 · 68903-42014 · 68903-42015 · 68947-42020 |
| 68948 | Rear door left damping strut lower bracket | 68904-42010 · 68904-42011 · 68904-42012 · 68904-42013 · 68904-42014 · 68904-42015 · 68948-42020 |
| 68950C | Back door right support rod assembly | 68950-0R010 · 68950-0R020 |
| 68960 | Back door left support rod assembly | 68960-0R010 · 68960-0R020 |
| 69350P | Back door with door control light switch lock assembly | 69350-28151 · 69350-28160 · 69350-42060 · 69350-42070 |
| 69430C | Back door lock assembly | 69430-48030 |
| 84270G | Electric back door right side sensor assembly | 84270-42010 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42040 |
| 84280D | Electric back door left sensor assembly | 84280-42010 |
| 84280E | Catch (electric back door left sensor) | 61617-42040 |
