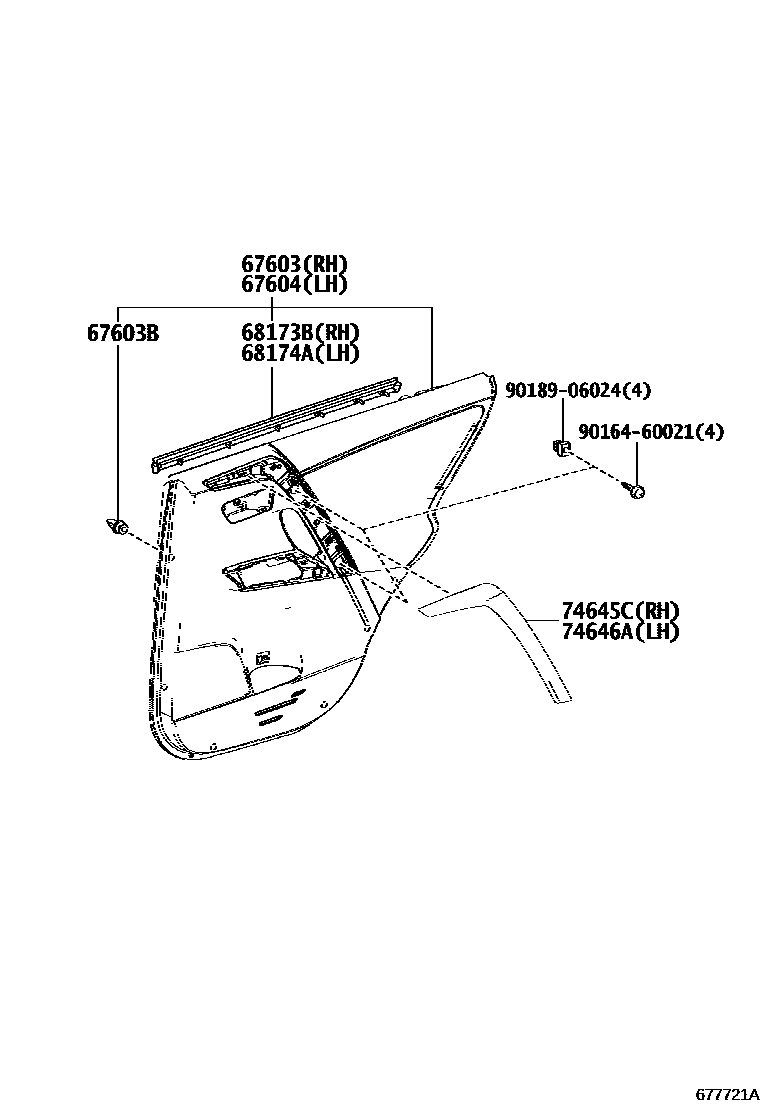

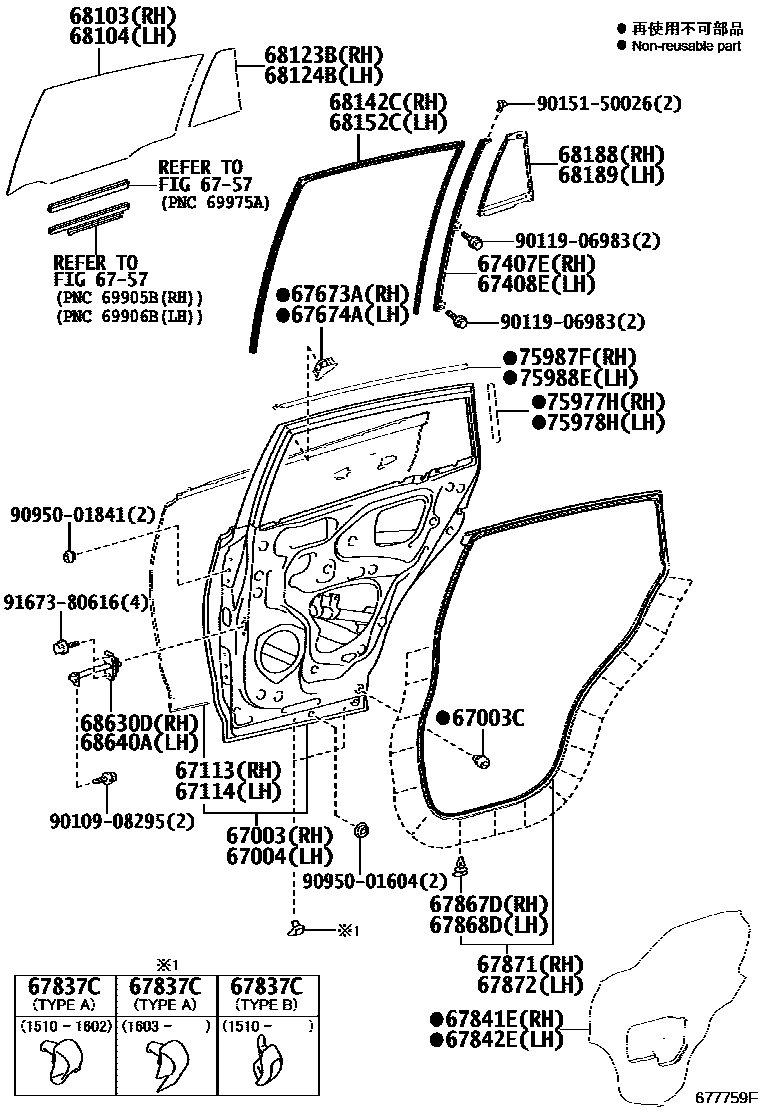

Toyota RAV4 后门板和后门玻璃 — Figure 6755
Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-42180 |
| 67003C | Rear door panel cushion | 90541-09137 |
| 67004 | Left rear door panel sub-assembly | 67004-42180 |
| 67113 | Right rear door outer panel | 67113-42110 |
| 67114 | Left rear door outer panel | 67114-42110 |
| 67407E | Right rear door window divider sub-assembly | 67407-42040 |
| 67408E | Left rear door window divider sub-assembly | 67408-42040 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67837C | Rear door dust seal retainer | 67837-12120 · 67837-42010 · 67837-48050 |
| 67841E | Right rear door access hole cover | 67841-42060 · 67841-42061 |
| 67842E | Left rear door access hole cover | 67842-42040 · 67842-42041 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-42070 |
| 67872 | Left rear door sealing strip | 67872-42070 |
| 68103 | Right rear door glass sub-assembly | 68113-42140 · 68113-42150 · 68113-42180 |
| 68104 | Left rear door glass sub-assembly | 68114-42140 · 68114-42150 · 68114-42180 |
| 68123B | Right rear door corner window glass | 68123-42130 · 68123-42140 · 68123-42180 |
| 68124B | Left rear door corner window glass | 68124-42140 · 68124-42150 · 68124-42180 |
| 68142C | Right rear door glass lift slot | 68142-42050 |
| 68152C | Left rear door glass lift slot | 68152-42050 |
| 68173B | Right rear door glass inner sealing strip | 68173-42050 |
| 68174A | Left rear door glass inner sealing strip | 68174-42040 |
| 68188 | Right rear door corner window seal | 68188-42050 · 68188-42060 |
| 68189 | Left rear door corner window seal | 68189-42050 · 68189-42060 |
| 68630D | Right rear door opening limiter assembly | 68630-42040 · 68630-42041 |
| 68640A | Left rear door opening limiter assembly | 68630-42040 · 68630-42041 |
| 74645C | Right door auxiliary handle cover | 74645-42040 · 74645-42050 |
| 74646A | Left door auxiliary handle cover | 74646-42040 · 74646-42050 |
| 75977H | Right rear door outer lower trim strip | 75977-42040 |
| 75978H | Left rear door outer lower trim strip | 75978-42040 |
| 75987F | Right rear door outer trim | 75987-42050 |
| 75988E | Left rear door outer trim | 75988-42050 |
