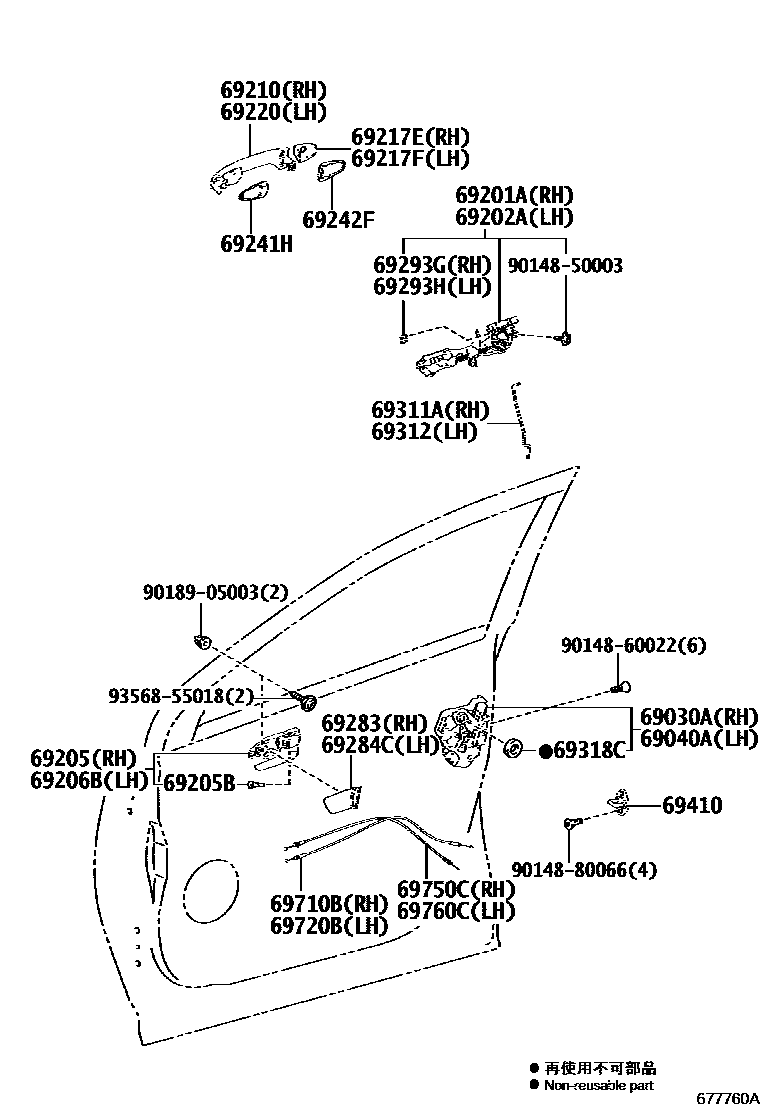

Toyota RAV4 前门锁和车门把手 — Figure 6753
Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-42210 · 69030-42221 · 69030-53080 · 69030-60240 |
| 69040A | Left front door door lock assembly with motor | 69040-42230 · 69040-42241 · 69040-53090 · 69040-60220 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-42070 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-42040 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-42110 · 69211-42060 |
| 69217E | Right front door outer handle cover | 69217-42110 · 69217-42120 |
| 69217F | Left front door outer handle cover | 69217-42110 · 69217-42120 |
| 69220 | Left front door outer handle assembly | 69210-42110 · 69211-42060 |
| 69241H | Front door exterior handle pad | 69241-42040 |
| 69242F | Front door rear outer handle pad | 69242-30100 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69293H | Left front door outer handle buckle | 69293-12040 |
| 69311A | Right front door lock opening lever | 69311-42040 |
| 69312 | Left front door lock opening lever | 69312-42040 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69710B | Right front door lock remote control cable assembly | 69710-42060 |
| 69720B | Left front door lock remote control cable assembly | 69710-42060 |
| 69750C | Right front door inner lock cable assembly | 69750-42040 |
| 69760C | Left front door inner lock cable assembly | 69750-42040 |
