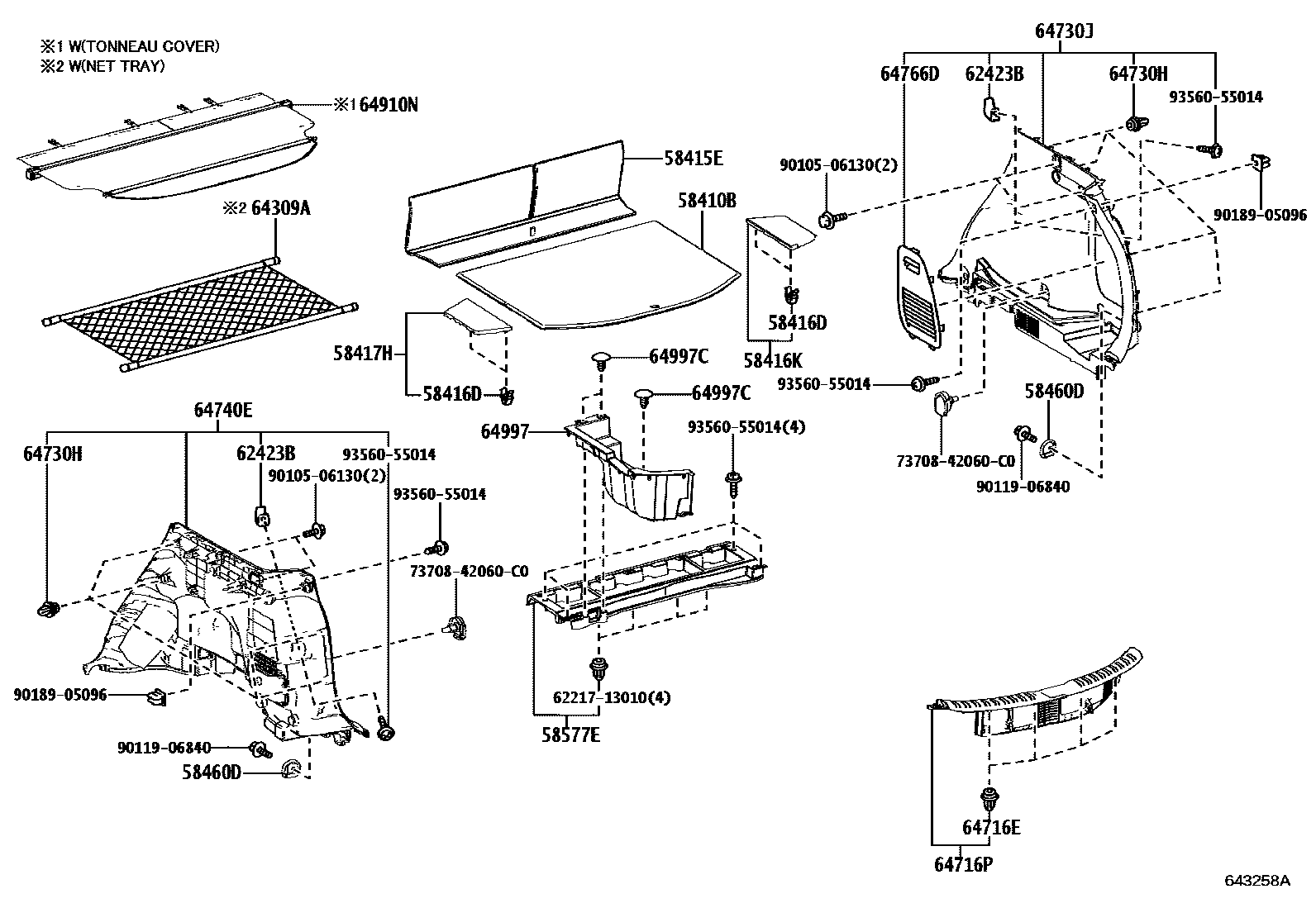

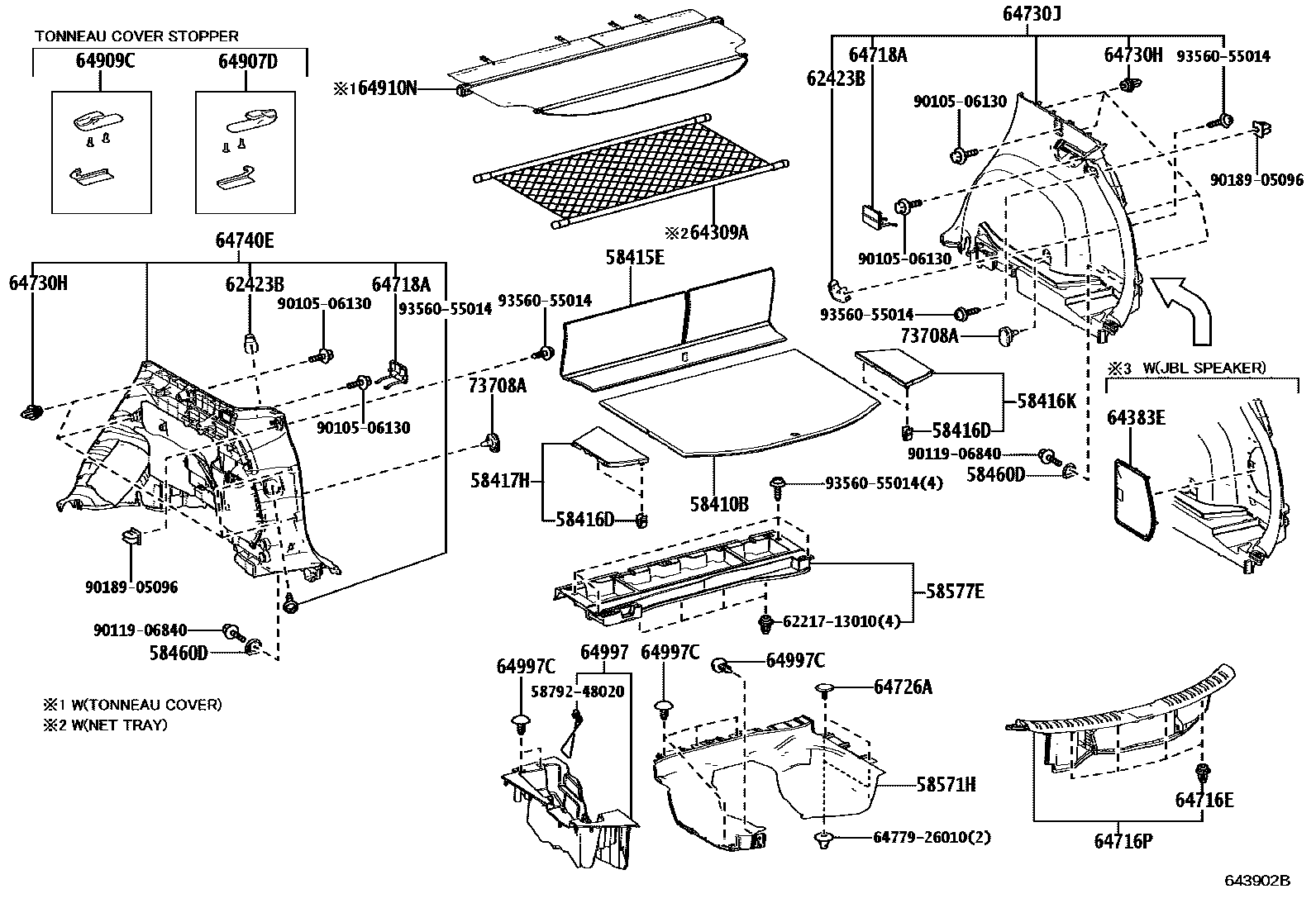

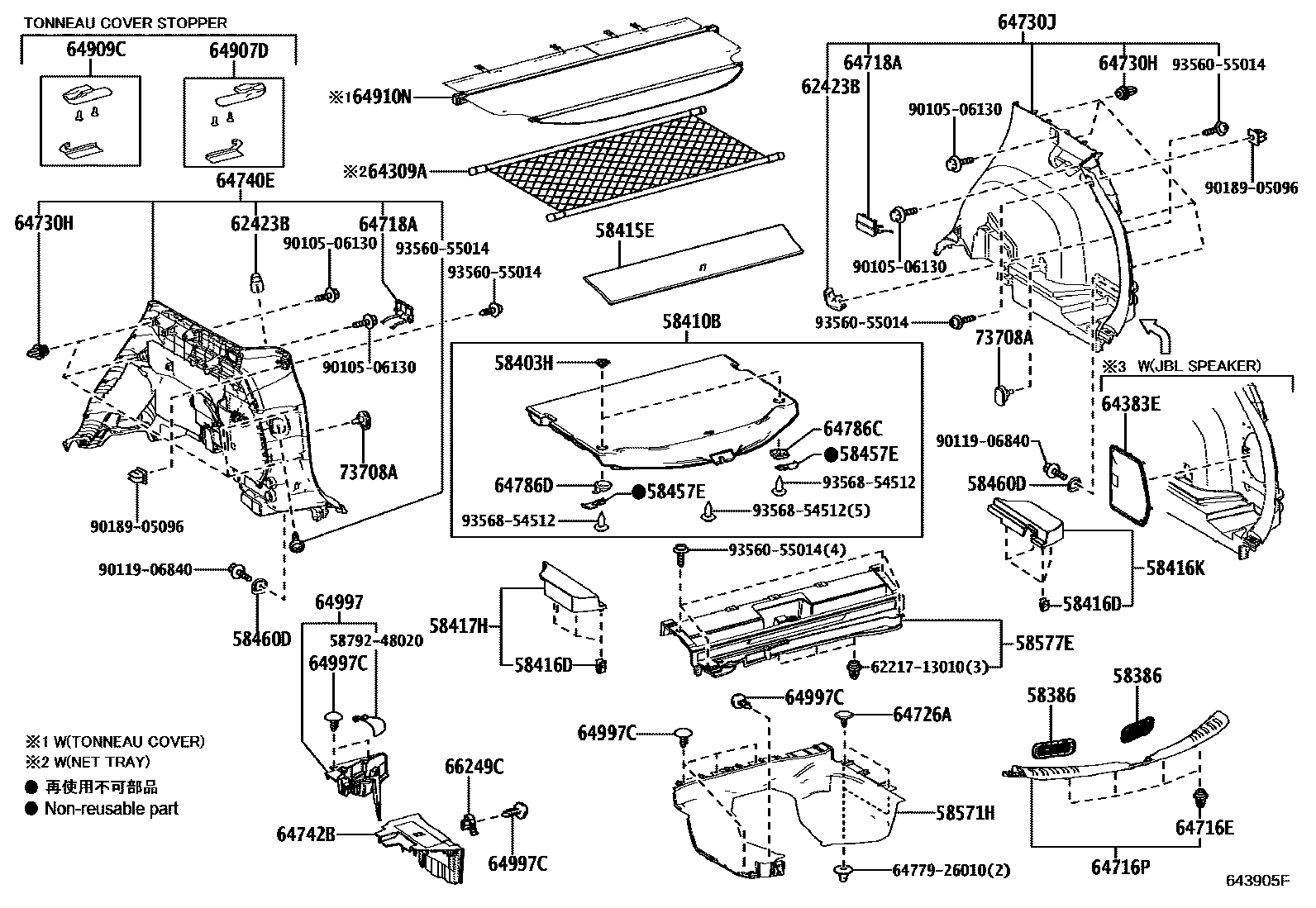

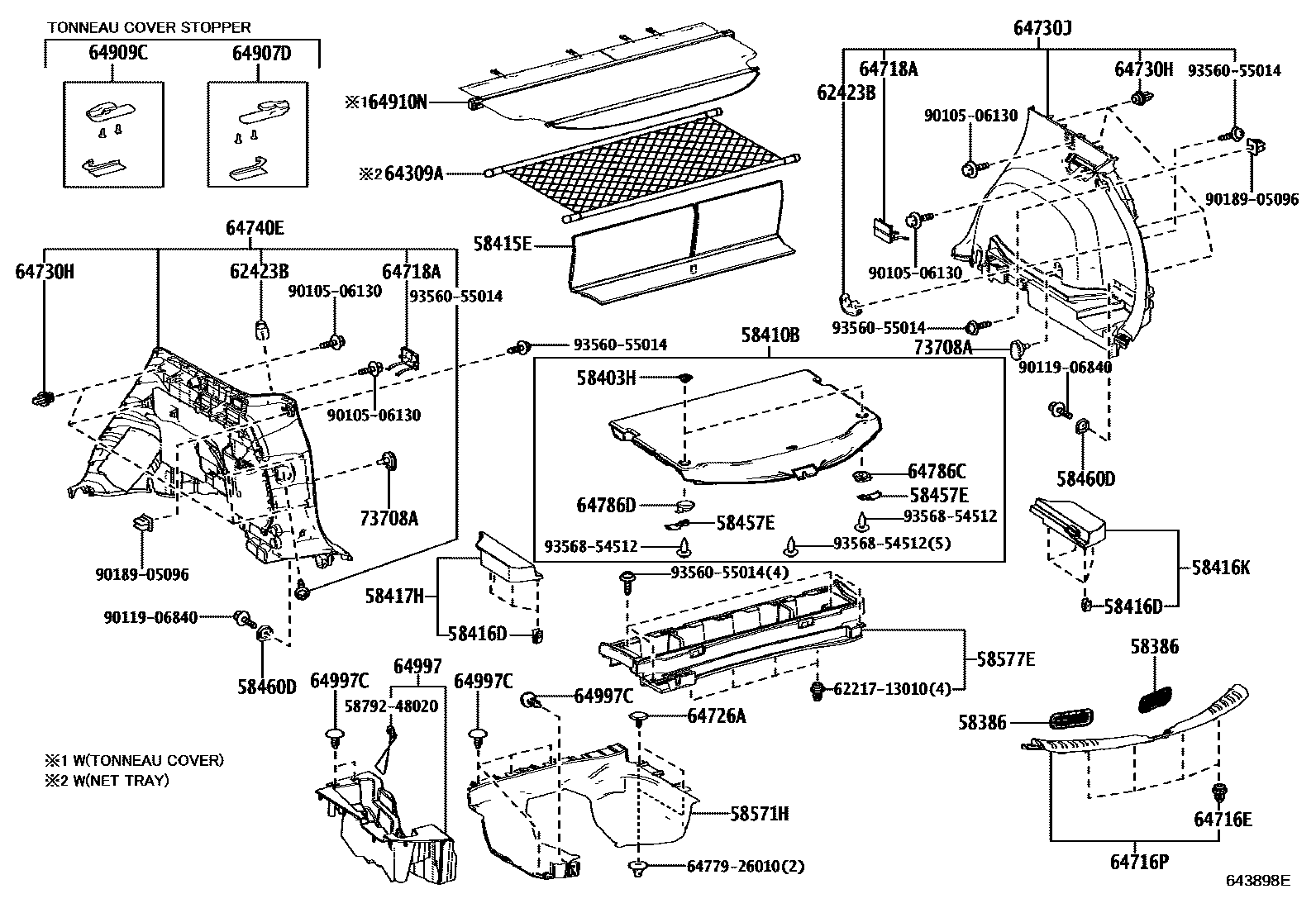

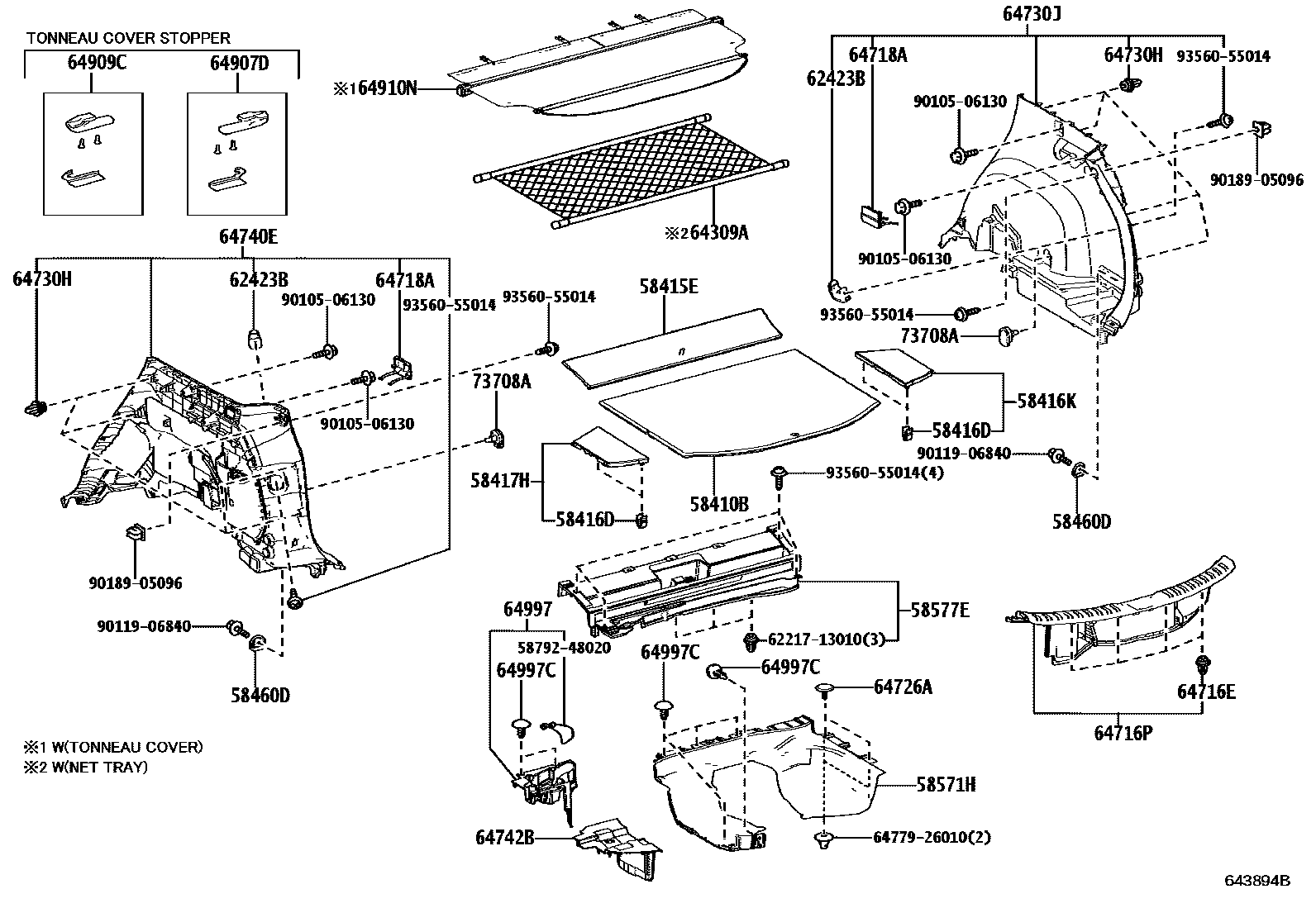

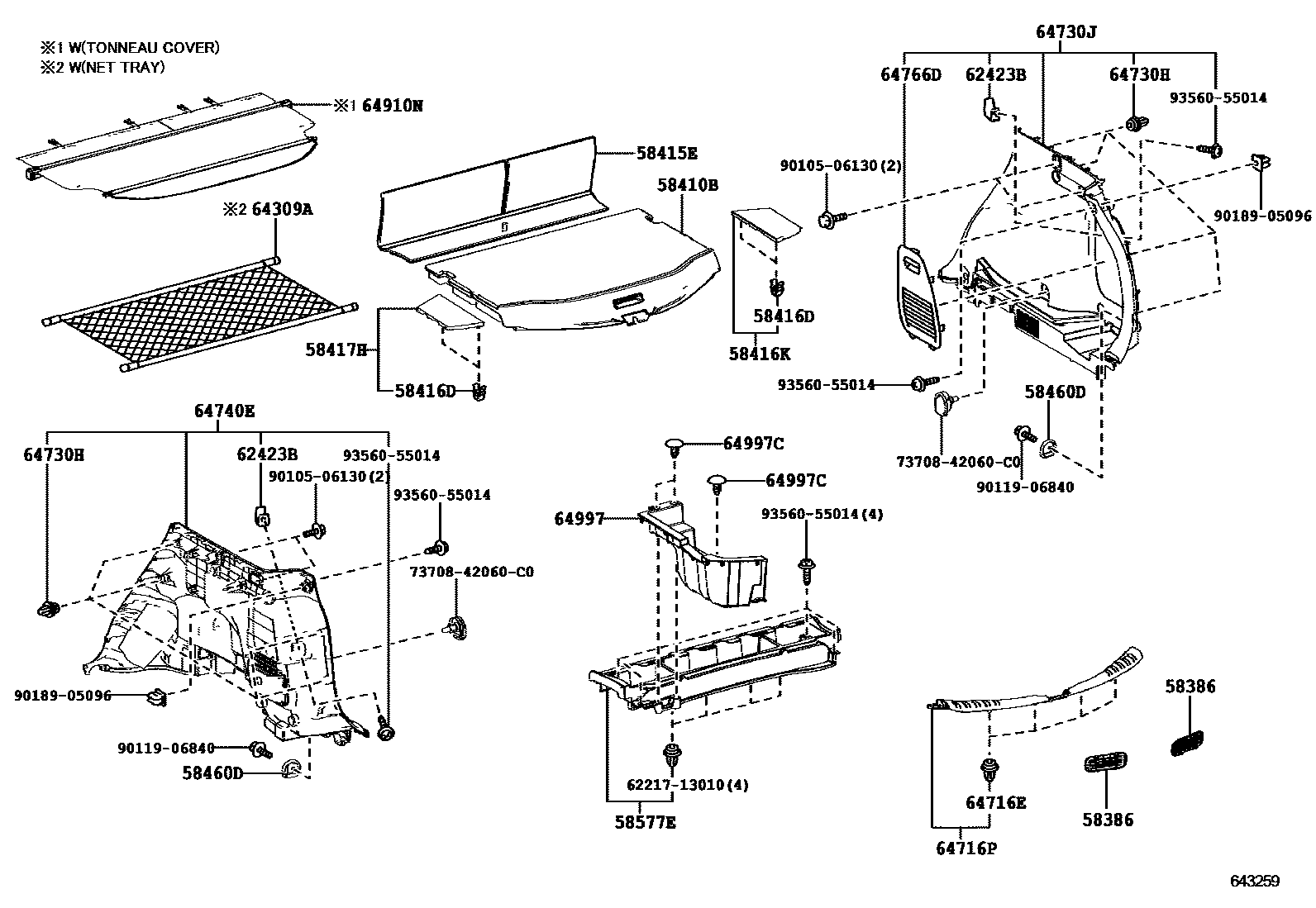

Toyota RAV4 底板和底板装饰罩 — Figure 6455
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58403H | Base plate lock spacer | 64982-47010 · 64982-47020 |
| 58416D | Rear floor clip | 90467-10201 |
| 58457E | Base plate rear bracket | 58457-12010 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58571H | rear carpet | 58571-42130 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64730J | Bottom panel right decorative panel assembly | 64730-42100 · 64730-42160 |
| 64740E | Floor left decorative panel assembly | 64740-42100 · 64740-42200 |
| 64742B | Decorative cover base on the left side of the bottom panel | 64742-42020 · 64742-42030 |
| 64786C | jack cover | 64786-47010 |
| 64786D | Jack No. 2 Cover | 64786-47020 |
| 64907D | Trunk trim cover right block sub-assembly | 64907-42010 |
| 64909C | Trunk trim cover left block sub-assembly | 64909-42010 |
| 64997 | Bottom left floor box | 64997-42010 · 64997-42050 · 64997-42060 · 64997-42070 · 64997-42080 |
| 66249C | Rear body floor left side cover | 66249-42010 |
