Toyota RAV4 车内装饰板 — Figure 6451

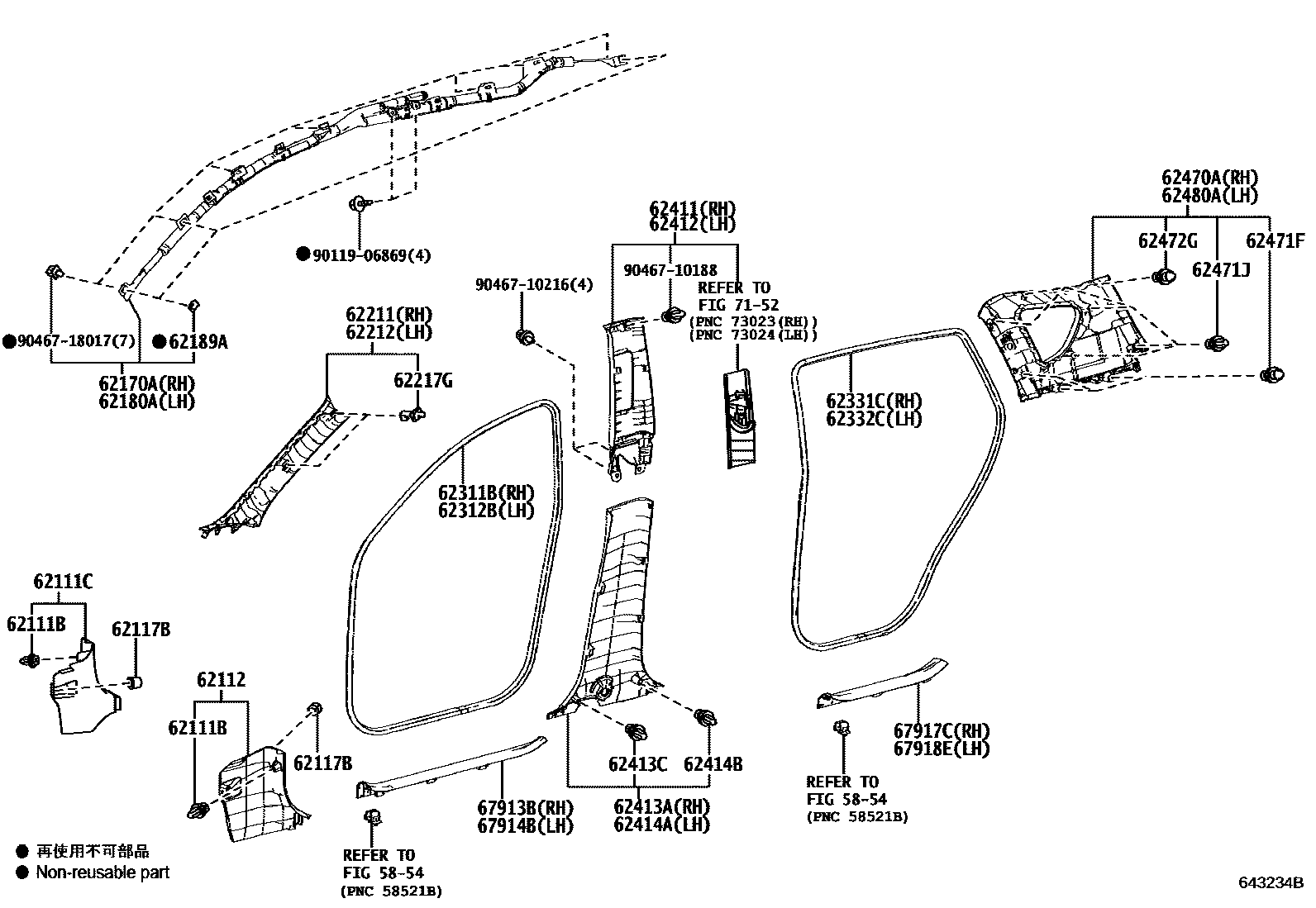

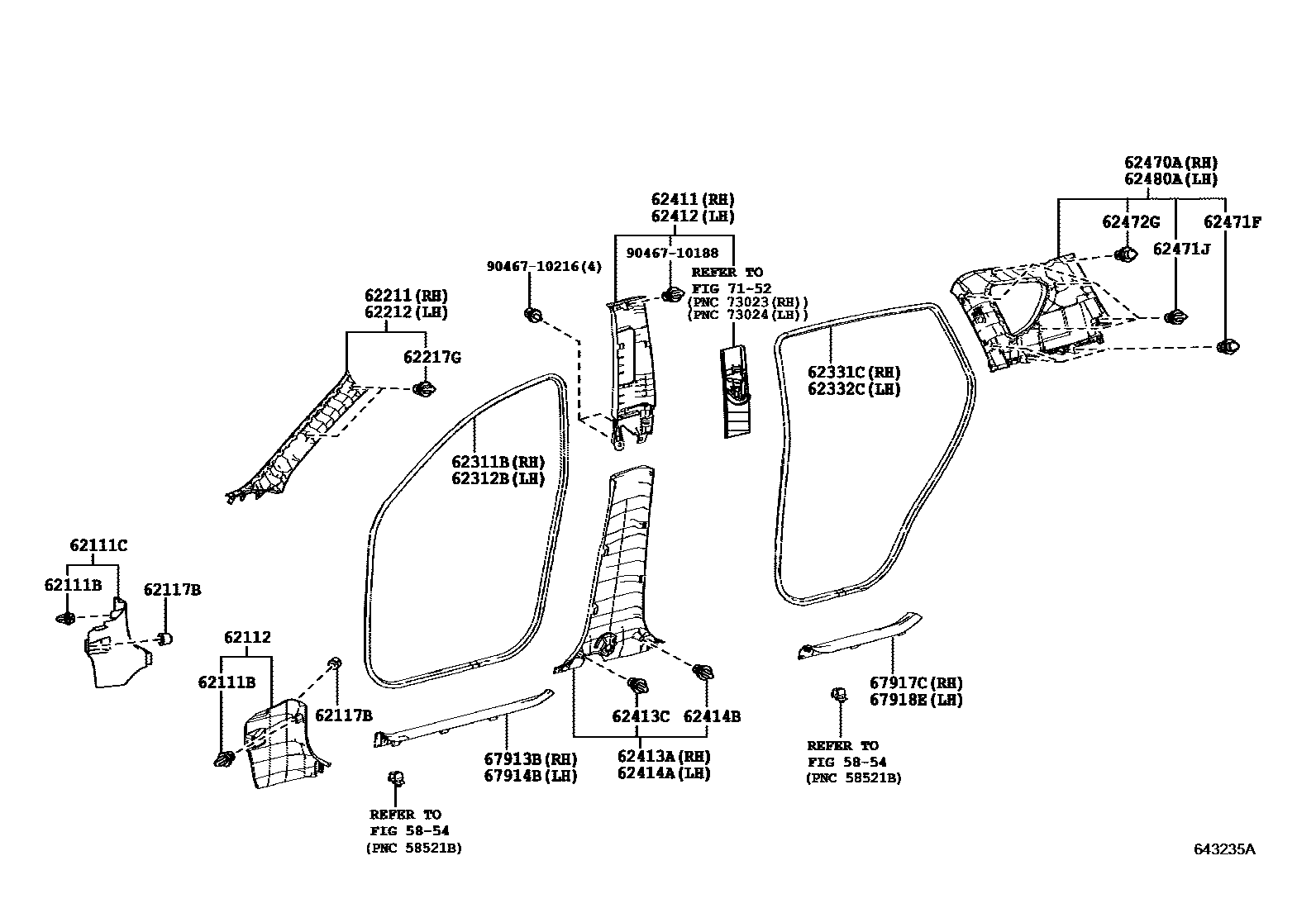

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06155 |
| 62170A | Right curtain air bag assembly | 62170-42030 |
| 62180A | Left curtain air bag assembly | 62180-42050 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62217G | Front pillar decorative plate clip | 62217-52120 · 90467-10161 |
| 62311B | Right front door opening waterproof tape | 62311-42080 · 62311-42100 |
| 62312B | Left front door opening waterproof tape | 62312-42080 · 62312-42100 |
| 62331C | Right rear door opening waterproof tape | 62331-42050 · 62331-42080 · 62331-42090 |
| 62332C | Left rear door opening waterproof tape | 62332-42050 · 62332-42080 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62414B | Clip (for the decorative panel under the center pillar) | 90467-10167 |
| 62471F | Clip (for roof side inner upper trim panel) | 90467-09236 · 90467-09240 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 |
| 62472G | Clips (for roof side trim panels) | 90467-10167 |
