Toyota RAV4 侧梁 — Figure 6151

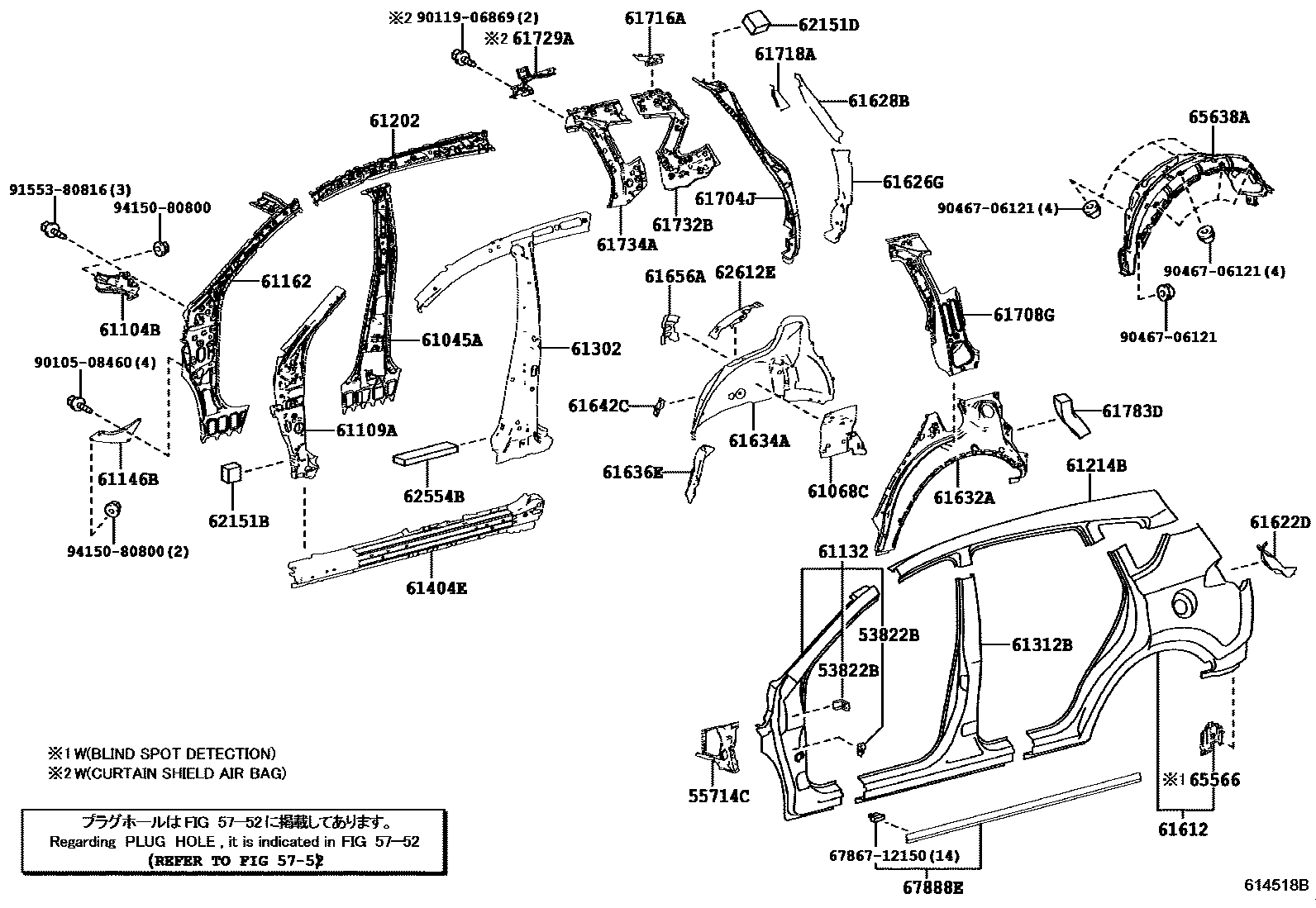

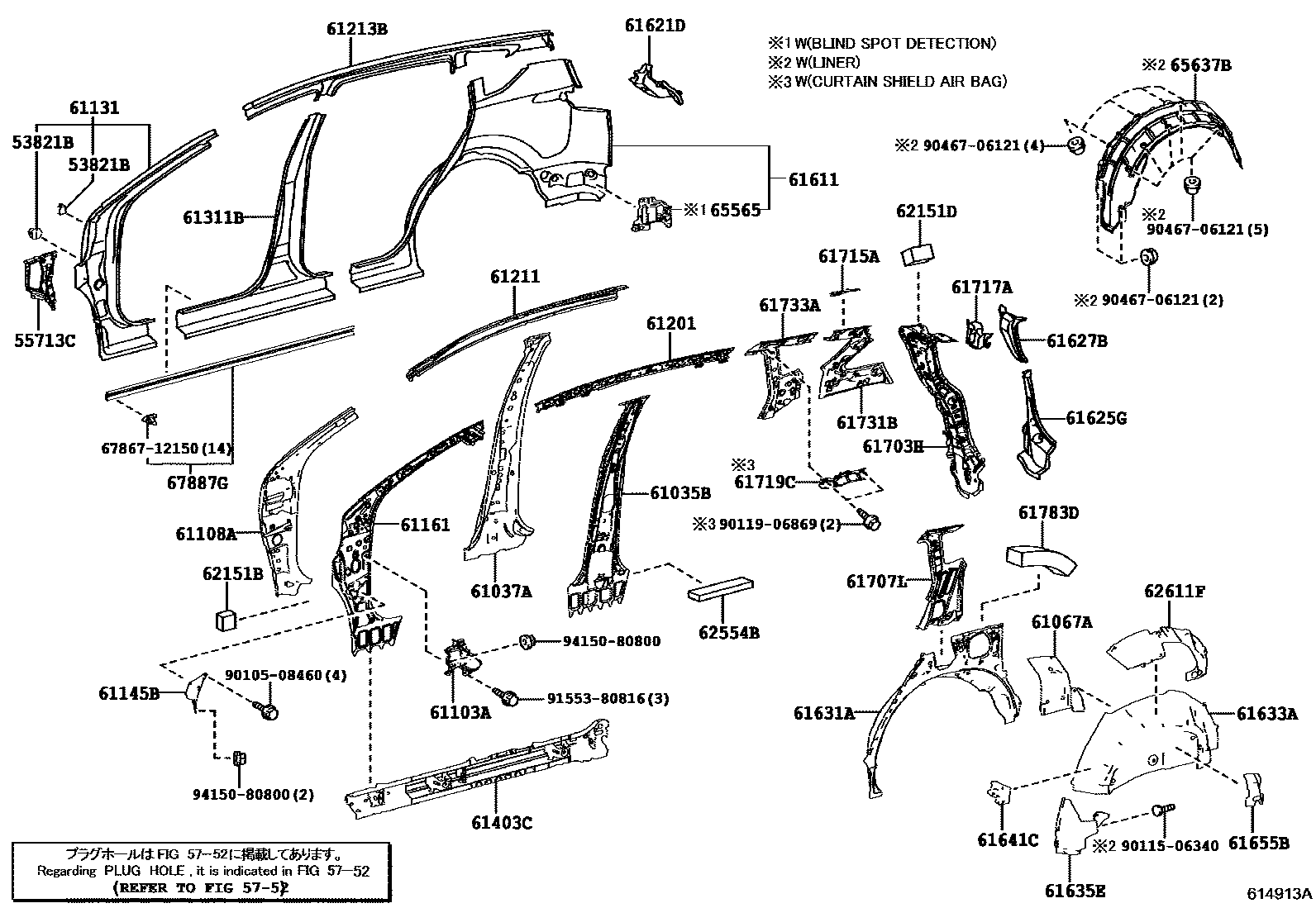

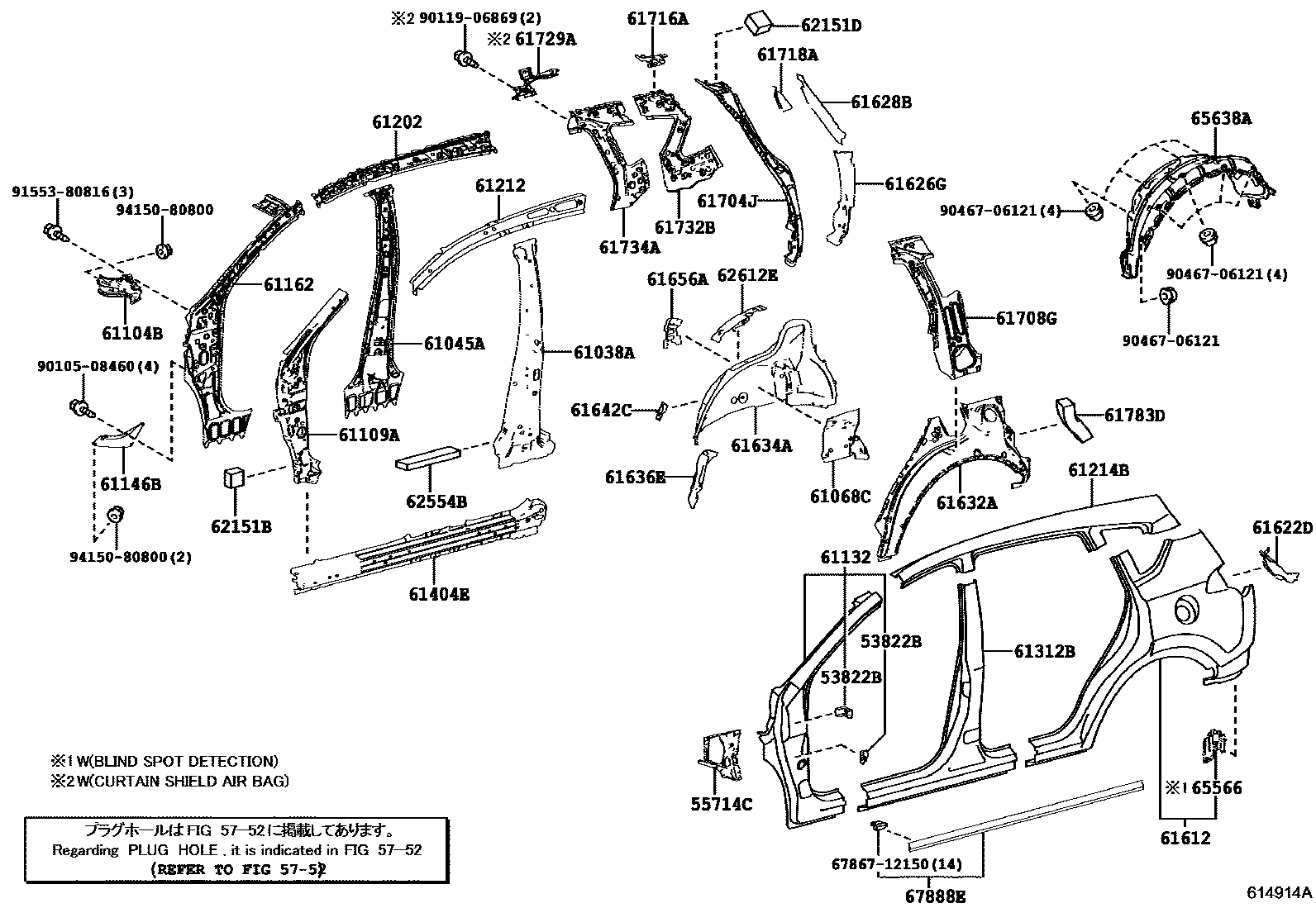

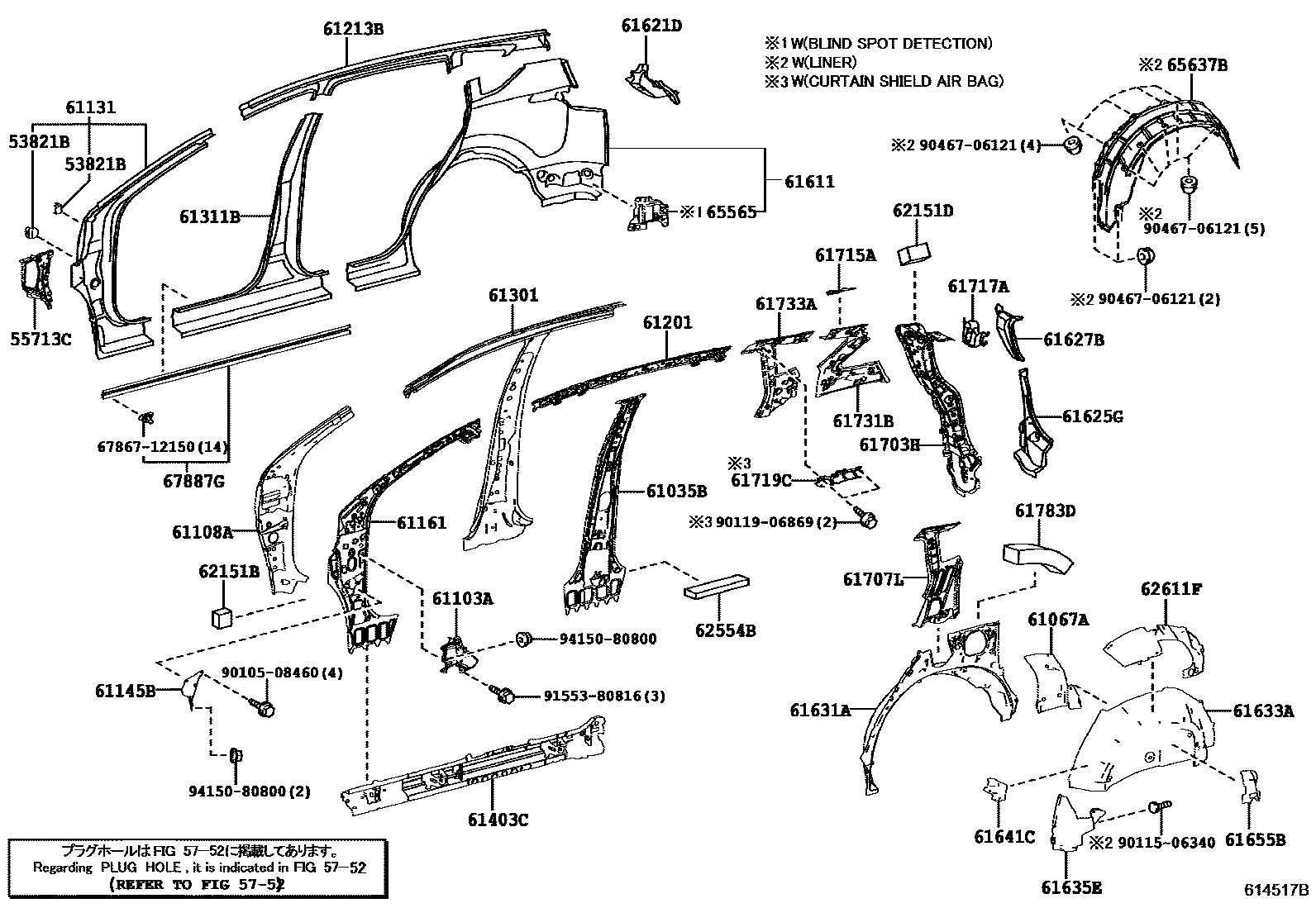

Toyota RAV4 EPC diagram 6151, 侧梁, with 4 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 55713C | Right front wall upper side panel | 55713-42060 |
| 55714C | Left front wall upper side panel | 55714-42050 · 55714-42060 |
| 61035B | No. 4 right inner column sub-assembly | 61035-42030 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-42020 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-42020 |
| 61045A | No. 4 left inner column sub-assembly | 61045-42040 |
| 61067A | Right rear side panel inner panel extension sub-assembly | 61067-42010 |
| 61068C | Left rear side panel inner panel extension section sub-assembly | 61068-42021 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-42030 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-42030 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-42904 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-42904 |
| 61131 | Right body outer front upper pillar | 61131-42210 |
| 61132 | Left body outer front upper pillar | 61132-42180 |
| 61145B | Right body front pillar lower corner panel | 61145-42020 |
| 61146B | Left body front pillar lower corner panel | 61146-42020 |
| 61161 | Right upper body inner front pillar | 61023-42120 |
| 61162 | Left side inner front upper pillar | 61024-42120 · 61024-42121 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-42050 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-42050 |
| 61211 | Roof right outer longitudinal beam | 61211-42070 |
| 61212 | Roof left outer longitudinal beam | 61212-42070 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-42030 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-42030 |
| 61301 | Right body center pillar sub-assembly | 61301-42901 |
| 61302 | Left body center pillar sub-assembly | 61302-42901 |
| 61311B | Right body outer center pillar | 61311-42040 |
| 61312B | Left body outer center pillar | 61312-42040 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-42050 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-42050 · 61404-42051 |
| 61611 | Right side hoarding | 61601-42100 |
| 61612 | left side panel | 61602-42100 |
| 61621D | Back door right opening slot | 61621-42050 |
| 61622D | Rear door left opening slot | 61622-42050 |
| 61625G | Right rear side panel extension | 61625-42050 |
| 61626G | Left rear side panel extension | 61626-42050 |
| 61627B | Right rear side panel extension | 61627-42050 |
| 61628B | Extension on left rear side panel | 61628-42070 |
| 61631A | Right wheel cover outer panel | 61631-42070 · 61631-42080 |
| 61632A | Left side wheel cover outer panel | 61632-42080 |
| 61633A | Right wheel housing lining panel | 61633-42061 · 61633-42070 |
| 61634A | Left side wheel housing lining panel | 61634-42070 |
| 61635E | Right wheel housing extension | 61065-42011 |
| 61636E | Left side wheel housing extension | 61066-42010 |
| 61641C | Right front side wheel housing corner panel | 61641-42020 · 61641-42030 |
| 61642C | Left front side wheel housing corner panel | 61642-42020 |
| 61655B | Right side wheel cover inner corner panel | 61655-42030 |
| 61656A | Left side wheel housing inner corner panel | 61656-42020 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-42060 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-42060 |
| 61707L | Right front roof inner panel sub-assembly | 61707-42060 |
| 61708G | Left front roof inner panel sub-assembly | 61708-42080 |
| 61715A | Roof right inner upper extension | 61715-42060 |
| 61716A | Roof left inner upper extension | 61716-42060 |
| 61717A | Right side panel extension reinforcement | 61717-42020 |
| 61718A | Left side bulkhead extension reinforcement | 61718-42020 |
| 61719C | Roof right side rail bracket | 61719-42030 |
| 61729A | Roof left side rail bracket | 61729-42040 |
| 61731B | Roof right inner panel | 61731-42130 |
| 61732B | Roof left inner panel | 61732-42130 |
| 61733A | Right front roof inner panel | 61733-42040 |
| 61734A | Left front roof inner panel | 61734-42040 |
| 61783D | No. 1 rear fender outer panel pad | 61783-42170 · 61783-48010 |
| 62151B | Front cowl side silencer pads | 62151-42010 |
| 62151D | Front cowl side silencer pads | 62151-68020 |
| 62554B | No. 4 column pad | 62554-42030 |
| 62611F | Right wheel cover vibration isolation pad | 62505-42030 |
| 62612E | Left side wheel cover vibration isolation pad | 62506-42030 |
| 65565 | Right side panel rear end lining | 65565-42020 |
| 65566 | Left side panel rear end lining | 65566-42020 |
| 65637B | Right rear wheel house lining | 65637-42010 |
| 65638A | Left rear wheel house lining | 65638-42010 |
| 67887G | Right door sill panel outer sealing strip | 67863-42030 |
| 67888E | Left side door sill panel outer sealing strip | 67864-42010 |
