Toyota RAV4 后保险杠及附件 — Figure 5253

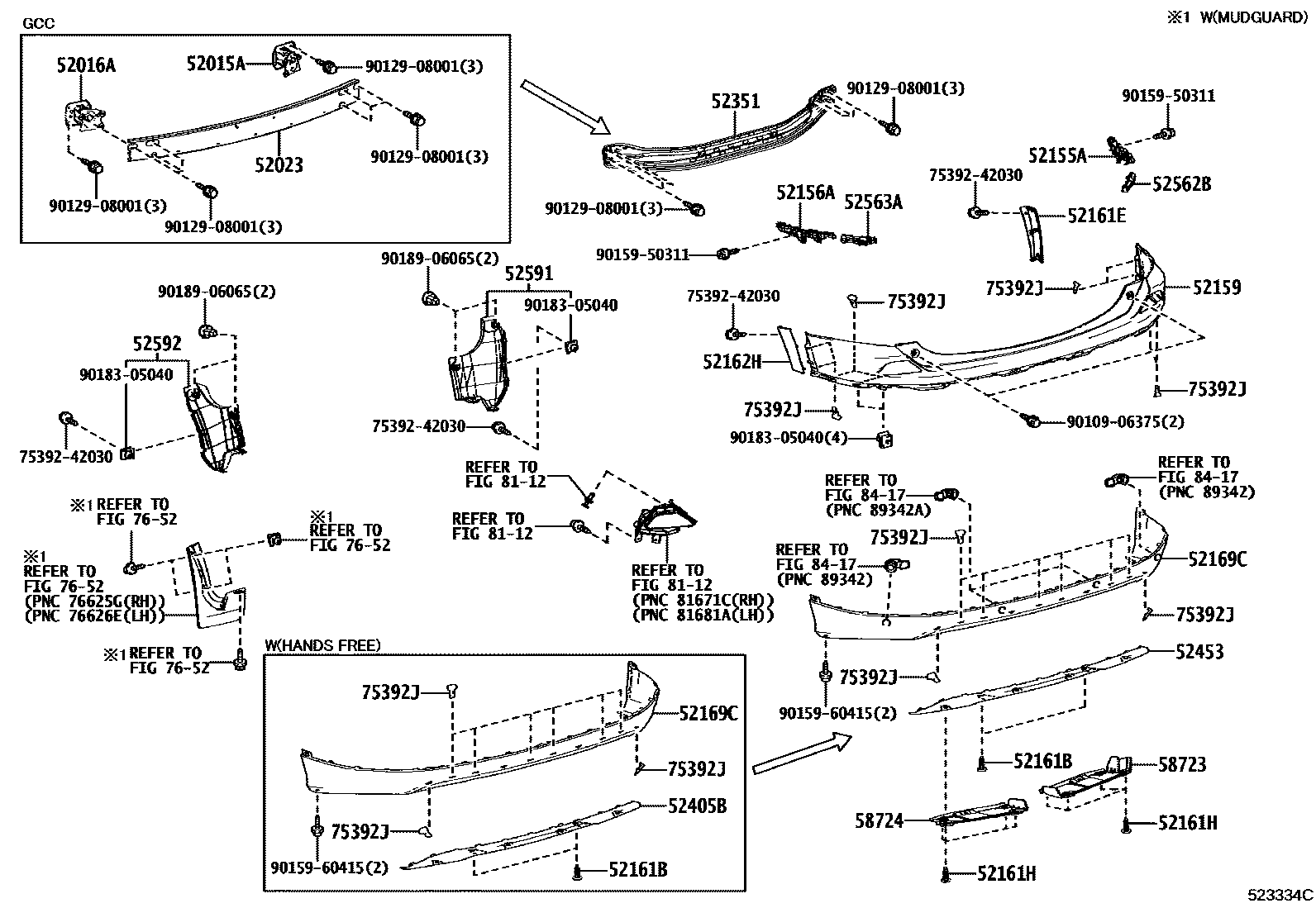

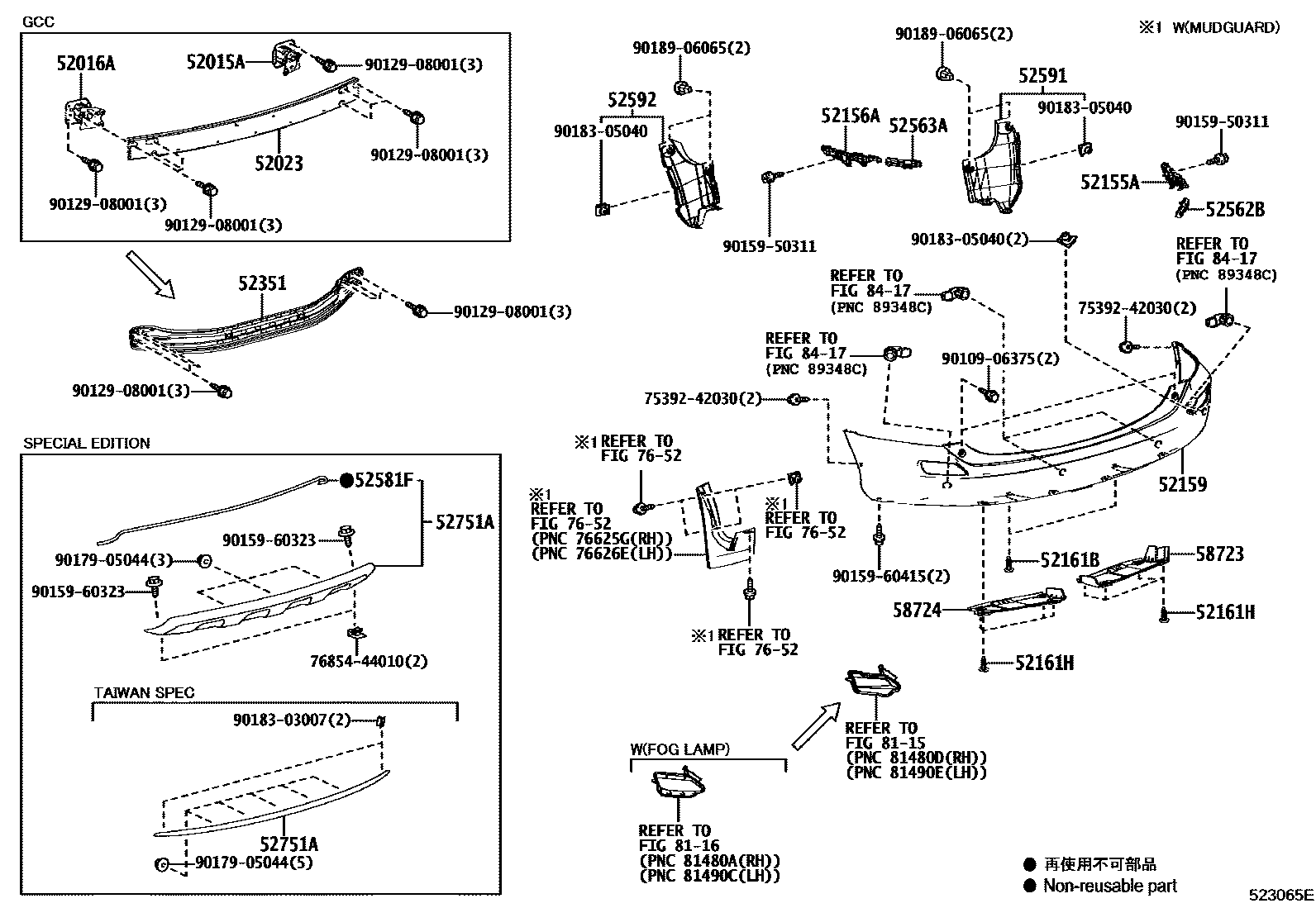

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-42011 |
| 52016A | Rear bumper left arm sub-assembly | 52016-42011 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-42040 · 52171-42030 |
| 52155A | Rear bumper right side bracket | 52155-42030 · 52155-42040 |
| 52156A | Rear bumper left bracket | 52156-42010 · 52156-42020 |
| 52159 | rear bumper cover | 52159-42190 · 52159-42200 · 52159-42210 · 52159-42240 · 52159-42250 · 52159-42930 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52161E | Rear bumper right extension | 52161-42400 · 52161-42942 |
| 52161H | Rear bumper insert | 52161-16010 |
| 52162H | Rear bumper left extension | 52162-42420 · 52162-42942 |
| 52169C | Rear bumper lower cover | 52169-42010 · 52169-42020 · 52169-42901 |
| 52351 | Rear bumper running boards | 52351-42020 |
| 52453 | Rear bumper center anti-collision bar | 52453-42010 · 52453-42900 |
| 52562B | Rear bumper upper right fixing bracket | 52562-42020 · 52562-42050 |
| 52563A | Rear bumper upper left fixing bracket | 52563-42030 · 52563-42040 |
| 52581F | rear bumper protector | 52581-42070 |
| 52591 | Rear bumper right seal | 52591-42080 · 52591-42090 |
| 52592 | Rear bumper left seal | 52592-42080 · 52592-42090 |
| 52751A | Rear bumper center protective strip | 52751-42010 · 52751-42020 · 52751-42030 |
| 58723 | Trunk access cover No. 1 protective part | 58723-42010 · 58723-42020 · 58723-42050 |
| 58724 | Luggage trunk access cover No. 2 protective parts | 58724-42010 · 58724-42020 · 58724-42050 |
| 75392J | External protective strip fixings | 75392-35220 |
